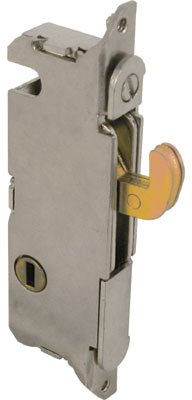

Prime-Line E2013 Patio Door Mortise Lock

Prime Line (Previously Slide-Co) E2013 Patio Door Mortise Lock offers a reliable solution for replacing worn or broken sliding door locks without the need to replace the entire door. This durable mortise lock is designed for surface-mounted sliding patio doors constructed from wood, aluminum, or vinyl, and is compatible with W&F manufactured handles. Its spring-loaded hook latch provides a secure closure, ensuring that your patio area remains safe. Measuring 3-11/16 inches between the mounting holes, the E2013 features a vertical keyway position when locked, enhancing both security and convenience. Constructed from corrosion-resistant stainless steel, the housing and faceplate ensure long-lasting durability in various weather conditions. To ensure a perfect fit, it is essential to compare the lock with your existing system by examining the distance between mounting holes, faceplate shape, slotted keyway position, and rear housing corner shape. This product not only simplifies the repair process but also provides peace of mind by reinforcing the security of your sliding doors. Choose the E2013 for an efficient and effective replacement that meets your patio security needs.

Patio Door Mortise Lock

When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise lock! This E 2013 mortise lock has an adjustable, spring-loaded hook latch projection for surface-mounted sliding patio doors constructed of wood, aluminum and vinyl with handle sets with vertical keyway position when in the locked position. It also fits doors using W&F manufactured handles. The mounting hole centers of this lock measures 3-11/16 inch from center to center, and the rear housing corners are square.

Selection Tip:

• To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing):
• The distance of the mounting holes measured from center to center
• The faceplate ends; rounded or square
• The position of the slotted keyway when in the locked position; at 45-degree angle or vertical
• The shape of the housing corners at the rear; square or slanted

Features:

• Replace old or Broken Door Locks: When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise door lock
• For Sliding Doors: This mortise lock replacement can be used on sliding patio doors constructed of wood, aluminum and vinyl, and fits on W and F manufactured handles
• Vertical Degree Keyway: This E 2013 mortise lock has a vertical keyway position when in the locked position.
• Strong and Durable: This patio door mortise lock set is constructed of a corrosion-resistant stainless steel housing and stainless steel faceplate
• Dimensions: The mounting holes of the mortise latch are spaced apart at 3-11/16 inch on center; for all dimensional information please refer to the line art and compare to your needs before purchasing
