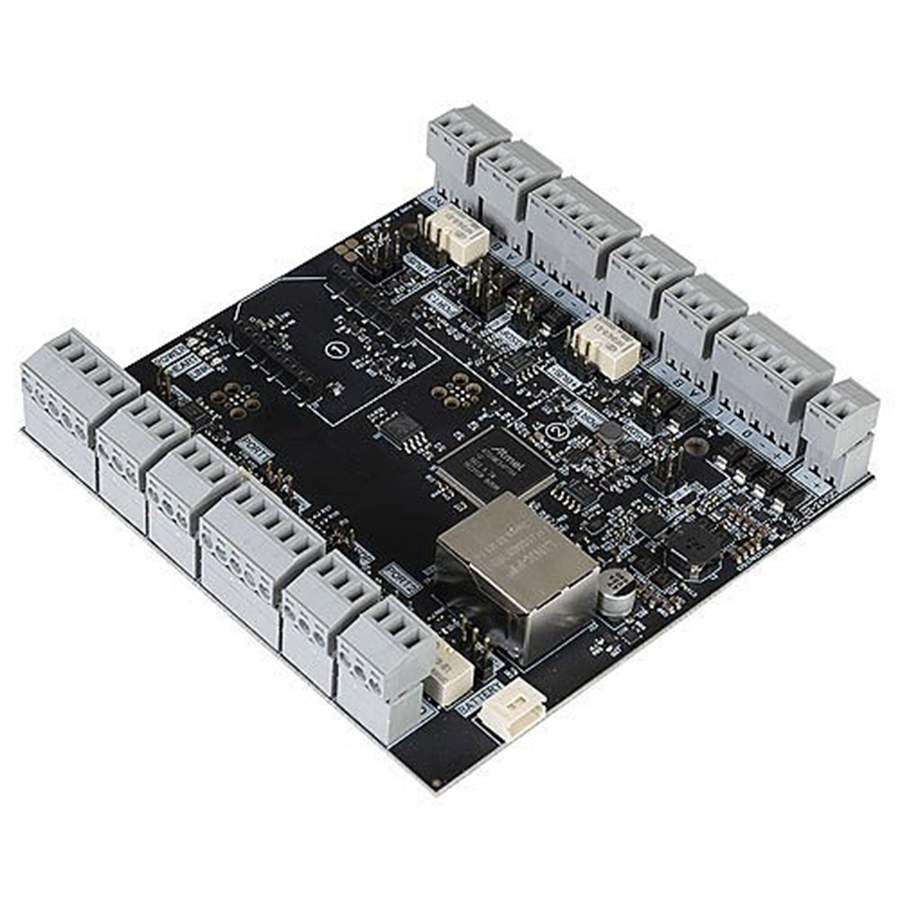

Prodatakey R4E Four Door Controller Expansion Board with Ethernet, OSDP, Wiegand, PoE++

Prodatakey R4E Four Door Controller Expansion Board delivers a robust solution for modern access control needs, featuring built-in Ethernet connectivity and self-discovery capabilities that streamline IP configuration. This controller simplifies installation, allowing users to connect effortlessly without the need to manually enter IP addresses. The R4E is equipped with advanced OSDP functionality, ensuring secure communications with AES 128-bit encryption-making it a leader in the industry for safety and reliability. This expansion board supports scalability, enabling you to add doors as needed, whether for a small or large installation. Its onboard power supply and fully-supervised power circuit monitor input, output, battery voltage, and overall health of the controller, providing peace of mind. Additionally, the R4E features plug-and-play connectivity, making it easy to integrate with other devices using optional WiMAC wireless or PoE++ modules. With four industrial-grade 2A form-C relays and multiple communication options, including WiMAC™ and PoE++, this controller is versatile for various applications. Designed to operate in a wide temperature range and high humidity environments, the Prodatakey R4E is a reliable choice for any access management system. Enhance your security infrastructure with this powerful and flexible expansion board.

Four Door Controller Expansion Board, Ethernet, OSDP, Wiegand, Battery Monitoring, Optional Wireless and PoE++

Red 4 controller includes built-in Ethernet connectivity and self-discovery, simplifying IP configuration and functionality. Additional plug-and-play connection options are available by simply purchasing a Red WiMAC wireless or PoE++ module kit. The Red 4 is equipped with OSDP functionality, an onboard power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.

Features:

• Advanced Security: Red products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
• Self Discoverable: The red 4 will be automatically discovered by the cloud node when an ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
• Power Monitoring: Equipped with an onboard power supply and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
• Module kits: Additional WiMAC and PoE++ plug-and-play connection kits can be added by purchasing the respective wireless or PoE kit. Plug the module into the PDK red 4 board, and it's ready to go.
• Plug N’Play Connectivity: All PDK red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device, no matter how large the job is.
• System Scalability: Whether you need two doors or a thousand, the PDK red 4 controller gives you the flexibility to add more doors anytime, anywhere, on any device.

Specifications:

• Connections:
• Removable screw-down terminals.
• Built-in power supply.
• (4) Industrial-grade 2A form-C relays.
• (4) Reader
• (4) Input A
• (4) Input B
• Communication Options:
• Ethernet.
• WiMAC™ Wireless (2.4 GHz/ 802.15.4).
• PoE++.
• Encryption: AES 128bit.
• Wireless Range: 1 Mile LoS, 450ft indoor average.
• Environmental:
• Temperature: - 4° ~ + 140° F /- 20° ~ + 60° C.
• Humidity: 0 - 95% relative humidity non-condensing
• Power:
• 12V-24V DC Input.
• Board powers readers and other door hardware directly from the bus.
• Power supplies included with purchase of Red Max Controller
• 12V 12ah backup battery not included, but must be installed to comply with UL 294.
• Enclosure: Red Expander Boards can be mounted to any Red enclosure.
