Prodatakey RDRM Mullion Reader 26bit HID Compatible, Wiegand

Prodatakey RDRM Mullion Reader offers a versatile solution for access control, seamlessly integrating with both indoor and outdoor applications. Designed with a sleek mullion style, this reader fits perfectly into door frame installations, while its single-gang variant is ideal for wall mounting. Utilizing a 125 kHz input and a 26- to 37-bit Wiegand output, the RDRM ensures compatibility with a range of access credentials, adhering to critical security standards. Constructed with secure, potted electronics, this reader is built to withstand various environmental conditions, operating effectively in temperatures ranging from -4° to +140° F and in humidity levels of 0-95% relative humidity. Weighing just 0.25 lbs for the mullion style and 0.38 lbs for the single-gang option, installation is straightforward without compromising performance. Powered by pdk.io, the Prodatakey RDRM provides real-time updates and cloud backup, ensuring you stay connected with 24-hour support (subscription required). With a voltage range of 9-18V DC and a maximum amperage of 30mA, this reader guarantees reliable performance and peace of mind. Elevate your security setup with the Prodatakey RDRM Mullion Reader-your trusted partner in access control.

Mullion Reader 26bit HID Compatible, Wiegand

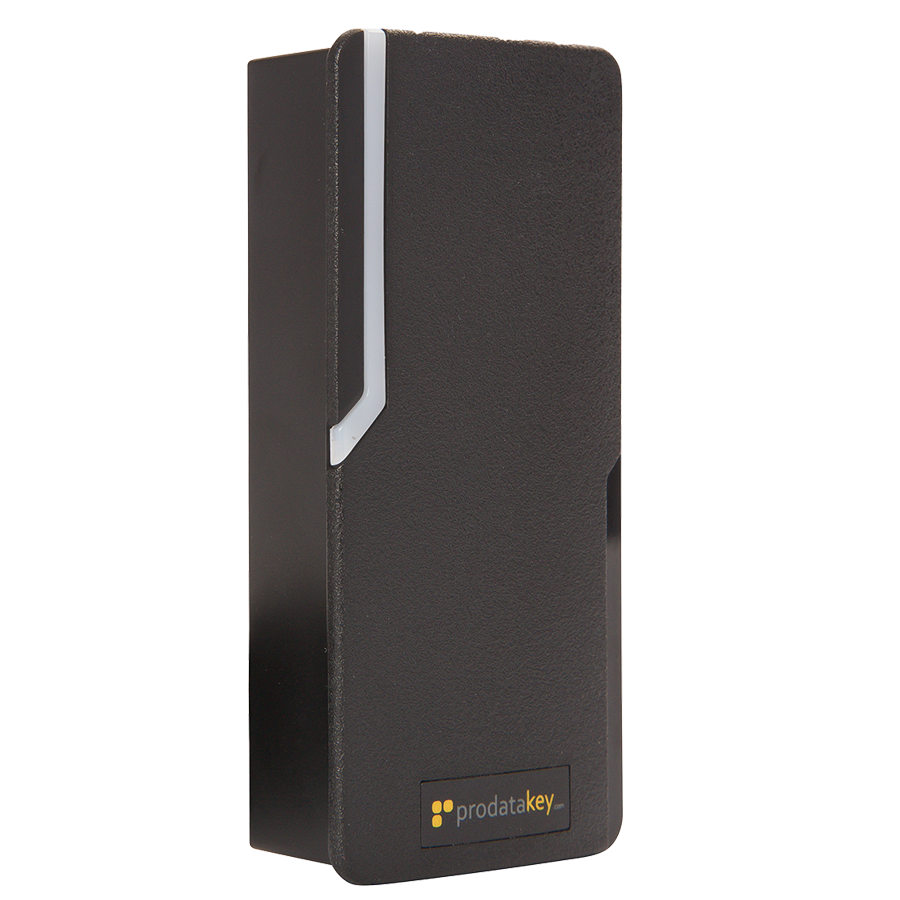

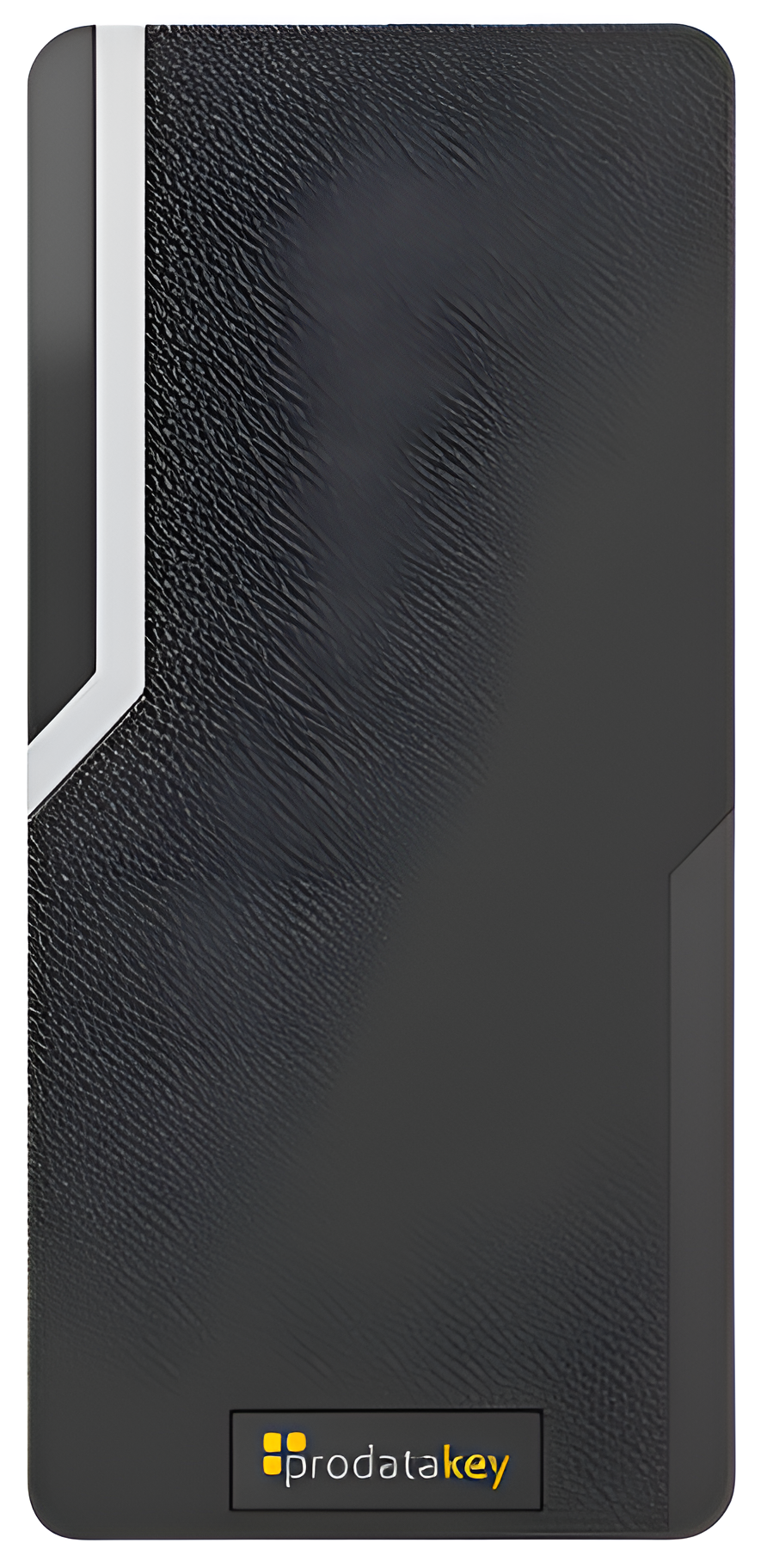

Enjoy the flexibility of using traditional readers that fit any application. The mullion style reader is just the right width, making it ideal for door frame applications. Or, use the single gang reader which is a bit wider making it perfect for wall mounting applications.

Features:

• Our standard readers use 125 kHz, 26 bit Weigand communication protocol, combining critical security standards with access credential compatibility.
• The mullion and single-gang standard reader are made with secure, potted electronics, making them perfect for both indoor and outdoor applications.
• Powered by pdk.io, the only true cloud access solution. Take advantage of real-time updates, cloud backup, 24-hour support, and more. (subscription required)

Specifications:

• Input: 125 kHz
• Output: 26- to 37-bit Wiegand protocol
• Temperature: -4° ~ +140° F /-20° ~ +60° C
• Operating Humidity: 0 - 95% relative humidity non-condensing
• Weight: Mullion: 0.25 lbs (4 oz). Single Gang: 0.38 lbs (6 oz)
• Power: 12V DC from the controller board. Max Amperage: 30mA

Resources

• Cut Sheet
