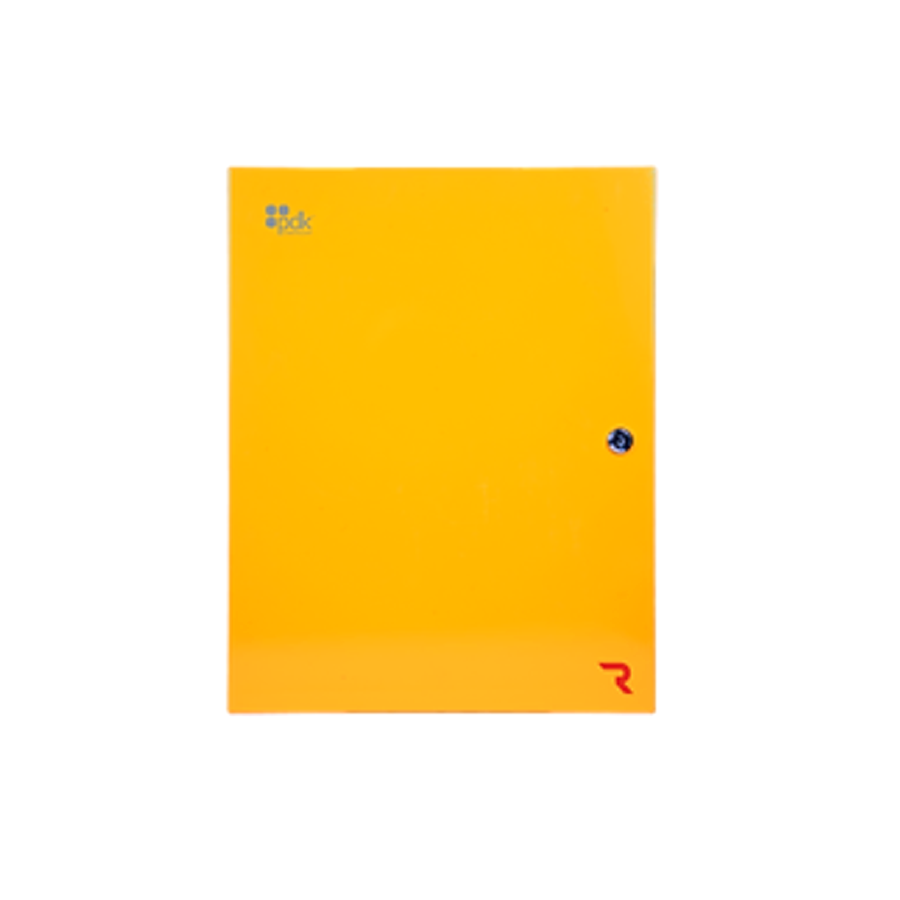

Prodatakey RMAX Red Expandable Enclosure with Two R4 Controllers Power Supplies for 24 Doors

Prodatakey RMAX Red Expandable Enclosure is an advanced solution designed for robust access control, accommodating up to 24 doors from a single enclosure. This powerful system includes two Altronix power supplies and two Red four-door expander boards, allowing for seamless scalability tailored to your needs. The RMAX enclosure comes fully equipped with features that prioritize security and efficiency. Its self-discovery capability ensures that expander boards are automatically recognized by the cloud node, eliminating the hassle of manual IP configuration. Enhanced security is achieved through industry-leading communication protocols, including OSDP and encrypted credential communication. Installation is made effortless with plug-and-play connectivity, allowing you to expand your system without complications. Monitoring features include a fully supervised power circuit that keeps track of input, output, and battery voltage, ensuring optimal controller health. With automatic updates, your access control system remains current with the latest security enhancements. Constructed from durable materials, the lockable metal enclosure measures 20.75" x 26.75" x 4.125", designed for indoor use. The RMAX operates within a temperature range of -4° to +140°F and can handle humidity levels of 0-95%, making it suitable for various environments. Experience the future of access management with Prodatakey RMAX.

Red Expandable Enclosure, Includes Two R4 Controller and Two 10 Amp Power Supplies, Expandable up to 24 Doors of Access.

Max controller is truly in a class of its own, coming fully equipped with two Altronix power supplies and two Red four-door expander boards. The Red max is fully customizable with any Red expansion board, allowing for scalability and control of up to 24 doors from one enclosure. Expander boards are available in one-door, two-door, and four-door options. Each expander includes built-in Ethernet connectivity and self-discovery, simplifying IP configuration and functionality.

Features:

• Fully Customizable: The Red max is fully customizable with any Red expansion board, allowing for scalability and control of up to 24 doors from one enclosure.
• Power Monitoring: Equipped with two Altronix power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
• Self Discoverable: The Red max expander boards will be automatically discovered by the cloud node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
• Advanced Security: Red products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
• Plug N’ Play Connectivity: All PDK Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device, no matter how large the job is.
• Automatic Updates: Experience future-proof access control that’s always up-to-date and protected with the latest security enhancements.

Specifications:

• Red 4 Expander Connections:
• Removable screw-down terminals
• Industrial-grade 2A form-C relays (4)
• Reader (4)
• Input A (4)
• Input B (4)
• Red 2 Expander Connections:
• Removable screw-down terminals
• Industrial-grade 2A gorm-C relays (2)
• Reader (2)
• Input A (2)
• Input B (2)
• Red 1 Expander Connections:
• Removable screw-down terminals
• Industrial-grade 2A form-C relays (1)
• Reader (1)
• Input A (1)
• Input B (1)
• Aux 8 Expander Connections:
• Removable screw-down terminals
• Built-in power supply
• Industrial-grade 2A form-C relays (8)
• Inputs (8)
• Communication Options: Ethernet
• Environmental:
• Temperature: -4° ~ +140° F /-20° ~ +60° C
• Humidity: 0 - 95% relative humidity non-condensing
• Enclosure:
• Dimensions (W x H x D): 20.75" x 26.75" x 4.125"
• Metal lockable security can (indoor use only)
• Power:
• 12 VDC
• Power readers and other door hardware using the built-in bus.
• 10A concurrent max on the bus
• 8 ah backup battery not included but is required to comply with UL 294.
• Note: for proper operation, use the provided power supply. When not using the provided power supply, PDK recommends using a regulated power supply that outputs no greater than 24 volts as measured with a multimeter.
• Included Power Supply:
• Altronix eFlow 102NB (2)
• 120VAC 60Hz input
• 12VDC output
