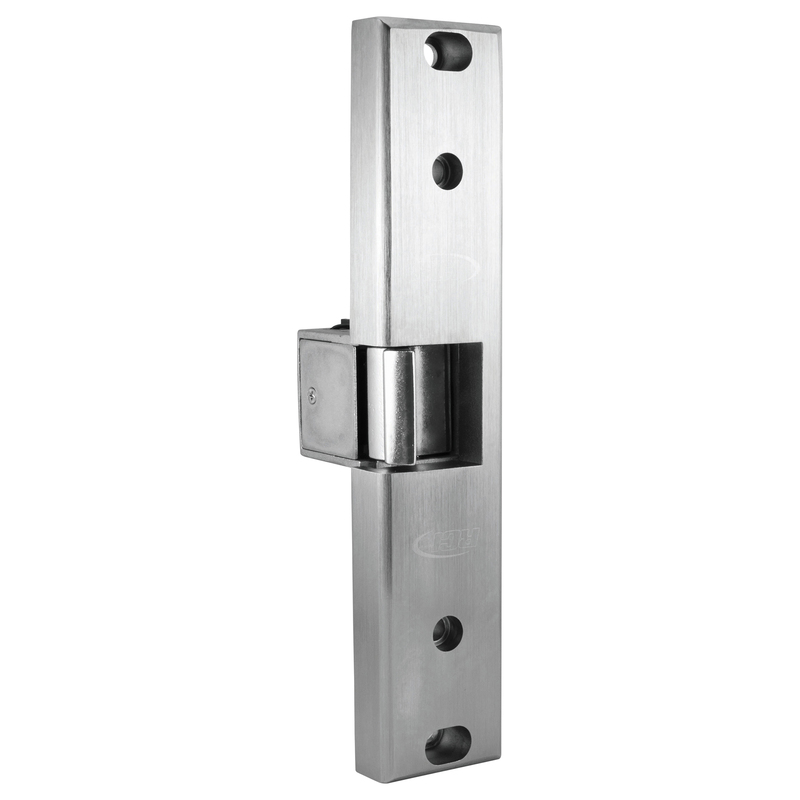

RCI 0161-05 32D 0 Series Rim Exit Strike is a robust electric strike designed for use with Pullman latch rim exit devices. Featuring a semi-mortise design, this strike accommodates latch projections from 1/2" to 3/4" (13mm-19mm), making it a versatile choice for various door types. With a fail secure function, it ensures that the door remains locked in the event of a power failure, providing added security for controlled access areas. Built from durable stainless steel, the RCI 0161-05 is finished in a matte silver (630/US32D) that complements any commercial environment. It is certified to ANSI/BHMA standard A156.31, Grade 1, and is rated for an impressive endurance of 500,000 cycles, ensuring long-lasting performance in high-traffic areas such as public buildings, fire-rated openings, and industrial environments. This electric strike operates at 12VAC/DC with a low amp draw of .15 Amps at 12VAC and .20 Amps at 12VDC, making it energy efficient. The faceplate measures 9" x 1-3/4" with a depth of 3/4", suitable for both metal and wood frame applications. With a limited 3-year warranty, the RCI 0161-05 32D 0 Series Rim Exit Strike is a reliable choice for enhancing door security.
0 Series Rim Exit Strike
Electric Strike, 3/4" Semi-Mortise for Rim Devices, 12VAC/DC, Fail Secure, Satin Stainless Steel
Semi-mortise rim strike designed for use with Pullman latch rim exit devices . Accommodates 1/2" to 3/4" (13mm-19mm) latch projection. Certified to ANSI/BHMA standard A156 .31, Grade 1, endurance 500,000 cycles
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Amp Draw: .15 Amps at 12VAC, .20 Amps at 12VDC
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Depth: 3/4"
Faceplate Size: 9" x 1-3/4"
Finish: 630/US32D
Finish Family: Matte Silver
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Function: Fail Secure
Installation: Commercial
Limited Warranty: 3 Years
Operating Voltage: 12 VAC/DC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 7.85943E+11
