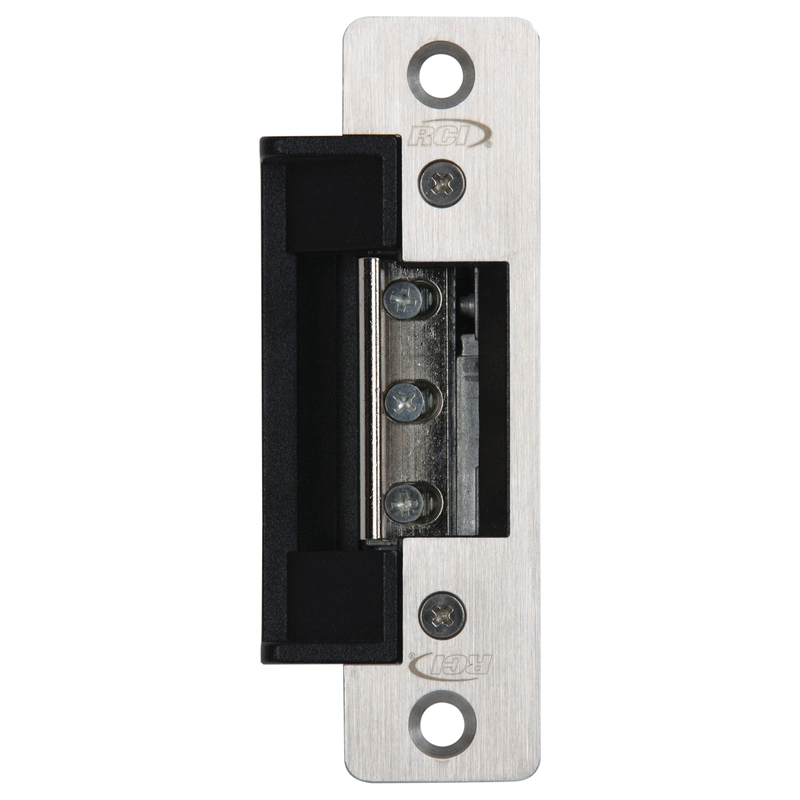

RCI 7114-05D 32D 7 Series Adj Strike 12VDC is a robust electric strike designed for reliability and versatility in various applications. With a faceplate measuring 4-7/8" x 1-1/4" and crafted from durable satin stainless steel, this strike not only offers a sleek matte silver finish but also ensures long-lasting performance against wear and tear. Engineered for 5/8" projection latches, the RCI 7114-05D features an adjustable design that accommodates a range of door thicknesses from 1-3/8" to 2-3/8" (35mm-60mm). It includes a horizontal adjustment of 1/8" (3.2mm), providing flexibility for installation in various frame types, particularly metal frames. Operating at 12 VDC with a low amp draw of just 0.28 Amps, this fail secure electric strike is ideal for use in public buildings, controlled access areas, fire-rated openings, and industrial environments. The strike is compatible with cylindrical locks, mortise exit, and latch locks, ensuring seamless integration into existing security systems. Backed by a limited 3-year warranty, the RCI 7114-05D electric strike offers peace of mind and dependable security for commercial installations.
7 Series Adj Strike 12VDC
Electric Strike, 4-7/8" Faceplate, For 5/8" Projection Latches, 12 VDC, Fail Secure, Satin Stainless Steel Finish
7 Series Centerline Strikes accommodates 5/8" (16mm) latch projection . Various faceplate options available to accommodate most frame types . 1/8" (3 .2mm) horizontal adjustment Use with wide range of door thicknesses 1-3/8" to 2-3/8" (35mm-60mm).
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Manufacturer surcharge: $ 0.0
Amp Draw: .28 Amps
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 630/US32D
Finish Family: Matte Silver
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal
Function: Fail Secure
Installation: Commercial
Limited Warranty: 3 Years
Operating Voltage: 12 VDC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
