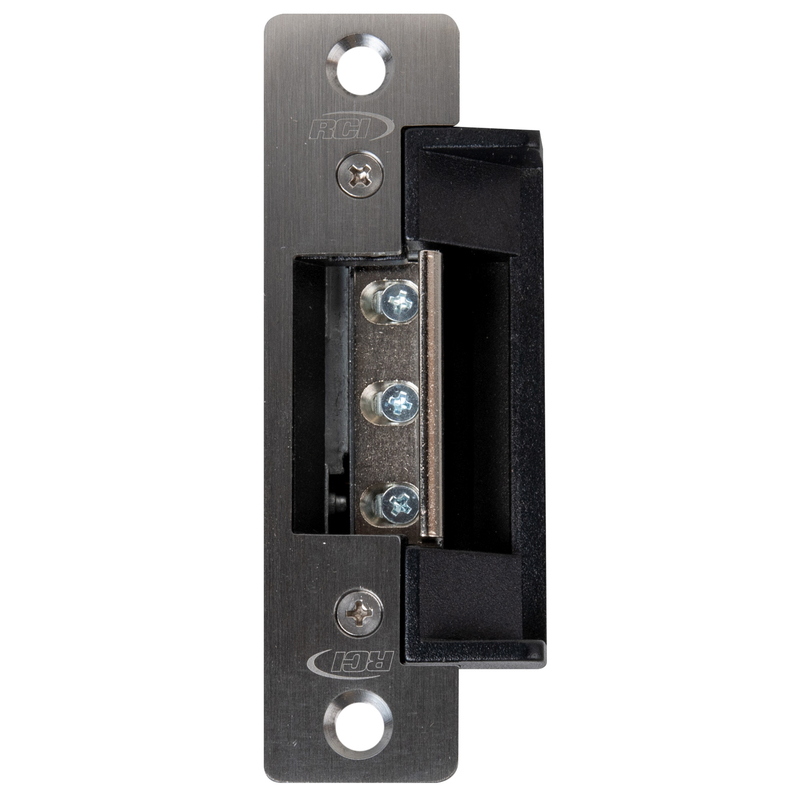

RCI 7304-09 32D 7 Series Adj Strike 24VDC is an electric strike designed for enhanced security in demanding environments. This model features a 4-7/8" round corner faceplate, tailored for 3/4" projection latches, ensuring compatibility with a wide array of cylindrical locks, mortise exit, and latch locks. Operating at 24 VDC, the strike boasts a fail-safe function, providing reliable access control while maintaining safety in emergency situations. Constructed from durable satin stainless steel, the RCI 7304-09 is built to withstand the rigors of commercial use, making it ideal for public buildings, fire-rated openings, and industrial settings. The strike accommodates door thicknesses ranging from 1-3/8" to 2-3/8" (35mm-60mm) and offers a 1/8" (3.2mm) horizontal adjustment, ensuring a secure fit in various frame types, particularly aluminum. With a minimal amp draw of just 0.15 amps and a matte silver finish (630/US32D), this electric strike combines functionality with a sleek aesthetic. Installation is straightforward, and with a limited warranty of three years, you can trust in its long-lasting performance. Enhance your access control solutions with the RCI 7304-09 electric strike.
7 Series Adj Strike 24VDC
Electric Strike, 4-7/8" Round Corner Faceplate, For 3/4" Projection Latches, 24 VDC, Fail Safe, Satin Stainless Steel
7 Series Centerline Strikes accommodates 5/8" (16mm) latch projection . Various faceplate options available to accommodate most frame types . 1/8" (3 .2mm) horizontal adjustment Use with wide range of door thicknesses 1-3/8" to 2-3/8" (35mm-60mm).
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Amp Draw: .15 Amps
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Round Corners
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 630/US32D
Finish Family: Matte Silver
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Aluminum
Function: Fail Safe
Installation: Commercial
Limited Warranty: 3 Years
Operating Voltage: 24 VDC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
