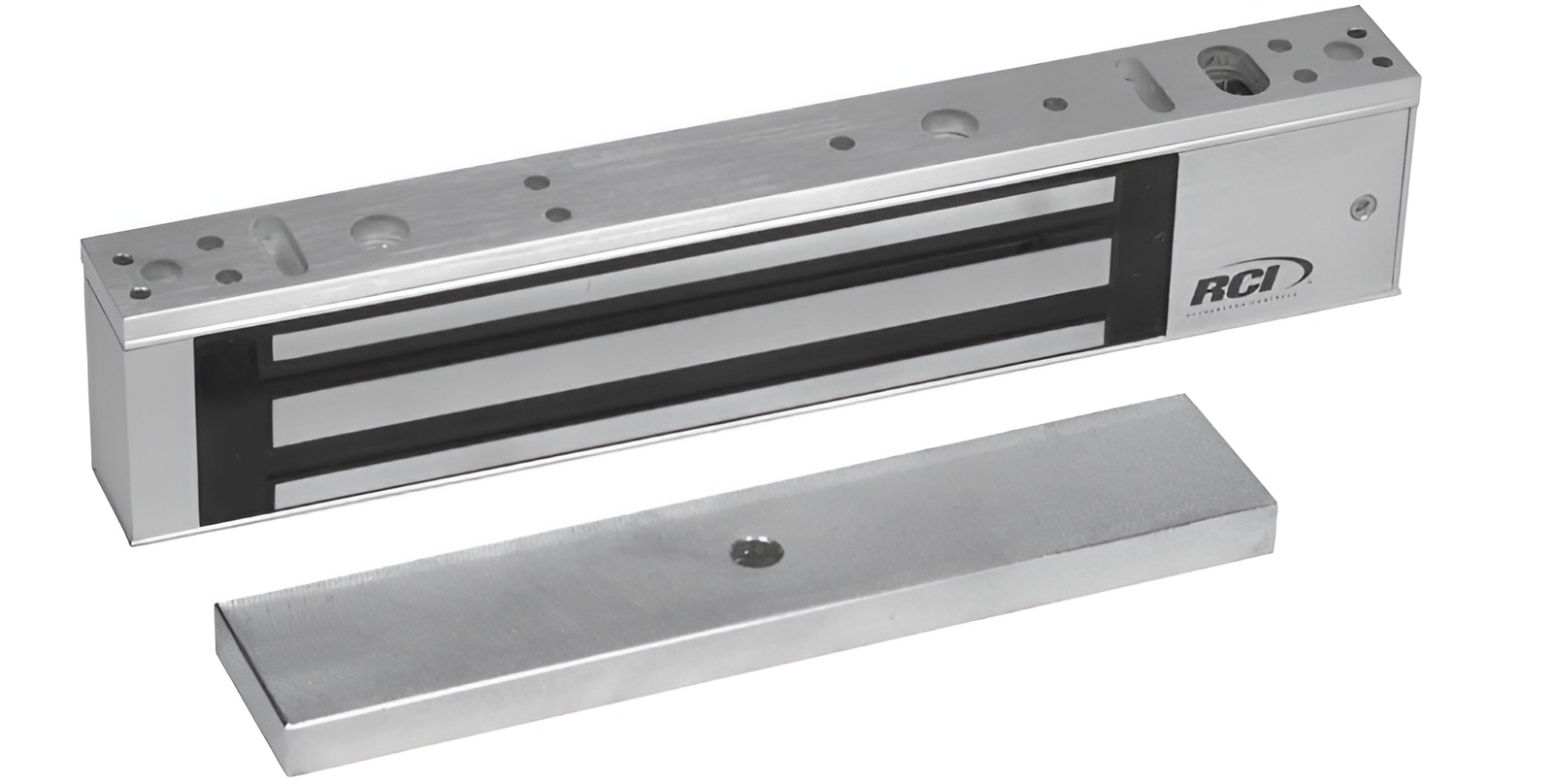

RCI 8371 SCS 28 Single Minimag 750 Lb is a robust electromagnetic lock designed for single outswinging interior doors, offering a reliable holding force of 750 lbs. This model operates at 12/24 VDC and includes a security condition sensor, enhancing access control and loss prevention measures in both commercial and residential settings. The brushed aluminum finish not only provides a sleek appearance but also ensures durability and resistance to wear. Engineered for ease of installation, the 8371 features a stabilizing four-bolt "drop stop" mounting system and an easy-access wiring cavity, simplifying setup and maintenance. It is equipped with MOV surge protection to safeguard against power surges, ensuring long-lasting performance. With a fail-safe function, this lock is designed to release when power is lost, enhancing safety during emergencies. The unit is fire-rated for one hour, making it suitable for use in various environments, including interior or perimeter doors. An integrated LED light adds visibility for operational status. Backed by a lifetime limited warranty, the RCI 8371 is a dependable choice for those seeking a high-quality locking solution for traffic control.
Single Minimag 750 Lb
Single 750 Lb. Minimag, 12/24 VDC, Security Condition Sensor, Single Outswing Doors, Brushed Aluminum
8371 Surface MiniMag For single outswinging interior doors. Stabilizing 4 bolt "drop stop" mounting MOV surge protection. Designed to overcome residual magnetism easy-access wiring cavity
Interior or Perimeter Doors; Access Control; Loss Prevention Traffic Control
For use in: Interior or Perimeter Doors; Access Control; Loss Prevention Traffic Control
Amp Draw: .52 Amps at 12VDC, .26 Amps at 24VDC
Base Material: VARIES
Commercial Residential: Commercial
Finish: 689/US28
Finish Family: Matte Silver
Fire Rated: 1 Hour {C}
Fire Rating: 1 Hour {C}
Function: Fail Safe
Holding Force: 750 lbs.
Installation: Commercial
Lights: LED
Limited Warranty: Lifetime
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: RCI Electromagnetic Locks
Subtype: Maglocks
Switch Type: Security Condition Sensor
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 7.85943E+11
