RCI DE8310 Delayed Egress Mag 1200 Lb is a robust electromagnetic lock designed to enhance security for single outswinging perimeter doors. Operating on a versatile 12-24 VDC, this lock features a built-in sensor that detects when pressure is applied to the door, eliminating the need for replacement of existing hardware. The DE8310 offers field-selectable release delays of 15 or 30 seconds, along with a nuisance delay option of 0 to 3 seconds, allowing for customizable security settings to suit various environments. With a holding force of 1200 lbs., this fail-safe lock is suitable for both interior and perimeter door applications, making it ideal for access control, loss prevention, and traffic control solutions. The highly visible red and green light panel clearly indicates the door's status, enhancing user awareness. Constructed with a matte silver finish (689/US28), the lock not only offers durability but also blends seamlessly with modern architectural aesthetics. It is compliant with IBC, SBC, NFPA101, UBC, BOCA, or NBC of Canada standards, ensuring safety and reliability. Backed by a 5-year limited warranty, the RCI DE8310 is a trusted choice for commercial installations, providing peace of mind and effective security solutions.

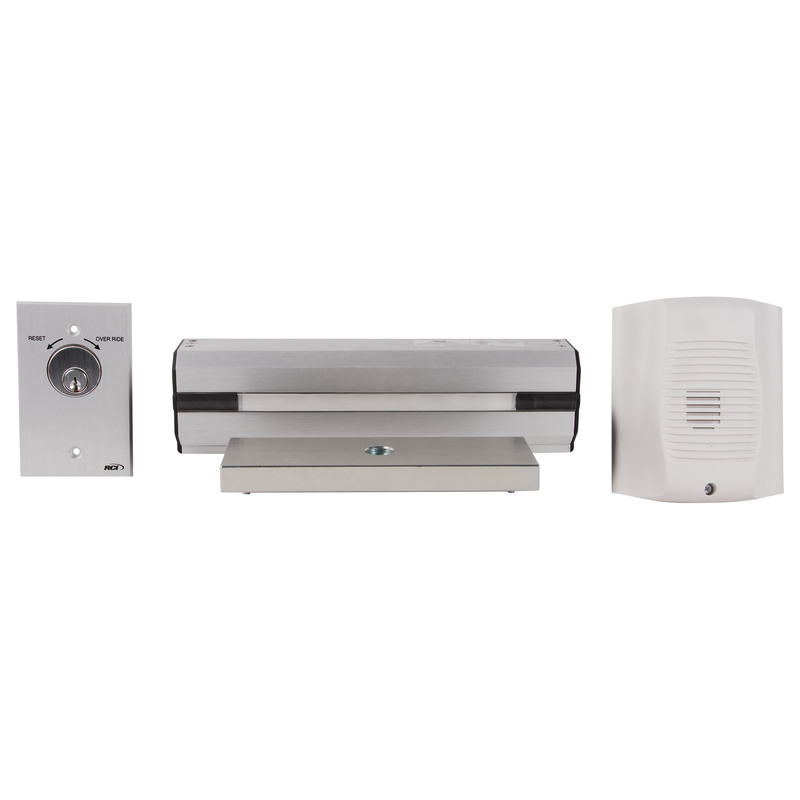

Delayed Egress Mag 1200 Lb
Delayed Egress Electromagnetic Lock, 12-24 VDC, External Sounder, Brushed Aluminum
Delayed Egress mag lock for single outswinging perimeter door . Built-in sensor detects when pressure is applied to outward swinging doors - no need to replace existing door hardware. Field-selectable 15 or 30 second release delay with field-selectable 0 to 3 second nuisance delay. Provision for IBC, SBC, NFPA101, UBC, BOCA or NBC of Canada compliance. Unique highly visible red/green light panel indicates status of door
Interior or Perimeter Doors; Access Control; Loss Prevention Traffic Control
For use in: Interior or Perimeter Doors; Access Control; Loss Prevention Traffic Control
Manufacturer surcharge: $ 0.0
Amp Draw: .61 Amps at 12VDC, .32 Amps at 24VDC
Base Material: VARIES
Commercial Residential: Commercial
Finish: 689/US28
Finish Family: Matte Silver
Fire Rated: 1-1/2 Hours {B} {D}
Fire Rating: 1-1/2 Hours {B} {D}
Function: Fail Safe
Holding Force: 1200 lbs.
Installation: Commercial
Lights: LED
Limited Warranty: 5 Years
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: RCI Electromagnetic Locks
Subtype: Maglocks
Switch Type: Security Condition Sensor
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 7.85943E+11
