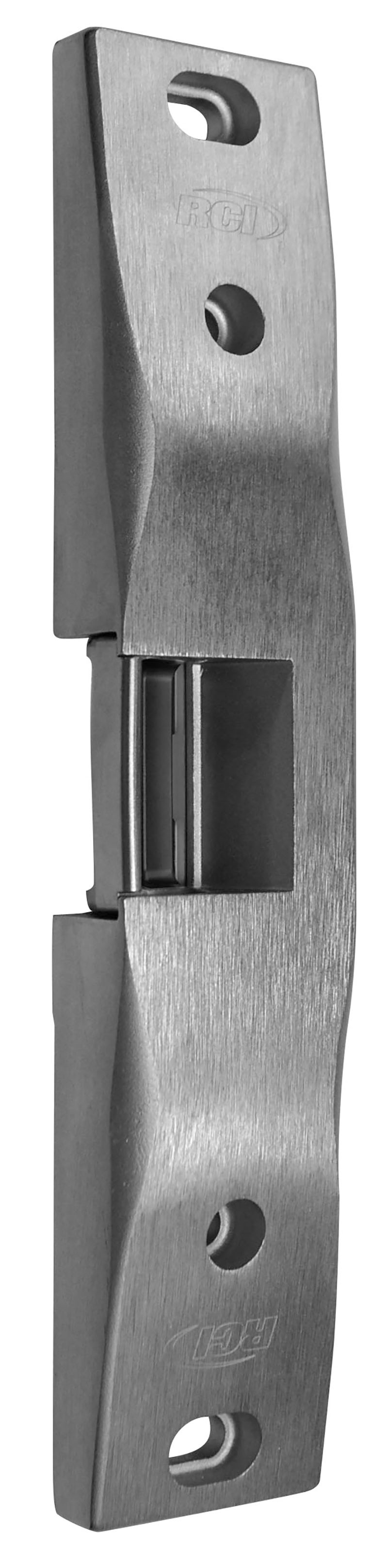

RCI F0162 32D 0 Series Fire Rated Rim Strike offers a robust solution for securing fire-rated openings in both commercial and industrial environments. This fire-rated electric strike, designed specifically for Pullman latch rim exit devices, features a 3/4" surface mount and is compatible with latch projections ranging from 1/2" to 3/4" (13mm-19mm). With a fail secure function, it ensures that the door remains locked during power outages, enhancing security. Constructed from durable satin stainless steel, this strike is not only functional but also aesthetically pleasing, featuring a matte silver finish. It is certified to ANSI/BHMA standard A156.31, Grade 1, boasting an impressive endurance rating of 500,000 cycles. Additionally, it carries a 3-hour fire-rating in compliance with CAN/ULC S104 and UL 10C standards, making it ideal for public buildings and controlled access points. The RCI F0162 requires a voltage of 12/24VDC or 12/24VAC, with an amp draw of .33 Amps at 12VAC and .24 Amps at 24VDC, ensuring reliable operation. Designed for use with both metal and wood frames, this electric strike is backed by a 5-year limited warranty, providing peace of mind for long-term use.
0 Series Fire Rated Rim Strike
Fire Rated Electric Strike, 3/4" Surface for Rim Devices, 12/24VDC, 12 to 24VAC, Fail Secure, Satin Stainless Steel
Semi-mortise rim strike designed for use with Pullman latch rim exit devices . Accommodates 1/2" to 3/4" (13mm-19mm) latch projection. Certified to ANSI/BHMA standard A156 .31, Grade 1, endurance 500,000 cycles. CAN/ULC S104 & UL 10C, 3-hour fire-rating Listed (optional)
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Manufacturer surcharge: $ 0.0
Amp Draw: .33 Amps at 12VAC, .50 Amps at 12VDC, .64 Amps at 24VAC, .24 Amps at 24VDC
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Size: 9" x 1-3/4"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
For Use With: Rim Exit Devices
Frame Application: Metal or Wood
Function: Fail Secure
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
