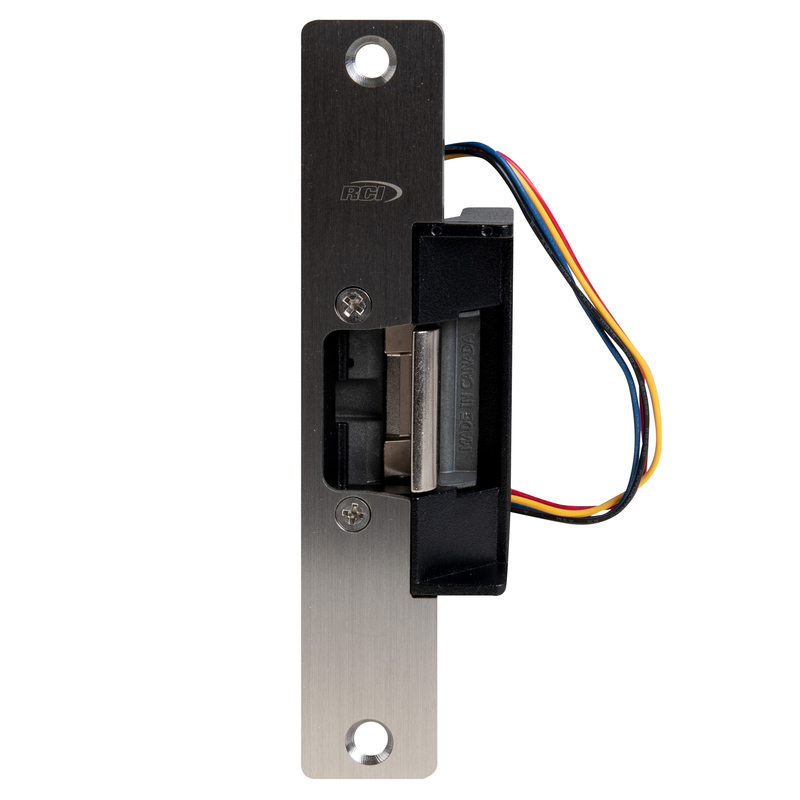

RCI S6507 32D 6 Ser Multi-Function Strike offers a versatile solution for securing doors in various environments, particularly in public buildings and industrial settings. This electric strike features a 6-7/8" round corner faceplate designed for 5/8" projection latches, making it compatible with cylindrical locks, mortise exit, and latch locks. Crafted from durable stainless steel with a satin finish (630/US32D), it combines both aesthetics and functionality. The strike operates on 12/24 VDC and 12-24 VAC, with a fail safe/fail secure function that ensures reliable access control. It draws .375 Amps at 12VDC and .19 Amps at 24VDC, providing efficient power usage. The included modular strike inserts come with a lip bracket and hardware pack, facilitating straightforward installation in both metal and wood frames. Designed to meet the demands of controlled access and fire-rated openings, the RCI S6507 is built for commercial use, backed by a 3-year limited warranty. Whether you’re upgrading security in a public building or enhancing access control in an industrial environment, this electric strike delivers reliability and performance tailored to your needs.
6 Ser Multi-Function Strike
Electric Strike, 6-7/8" Round Corner Faceplate, For 5/8" Projection Latches, 12-24 VAC, 12/24 VDC, Fail Safe/Fail Secure, Satin Stainless Steel
6 Series Modular Strike Inserts Includes lip bracket & hardware pack
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Amp Draw: .375 Amps at 12VDC, .19 Amps at 24VDC, .280-.565 Amps at 12-24VAC
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Round Corners
Faceplate Size: 6-7/8" x 1-1/4"
Finish: 630/US32D
Finish Family: Matte Silver
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal or Wood
Function: Fail Safe/Fail Secure
Installation: Commercial
Limited Warranty: 3 Years
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
