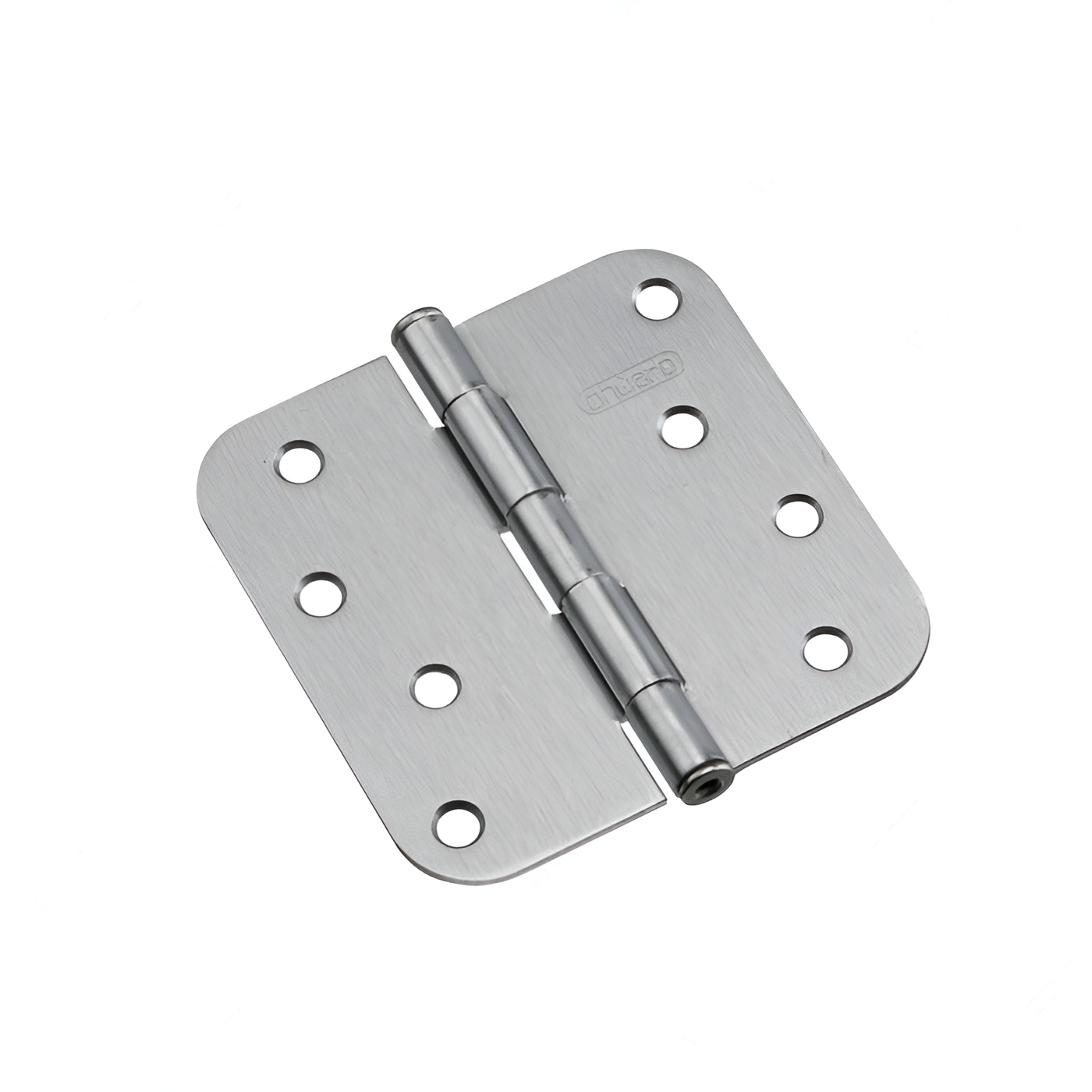

Richelieu 1822BCB 4" Full Mortise Butt Hinge - 5/8" Radius offers a perfect blend of style and functionality, making it an essential addition to any home. Crafted from durable steel with a brushed chrome finish, this hinge not only enhances the aesthetic appeal of your doors but also provides reliable performance. Designed for standard doors, it features a 5/8" radius corner and a flat tip, making it versatile for various applications. With an overall height and width of 4 inches, this hinge is engineered to support a load capacity of up to 60 pounds when three hinges are used. The mortise mounting type ensures a seamless installation, while the removable pin design allows for easy maintenance and adjustments. Each box contains two hinges, complete with screws for a hassle-free setup. This hinge boasts a 1/16" gap, promoting smooth operation and a sleek appearance. Its polished look is perfect for contemporary designs, while being robust enough to withstand everyday use. Whether you're renovating or building from scratch, the Richelieu 1822BCB hinge is the ideal choice for adding a polished finishing touch to your projects.
4" Full Mortise Butt Hinge - 5/8" Radius
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 2.5 mm
Color/ Finish: Brushed Chrome
Finish: Brushed Chrome
Gap: 1/16"
Height: 4 in
Load Capacity per 3 Hinges: 60 lb
Material: Steel
Mounting Type: Mortise
Packaging format: Box of 2
Pin: Removable Pin
Product #: 1822BCB
Product number: 1822BCB
Product №: 1822BCB
Screw/ Nail: Included
Type of Corner: 5/8'' Radius
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 2
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 50
Use Type: Standard Door
Width - Overall Dimensions: 4 in
