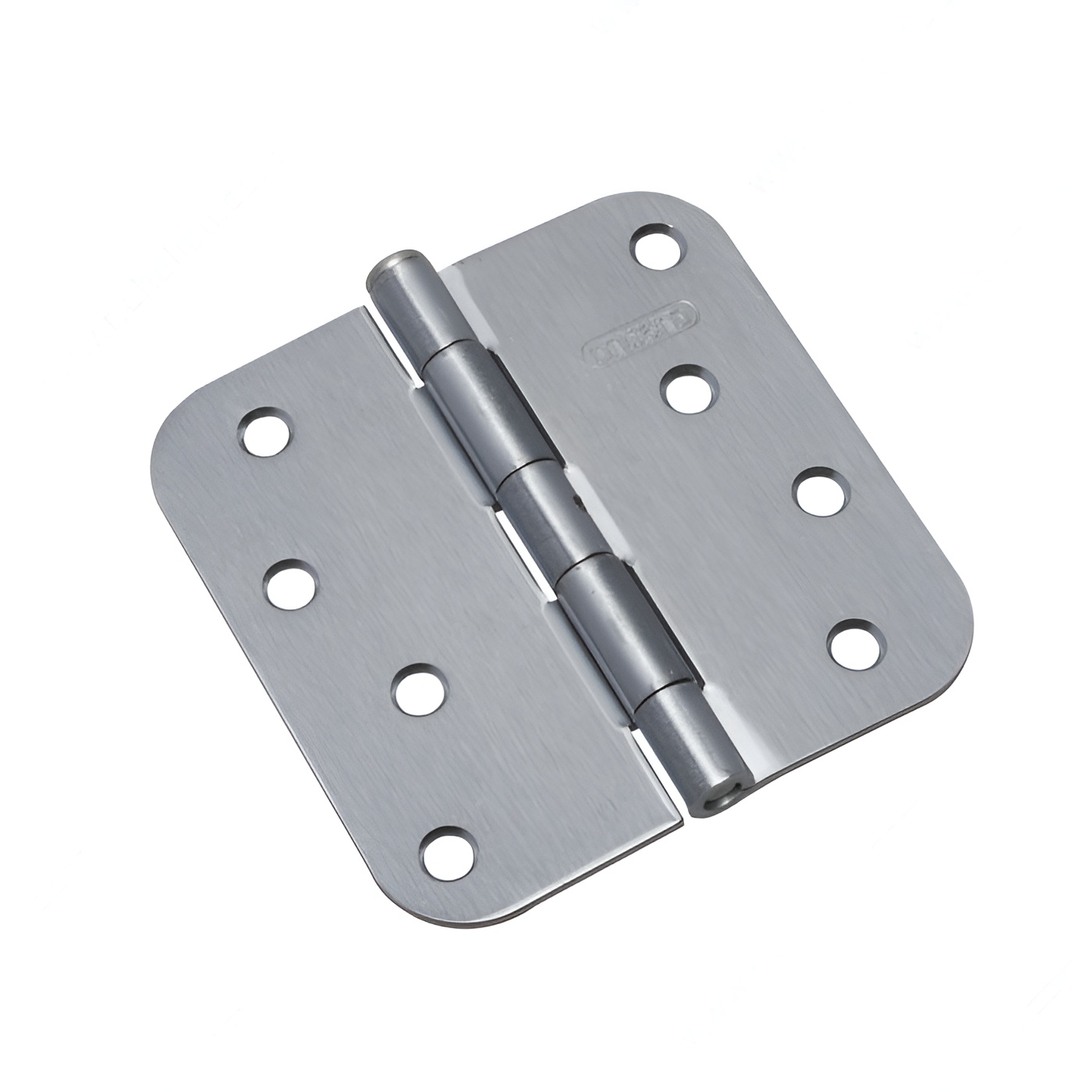

Richelieu 1822BCNRPB 4" Full Mortise Butt Hinge - 5/8" Radius is a versatile and stylish solution for enhancing the functionality and aesthetic of any door. Crafted from durable steel, this hinge is designed to support a weight capacity of up to 60 pounds when using three hinges, making it suitable for standard doors in various environments. With an elegant brushed chrome finish, it not only performs well but also adds a polished touch to your projects. Its 5/8" radius corner design ensures a seamless fit, while the non-removable pin enhances security and stability. Measuring 4 inches in height and width, this hinge features a 1/16" gap, allowing for smooth and reliable operation. This hinge comes fully assembled and is packaged conveniently in a box of two, with screws included for easy installation. Suitable for mortise mounting, the Richelieu 1822BCNRPB is an ideal choice for building professionals and knowledgeable homeowners seeking to blend functionality with modern design. Whether you are updating an existing door or installing new ones, this hinge is a must-have accessory that ensures longevity and style.

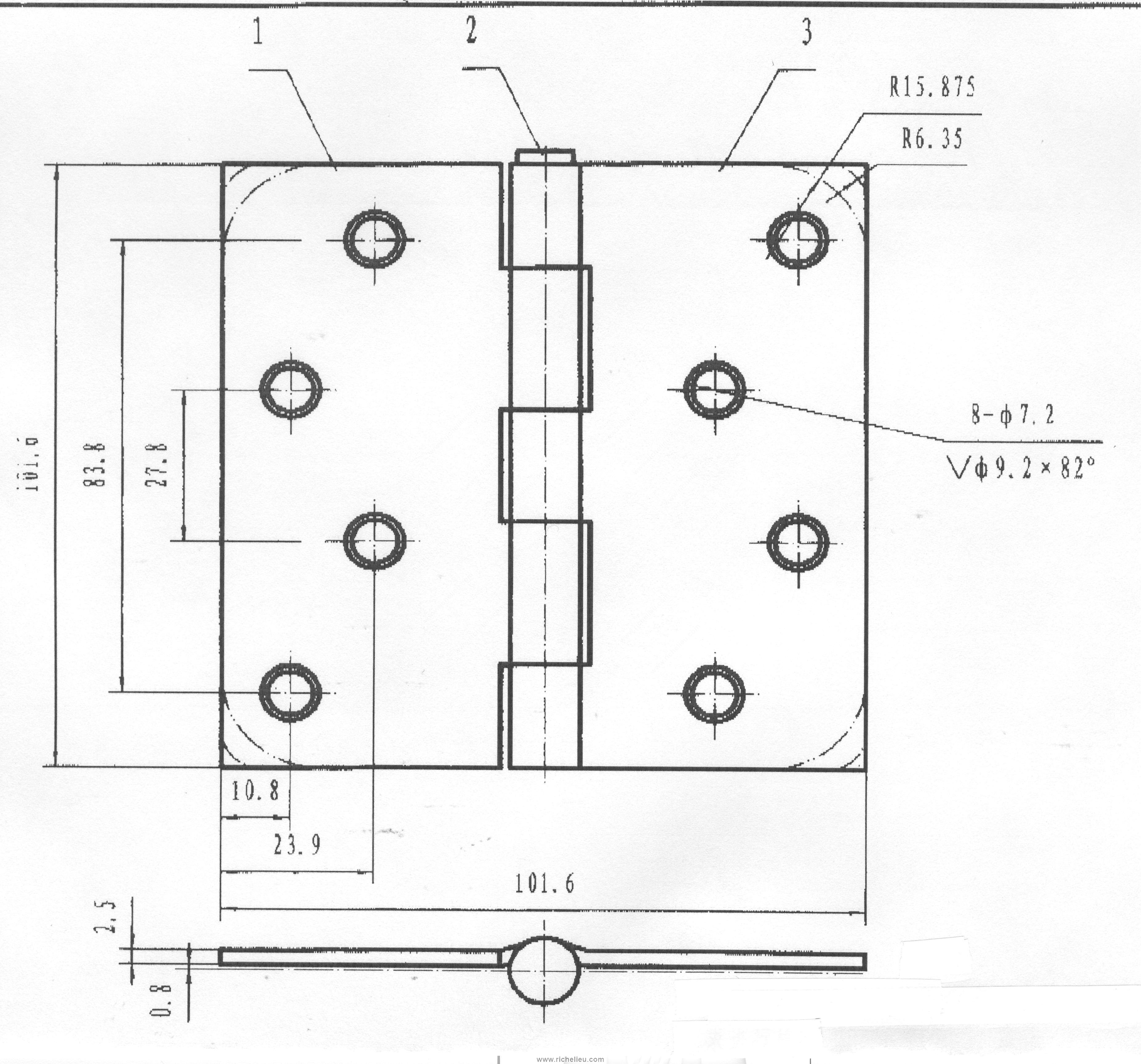

4" Full Mortise Butt Hinge - 5/8" Radius
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 2.5 mm
Color/ Finish: Brushed Chrome
Finish: Brushed Chrome
Gap: 1/16"
Height: 4 in
Load Capacity per 3 Hinges: 60 lb
Material: Steel
Mounting Type: Mortise
Packaging format: Box of 2
Pin: Non-Removable Pin
Product #: 1822BCNRPB
Product number: 1822BCNRPB
Product №: 1822BCNRPB
Screw/ Nail: Included
Type of Corner: 5/8'' Radius
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 2
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 50
Use Type: Standard Door
Width - Overall Dimensions: 4 in
