Richelieu 18927651 HAWA-Concepta Series with Soft-Close Hinges offers a sophisticated solution for pivot and slide-in pocket door systems, accommodating single doors weighing up to 110 lb (50 kg). This versatile system is compatible with the HAWA-Concepta 25, 30, 40, and 50 series, providing options for doors up to 2 inches thick. The concealed hinge design features a smooth soft-close mechanism, ensuring a gentle and quiet operation, making it ideal for both residential and commercial spaces, including kitchens, pantries, and meeting rooms. The compact parking area of just 2 7/8 inches (73 mm) allows for efficient use of space, while the integrated dampeners enhance functionality. With door thicknesses ranging from 3/4 to 2 inches and widths from 11 3/4 to 35 3/8 inches, this system is adaptable to various design needs. The included retractable device simplifies door access, while the option to add a Connector Bracket supports external cover panels. For precise installation, technical support, and drilling patterns, you can contact Richelieu directly. The HAWA-Concepta Series is the perfect blend of practicality and elegance, making it a valuable addition to any architectural project.

HAWA-Concepta Series with Soft-Close Hinges

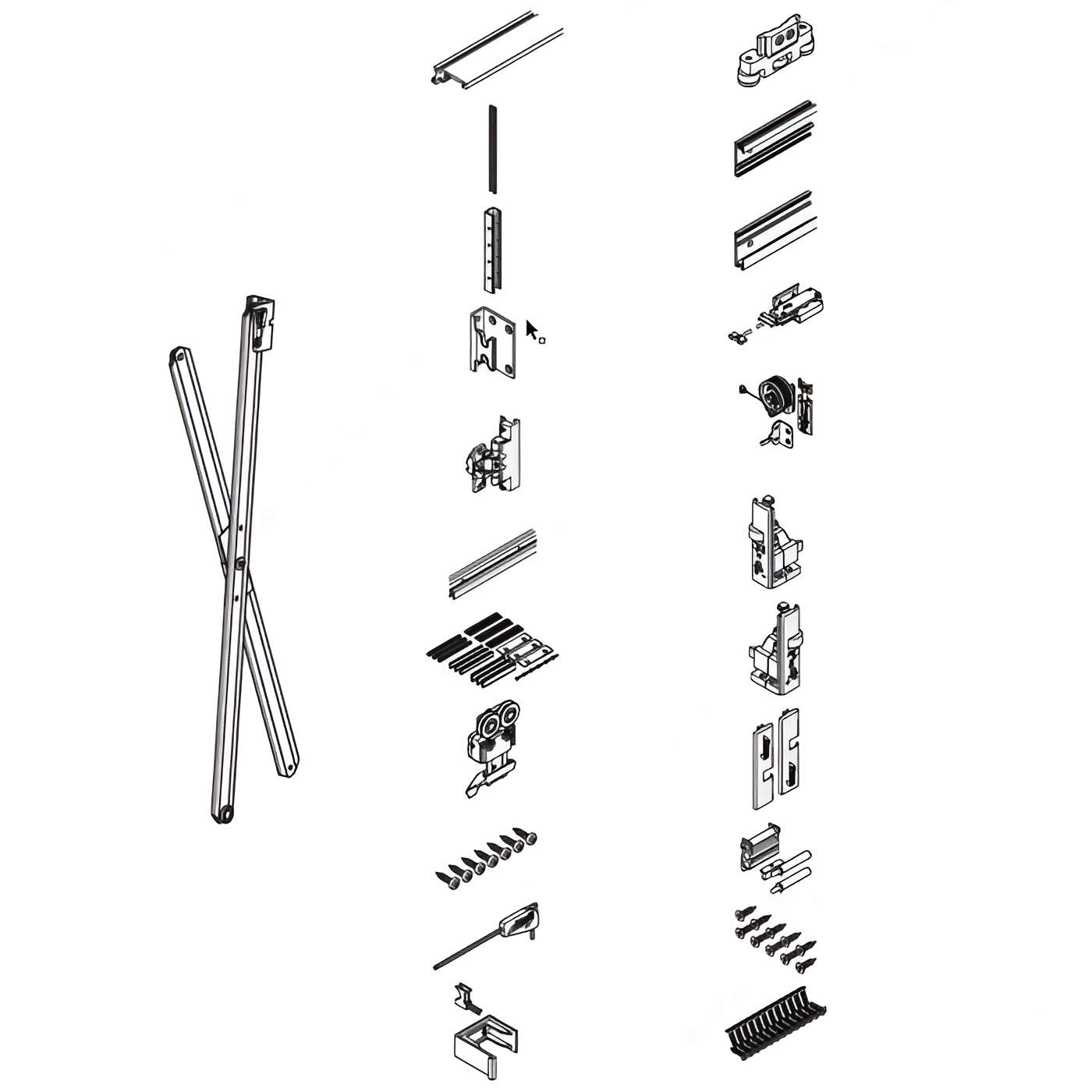

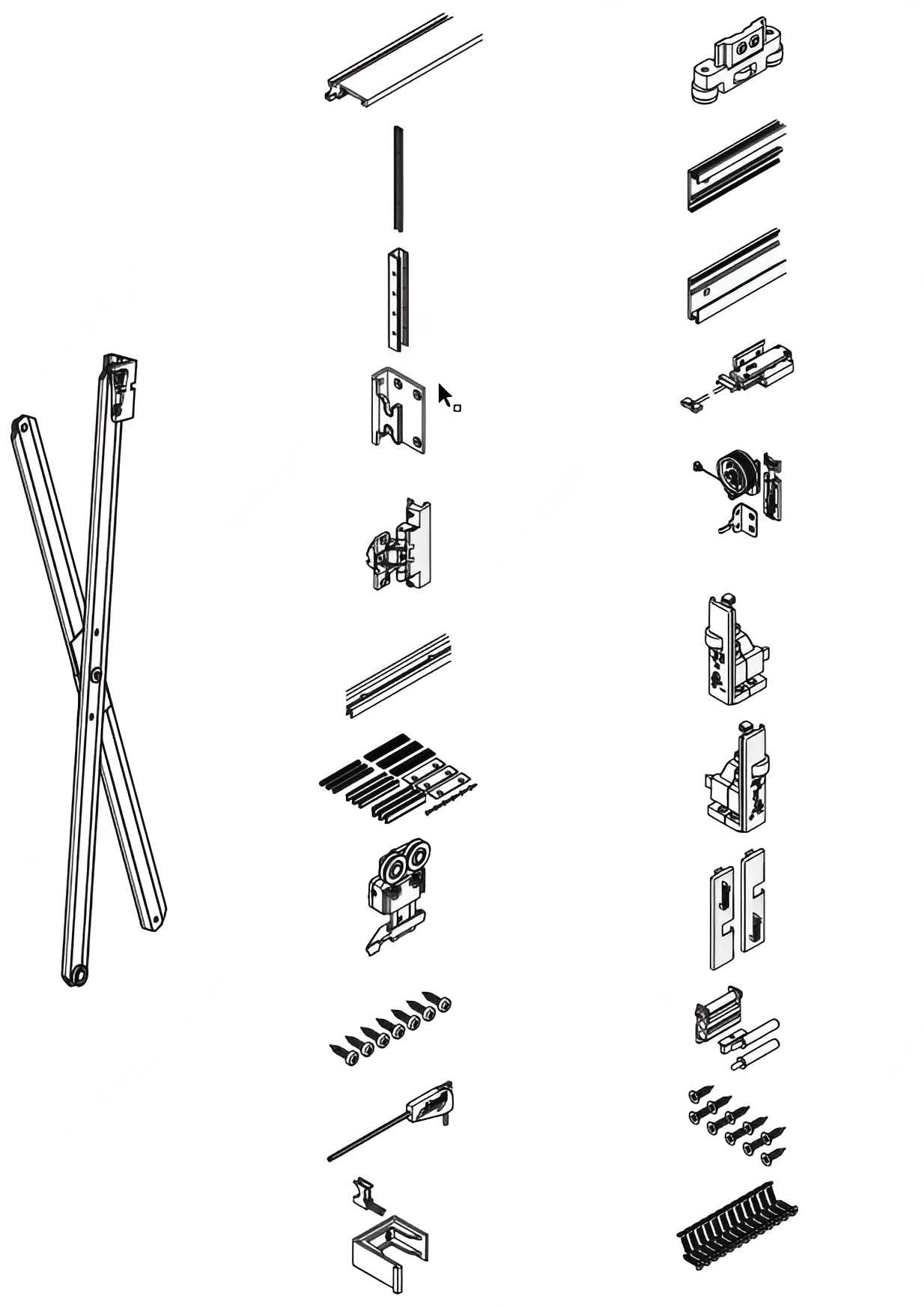

The HAWA-Concepta Series with Soft-Close Hinges for four pivot and slide-in pocket door systems for single doors weighing up to 110 lb (50 kg) each.
Suitable for the following series:
- HAWA-Concepta 25, for doors weighing up to 55 lb (25 kg) each
- HAWA-Concepta 30, for doors weighing up to 66 lb (30 kg) each
- HAWA-Concepta 40, for doors weighing up to 88 lb (40 kg) each
- HAWA-Concepta 50, for doors weighing up to 110 lb (50 kg) each

Features:
- Concealed hinge with soft-close mechanism

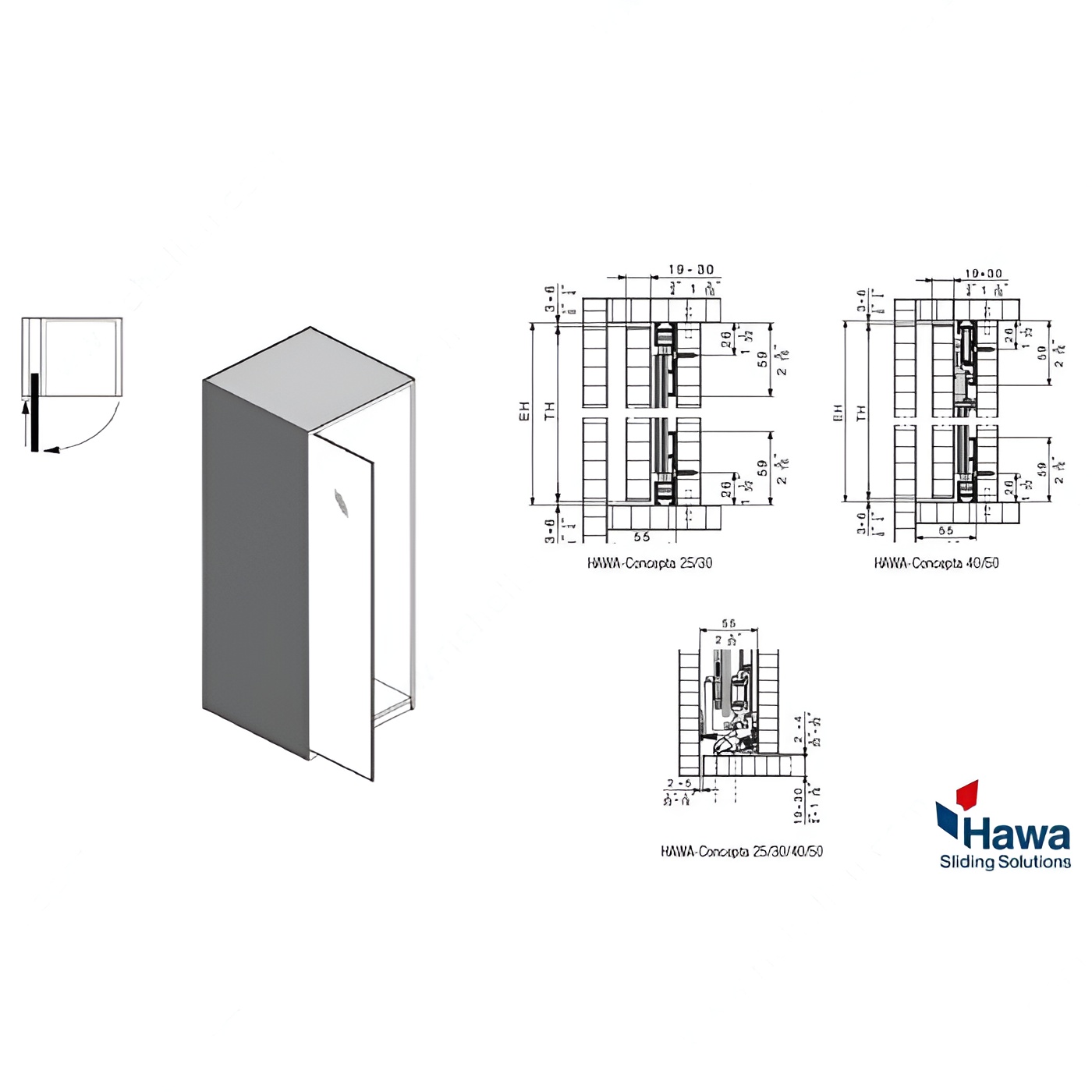

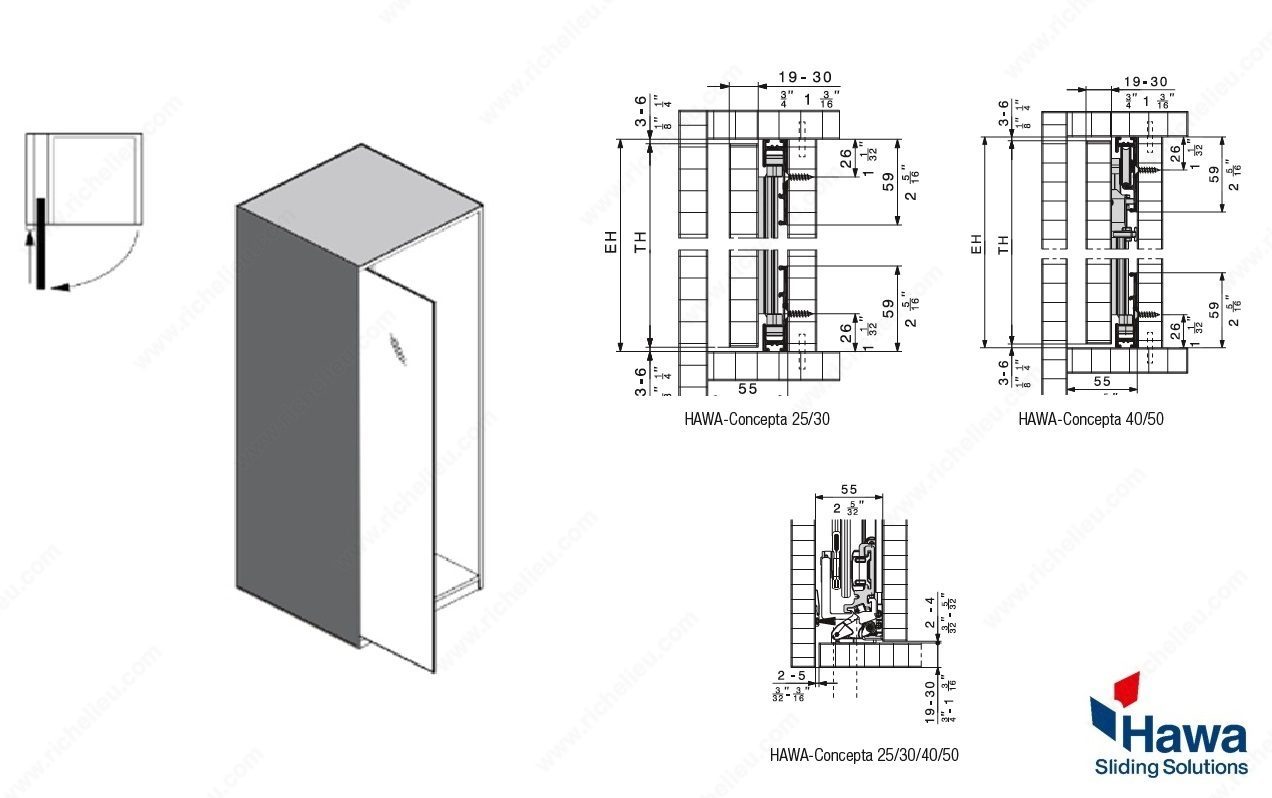

- For doors up to 2 in (50 mm) thick
- The mechanism retracts into a small 2 7/8 in (73 mm) parking area
- Single door thicknesses up to 1 1/4 in (30 mm) park into an area 2 3/16 in (55 mm) wide
- Single door thicknesses up to 2 in (50 mm) park into an area 3 5/16 in (83 mm) wide
- Thicker doors possible up to 2 in (50 mm) when not using the connector brackets for decorative cover panels
- Equipped with integrated dampeners for smooth operation
- Included retractable device to assist in pulling door into the pocket area
- Add a Connector Bracket to support the external cover panel or Bridge Connector Bracket between two cabinets
- For technical support and planning tools for drilling patterns for the cabinet and the door, call 800-334-0818 (US) or 844-775-3039 (Canada)

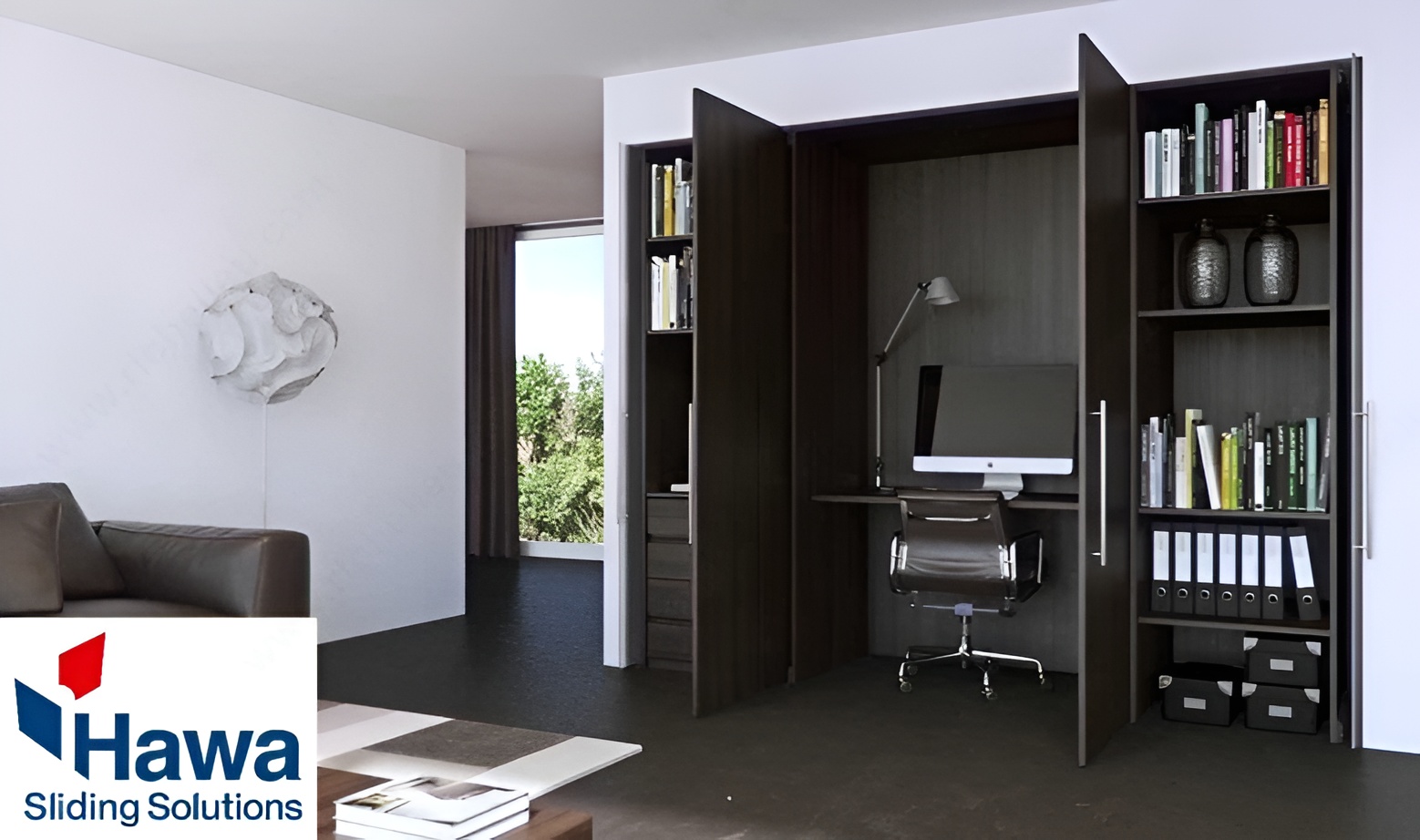

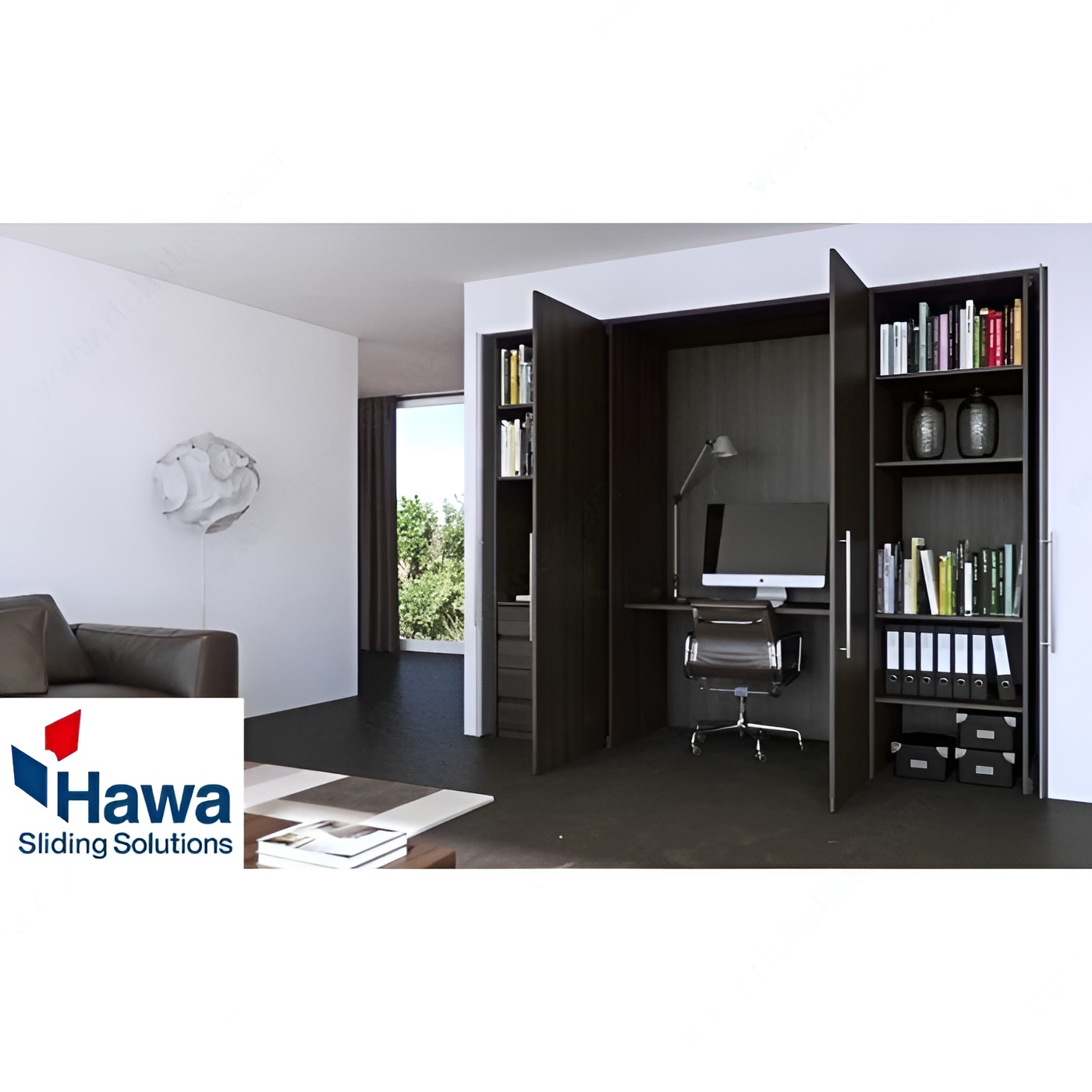

The HAWA-Concepta Series is suitable for commercial and residential applications in kitchens, pantries, closets, laundry rooms, meeting rooms, food and beverage centers, and equipment storage.
