Richelieu 189807 RO 30 Standard Hardware Set provides a reliable solution for wood cabinet doors in overlay applications, boasting a weight capacity of up to 33 lb (15 kg) per door. This hardware set is specifically designed for doors with a thickness of 5/8 in (15 mm) to 3/4 in (20 mm), ensuring robust support while maintaining a sleek appearance. The RO 30 hardware operates seamlessly with RM 009 and RM 010 surface mount track sets, allowing for simple and flexible installation. The bottom-running design facilitates smooth straight sliding movement, making it an ideal choice for furniture, cabinetry, and storage applications. When planning your door specifications, it is essential to maintain a balanced dimension-ideally, the door height should not exceed three times its width (max. 1:3 ratio) for optimal performance. The set accommodates doors ranging from 12 to 59 in in height and 12 to 36 in in width, with a thickness of 19/32 to 25/32 in. Crafted from durable metal and nylon, this hardware set promises longevity and reliability in daily use. Upgrade your cabinetry with the Richelieu 189807 RO 30 Standard Hardware Set for a perfect blend of functionality and style.

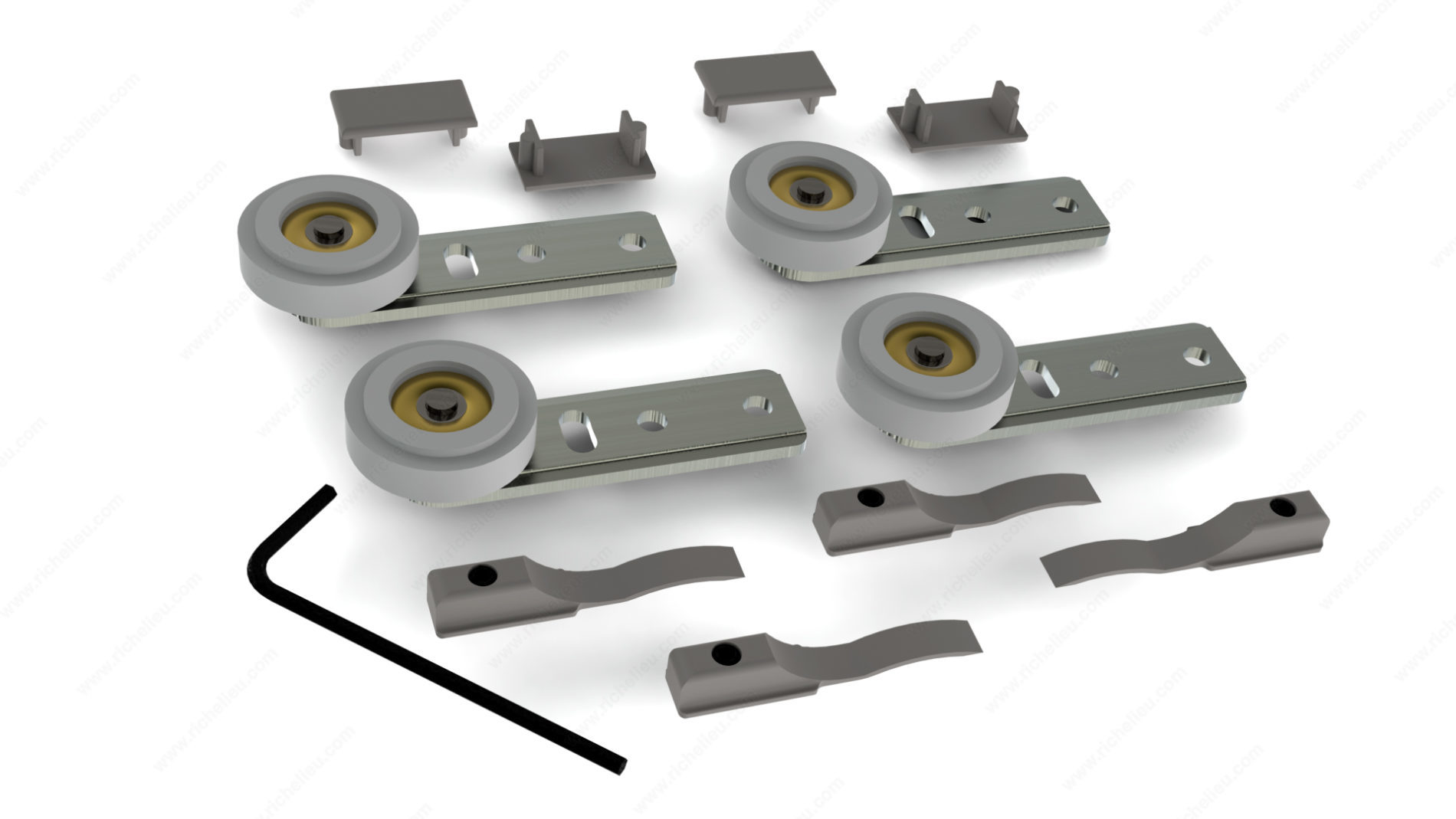

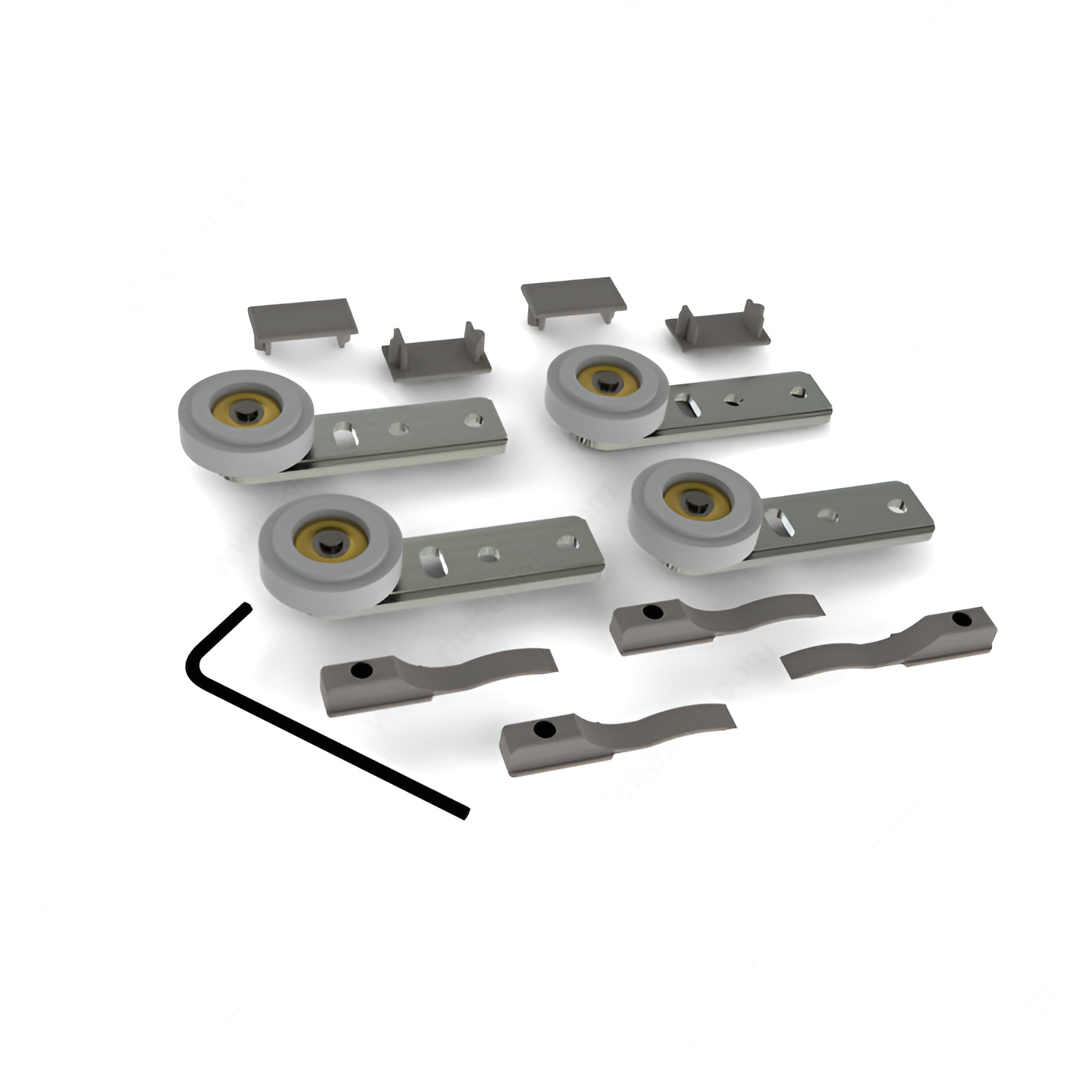

RO 30 Standard Hardware Set
Application: Furniture, Cabinet, Storage
Compatible with: RO 30
Detailed Door Movement: Single sliding
Door Height: 305 to 1 500 mm
Door Installation: Bottom Running
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 15 to 20 mm
Door Width: 305 to 914 mm
Load Capacity: 33.1 lb*
Manufacturing Material: Metal, Nylon
Material: Nylon, Metal
Number of Doors: 1
Product #: 189807
Product number: 189807
Product type: Hardware Set
Product №: 189807
Unit: Set
Unit 1: case - 20
Unit 2: case - 20
Weight Capacity per Door: 15 kg
