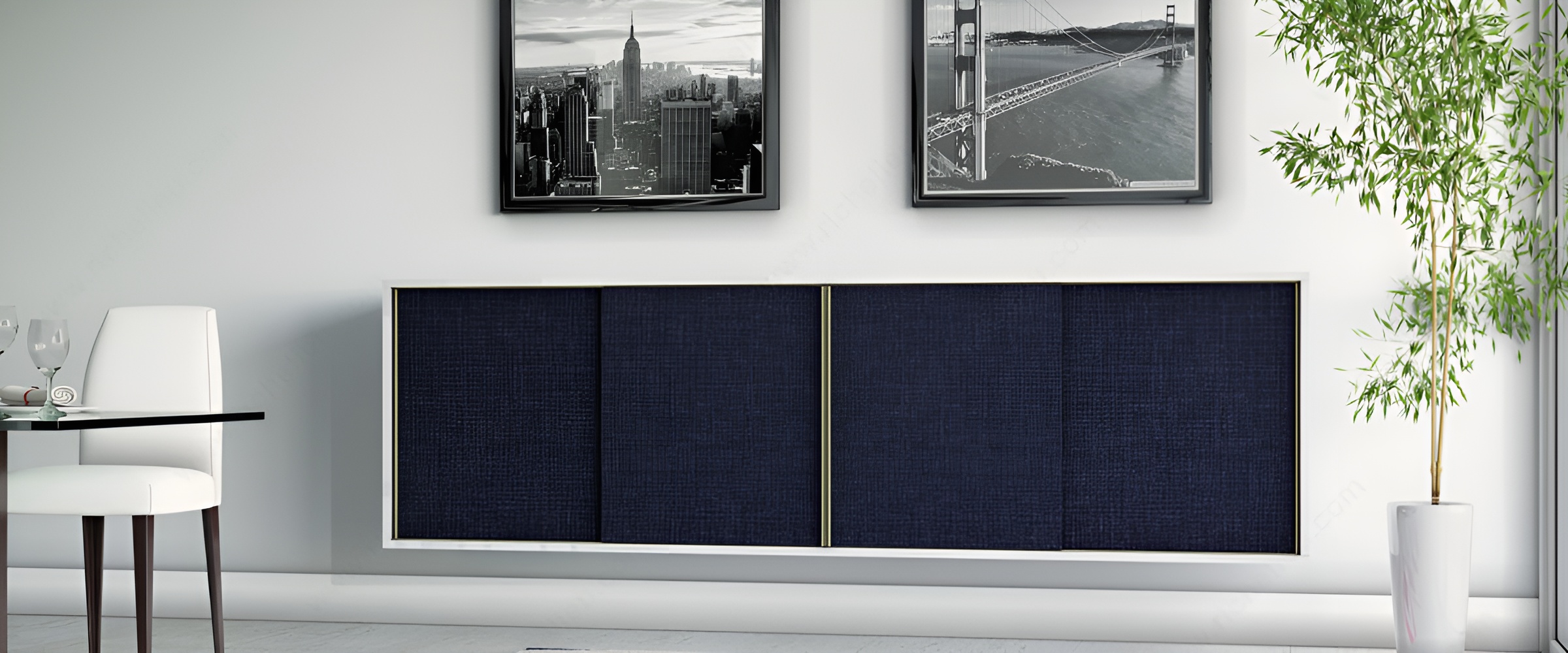

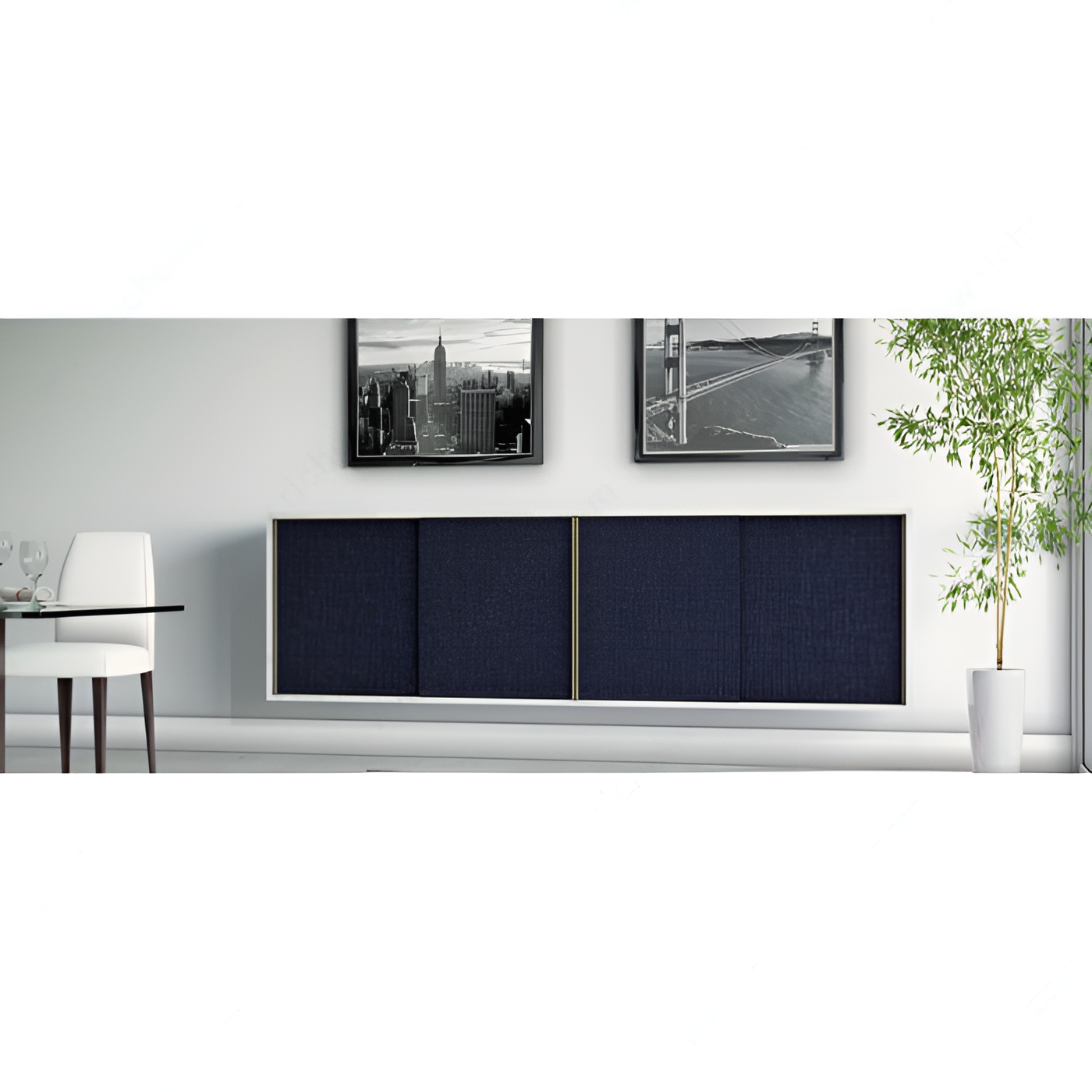

Richelieu 189807SPEC RO 30 Narrow Wheel Hardware SetRichelieu 189807SPEC RO 30 Narrow Wheel Hardware Set is expertly crafted to facilitate smooth operation for a single wood cabinet door in inset applications. This hardware set accommodates wood doors with thicknesses ranging from 5/8 in (15 mm) to 3/4 in (20 mm) and supports a maximum weight capacity of 33 lb (15 kg) per door. Designed for bottom running installations, the hardware operates seamlessly on the RM 026 recessed upper and lower track, ensuring durability and reliability. The installation process is straightforward, featuring a flexible direct mount that simplifies setup for building professionals and knowledgeable homeowners alike. For optimal performance, it’s essential to ensure that the door dimensions are balanced, with a recommended height-to-width ratio of 1:3 or less. The set is compatible with RO 30, making it an ideal choice for a variety of furniture, cabinet, or storage applications. With the ability to accommodate door heights from 12 to 59 inches and widths from 12 to 36 inches, this hardware set provides versatility for various projects. Comprising metal and nylon materials, it is built to last, featuring four stoppers to enhance functionality. Elevate your cabinetry with the Richelieu RO 30 Narrow Wheel Hardware Set, designed for efficiency and aesthetic appeal.

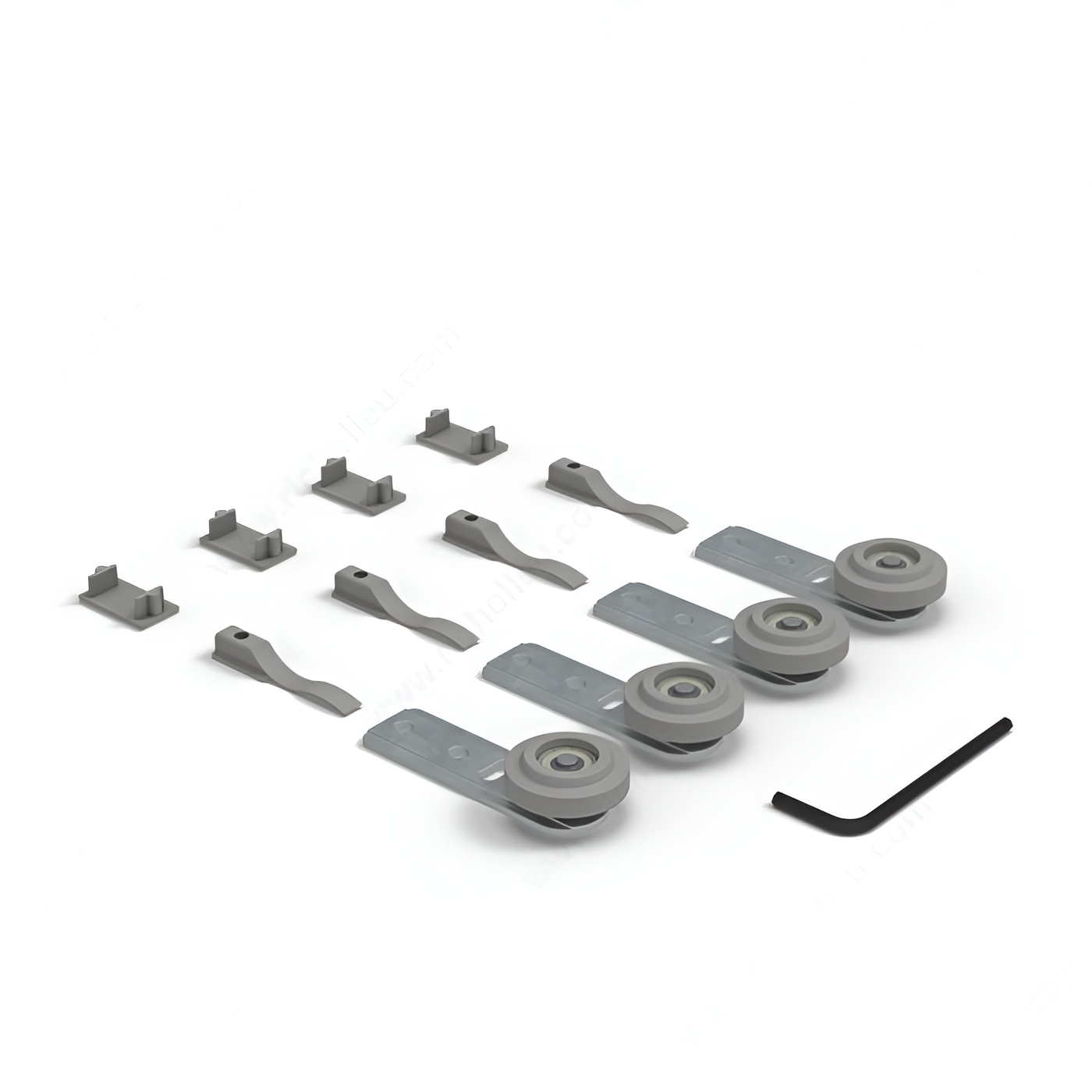

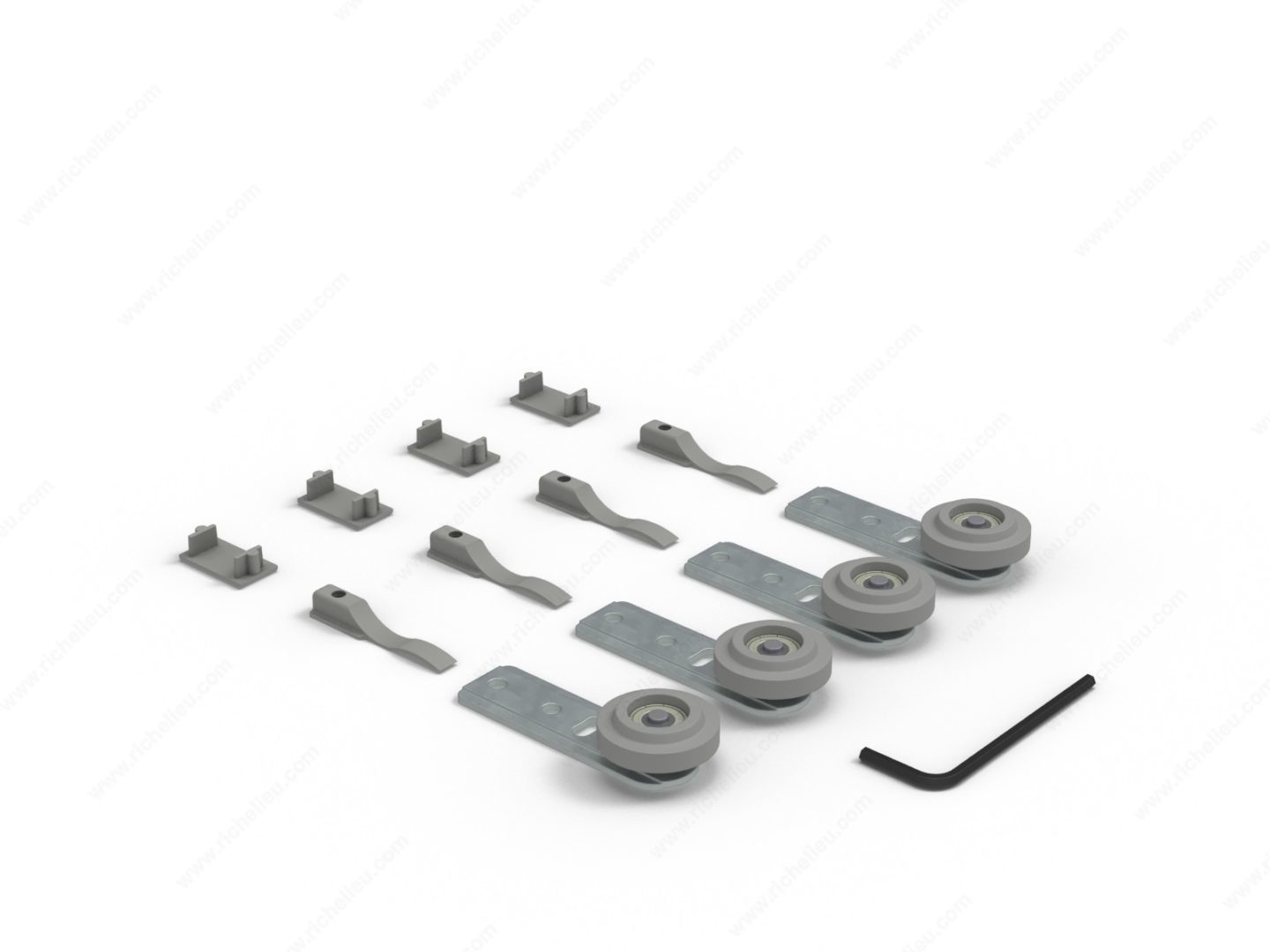

RO 30 Narrow Wheel Hardware Set
The RO 30 Narrow Wheel hardware set is designed for one wood cabinet door for inset applications with a weight capacity of 33 lb (15 kg) per door.
Features:
- For wood doors 5/8 in (15 mm) to 3/4 in (20 mm) thick
- Operation on type RM 026 recessed upper and lower track
- Simple and flexible direct mount hardware installation
IMPORTANT: For optimal performance make sure the dimensions of the door are balanced. It is suggested to build the door height 3 times or less than the width of the door (max. 1:3 ratio).
Use metric dimensions for greater accuracy during installation.
Attributes
Application: Furniture, Cabinet, Storage
Compatible with: RO 30
Detailed Door Movement: Single sliding, Bypassing
Door Height: 305 to 1 500 mm
Door Installation: Bottom Running
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 15 to 20 mm
Door Thickness Including the Handle: 15 to 20 mm
Door Width: 305 to 914 mm
Load Capacity: 33.1 lb*
Manufacturing Material: Metal, Nylon
Material: Nylon, Metal
Number of Doors: 1
Product #: 189807SPEC
Product number: 189807SPEC
Product type: Hardware Set
Product №: 189807SPEC
Stopper: Four
Unit: Set
Unit 1: case - 20
Unit 2: case - 20
Weight Capacity per Door: 15 kg
