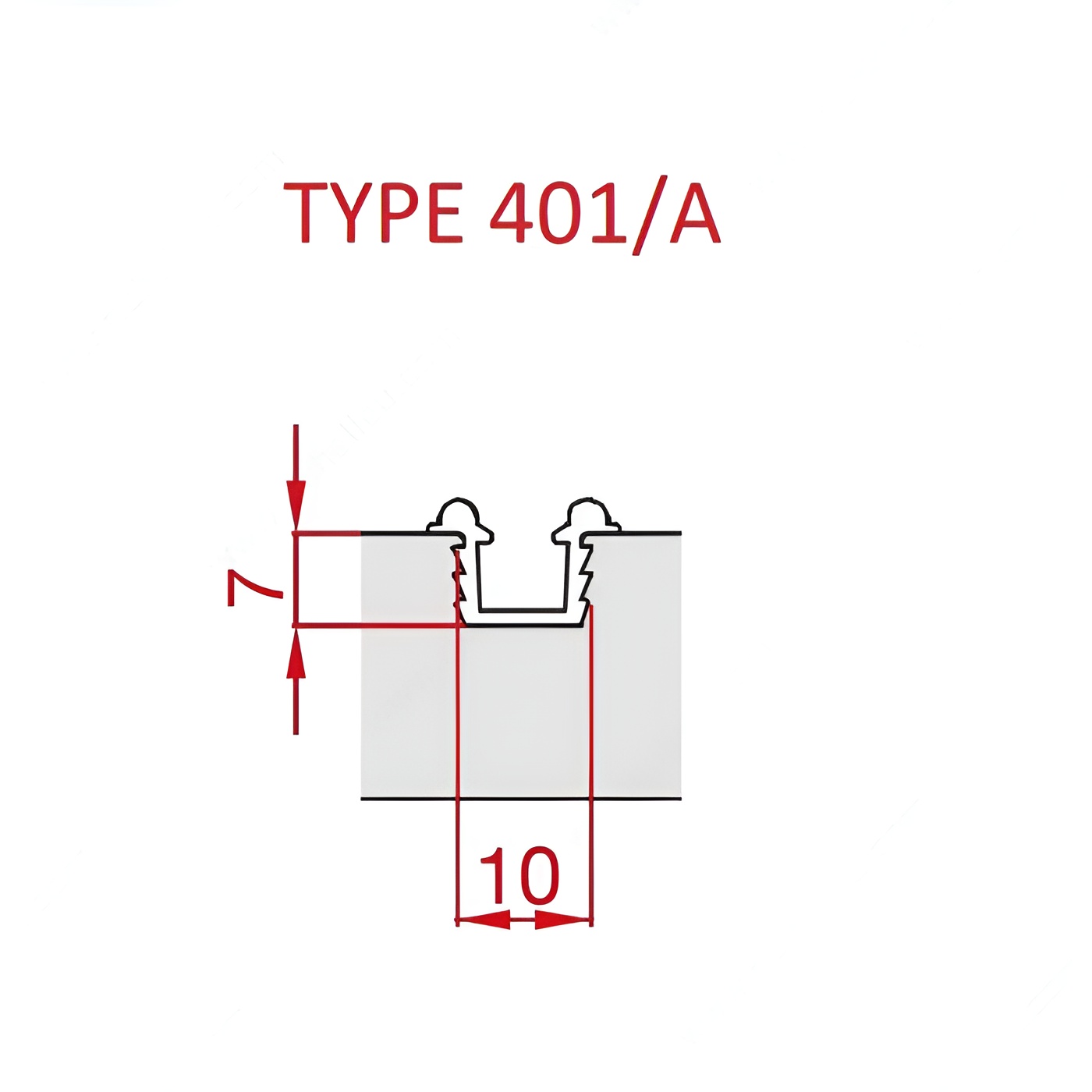

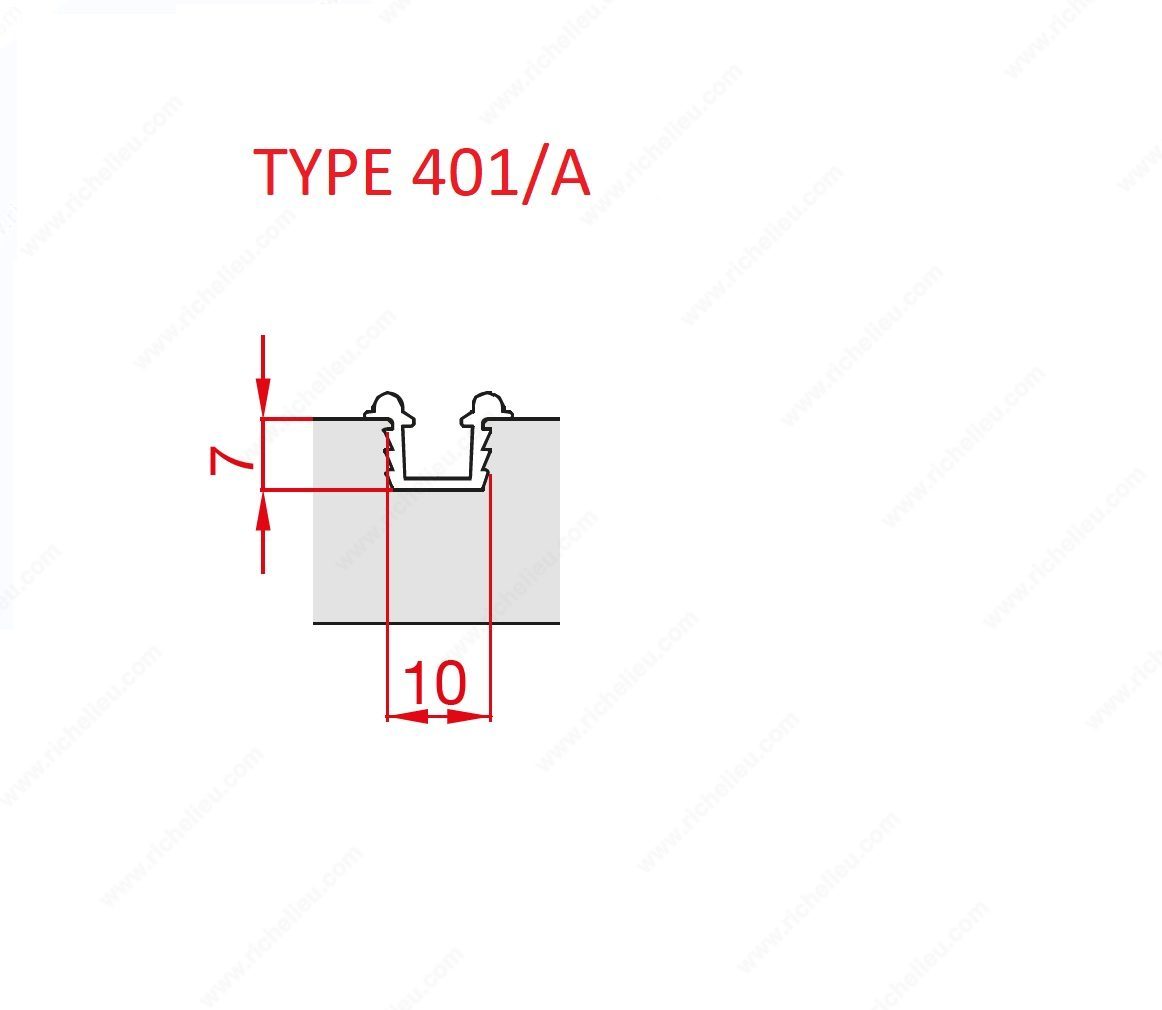

Richelieu 189A401210 TYPE 401/A Aluminum Track is expertly designed for the Scorribase MEDIO cabinet door sliding system, providing a reliable solution for both single door and bypassing applications. This track is recess mounted at the top and bottom of the cabinet, ensuring a seamless integration into your furniture design. With a robust load capacity of 66.1 lbs, it accommodates wood doors effortlessly, allowing for smooth straight sliding motion. The aluminum construction is not only durable but also available in a chic silver anodized finish that complements various interior styles. Measuring 78 inches (2 m) in length, the track can be easily cut to suit your specific application needs, making it highly versatile. For installation, simply press-fit the track into the pre-cut groove in the cabinet, with the option to use an industrial adhesive (not included) for added security. To ensure optimal performance, it is crucial to follow the installation instructions closely, including cutting a groove in the floor and ceiling of the cabinet that measures 10 mm wide by 7 mm deep. With the Richelieu TYPE 401/A Aluminum Track, achieving functional elegance in your cabinetry has never been easier.
TYPE 401/A Aluminum Track
Application: Furniture, Cabinet, Storage
Compatible with: Scorribase Medio
Detailed Door Movement: Single sliding
Door Material: Wood
Door Movement: Straight Sliding
Finish: Silver
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 66.1 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Length: 2 000 mm
Product #: 189A401210
Product number: 189A401210
Product type: Track
Product №: 189A401210
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Material: Anodized Aluminum
Track Mounting: Recessed
Track type: Single Running, Single guiding
Unit: Length
Weight Capacity per Door: 30 kg
