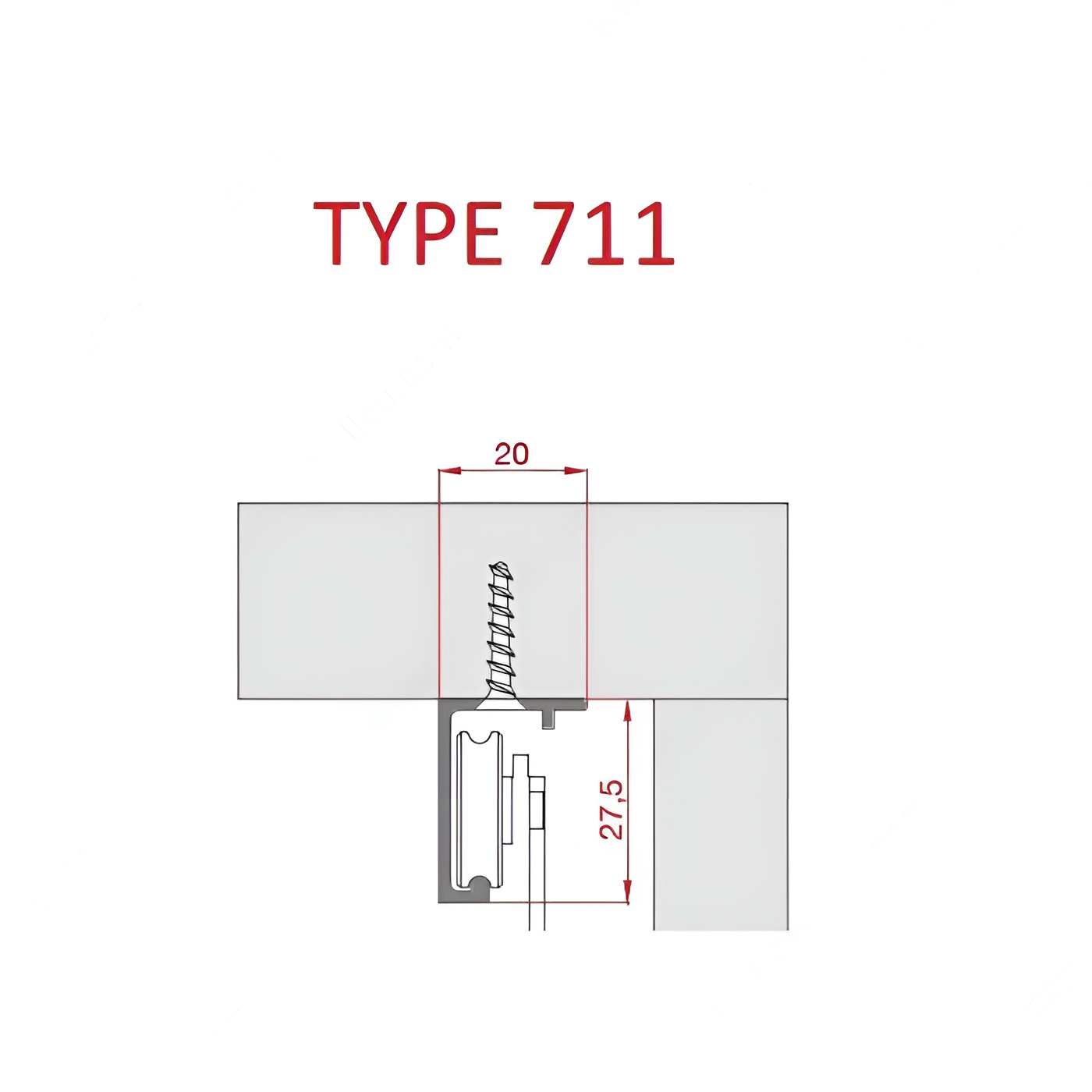

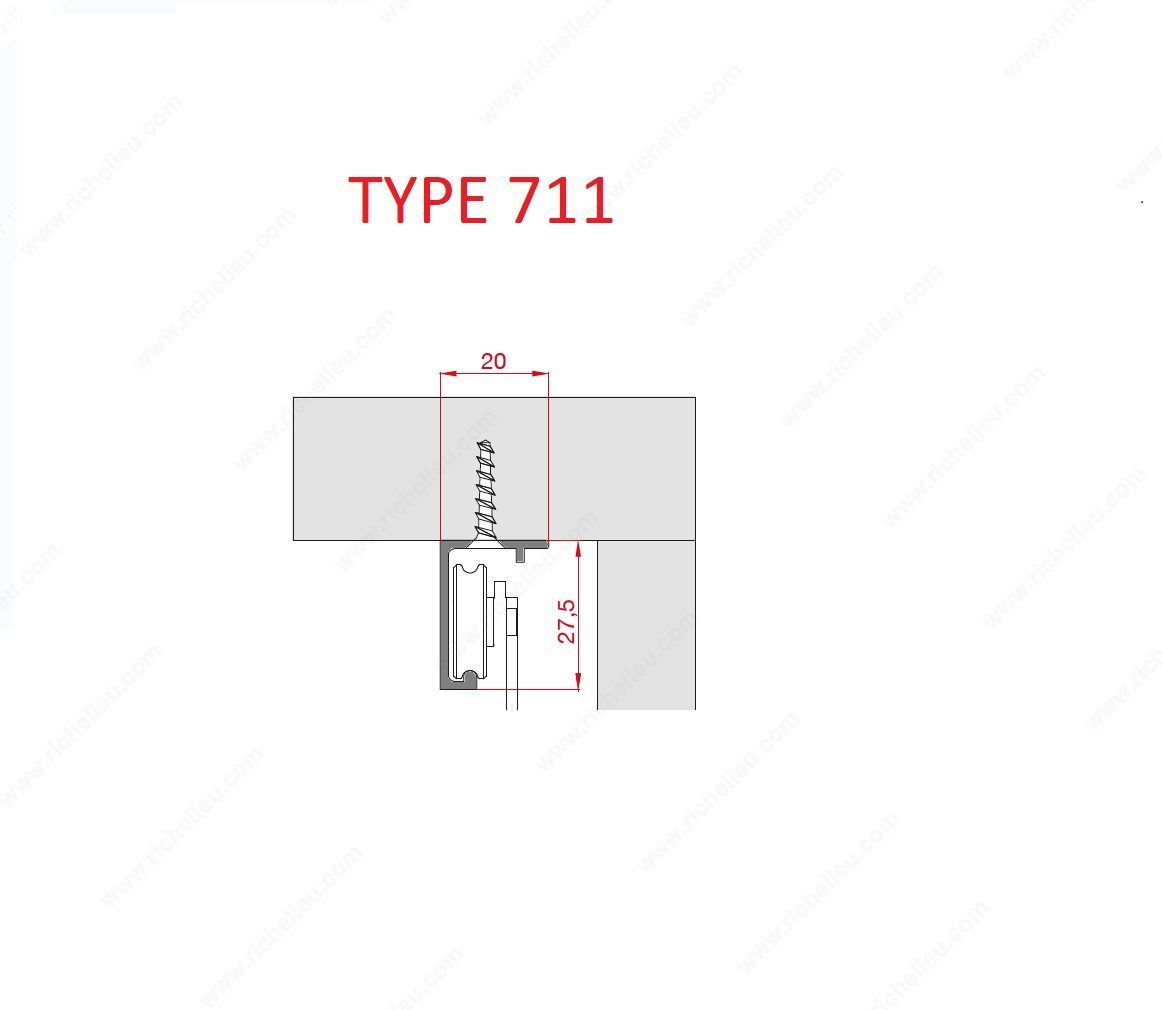

Richelieu 189A711210 TYPE 711 Aluminum Single Track SystemRichelieu 189A711210 TYPE 711 Aluminum Single Track is expertly designed for use with the SCORRI FLAT cabinet, wardrobe, and closet door sliding system. This single track is surface-mounted to the top of the cabinet or door opening, providing a sleek and unobtrusive solution for your sliding door needs. It can be paired alongside the TYPE 710 aluminum double track, making it ideal for triple bypass applications. Available in a stylish silver anodized finish, the TYPE 711 track comes in two lengths-78 inches (2 m) and 118 inches (3 m)-and can be easily cut to fit your specific installation requirements. With a load capacity of up to 110 lbs, it supports wooden doors while ensuring smooth, straight sliding motion. The track features an overall height of 1 3/32 inches and a width of 25/32 inches, allowing for a height clearance of 1 3/8 inches, making it suitable for a variety of closet and wardrobe applications. The roller position is upper-mounted, enhancing the system's functionality. Please note that for optimal installation, metric dimensions are recommended. Elevate your space with Richelieu’s durable and versatile sliding track solution.
TYPE 711 Aluminum Single Track
The TYPE 711 aluminum single track is designed for the SCORRI FLAT cabinet, wardrobe, and closet door sliding system. It is surface mounted to the top of the cabinet or door opening. Can be installed next to TYPE 710 aluminum double track for triple bypassing door applications.
Features:
- Available in silver anodized
- Two different lengths: 78 in (2 m) and 118 in (3 m)
- Can be cut to suit application
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Application: Closet and Walk-In Closet, Wardrobe, Cabinet, Storage
Compatible with: Scorri FLAT
Detailed Door Movement: Single sliding
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Finish: Silver
Height Clearance: 35 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 110 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 27.5 mm
Overall Length: 2 000 mm
Pre-drilled: No
Product #: 189A711210
Product number: 189A711210
Product type: Single Track
Product №: 189A711210
Roller Position: Upper
Running Track Fixing: Surface Mount
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Material: Anodized Aluminum
Track Mounting: Surface Front
Track type: Single Running
Unit: Length
Weight Capacity per Door: 50 kg
Width: 20 mm
