Richelieu 189A970210 TYPE 970/A Aluminum Single Track SystemRichelieu 189A970210 TYPE 970/A Aluminum Single Track is expertly engineered for the SCORRI 10KG cabinet door sliding system, providing a seamless solution for single or bypassing applications. This aluminum track is designed to be recess mounted at the top of your cabinets, ensuring a clean and unobtrusive installation. Available in a sleek silver anodized finish, it not only enhances the aesthetic appeal of your furniture but also delivers durability and strength. The TYPE 970/A track comes in two convenient lengths of 78 in (2 m) and 118 in (3 m), and can be easily cut to fit your specific application needs. With a load capacity of up to 22 lb, this track efficiently supports wooden doors, allowing for smooth and reliable straight sliding movement. Installation is straightforward; simply press-fit the track into the cabinet groove, and for added security, an industrial adhesive for aluminum and wood can be used (not included). For optimal accuracy, follow the instructions to cut a groove in the ceiling of the cabinet measuring 14 mm wide by 12 mm deep. The overall height of the track is 9/16 in and width is also 9/16 in, making it a compact yet robust choice for enhancing your cabinetry.
TYPE 970/A Aluminum Single Track
The TYPE 970/A aluminum single track is designed for the SCORRI 10KG cabinet door sliding system. It is recess mounted to the top of the cabinet for single or bypassing applications by mounting the tracks parallel and spaced apart, as per the instructions. For installation and assembly, press-fit the track into the groove in the cabinet. An industrial adhesive for aluminum and wood may be used to hold the track securely (not included).
Features:
- Available in silver anodized
- Two different sizes: 78 in (2 m) and 118 in (3 m) lengths
- Can be cut to suit application

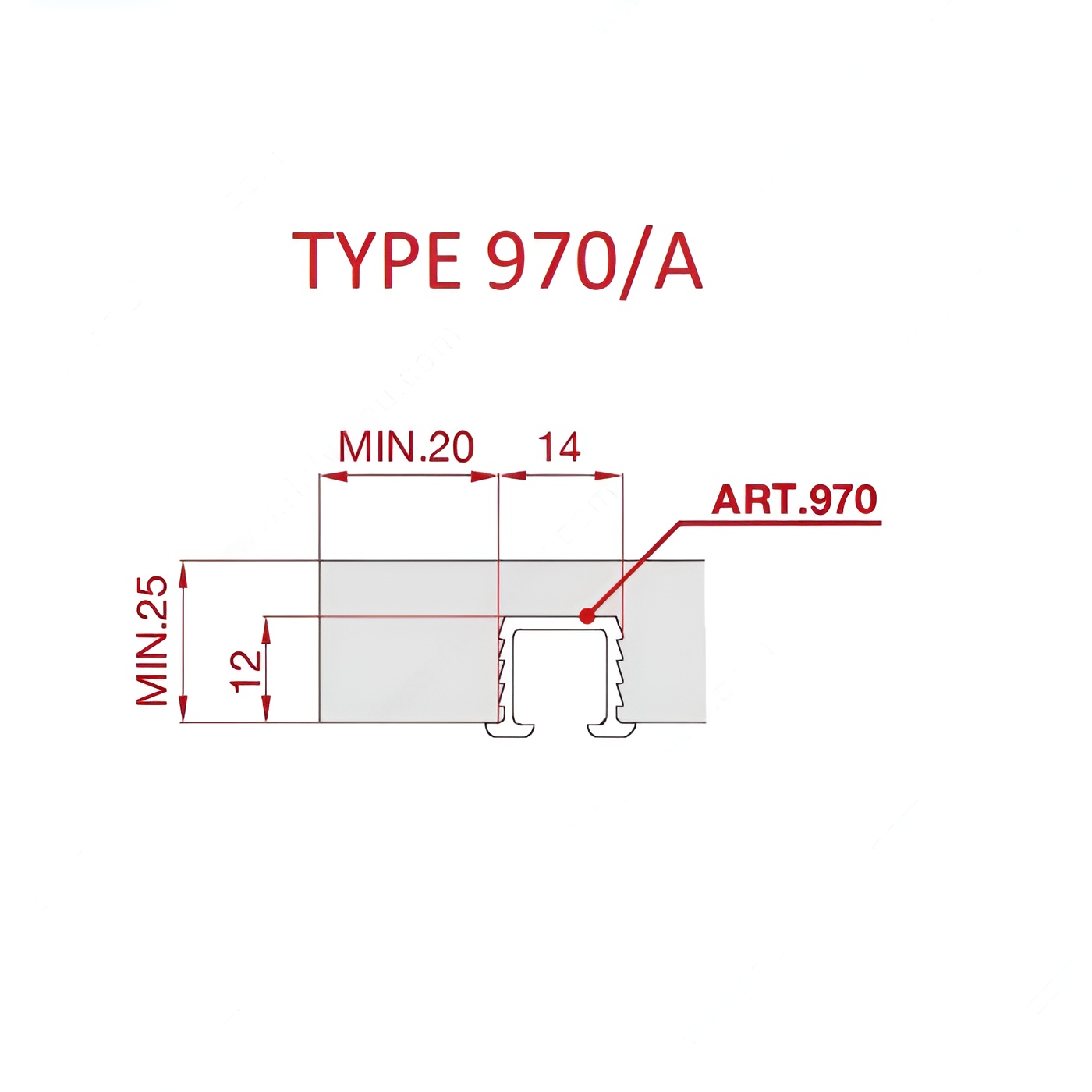

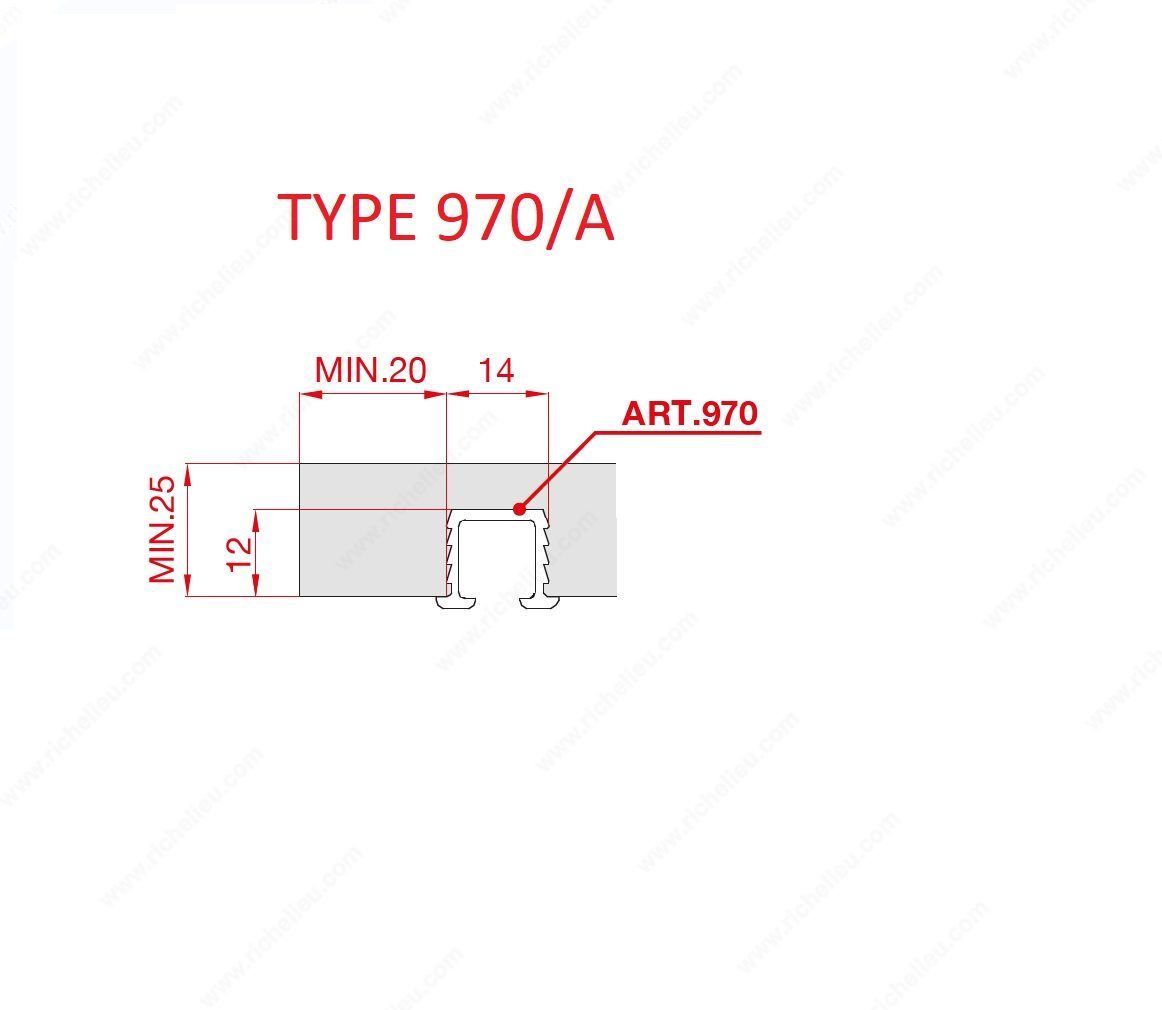

IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove in the ceiling of the cabinet 14 mm wide by 12 mm deep, as per the instructions.
Attributes
Application: Furniture, Cabinet, Storage
Compatible with: Scorri 10KG
Detailed Door Movement: Single sliding
Door Material: Wood
Door Movement: Straight Sliding
Drilling Depth: 12 mm
Finish: Silver
Length: 2 000 to 3 000 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 22 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 14 mm
Overall Length: 2 000 mm
Pre-drilled: No
Product #: 189A970210
Product number: 189A970210
Product type: Single Track
Product №: 189A970210
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Recessed
Track type: Single Running
Unit: Length
Weight Capacity per Door: 10 kg
Width: 14 mm
