Richelieu 189A971310 TYPE 971/A Aluminum Double Track SystemRichelieu 189A971310 TYPE 971/A Aluminum Double Track is expertly crafted for seamless integration into the SCORRI 10KG cabinet door sliding system. This double track is designed for recess mounting at the top of cabinets, enabling efficient bypassing applications that save space and enhance functionality. The installation process is straightforward: simply cut two parallel grooves in the cabinet's ceiling, 14 mm wide by 12 mm deep, and secure the track with a central screw (screws not included). Available in a sleek silver anodized finish, this track comes in two convenient lengths-78 inches (2 m) and 118 inches (3 m)-and can be easily cut to meet specific application needs. With a load capacity of 22 lbs, it supports wooden doors with a thickness ranging from 5/8 to 7/8 inches, ensuring reliable operation for a variety of residential and commercial settings. The TYPE 971/A track features a recessed design for a clean and unobtrusive look, while also facilitating straight sliding door movement. Its overall height is just 9/16 inches, making it an ideal choice for modern cabinetry. For precision installation, it's essential to follow metric measurements. Upgrade your cabinet system with the Richelieu 189A971310 for an efficient and stylish sliding door solution.
TYPE 971/A Aluminum Double Track
The TYPE 971/A aluminum double track is designed for the SCORRI 10KG cabinet door sliding system. It is recess mounted to the top of the cabinet for bypassing applications. For installation, cut two parallel grooves in the cabinet top as per the instructions and fasten with a screw in the middle of the track. Screws not included.
Features:
- Available in silver anodized
- Two different length sizes: 78 in (2 m) and 118 in (3 m)
- Can be cut to suit application

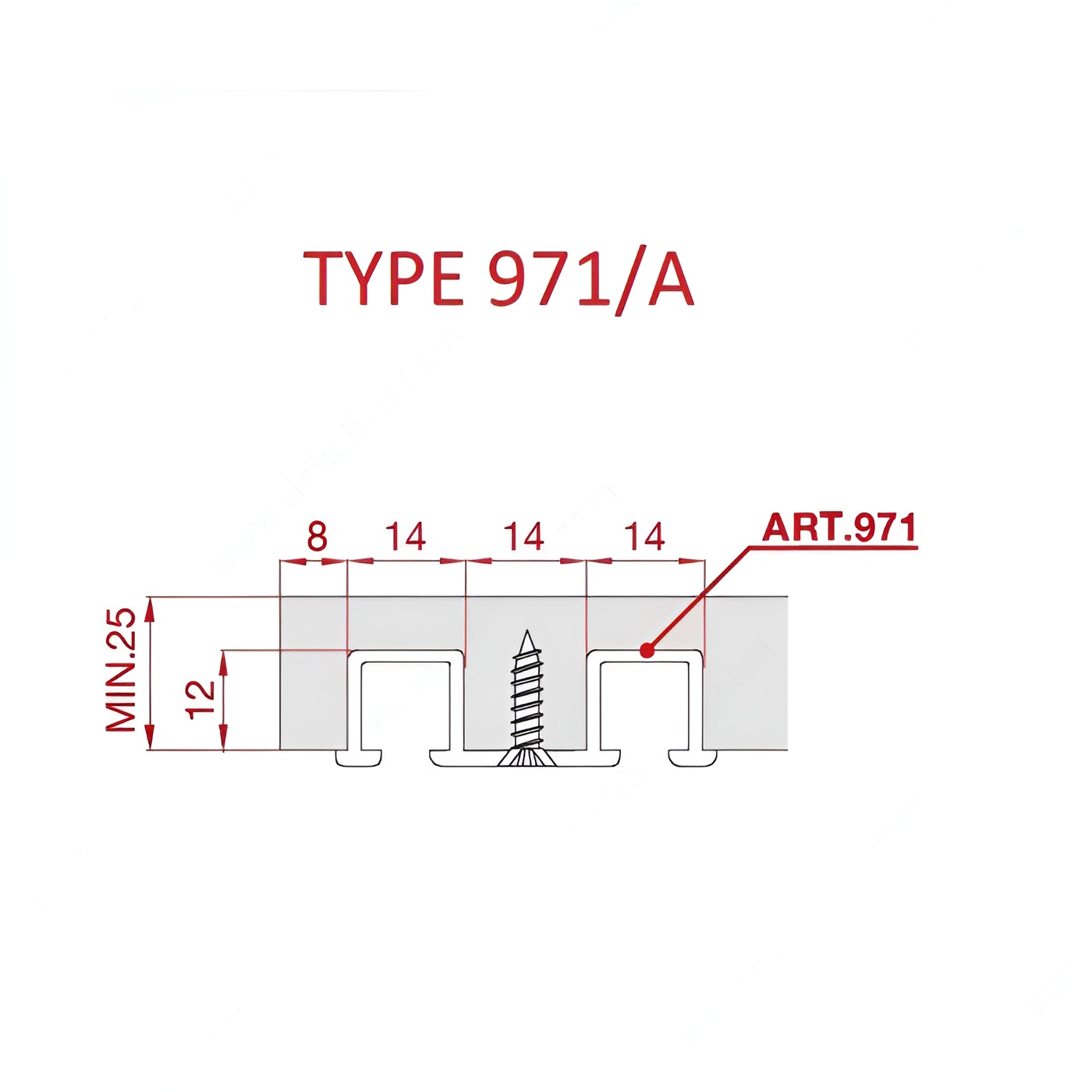

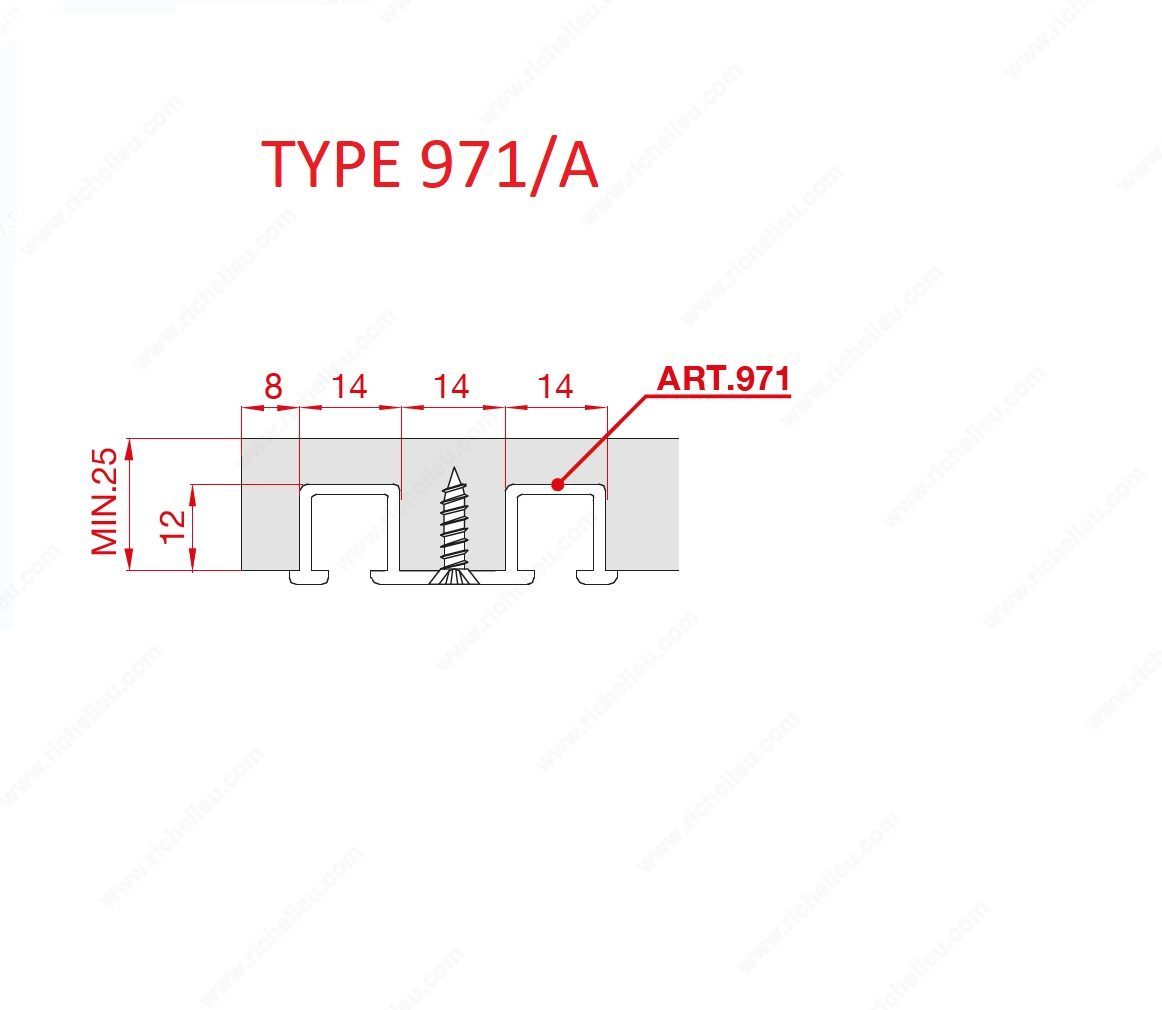

IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut two grooves in the ceiling of the cabinet 14 mm wide by 12 mm deep each, as per the instructions.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Furniture, Cabinet, Storage
Compatible with: Scorri 10KG
Detailed Door Movement: Bypassing
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 16 to 22 mm
Drilling Depth: 12 mm
Finish: Silver
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: 22 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 14 mm
Overall Length: 3 000 mm
Product #: 189A971310
Product number: 189A971310
Product type: Running and Guiding Tracks
Product №: 189A971310
Running Track Fixing: Recessed
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Material: Aluminum
Track Mounting: Recessed
Track type: Double Running
Unit: Length
Weight Capacity per Door: 10 kg
