Richelieu 189A980310 TYPE 980/A Aluminum Track InstructionsRichelieu 189A980310 TYPE 980/A Aluminum Track is expertly crafted for the SCORRI 10KG cabinet door sliding system, making it an ideal choice for bypassing applications. This double track is designed for surface mounting at the top of cabinets, ensuring a seamless and efficient sliding door experience. Available in a sleek silver anodized finish, this track is both visually appealing and functional. You can choose from two convenient sizes-78 inches (2 meters) and 118 inches (3 meters)-which can also be easily cut to fit your specific installation needs. It supports a load capacity of up to 22 pounds and accommodates doors with a thickness of 5/8 to 7/8 inches, allowing for versatility in your projects. For optimal performance, it is important to use metric dimensions during installation. This track is suitable for furniture, cabinet, and storage applications, and it facilitates top-hung, straight sliding door movement for two doors. With a width of 1 21/32 inches and an overall height of just 9/16 inches, it integrates smoothly into any design. Richelieu’s commitment to quality ensures that the TYPE 980/A Aluminum Track will provide durability and reliability for years to come.

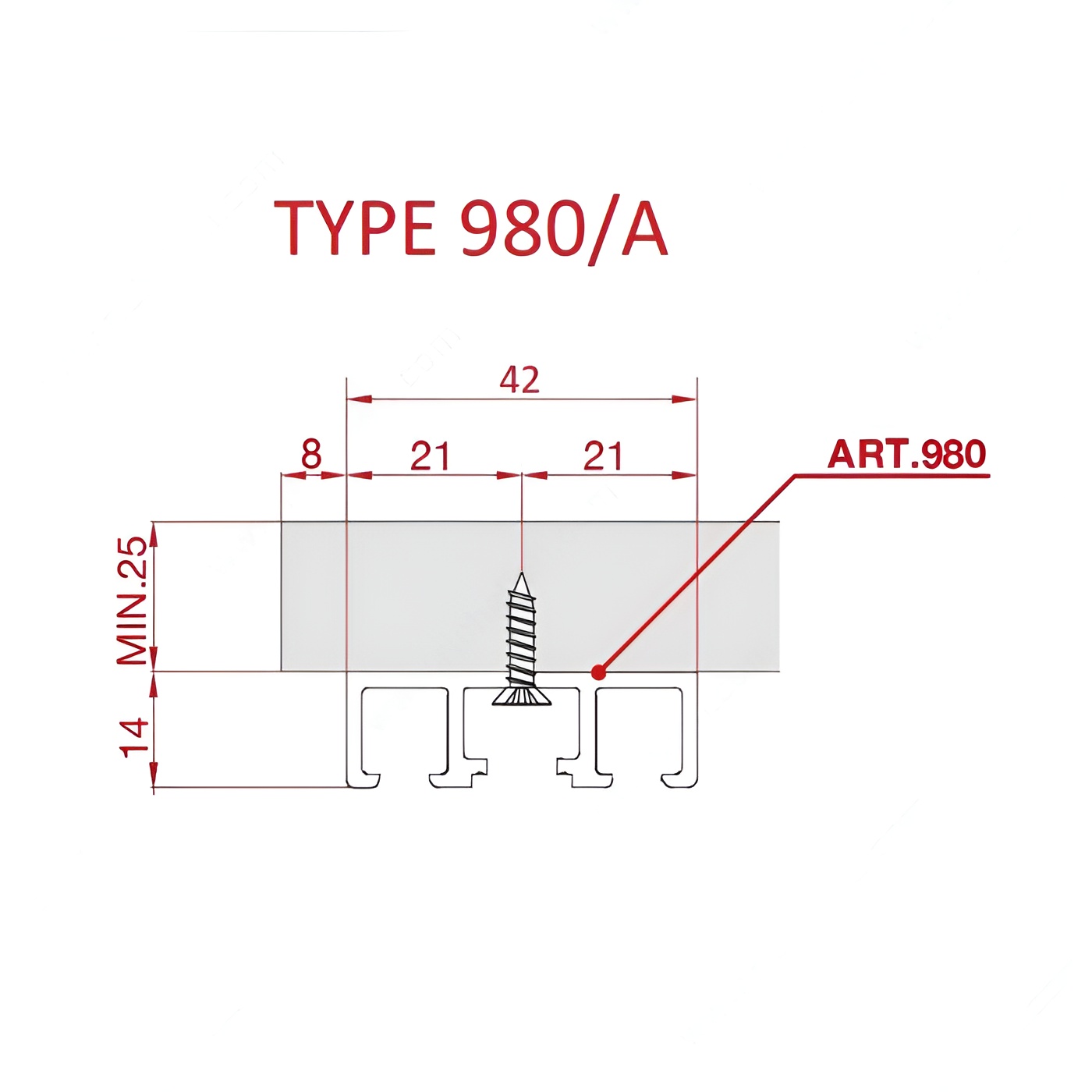

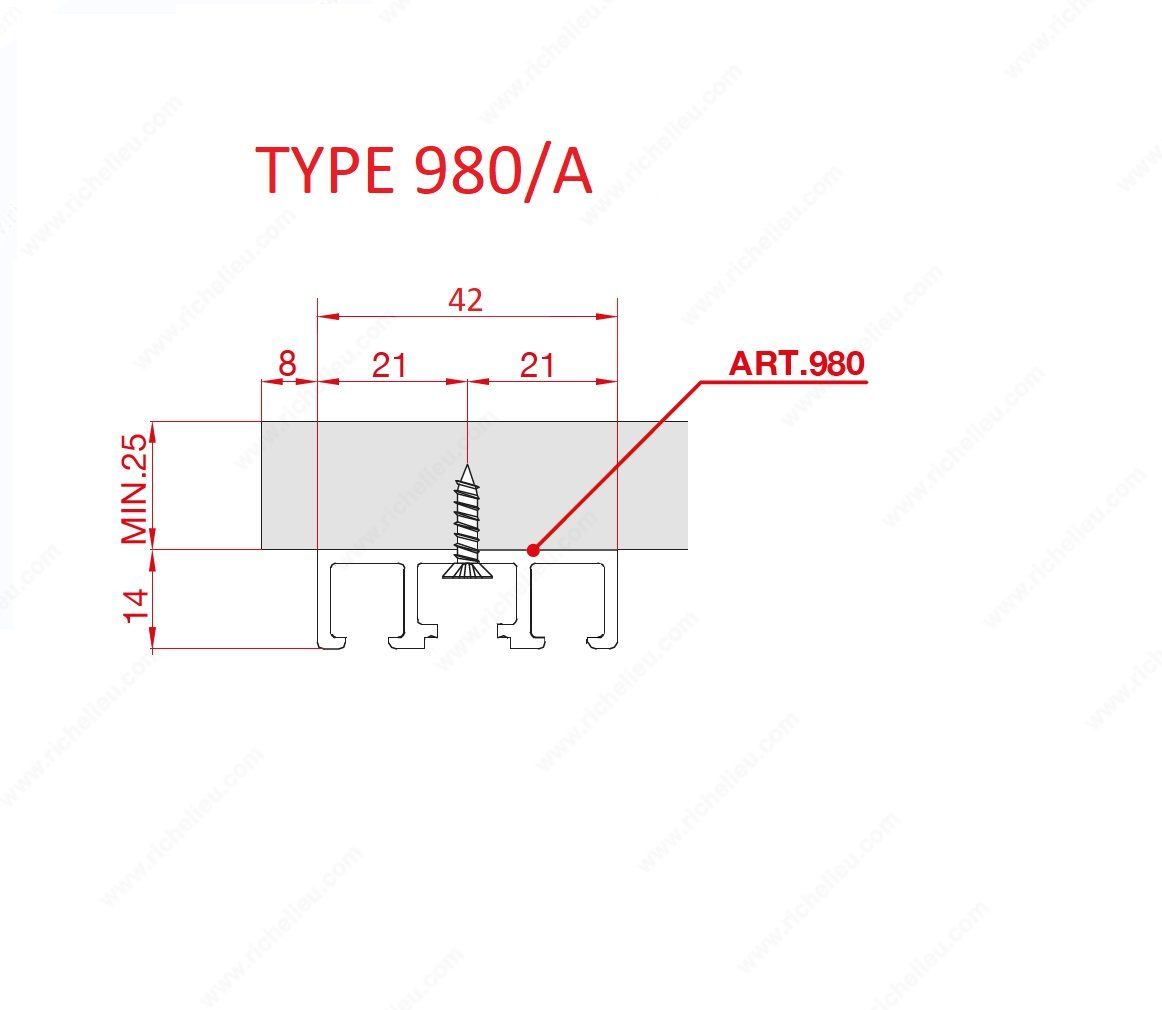

TYPE 980/A Aluminum Track
The TYPE 980/A aluminum double track is designed for the SCORRI 10KG cabinet door sliding system. It is surface mounted to the top of the cabinet for bypassing applications. For installation and assembly, screw mount the track as per the instructions (screws not included).
Features:
- Available in silver anodized
- Two different sizes: 78 in (2 m) and 118 in (3 m) in) lengths
- Can be cut to suit application
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Furniture, Cabinet, Storage
Compatible with: Scorri 10KG
Detailed Door Movement: Bypassing
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 16 to 22 mm
Finish: Silver
Length: 2 000 to 3 000 mm
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: 22 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Number of Doors: 2
Overall Height: 14 mm
Overall Length: 3 000 mm
Product #: 189A980310
Product number: 189A980310
Product type: Double Track
Product №: 189A980310
Running Track Fixing: Surface Mount
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Surface Front
Track type: Double Running
Unit: Length
Weight Capacity per Door: 10 kg
Width: 42 mm
