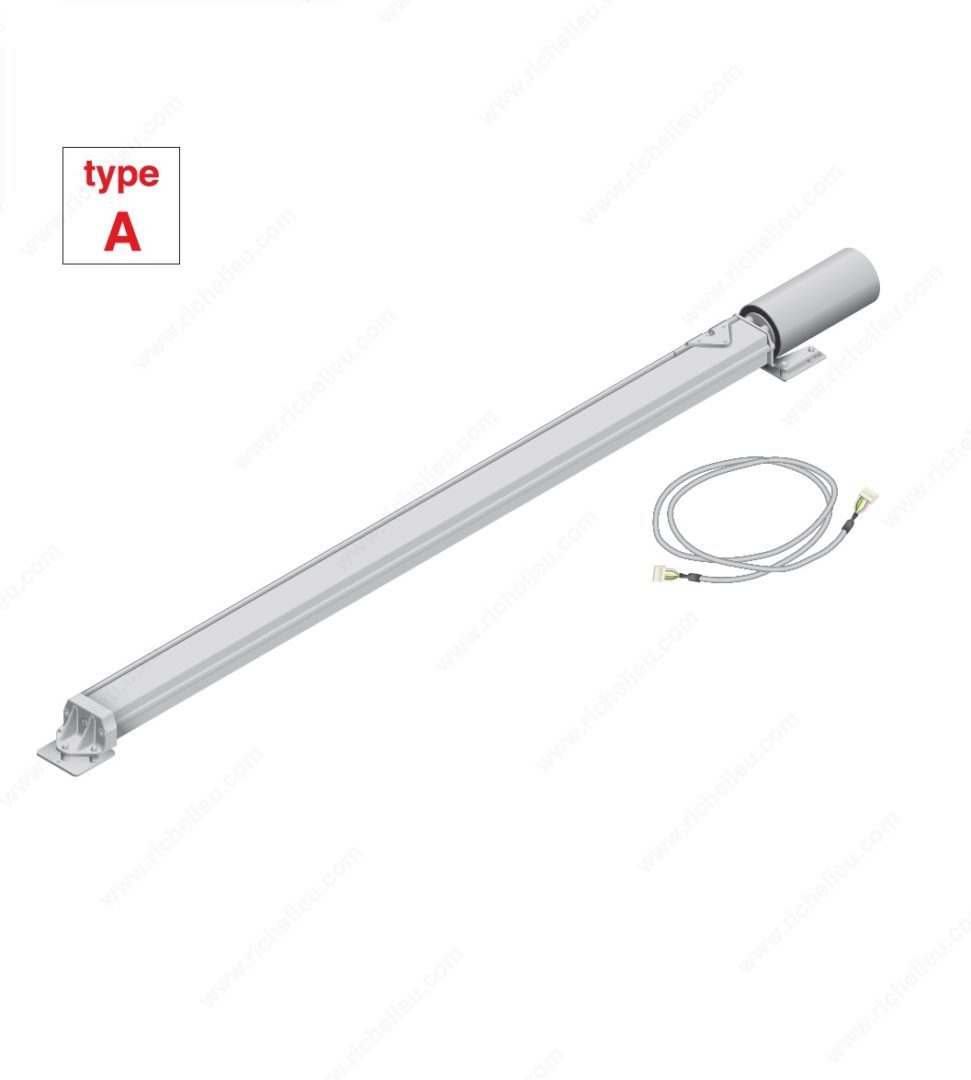

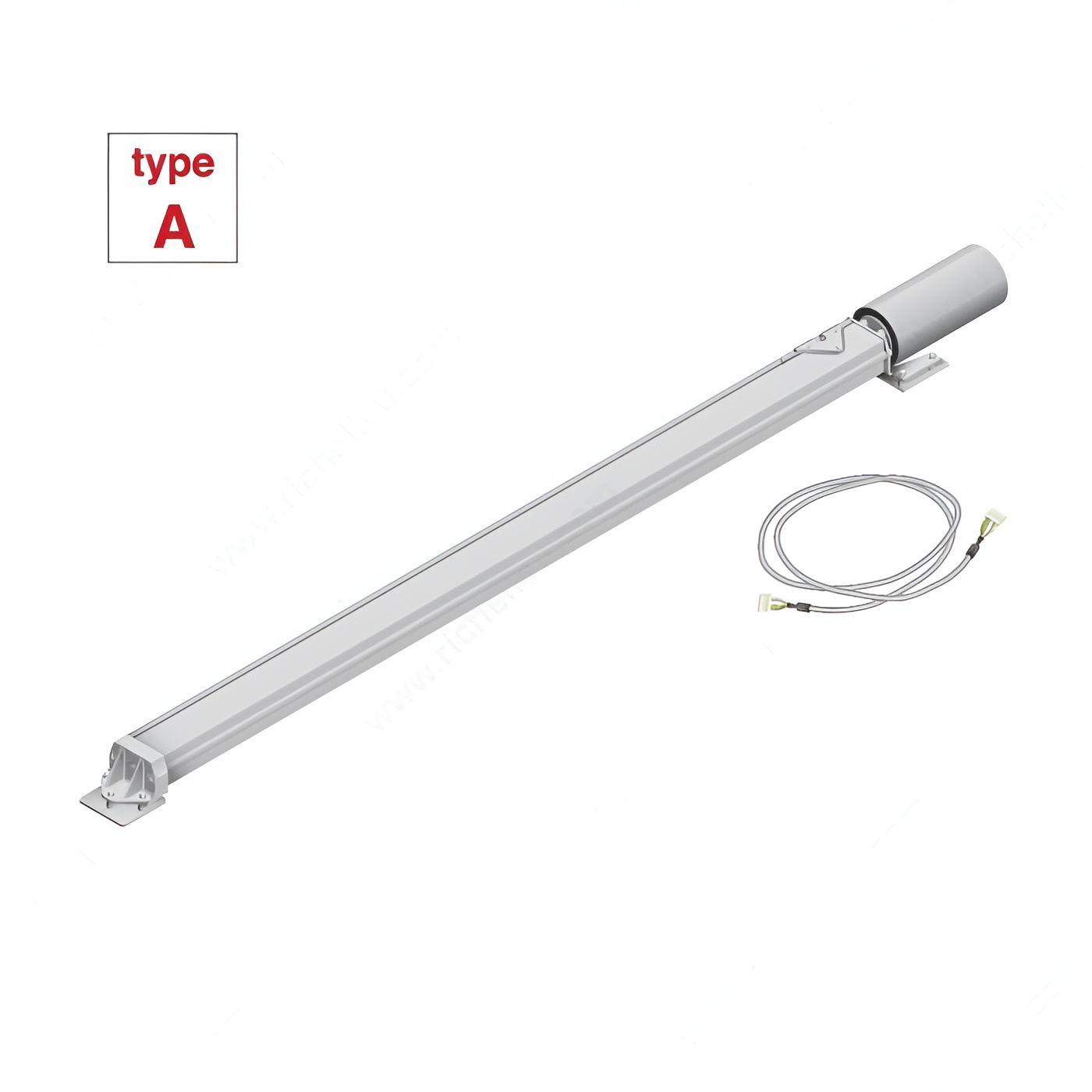

Richelieu 189BEMTYPA B-Moved Motion Transmission Bar is a sophisticated electric motor designed specifically for seamless operation of sliding doors in PS40, PS48, and PS66 systems. This motion transmission bar enables smooth and efficient movement, enhancing the overall user experience in both residential and commercial settings. Compatibility is key; choose from four types of motion transmission bars based on the sliding system and door width. The 189BEMTYPA mounts securely within the PS66 sliding mechanisms, while it attaches to an upper aluminum profile for the PS40 and PS48 systems, providing versatility in installation. It’s important to plan for additional depth to accommodate the motion transmission bar as outlined in the installation instructions. This model supports door heights ranging from 1,000 mm to 3,000 mm and accommodates door thicknesses between 18 mm to 53 mm, making it suitable for a variety of materials, including wood and glass. With a load capacity of 30 kg to 80 kg, this transmission bar is engineered for single-door applications, ensuring reliable performance. For added convenience, a connector bracket set is included for the PS66 system, while a separate connector bracket set is needed for the PS40 and PS48 configurations.
B-Moved Motion Transmission Bar
Brand: B-moved
Brand Model: Cinetto B-Moved
Compatible with: PS48 / PS40
Door Height: 1 000 to 3 000 mm
Door Installation: Left and right hand
Door Material: Wood, Glass
Door Thickness: 18 to 53 mm
Door Width: 900 to 1 400 mm
Load Capacity: 30 to 80 kg
Number of Doors: 1
Product #: 189BEMTYPA
Product type: Mounting Accessories
Product №: 189BEMTYPA
Weight Capacity per Door: 30 to 80 kg
