Richelieu 189FT829L210 SLIDE 25 Front Mount Track is designed for seamless integration into full overlay applications, making it an ideal choice for furniture, cabinets, and storage solutions. This robust surface front and side mount track is compatible with the SLIDE 25 sliding door system and is available in two convenient lengths of 78 1/4 inches (1.99 m) and 117 5/8 inches (2.99 m). Crafted from high-quality aluminum and finished with an anodized coating, this track not only ensures durability but also complements a variety of design aesthetics. The track supports a door thickness ranging from 19/32 to 31/32 inches and boasts an impressive load capacity of up to 55.1 lbs. The bottom-running design allows for smooth, straight sliding movement, enhancing functionality and ease of use. With a width of 1/2 inch and an overall height of 1 3/32 inches, the Richelieu SLIDE 25 Front Mount Track is engineered for wall mounting and surface installation, making it a versatile option for any project. Note that it works with clip-on fascias 189FAS830L210 and 189FAS830L310, providing additional customization options. Elevate your design with this reliable and stylish sliding door track system.
SLIDE 25 Front Mount Track
Application: Furniture, Cabinet, Storage
Compatible with: SLIDE 25
Door Installation: Bottom Running
Door Material: Aluminum/Metal Frame, Wood
Door Movement: Straight Sliding
Door Thickness: 15 to 25 mm
Finish: Anodized
Length - Overall Dimensions: 78 3/8 in*
Load Capacity: 55.1 lb*
Manufacturing Material: Aluminum
Material: Aluminum

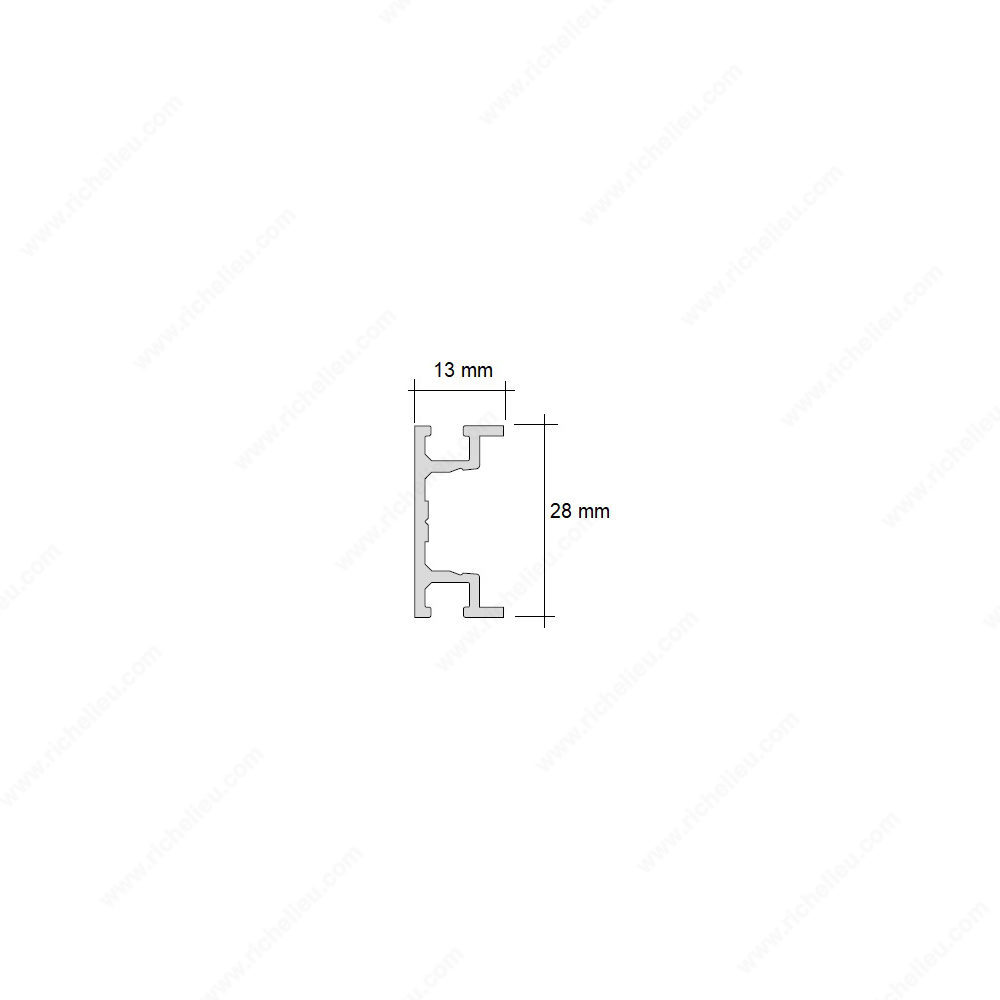

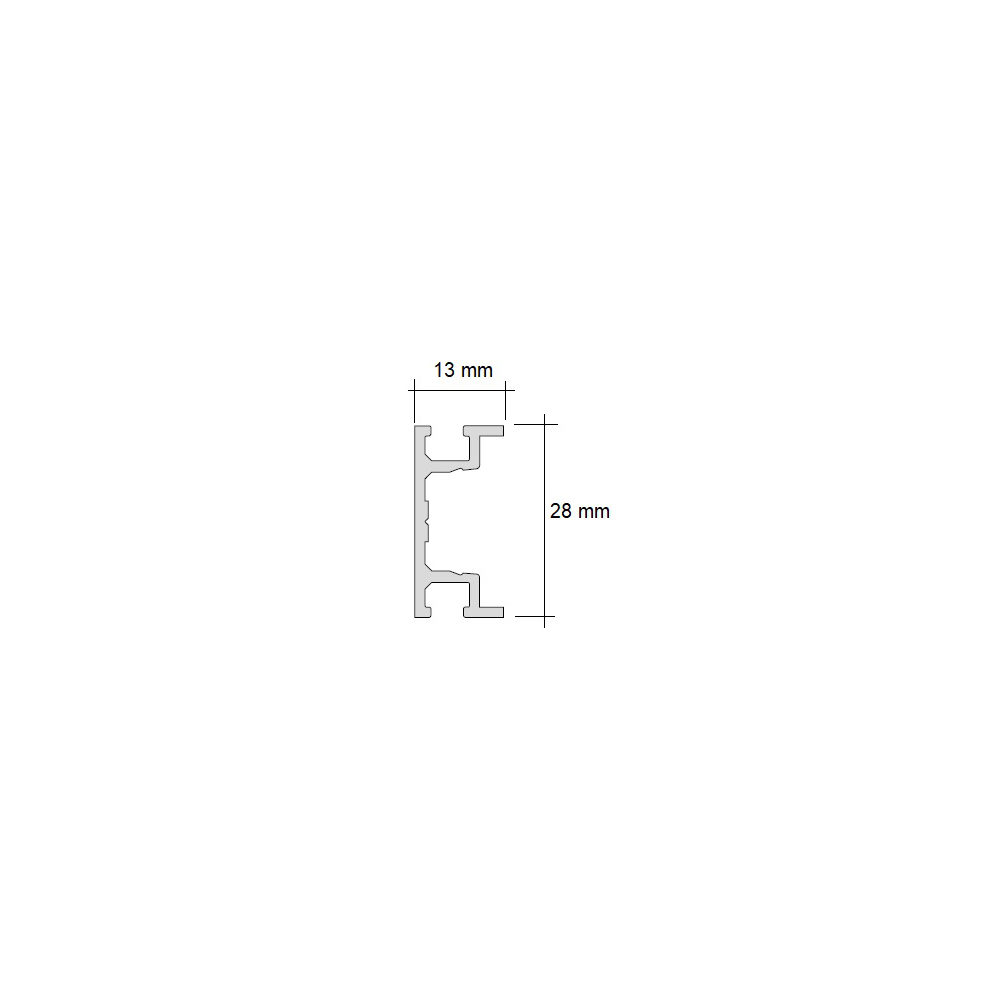

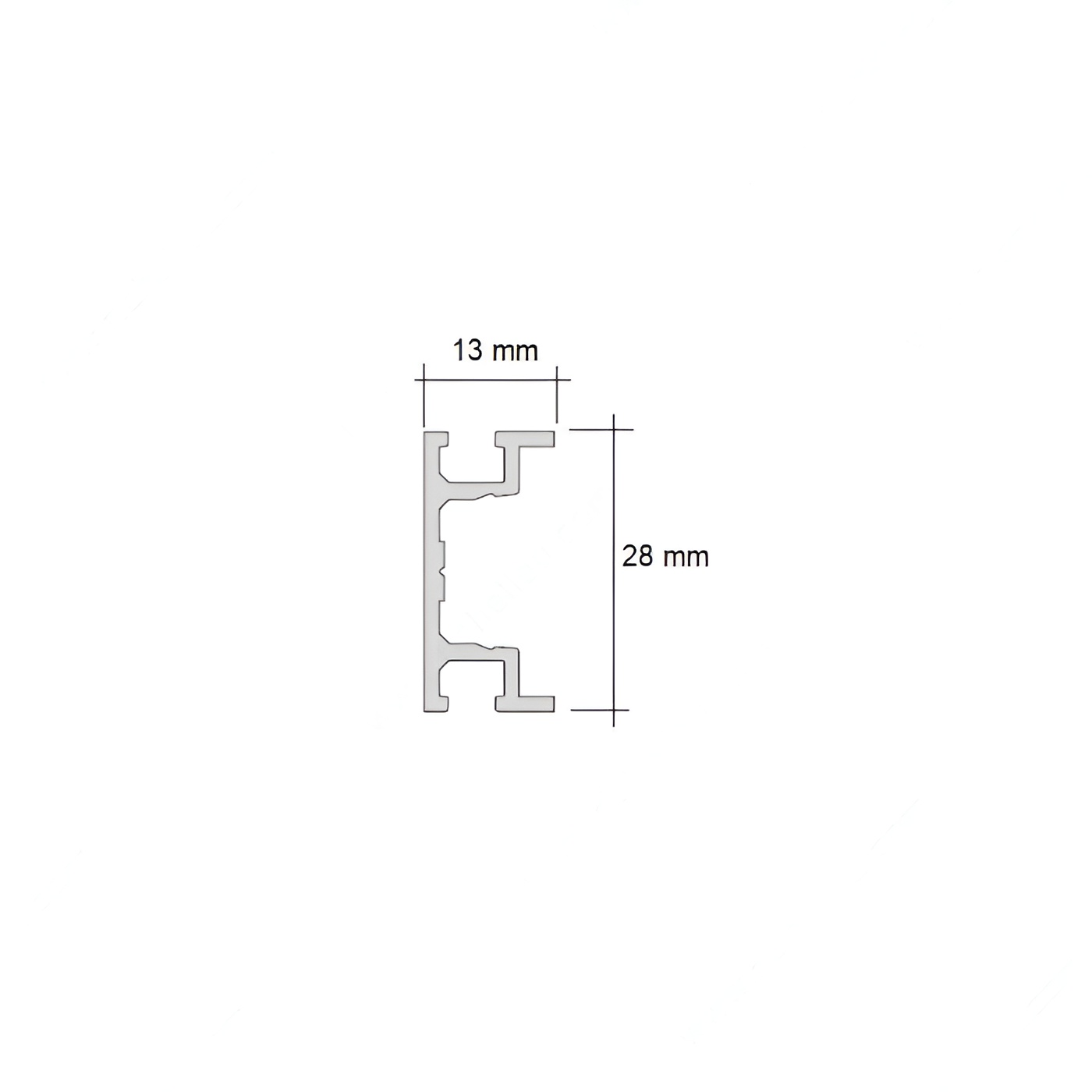

Overall Height: 28 mm
Overall Length: 1 990 mm
Pre-drilled: No
Product #: 189FT829L210
Product number: 189FT829L210
Product type: Running and Guiding Tracks
Product №: 189FT829L210
Running Track Fixing: Surface Mount
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Anodized
Track Material: Anodized Aluminum
Track Mounting: Surface Front
Track type: Single Running, Single guiding
Unit: Length
Unit 1: case - 2000
Unit 2: case - 2000
Weight Capacity per Panel: 25 kg
Width: 13 mm
