Richelieu 189K1163G100 Scorribase MEDIO Hardware SetRichelieu 189K1163G100 Scorribase MEDIO Hardware Set offers an efficient solution for wood cabinet doors, accommodating weights up to 66 lb (30 kg). Designed specifically for inset applications, this bottom running system ensures smooth and reliable operation. The set is compatible with wood doors ranging from 3/4 in (19 mm) to 1 in (27 mm) thick, making it versatile for various cabinet styles. Installation is straightforward and flexible, featuring recessed mount hardware that simplifies the process. The kit includes essential track stoppers, while the recessed track is sold separately for customized configurations. This hardware set supports single sliding and bypassing door movements, suitable for door heights between 11 3/4 in and 70 7/8 in, and widths from 11 3/4 in to 48 in. Constructed from durable nylon and plastic, the Scorribase MEDIO is designed for longevity and reliability. It is important to note that drilling should be done with metric precision, ensuring a depth of 11 mm without breaching the concealed hinge. Ideal for furniture, cabinet, and storage applications, this hardware set combines functionality with a sleek gray finish, making it a smart choice for any project.

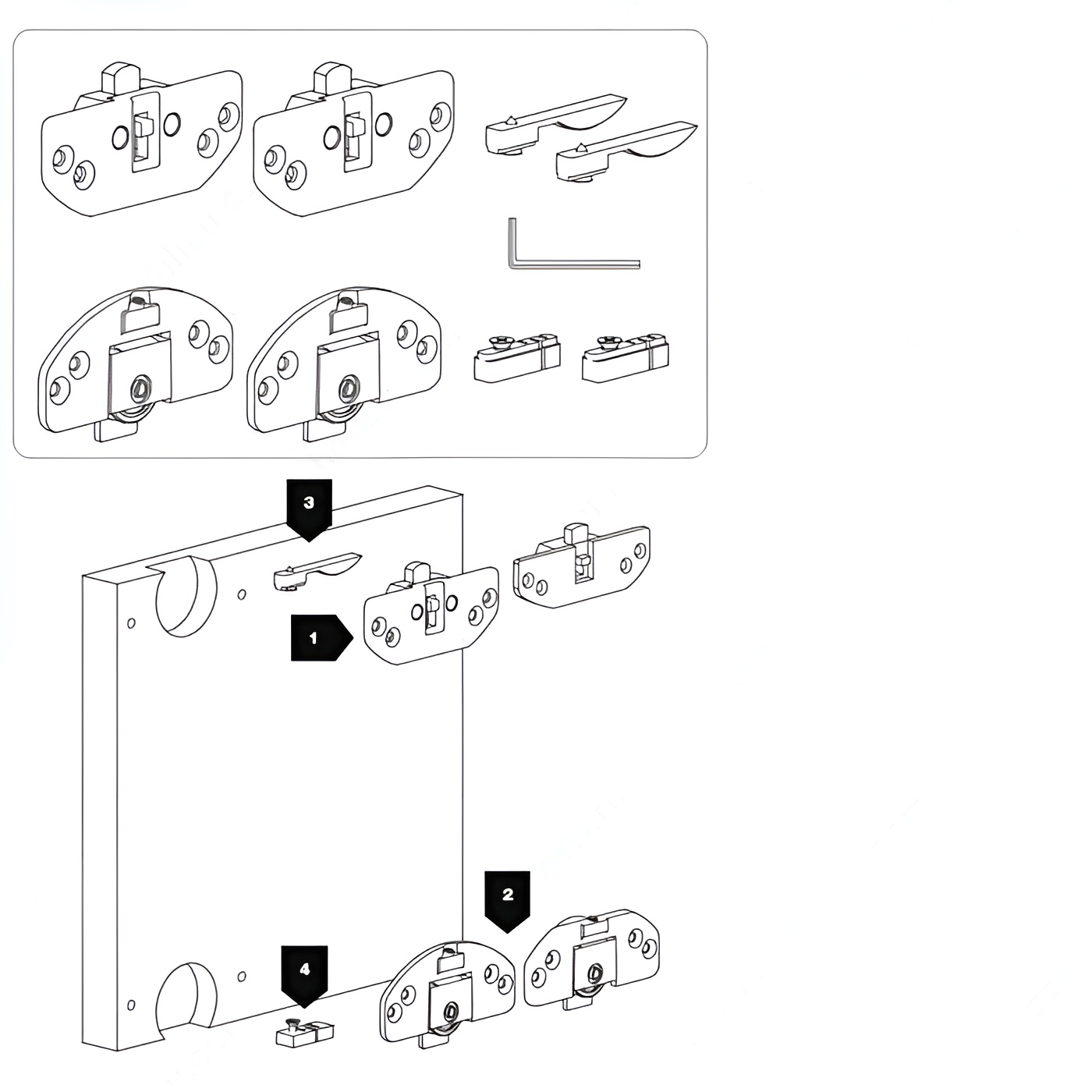

Scorribase MEDIO Hardware Set
The Scorribase MEDIO hardware sets are designed for one wood cabinet door with a weight capacity of 33 lb (5 kg) or 66 lb (30 kg) each.
Features:
- Bottom running system for inset applications
- Recess mount hardware for wood doors 3/4 in (19 mm) to 1 in (27 mm) thick
- Includes track stoppers
- Recessed track sold separately
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Drill 35 mm by 11 mm deep without going through European style concealed hinge.
Attributes
Application: Furniture, Cabinet, Storage
Detailed Door Movement: Single sliding, Bypassing
Door Height: 300 to 1 800 mm
Door Installation: Bottom Running
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 19 to 27 mm
Door Width: 300 to 1 219 mm
Drilling: 35 mm
Drilling Depth: 11 mm
Finish: Gray
Load Capacity: 66.1 lb*
Manufacturing Material: Nylon, Plastic
Material: Plastic, Nylon
Number of Doors: 1
Product #: 189K1163G100
Product number: 189K1163G100
Product type: Hardware Set
Product №: 189K1163G100
Roller Position: Lower
Unit: Set
Weight Capacity per Door: 30 kg
