Richelieu 189K1291610 SCORRI Flat Hardware SetRichelieu 189K1291610 SCORRI FLAT Hardware Set offers a versatile solution for sliding wood doors in cabinets, wardrobes, and closets. Designed with three weight capacities-22 lb (10 kg), 66 lb (30 kg), and 110 lb (50 kg)-this hardware set caters to various applications, ensuring durability and reliability. This top-hung sliding system is ideal for inset applications, featuring a rear surface mount suspension plate equipped with a height adjustment cam for precise installation. The recessed mount hardware accommodates wood doors ranging from 5/8 in (16 mm) to 3/4 in (20 mm) thick, while the concealed track stoppers and anti-lift pin provide added security and stability. With a maximum door height of 48 inches and the ability to support a single door, the SCORRI FLAT system allows for smooth, straight sliding movement. It is compatible with door widths from 11 3/4 in to 39 3/8 in. This hardware set is packaged for easy transport and installation, making it an excellent choice for professionals and discerning homeowners alike. For optimal accuracy, it is recommended to use metric dimensions during installation and follow provided guidelines for groove cutting and drilling. Elevate your space with the reliable performance of Richelieu's SCORRI FLAT Hardware Set.
SCORRI FLAT Hardware Set

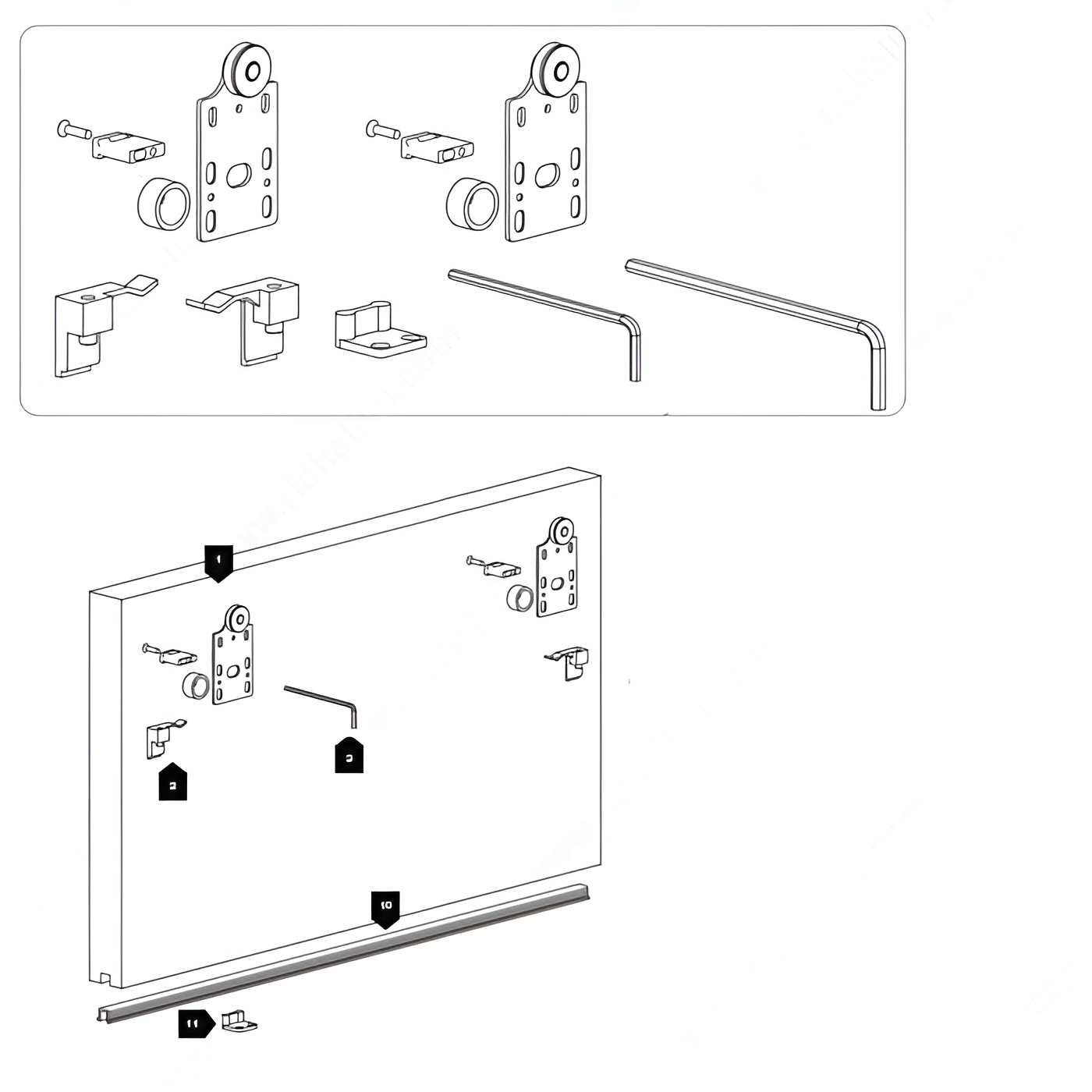

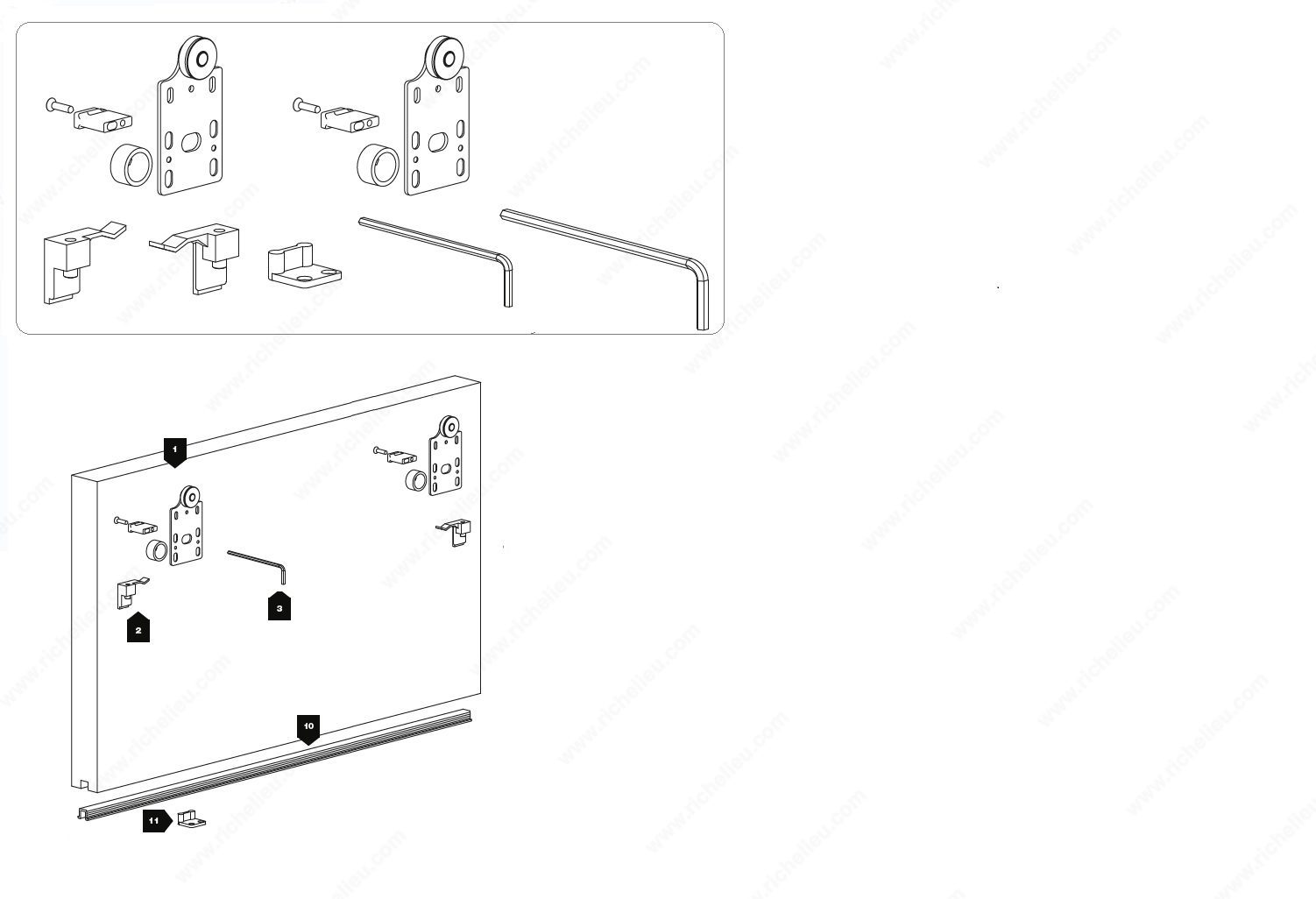

The SCORRI FLAT hardware sets with upper wheels for one cabinet, wardrobe, and closet wood door for three different weight capacities: 22 lb (10 kg), 66 lb (30 kg), and 110 lb (50 kg).
Features:
- Top hung running sliding system for inset applications
- Rear surface mount suspension plate with height adjustment cam
- Recess mount hardware for wood doors 5/8 in (16 mm) to 3/4 in (20 mm) thick
- Includes concealed track stoppers with retaining device
- Includes anti-lift pin for secure installation
- Single and double surface mount tracks sold separately
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 10 mm by 7 mm at the bottom of the door for bottom guide. Drill without going through a 20 mm diameter by 10 mm deep hole similar to a European style concealed hinge, offset as per the instructions.
Attributes
Application: Closet and Walk-In Closet, Wardrobe, Furniture, Cabinet, Storage
Detailed Door Movement: Single sliding, Bypassing
Door Height: Max. 1 219 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 16 to 20 mm
Door Width: 300 to 1 000 mm
Load Capacity: 22 lb*
Manufacturing Material: Metal, Nylon, Aluminum
Material: Aluminum, Nylon, Metal
Number of Doors: 1
Packaging Format: Box
Product #: 189K1291610
Product number: 189K1291610
Product type: Hardware Set
Product №: 189K1291610
Roller Position: Upper
Unit: Set
Weight Capacity per Door: 10 kg
