Richelieu 189K1293530 SCORRI Flat Hardware SetRichelieu 189K1293530 SCORRI FLAT Hardware Set offers a versatile solution for sliding wood doors in closets, wardrobes, and cabinets. Designed to accommodate weight capacities of 22 lb (10 kg), 66 lb (30 kg), and 110 lb (50 kg), this top-hung sliding system ensures seamless operation for doors ranging from 5/8 in (16 mm) to 3/4 in (20 mm) thick. This hardware set features a rear surface mount suspension plate with a height adjustment cam, enabling precise alignment and installation. The concealed track stoppers with a retaining device enhance security, while the anti-lift pin guarantees stability during use. The system is suitable for single sliding and bypassing door movements, making it ideal for various applications. The SCORRI FLAT is engineered for easy, flexible installation, requiring only a simple groove cut at the bottom of the door and a drilled hole for a concealed hinge. With a maximum door height of 78 3/4 in and widths between 15 3/4 in to 48 in, it strikes the perfect balance between functionality and aesthetic appeal. Made from durable metal, nylon, and aluminum, this hardware set is packed securely in a box for convenient transport. Elevate your space with the Richelieu SCORRI FLAT Hardware Set, providing both style and practicality to your sliding door projects.

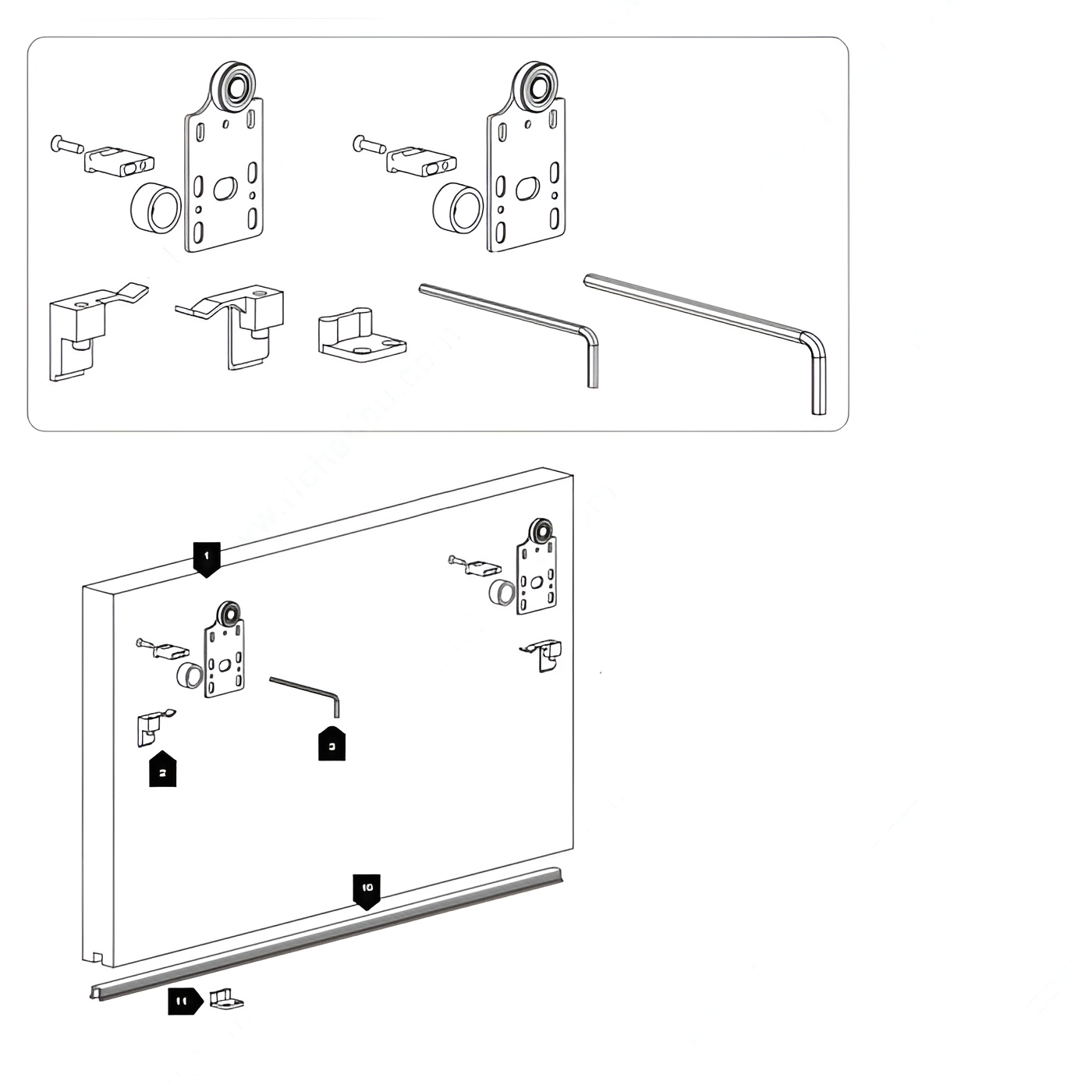

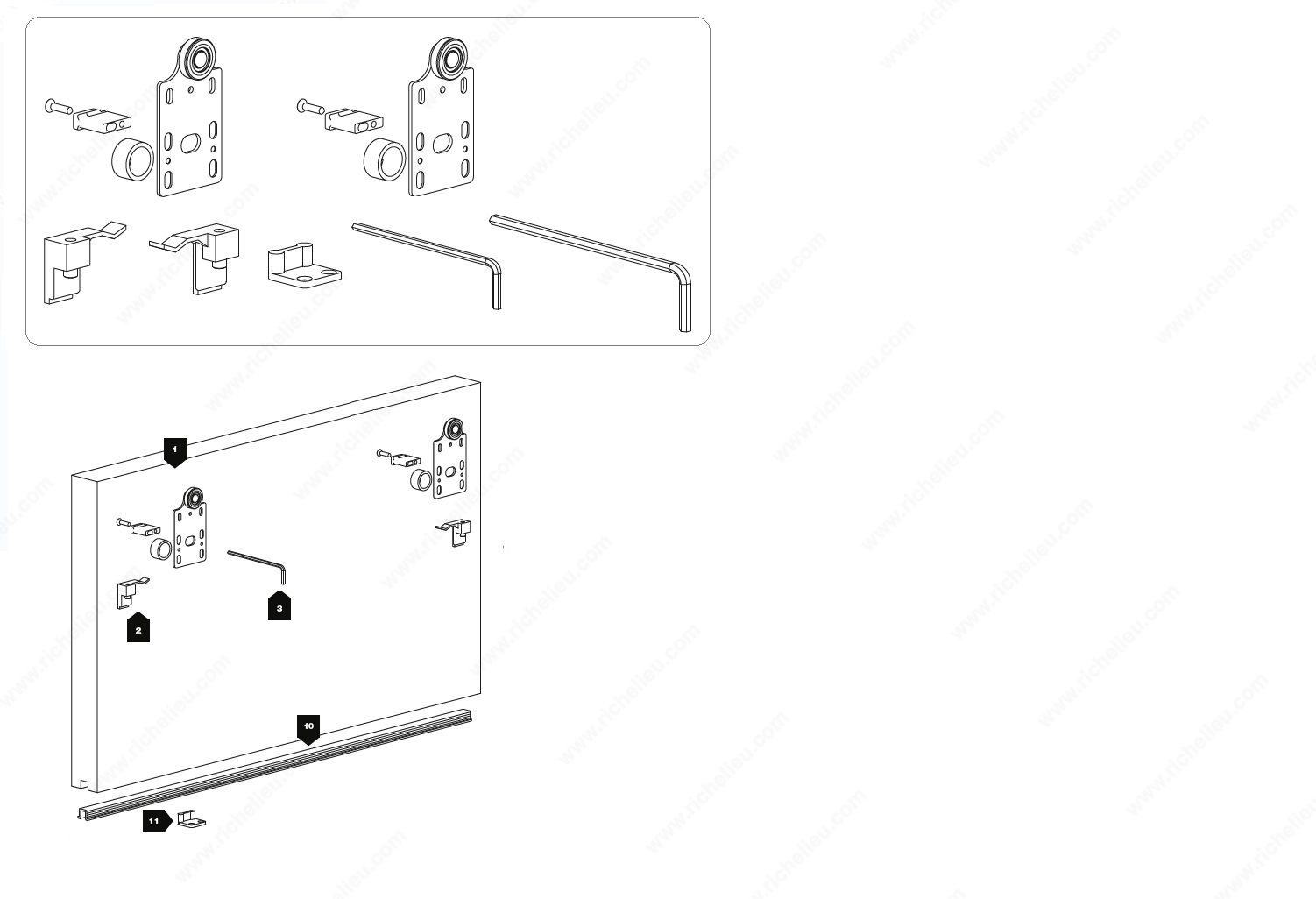

SCORRI FLAT Hardware Set
The SCORRI FLAT hardware sets with upper wheels for one cabinet, wardrobe, and closet wood door for three different weight capacities: 22 lb (10 kg), 66 lb (30 kg), and 110 lb (50 kg).
Features:
- Top hung running sliding system for inset applications
- Rear surface mount suspension plate with height adjustment cam
- Recess mount hardware for wood doors 5/8 in (16 mm) to 3/4 in (20 mm) thick
- Includes concealed track stoppers with retaining device
- Includes anti-lift pin for secure installation
- Single and double surface mount tracks sold separately
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 10 mm by 7 mm at the bottom of the door for bottom guide. Drill without going through a 20 mm diameter by 10 mm deep hole similar to a European style concealed hinge, offset as per the instructions.
Attributes
Application: Closet and Walk-In Closet, Wardrobe, Furniture, Cabinet, Storage
Detailed Door Movement: Single sliding, Bypassing
Door Height: Max. 2 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 16 to 20 mm
Door Width: 400 to 1 219 mm
Load Capacity: 66.1 lb*
Manufacturing Material: Metal, Nylon, Aluminum
Material: Aluminum, Nylon, Metal
Number of Doors: 1
Packaging Format: Box
Product #: 189K1293530
Product number: 189K1293530
Product type: Hardware Set
Product №: 189K1293530
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Unit: Set
Weight Capacity per Door: 30 kg
