Richelieu 189K1295750 SCORRI Flat Hardware SetRichelieu 189K1295750 SCORRI FLAT Hardware Set offers a robust solution for sliding wood doors in cabinets, wardrobes, and closets. This top-hung running sliding system accommodates various weight capacities-22 lbs (10 kg), 66 lbs (30 kg), and an impressive 110 lbs (50 kg)-making it versatile for different applications. Designed for inset installations, the SCORRI FLAT features a rear surface mount suspension plate with a height adjustment cam, ensuring a precise fit and smooth operation. The set includes concealed track stoppers equipped with a retaining device and an anti-lift pin, providing added security during use. This hardware set is compatible with wood doors ranging in thickness from 5/8 in (16 mm) to 3/4 in (20 mm) and can accommodate door widths between 15 3/4 in and 48 in, with a maximum height of 98 3/8 in. For installation, a groove of 10 mm by 7 mm is required at the bottom of the door, along with a 20 mm diameter hole for concealed hinges. With a straightforward and flexible installation process, this hardware set is ideal for creating functional and stylish storage solutions in any space.
SCORRI FLAT Hardware Set

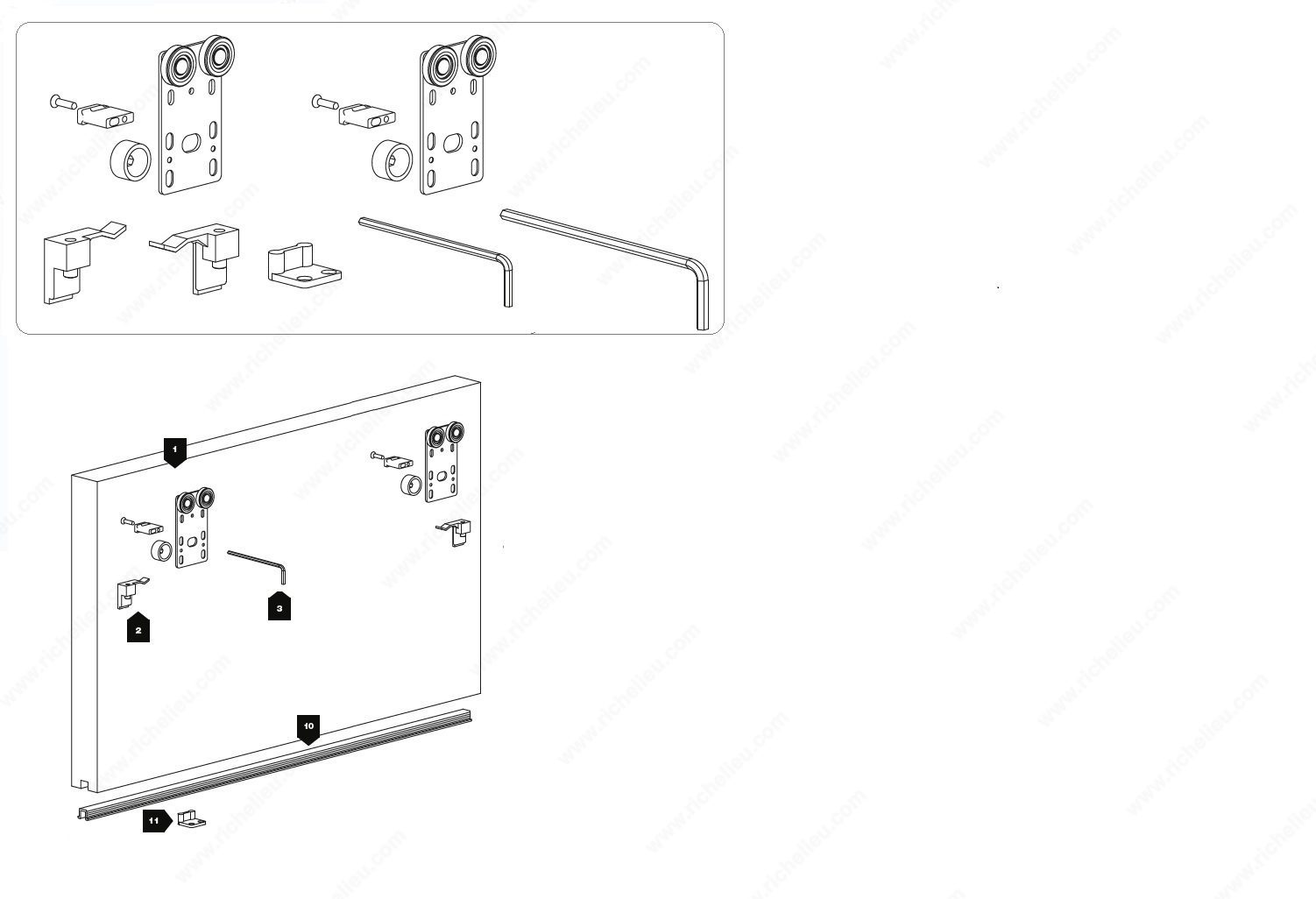

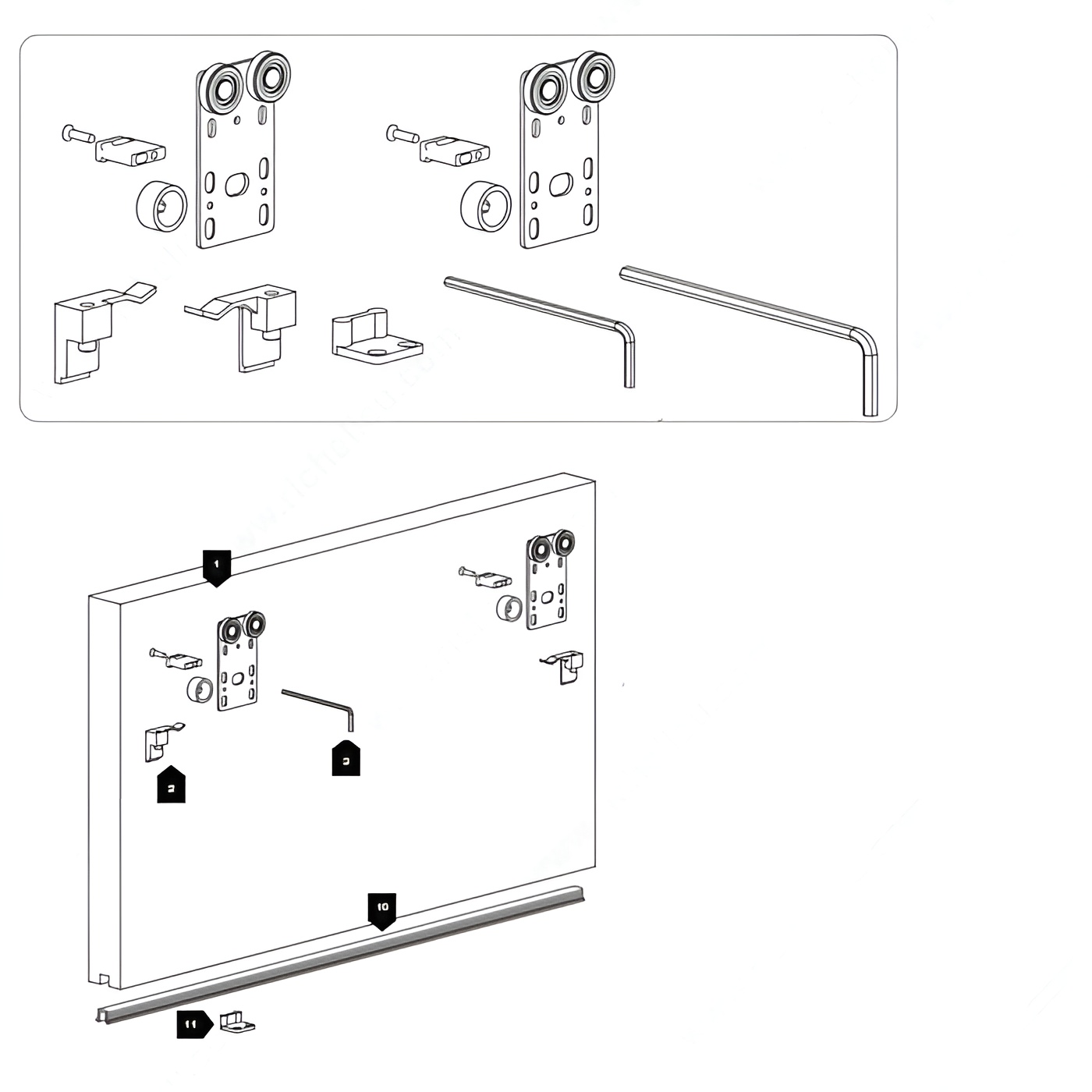

The SCORRI FLAT hardware sets with upper wheels for one cabinet, wardrobe, and closet wood door for three different weight capacities: 22 lb (10 kg), 66 lb (30 kg), and 110 lb (50 kg).
Features:
- Top hung running sliding system for inset applications
- Rear surface mount suspension plate with height adjustment cam
- Recess mount hardware for wood doors 5/8 in (16 mm) to 3/4 in (20 mm) thick
- Includes concealed track stoppers with retaining device
- Includes anti-lift pin for secure installation
- Single and double surface mount tracks sold separately
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 10 mm by 7 mm at the bottom of the door for bottom guide. Drill without going through a 20 mm diameter by 10 mm deep hole similar to a European style concealed hinge, offset as per the instructions.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Wardrobe, Furniture, Cabinet, Storage
Detailed Door Movement: Single sliding, Bypassing
Door Height: Max. 2 500 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 16 to 20 mm
Door Width: 400 to 1 219 mm
Load Capacity: 110 lb*
Manufacturing Material: Metal, Nylon, Aluminum
Material: Aluminum, Nylon, Metal
Number of Doors: 1
Packaging Format: Box
Product #: 189K1295750
Product number: 189K1295750
Product type: Hardware Set
Product №: 189K1295750
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Unit: Set
Weight Capacity per Door: 50 kg
