Richelieu 189K1386 DAMA Hardware Set InstructionsRichelieu 189K1386 DAMA Hardware Set is designed to enhance the functionality and aesthetics of your cabinetry, whether you opt for wood or glass doors. This versatile set supports a weight capacity of up to 66 lb (30 kg), making it suitable for various applications, including furniture, cabinets, and showcases. The bottom running system ensures smooth operation for inset applications, while the surface mount hardware accommodates wood doors with thicknesses ranging from 3/4 in (19 mm) to 1 1/16 in (27 mm). For glass doors, the included patch fittings are compatible with thicknesses between 5/32 in (4 mm) and 7/32 in (6 mm). Installation is straightforward and flexible, allowing for a seamless integration into your design. The set comes with track stoppers, and you can choose from tracks available in silver or black, sold separately. Please remember to use metric dimensions for precision during installation and bore four holes with a 5/16 in (8 mm) diameter for glass. With the maximum door height of 70 7/8 in and a width range of 11 3/4 to 39 3/8 in, the Richelieu DAMA Hardware Set is the ideal choice for those seeking reliability and style in their sliding door solutions.

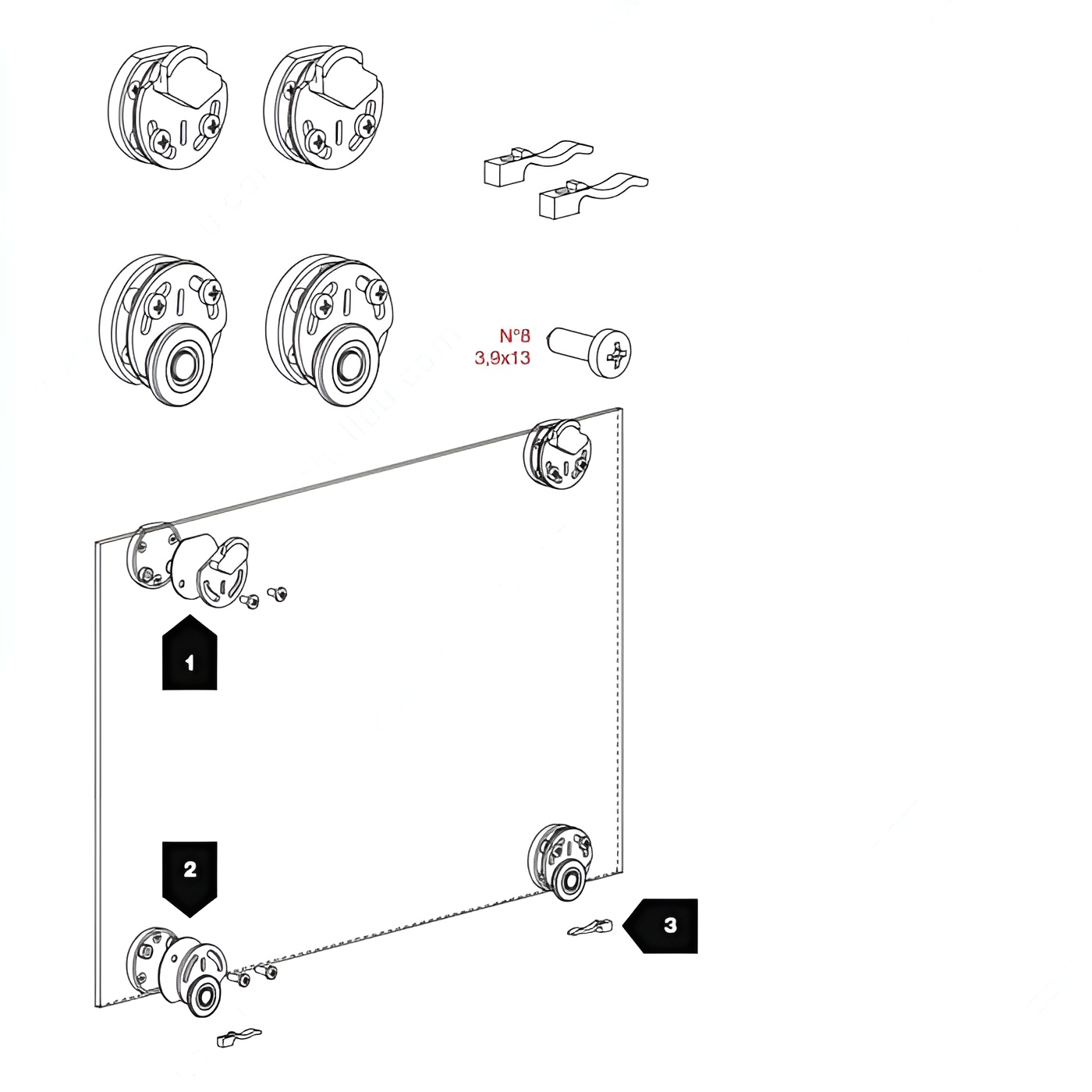

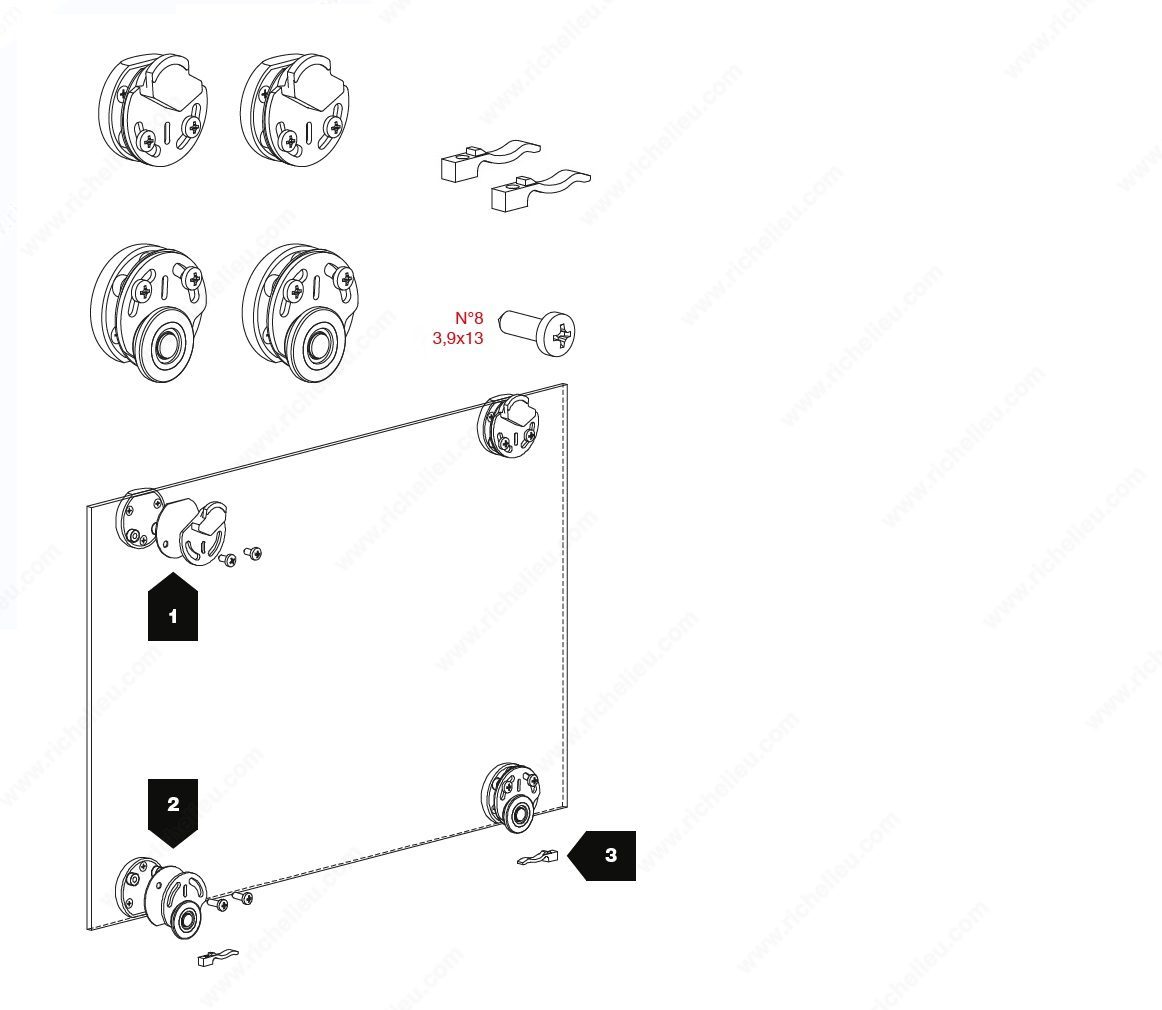

DAMA Hardware Set
The DAMA hardware set for one cabinet wood or glass door with weight capacity of 33 lb (15 kg) or 66 lb (30 kg).
Features:
- Bottom running system for inset applications
- Surface mount hardware for wood doors from 3/4 in (19 mm) to 1 1/16 in (27 mm) thick
- Patch fitting for glass doors 5/32 in (4 mm) to 7/32 in (6 mm) thick
- Includes track stoppers
- Track sold separately, available in silver or black
- Simple and flexible installation
IMPORTANT: Use metric dimensions for greater accuracy during installation. For glass, bore four holes with a 5/16 in (8 mm) diameter as per instructions.
Attributes
Application: Furniture, Cabinet, Storage, Showcase
Detailed Door Movement: Single sliding, Bypassing
Door Height: Max. 1 800 mm
Door Material: Glass
Door Movement: Straight Sliding
Door Thickness: 4 to 6 mm
Door Width: 300 to 1 000 mm
Load Capacity: 66.1 lb*
Manufacturing Material: Nylon, Aluminum
Material: Aluminum, Nylon
Number of Doors: 1
Product #: 189K1386
Product number: 189K1386
Product type: Hardware Set
Product №: 189K1386
Roller Position: Lower
Stopper: Two
Unit: Set
Weight Capacity per Door: 30 kg
