Richelieu 189PS66BEML B-Moved Motion Transmission Bar is an innovative electric motor designed specifically for the seamless operation of sliding doors within the PS40, PS48, and PS66 systems. This versatile product caters to a variety of applications by offering four distinct types of motion transmission bars, allowing users to select the ideal fit based on sliding system compatibility and door width. Engineered to mount within the PS66 sliding mechanisms, the B-Moved Motion Transmission Bar also attaches to an upper aluminum profile on top of the cabinet and behind the track for PS40 and PS48 systems. Installation is straightforward with the inclusion of a connector bracket for the PS66 model and a separate bracket set for the PS40 and PS48 configurations. It's crucial to consider additional depth requirements for proper installation, as detailed in the provided instructions. Designed to accommodate door heights ranging from 1,000 to 3,000 mm, and widths between 600 to 1,000 mm, this transmission bar supports door thicknesses of 25 to 40 mm and a load capacity of 20 to 50 kg. Suitable for both wood and glass doors, the B-Moved Motion Transmission Bar ensures efficient and reliable operation for your sliding door systems.

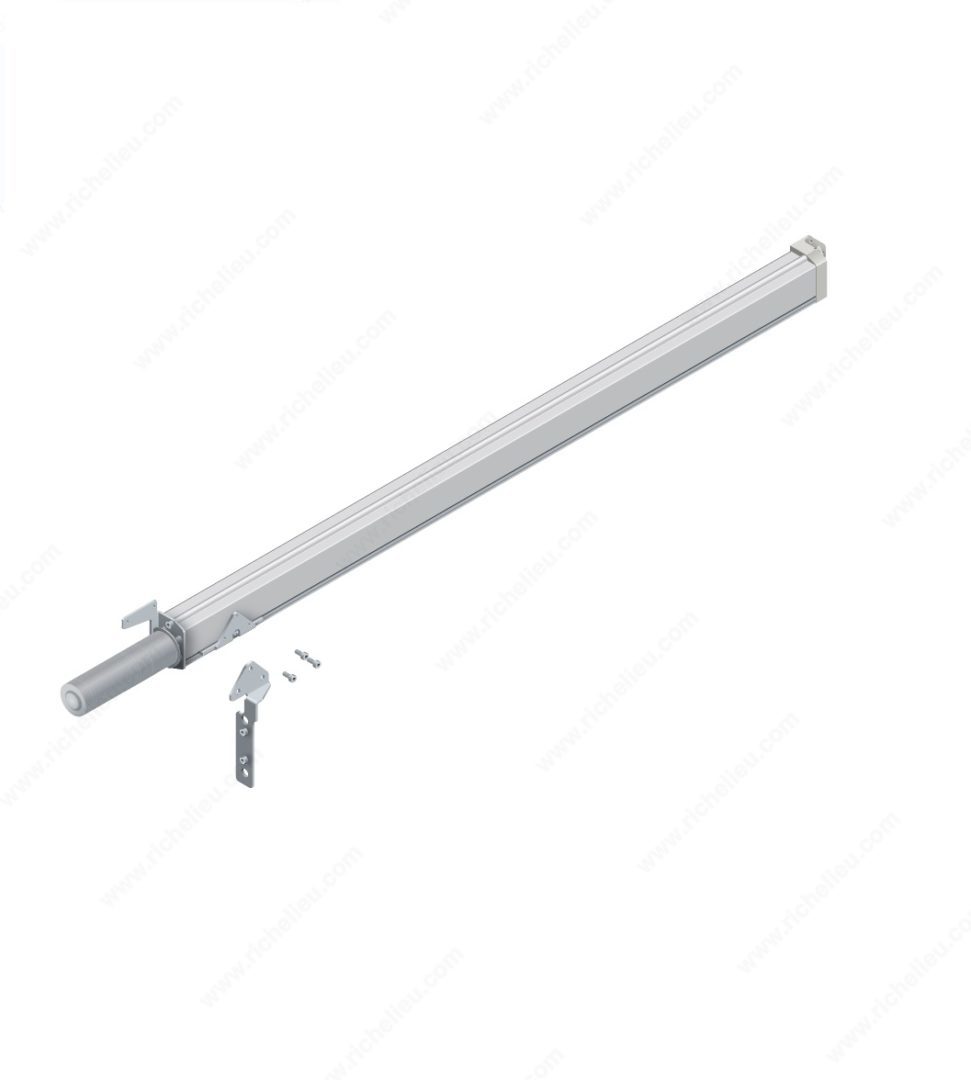

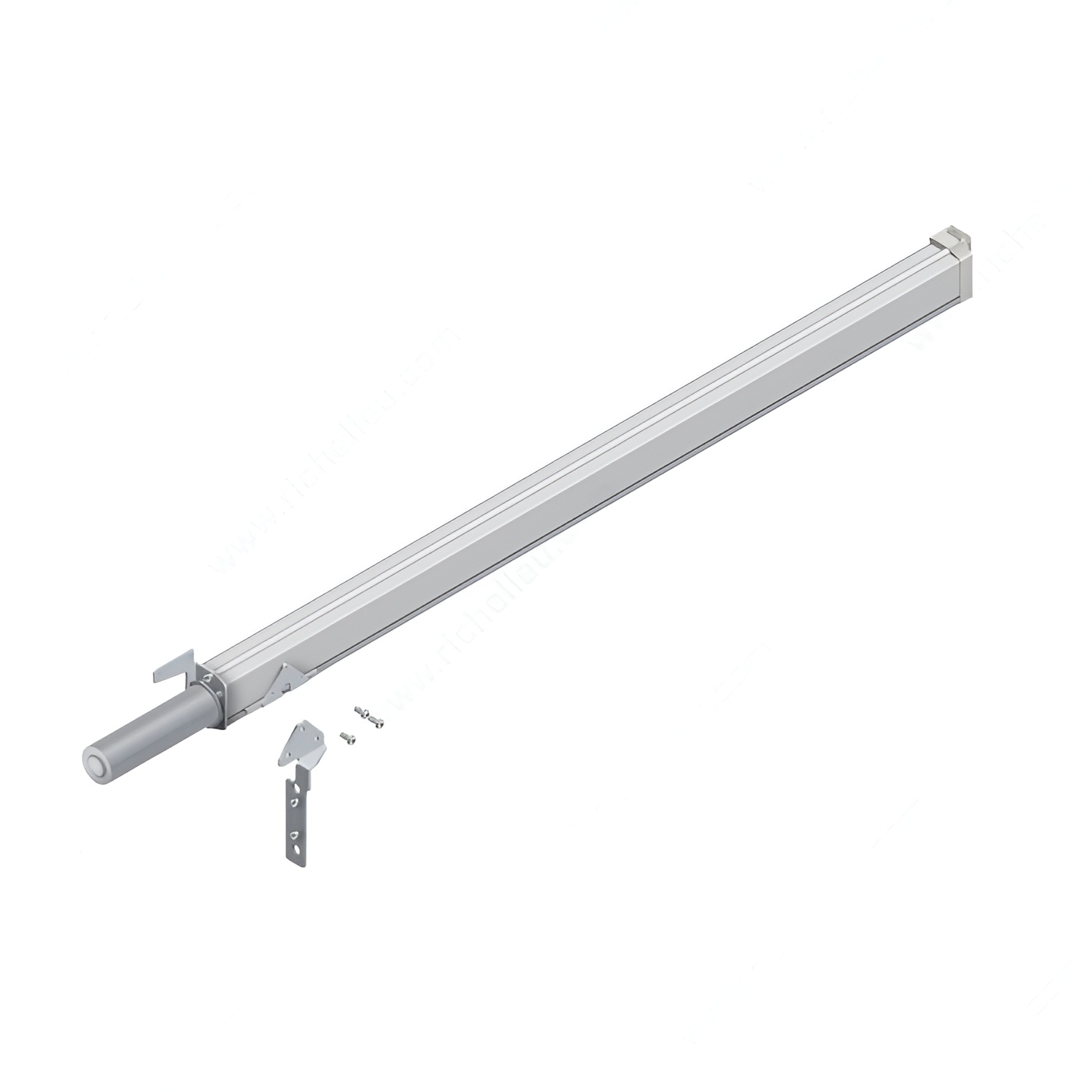

B-Moved Motion Transmission Bar
Brand: B-moved
Brand Model: Cinetto B-Moved
Compatible with: PS66
Door Height: 1 000 to 3 000 mm
Door Installation: Left hand
Door Material: Wood, Glass
Door Thickness: 25 to 40 mm
Door Width: 600 to 1 000 mm
Load Capacity: 20 to 50 kg
Number of Doors: 1
Product #: 189PS66BEML
Product type: Mounting Accessories
Product №: 189PS66BEML
Weight Capacity per Door: 20 to 50 kg
