Richelieu 189PS66MD240R PS66 Sliding Mechanism offers a seamless solution for integrating sliding pocket doors into your spaces without visible tracks. This retractable device is designed for a single sliding door and supports a maximum weight capacity of 50 kg (110 lb), ensuring reliable performance. The mechanism features dampers that cushion the door as it comes to a stop, providing a smooth and quiet operation. Constructed with durable aluminum, the upper and lower double tracks enhance stability and balance, accommodating door heights ranging from 2,100 to 3,000 mm and thicknesses between 25 to 40 mm. The track is mounted recessed inside the ceiling, allowing for a clean aesthetic and unobtrusive functionality. With compatible door widths from 23 5/8 to 39 3/8 inches, the PS66 Sliding Mechanism is versatile, making it ideal for closets, walk-in closets, pantries, and standard access doors. Designed for right-hand opening, this hardware set not only simplifies installation but also ensures a concealed door position within the wall for a polished look. For optimal results, it's recommended to use metric dimensions during installation. Elevate your interior design with the efficiency and elegance of the Richelieu PS66 Sliding Mechanism.

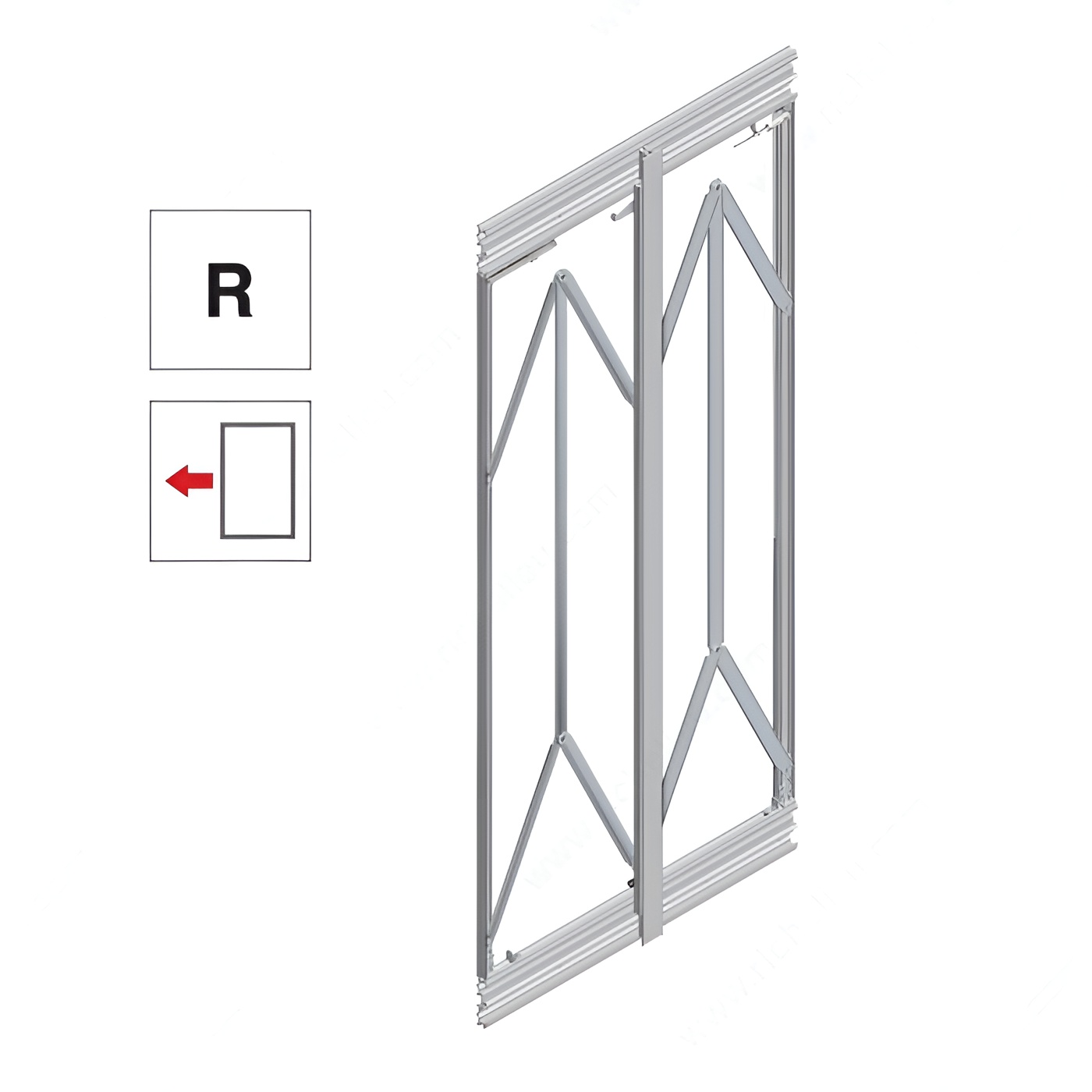

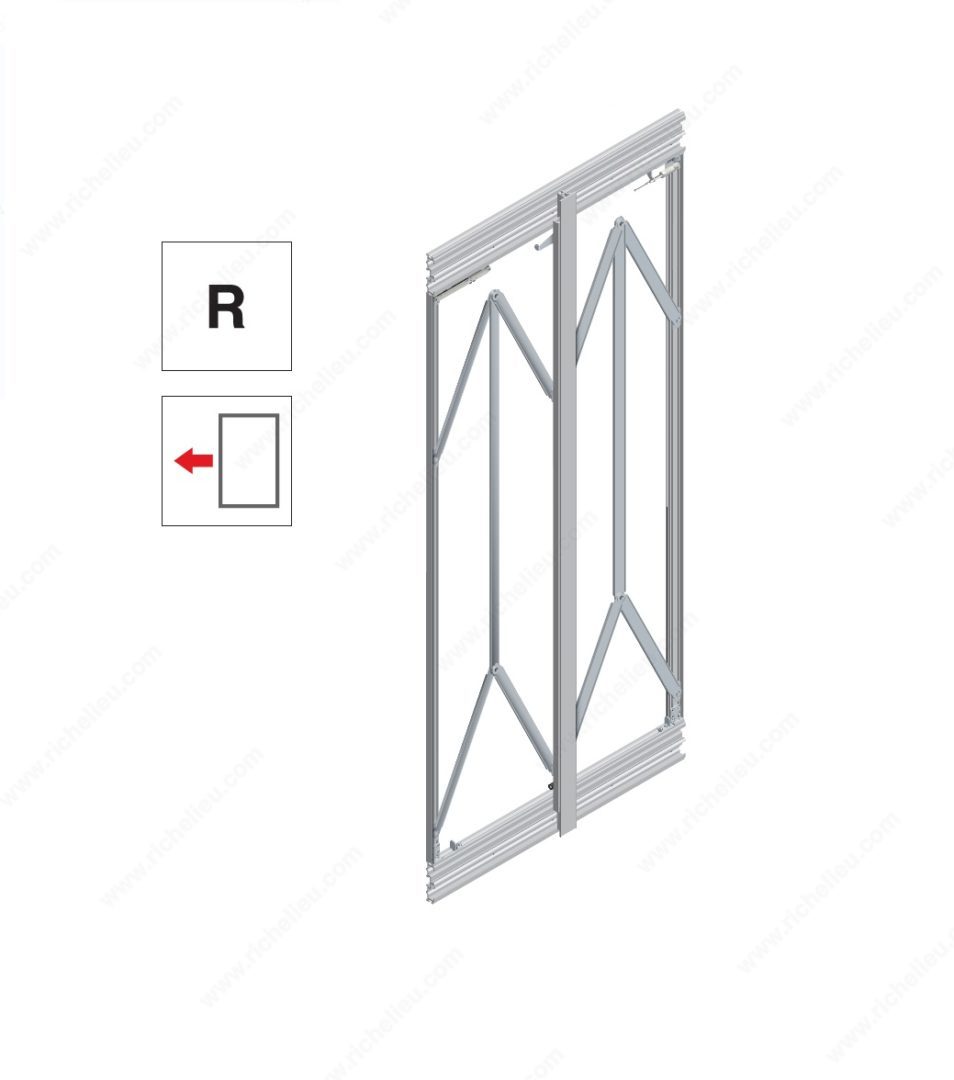

PS66 Sliding Mechanism
Application: Closet and Walk-In Closet, Pantry, Standard Access Door, Pocket Door
Brand: PS66
Brand Model: Cinetto PS66
Compatible with: B-moved
Detailed Door Movement: Single sliding
Door Height: 2 100 to 3 000 mm
Door Material: Wood
Door Movement: Pocket Door
Door Position: Pocket Door
Door Thickness: 25 to 40 mm
Door Width: 23 5/8 to 39 3/8 in*
Load Capacity: 20 to 50 kg
Manufacturing Material: Aluminum
Material: Aluminum
Number of Doors: 1
Opening: Right-Hand Opening
Product #: 189PS66MD240R
Product type: Hardware Set
Product №: 189PS66MD240R
Soft- Closing: Yes
Track Mounting: Side Mount
Weight Capacity per Door: 20 to 50 kg
