Richelieu 189RM055A310 RM 055 Single Upper Guide Track is an essential component of the RO 44 sliding door system, meticulously designed to provide stability and guidance for your sliding doors. Crafted from high-quality anodized aluminum, this track ensures durability while supporting doors with a maximum thickness of 20 mm (3/4 in), accommodating thicker doors if the top is rabbeted. This wall-mounted single guiding track is engineered for bottom-running door installations, allowing for smooth and effortless straight sliding movement. With a load capacity of up to 60 kg, it is ideal for both residential and commercial applications. Its overall length of 3,030 mm and width of 30 mm make it a versatile choice for various door sizes and styles. The RM 055 track's height of 1 3/8 in allows for unobtrusive installation, blending seamlessly into your decor. For precise installation, it is important to use metric dimensions, ensuring the best fit and functionality. Richelieu stands out with this high-performance guide track, combining functionality and aesthetic appeal, making it a valuable addition to any sliding door system. Experience the difference with Richelieu's commitment to quality and innovation in hardware solutions.
RM 055 Single Upper Guide Track
Door Installation: Bottom Running
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 20 mm

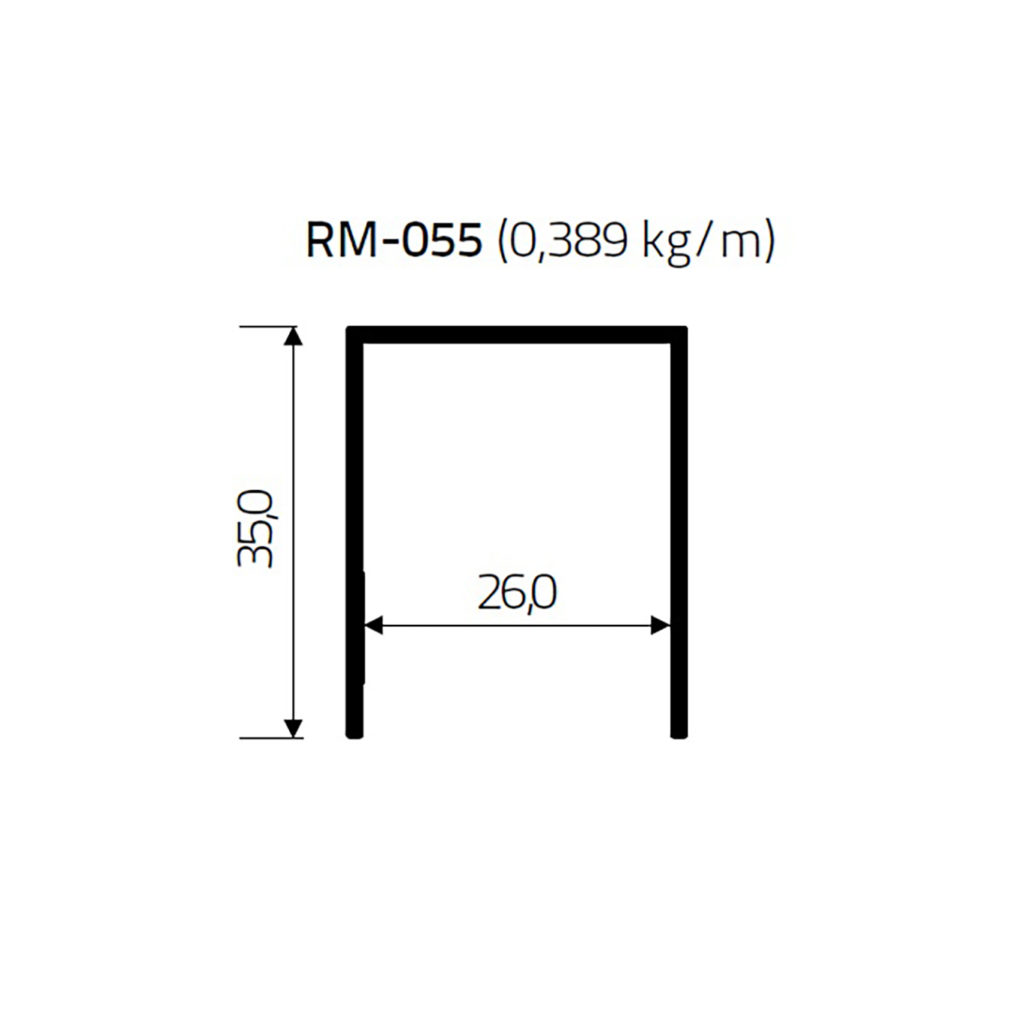

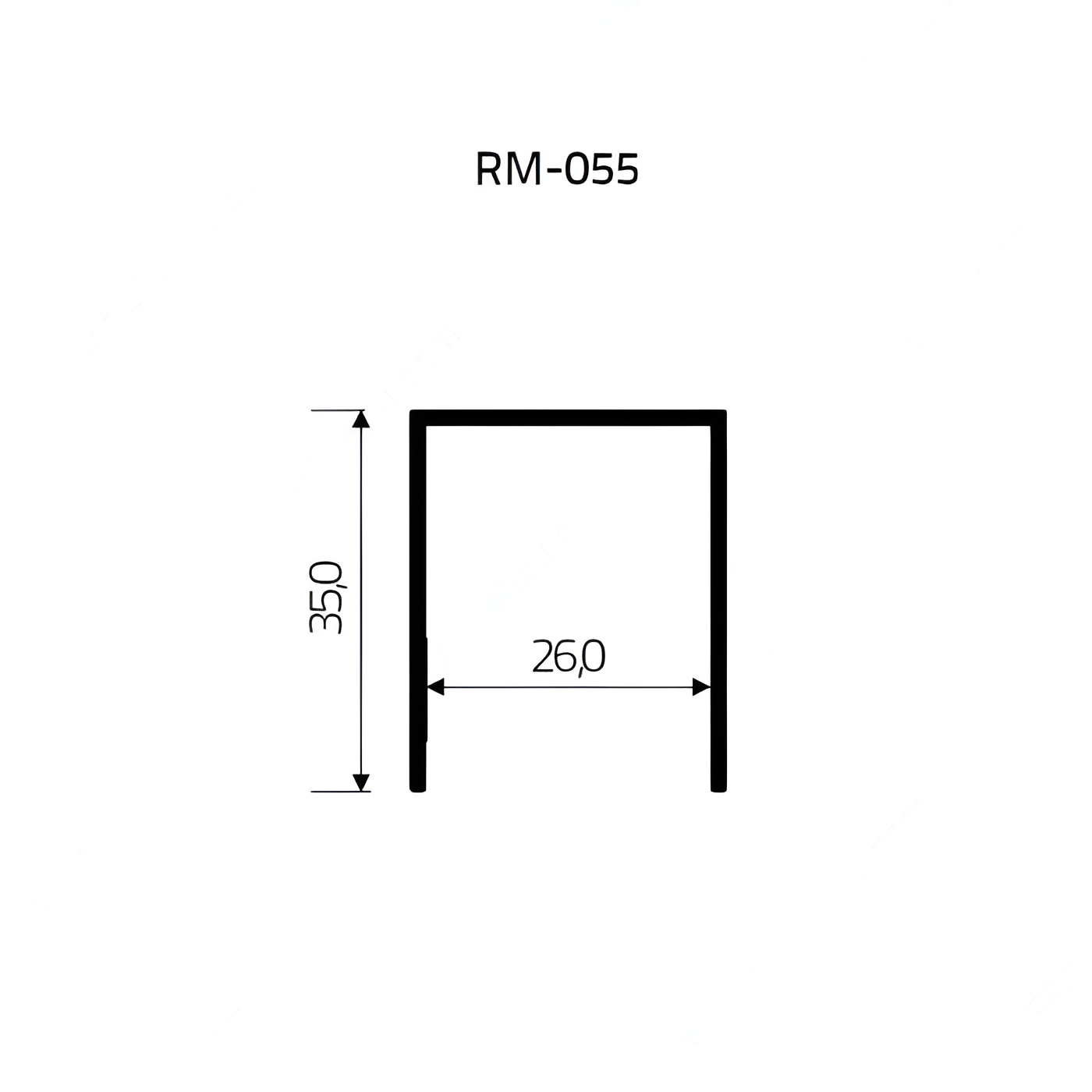

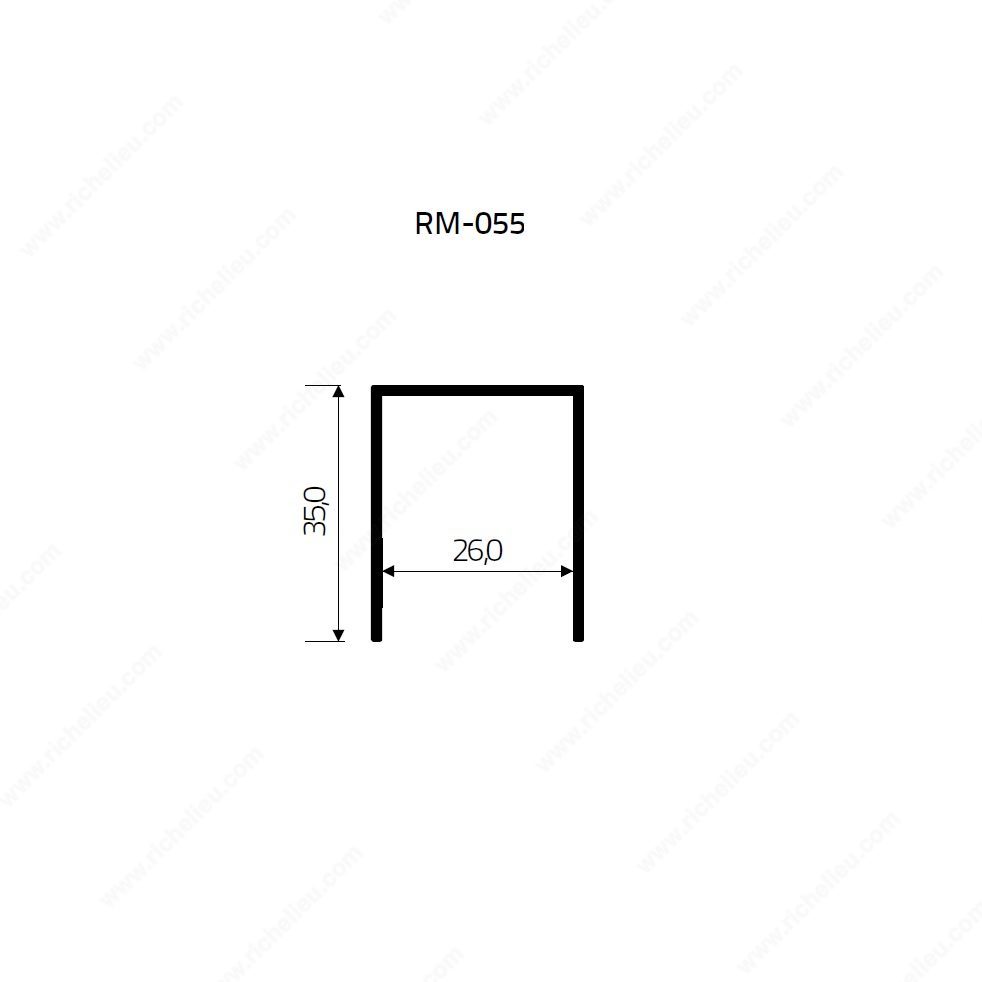

Height: 35 mm
Length: 3 030 mm
Length - Overall Dimensions: 3 030 mm
Load Capacity: 60 kg
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 1 3/8 in*
Overall Length: 3 030 mm
Product #: 189RM055A310
Product type: Running and Guiding Tracks
Product №: 189RM055A310
Track Mounting: Surface
Track type: Single guiding
Weight Capacity per Door: 60 kg
Width: 30 mm
