Richelieu 189RS836L310 SLIDE 25 Single Recessed Track is designed for the SLIDE 25 sliding door system, offering a seamless blend of functionality and style. This recessed mount track, crafted from durable aluminum, is available in two lengths-78 1/4 inches (1.99 m) and 117 5/8 inches (2.99 m)-to accommodate various installation needs. Featuring a cut groove measuring 13/32 inches (10 mm) wide and 7/32 inches (5.5 mm) deep, this track is engineered for precision, ensuring a smooth sliding experience for doors with a thickness ranging from 19/32 to 31/32 inches. With a load capacity of 55.1 lbs, it supports a range of door materials including aluminum, metal frames, and wood, making it versatile for furniture, cabinet, and storage applications. The anodized finish not only enhances durability but also adds a sleek aesthetic to any interior space. Measuring 9 ft 9 in (1/4 in overall height), the track is designed for recessed mounting inside ceilings, providing a clean and unobtrusive installation. Please note that the track is not pre-drilled, allowing for tailored installation to meet specific project requirements. Elevate your sliding door system with the Richelieu 189RS836L310 track, combining strength and elegance for any setting.
SLIDE 25 Single Recessed Track
Ship via: No UPS - Common Carrier Only
Application: Furniture, Cabinet, Storage
Door Material: Aluminum/Metal Frame, Wood
Door Movement: Straight Sliding
Door Thickness: 15 to 25 mm
Finish: Anodized
Length - Overall Dimensions: 9 ft 9 in*
Load Capacity: 55.1 lb*
Manufacturing Material: Aluminum
Material: Aluminum

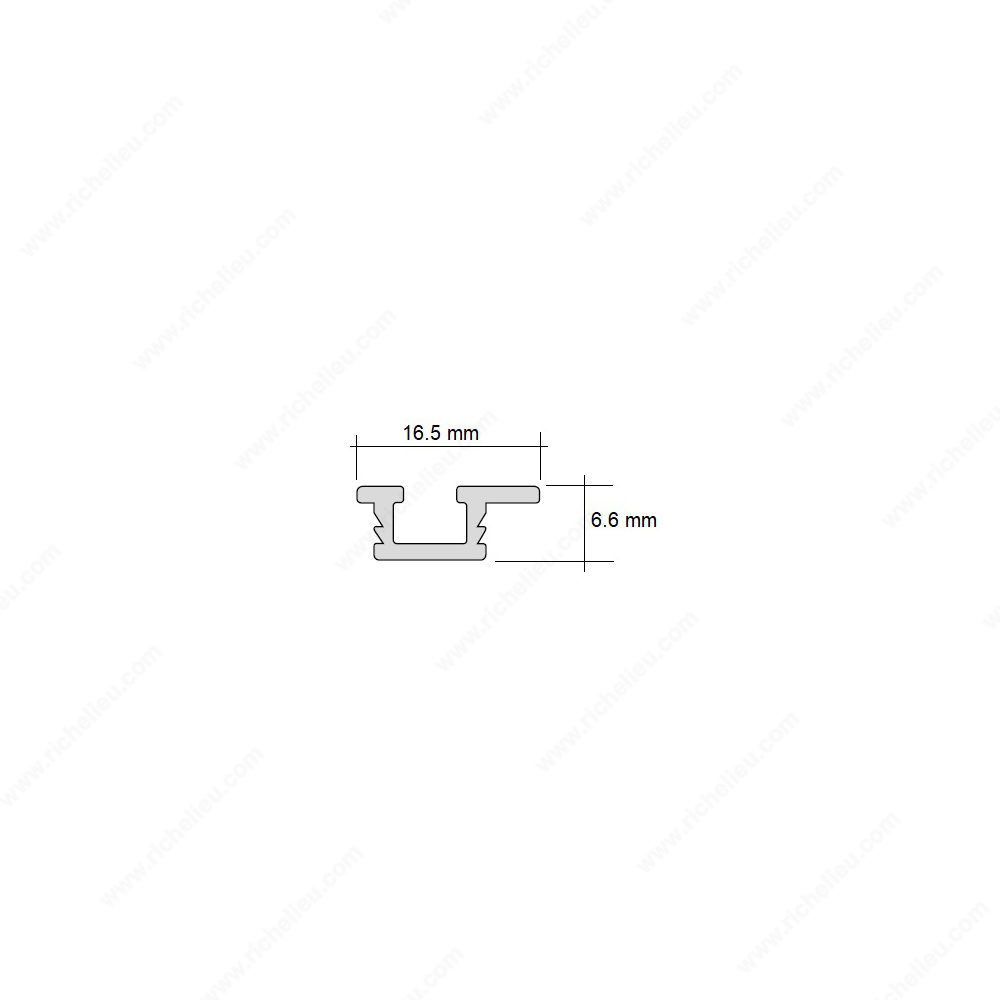

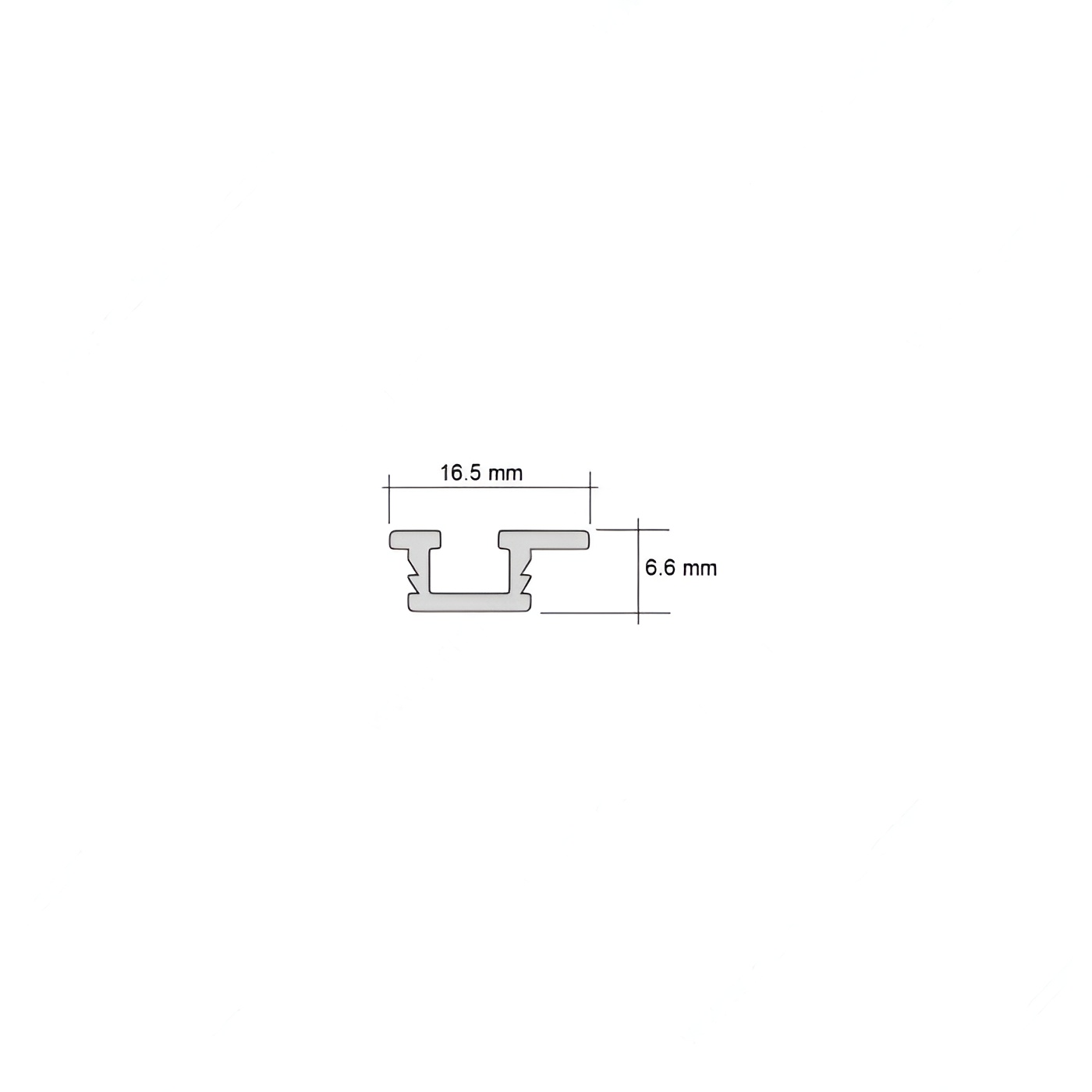

Overall Height: 6.6 mm
Overall Length: 2 990 mm
Pre-drilled: No
Product #: 189RS836L310
Product number: 189RS836L310
Product type: Running and Guiding Tracks
Product №: 189RS836L310
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Anodized
Track Material: Anodized Aluminum
Track Mounting: Recessed
Track type: Single Running, Single guiding
Unit: Length
Unit 1: case - 3000
Unit 2: case - 3000
Weight Capacity per Panel: 25 kg
Width: 16.5 mm
