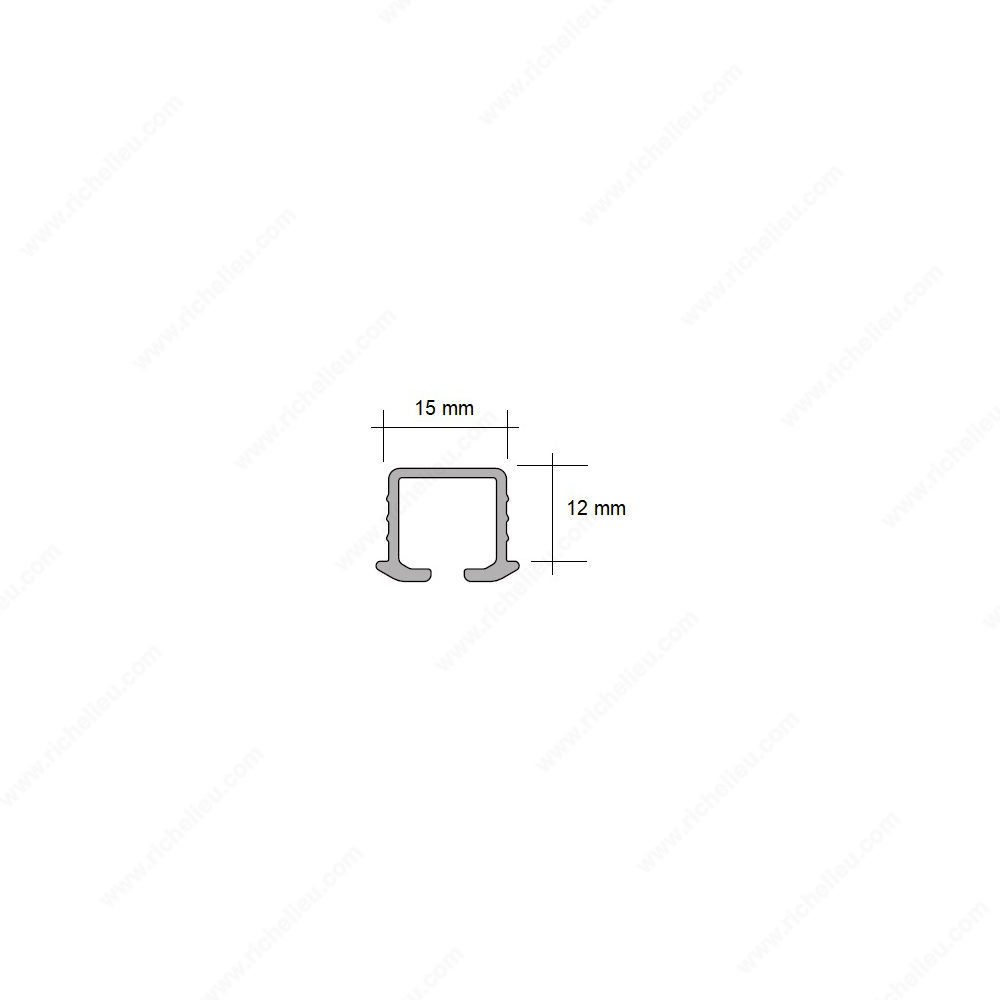

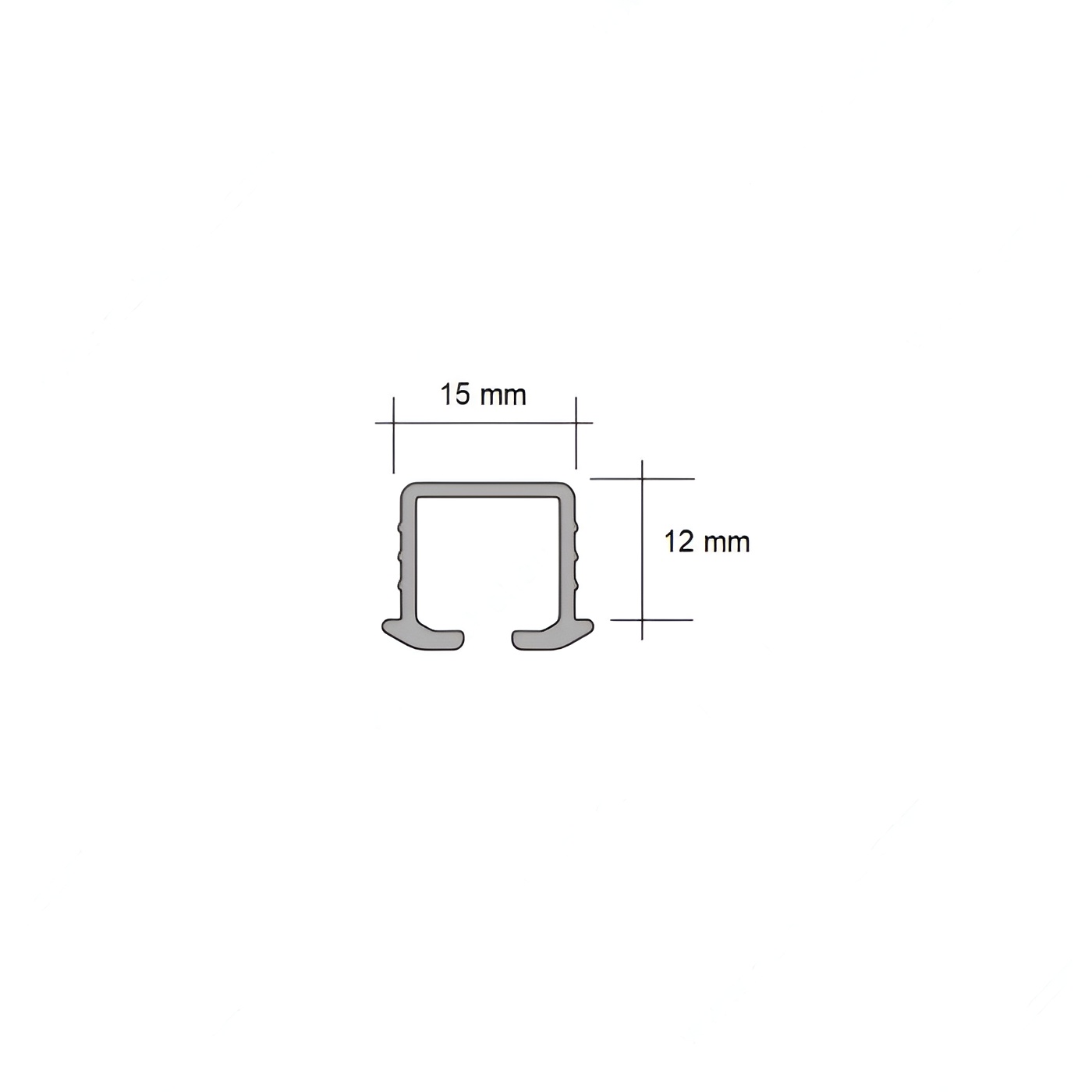

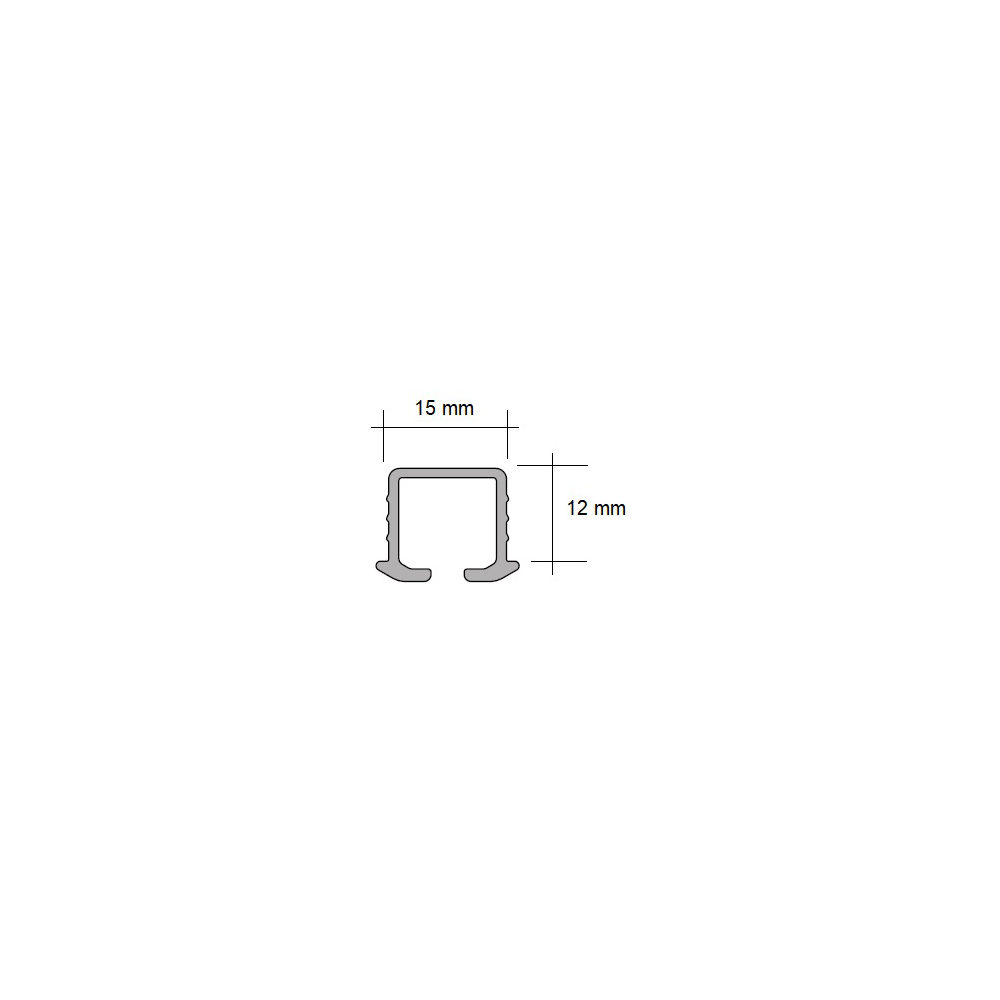

Richelieu 189TK11092L210 SLIDE 40/50 Single Recessed Track is designed to enhance your sliding door system with elegance and functionality. Crafted from durable aluminum, this recessed mount track supports both the SLIDE 40 and SLIDE 50 systems, accommodating wood doors with a thickness between 23/32" and 31/32". It is available in two lengths-78 1/4" (1.99 m) and 117 5/8" (2.99 m)-allowing for flexibility in various applications, including furniture, cabinets, and storage solutions. The track features a precise groove measuring 19/32" (15 mm) wide and 15/32" (12 mm) deep, ensuring a secure fit while facilitating smooth straight sliding door movement. With an impressive load capacity of 88.2 lb, it offers reliable performance for everyday use. The anodized finish not only enhances durability but also provides a sleek aesthetic that complements any interior design. Installation is straightforward, requiring a recessed mounting inside the ceiling, and metric dimensions are recommended for greater accuracy during setup. Whether you are a building professional or a discerning homeowner, the Richelieu 189TK11092L210 is a robust choice that combines practicality with a modern touch.
SLIDE 40/50 Single Recessed Track
Application: Furniture, Cabinet, Storage
Compatible with: SLIDE 40
Door Installation: Bottom Running
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 18 to 25 mm
Finish: Anodized
Length - Overall Dimensions: 78 3/8 in*
Load Capacity: 88.2 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Length: 1 990 mm
Product #: 189TK11092L210
Product number: 189TK11092L210
Product type: Running and Guiding Tracks
Product №: 189TK11092L210
Running Track Fixing: Recessed
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Anodized
Track Mounting: Recessed
Track type: Single Running, Single guiding
Unit: Length
Unit 1: case - 2000
Unit 2: case - 2000
Weight Capacity per Panel: 40 kg
