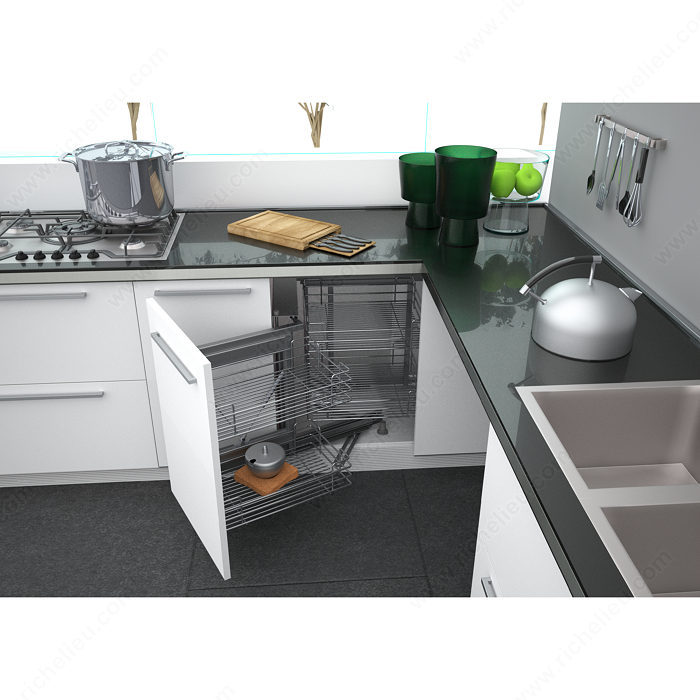

Richelieu 203503100 Smart Corner III Frame, Left Opening is an innovative solution designed for door-mounted corner cabinet sliding systems. This frame enhances both functionality and aesthetics in food storage, preparation, and general storage areas. Featuring a soft-closing mechanism, it ensures a smooth, quiet operation that protects both the cabinet and its contents. Constructed from durable metal with a sleek gray finish, this frame is suited for frameless cabinets and accommodates door widths ranging from 17 3/4 to 23 5/8 inches. The interior dimensions required include a depth of 18 1/2 to 19 7/8 inches, a minimum height of 22 inches, and a width between 33 7/8 to 46 inches, providing ample space for your storage needs. With a load rating of up to 77.2 pounds, this frame is robust enough to handle everyday use. The left-side opening design requires an opening width of 16 1/8 to 22 inches, facilitating easy access to stored items. Its versatile application makes it an ideal choice for corner cabinets, optimizing space and enhancing organization in any kitchen. Richelieu's commitment to quality and functionality shines through in this thoughtfully engineered product.
Smart Corner III Frame, Left Opening
Area of Activity: Food Storage, Storage, Preparation
Cabinet Type: Frameless Cabinet
Door Width: 450 to 600 mm
Finish: Gray

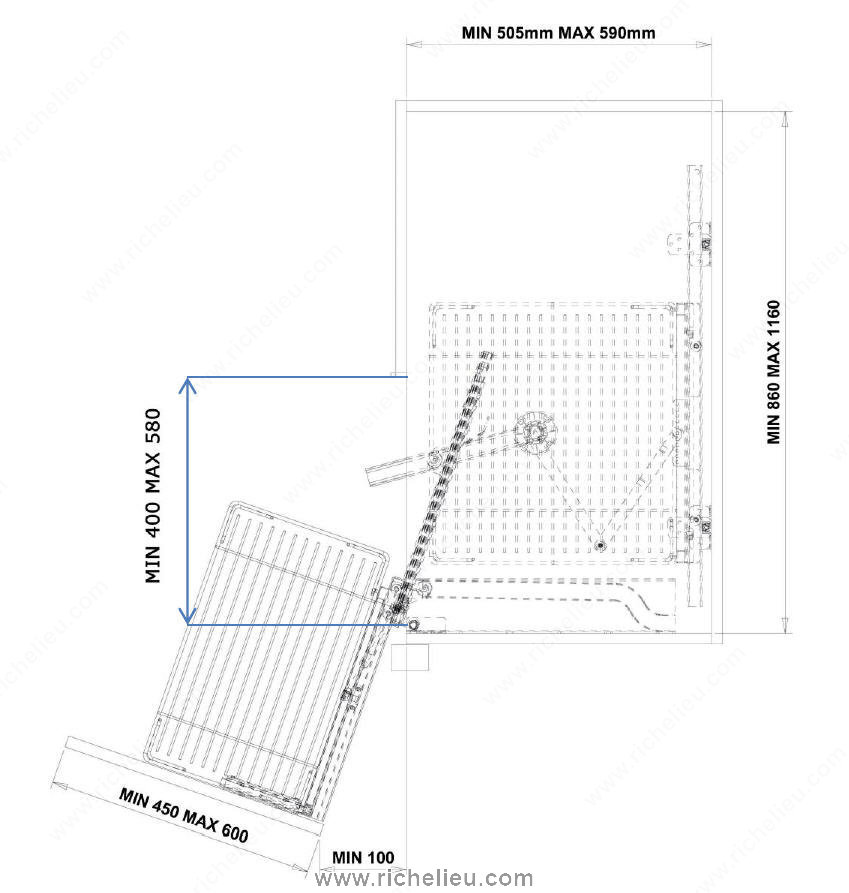

Interior Dimensions Required - Depth: 505 to 590 mm
Interior Dimensions Required - Height: 655 to 800 mm
Interior Dimensions Required - Width: 400 to 580 mm
Load Rating: Max. 30 kg
Material: Metal
Opening: Left Side
Opening Width Required: 410 to 560 mm
Product #: 203503100
Product number: 203503100
Product №: 203503100
Solutions: Corner Cabinets
Unit: Box
