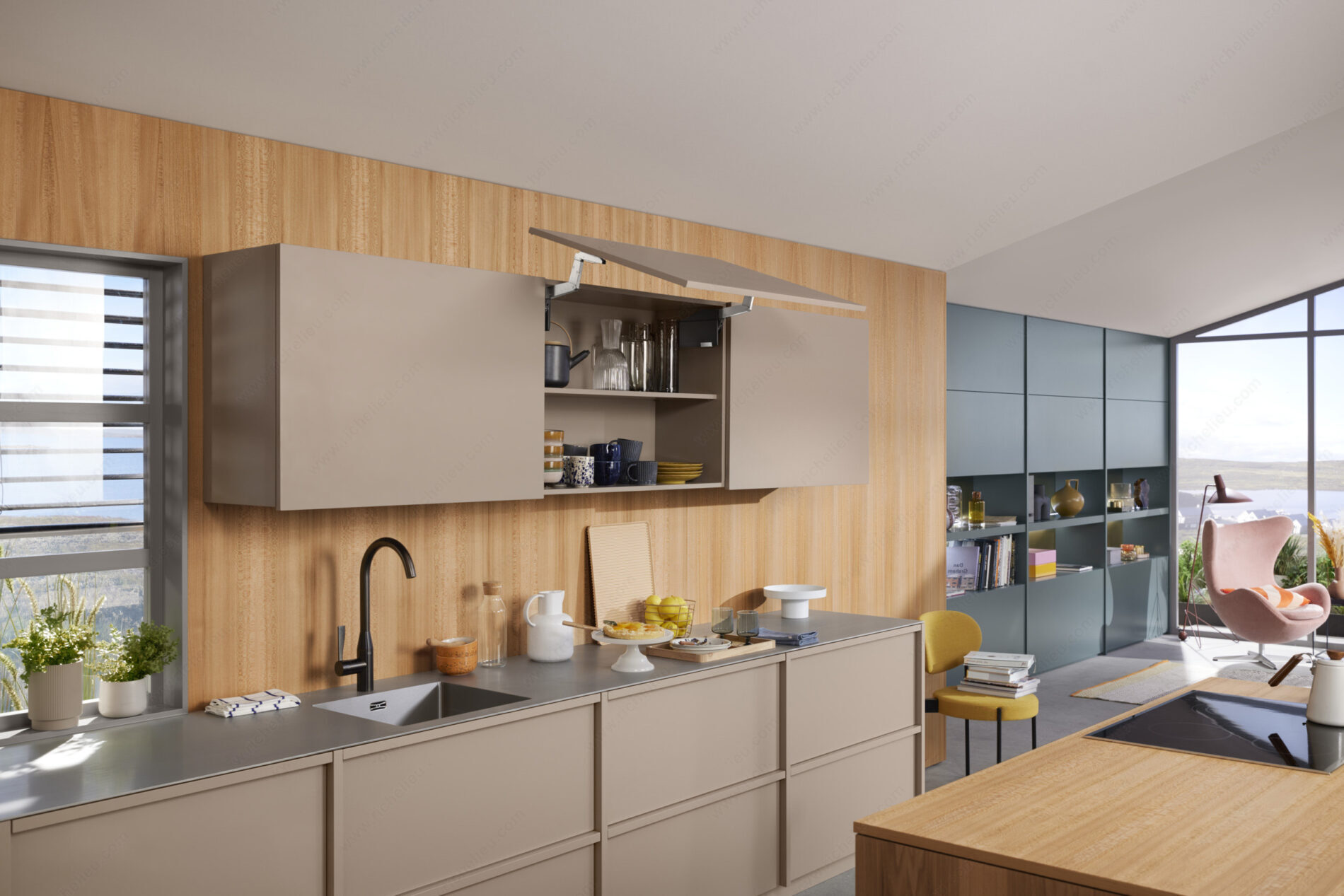

Richelieu 22S2510 AVENTOS HS top Opening Mechanism offers an innovative solution for lift-up flap doors, making it ideal for wide, one-piece fronts and tall cabinets adorned with cornices and arches. This fitting excels in functionality with its seamless operation, featuring integrated BLUMOTION dampening for soft and silent closing, ensuring a refined user experience. Designed for versatility, the AVENTOS HS accommodates wooden fronts, aluminum frames, and thin materials starting at just 8 mm. With a load capacity ranging from 6.06 to 33.6 lbs, this mechanism provides high stability, making it suitable for larger cabinet designs. The compact fitting requires a shallow cabinet depth of only 264 mm, and its three-dimensional front adjustment allows for height, side, and depth modifications of ±2 mm for precise alignment. Assembly is a breeze with the CLIP technology, allowing for quick tool-free front installation and easy disassembly. The power mechanism can be positioned on either side of the cabinet, eliminating protruding parts above, and it can also be combined with the SERVO-DRIVE system for a handle-free aesthetic. With dimensions accommodating cabinet heights from 350 to 800 mm and widths up to 1,800 mm, the Richelieu AVENTOS HS is the perfect blend of style and practicality for modern cabinetry.

AVENTOS HS top Opening Mechanism

- Ideal for wide, one-piece fronts
- Also suitable for tall cabinets with cornices and arches
- Easy opening, seamless stop, and soft, silent closing thanks to the integrated BLUMOTION dampening
- Precise and harmonious gap adjustment through three-dimensional front adjustment
- Quick assembly and disassembly thanks to the CLIP technology
- Can be combined with SERVO-DRIVE for handle-free fronts

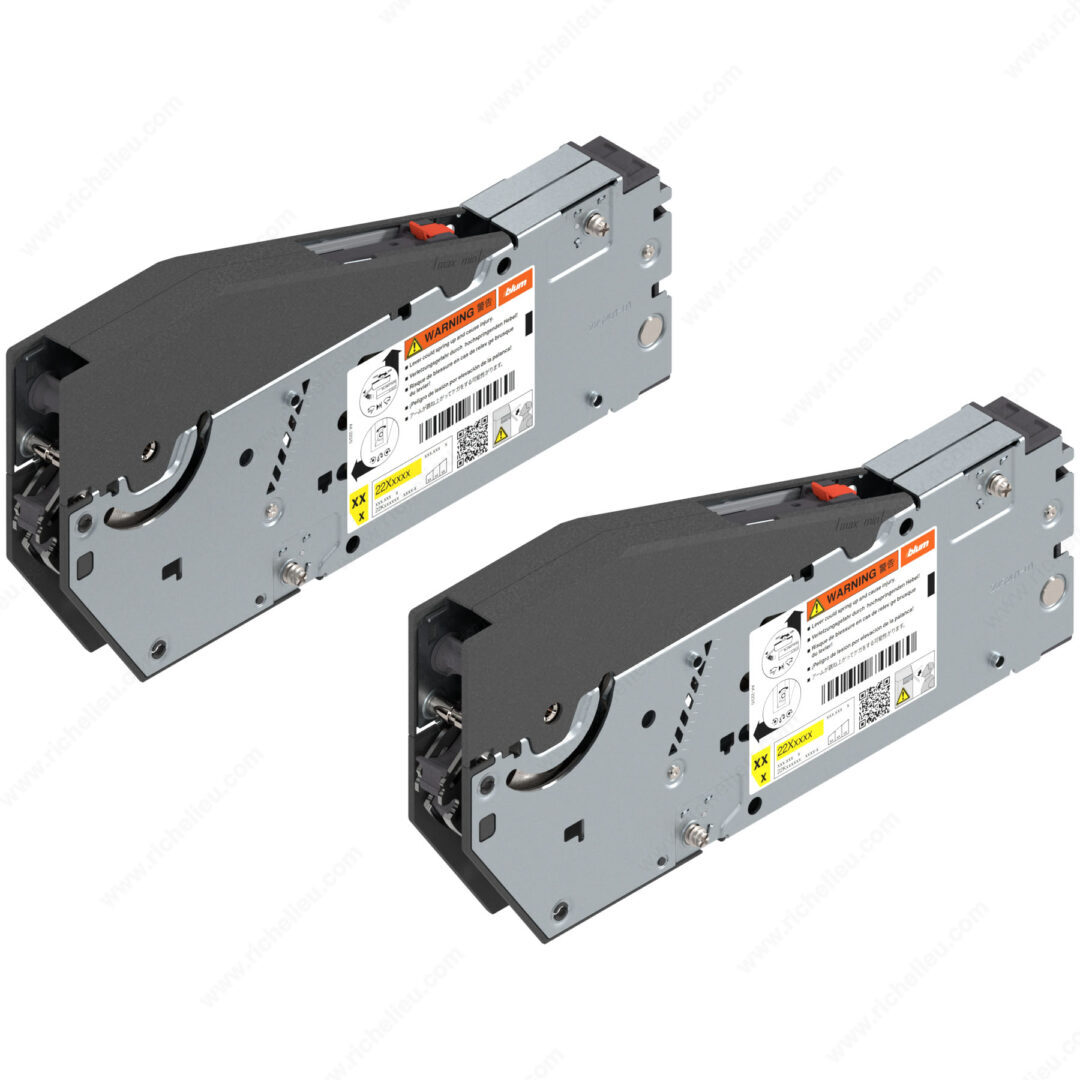

Blum AVENTOS HS for lift-up flap doors. Fitting for lift-up flap doors. Suitable for wooden fronts, wide and narrow aluminum frames, and thin fronts starting at 8 mm. Symmetrical power mechanism with spring packs. The lift-up flap door stops in any position thanks to the continuous adjustment of the power mechanism. High stability for large and wide fronts thanks to the cross stabilizer. Integrated dampening for both opening and closing. Removable arm pack. Quick, easy, and tool-free front assembly using clip technology. The power mechanism can also be installed on the free side of the cabinet. No protruding parts above the cabinet. Compatible with the SERVO-DRIVE electrical motion support system.

For cabinet heights of 350 to 800 mm and widths up to 1,800 mm.
Three-dimensional front adjustment: Height ± 2 mm, Side ± 2 mm, Depth ± 2 mm.

AVENTOS HS top improvements:

- Compact fitting
- Requires only a shallow cabinet depth of 264 mm
- Convenient and easy power mechanism adjustment from the front
- NO cross stabilizer required
- Suitable for wooden fronts, wide/narrow aluminum frames, thin fronts, miter, and rebated applications
