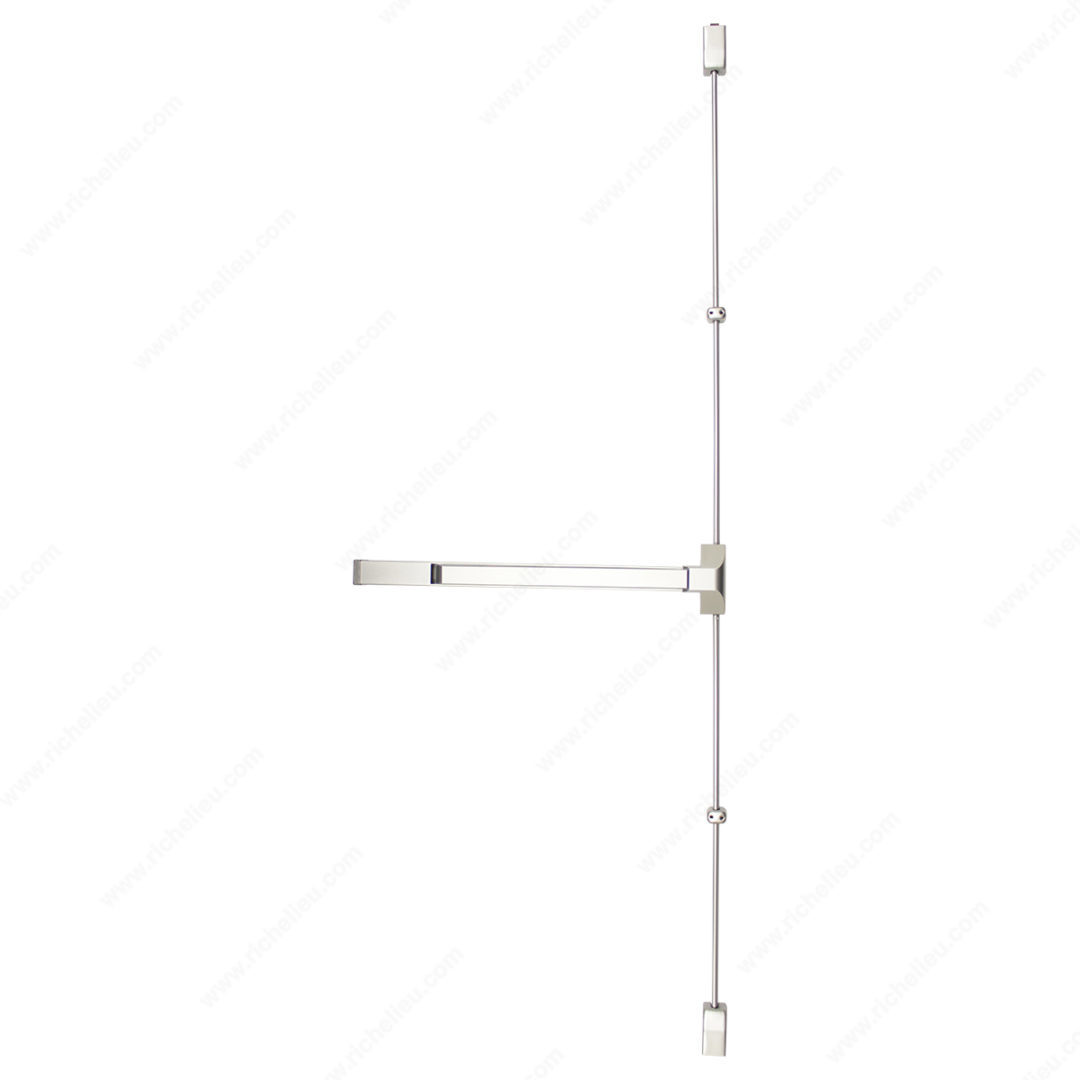

Richelieu 236EFVAL Vertical Rod Panic Bars (Fire-Rated) - 236 Series deliver reliable security and safety for moderate duty applications. Engineered to meet ANSI Grade 1 standards, these panic bars are field reversible, accommodating both left and right-hand installations, ensuring flexibility for various door configurations. Designed for fire-rated environments, the 236EFVAL can withstand fire for up to 1-1/2 hours, making it an essential choice for commercial spaces prioritizing safety. With a sleek satin aluminum finish, this model not only functions effectively but also enhances the aesthetic of any doorway. It is compatible with doors ranging from 30 to 36 inches wide and is suitable for door thicknesses of 1-3/4 inches, providing a robust solution for diverse needs. The panic bar features a 3/4-inch latchbolt throw for added security and a maximum required door height of 7 feet. Installation is straightforward, with all necessary mounting hardware included, and the product comes with a generous mechanical warranty of 10 years and a finish warranty of 5 years. Compliance with UL10C, UBC 7-2-1997, and ANSI BHMA A156.3 ensures that the Richelieu 236EFVAL meets the highest industry standards for safety and performance.
Vertical Rod Panic Bars (Fire-Rated) - 236 Series
Backset: 2 3/4 in
Bottom Latch: 3/4 in
Color/ Finish: Satin Aluminum
Deadbolt Throw: 1/2 in
Dogging: Not an option
Door Thickness: 1 3/4 in
Door Width Requirements: 30 to 36 in
Finish Warranty: 5 Years
Fire- Rating: 1h30
Grade: 1
Handing Position / Opening Side: Reversible for Left or Right
Latchbolt Throw: 3/4 in
Length: 33 1/4 in
Mechanical Warranty: 10 Years
Minimum Frame Width: 4 1/2 in
Mounting Hardware: Included
Product #: 236EFVAL
Projection: 2 1/2 in
Projection Pushpad Depressed: 1 7/8 in
Projection Pushpad Neutral: 2 1/2 in
Required Door Height: Max. 7 ft
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standards and Certifications: UL10C, UBC 7-2-1997, ANSI BHMA A156.3
Strike: 1/2 in
Top Latch: 3/4 in
