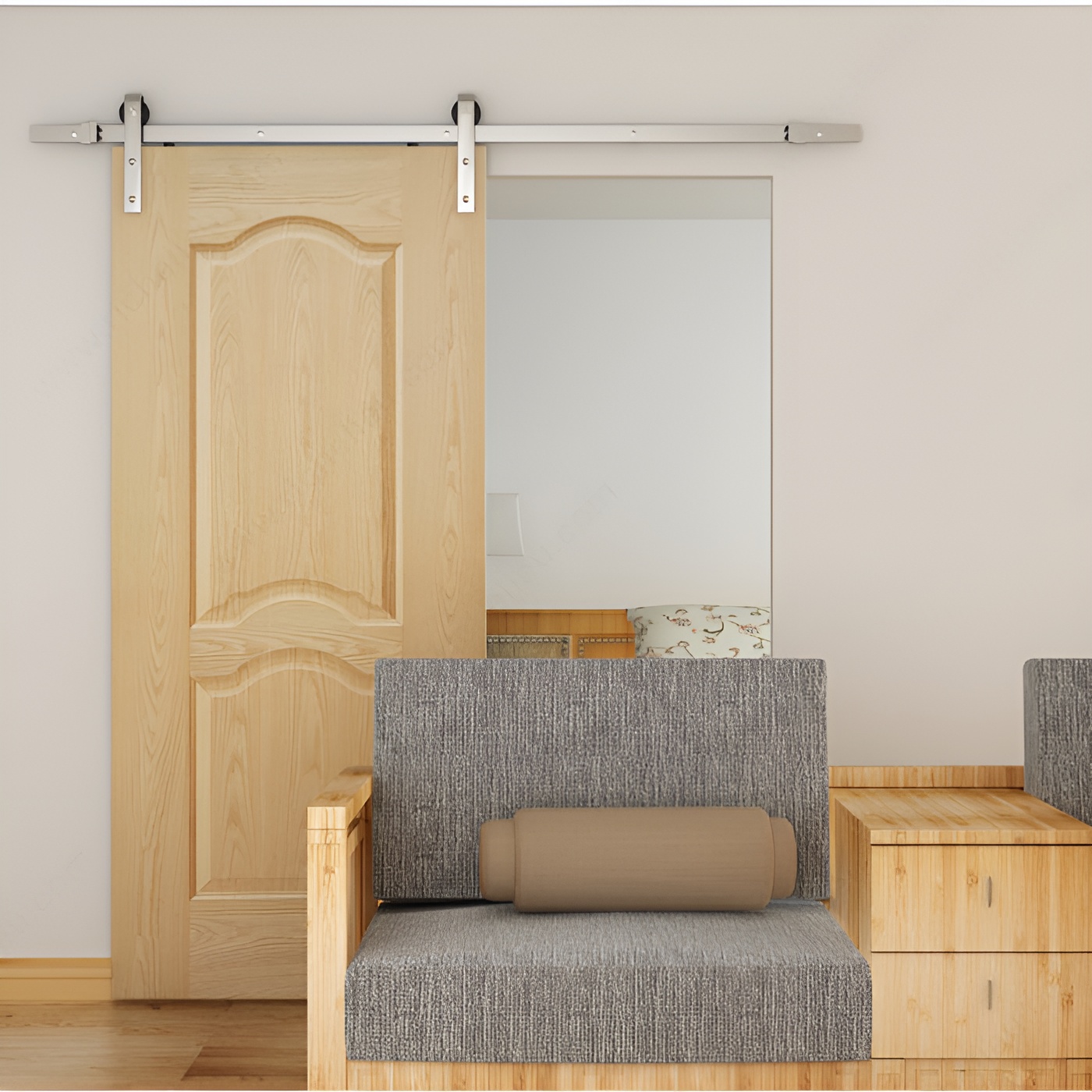

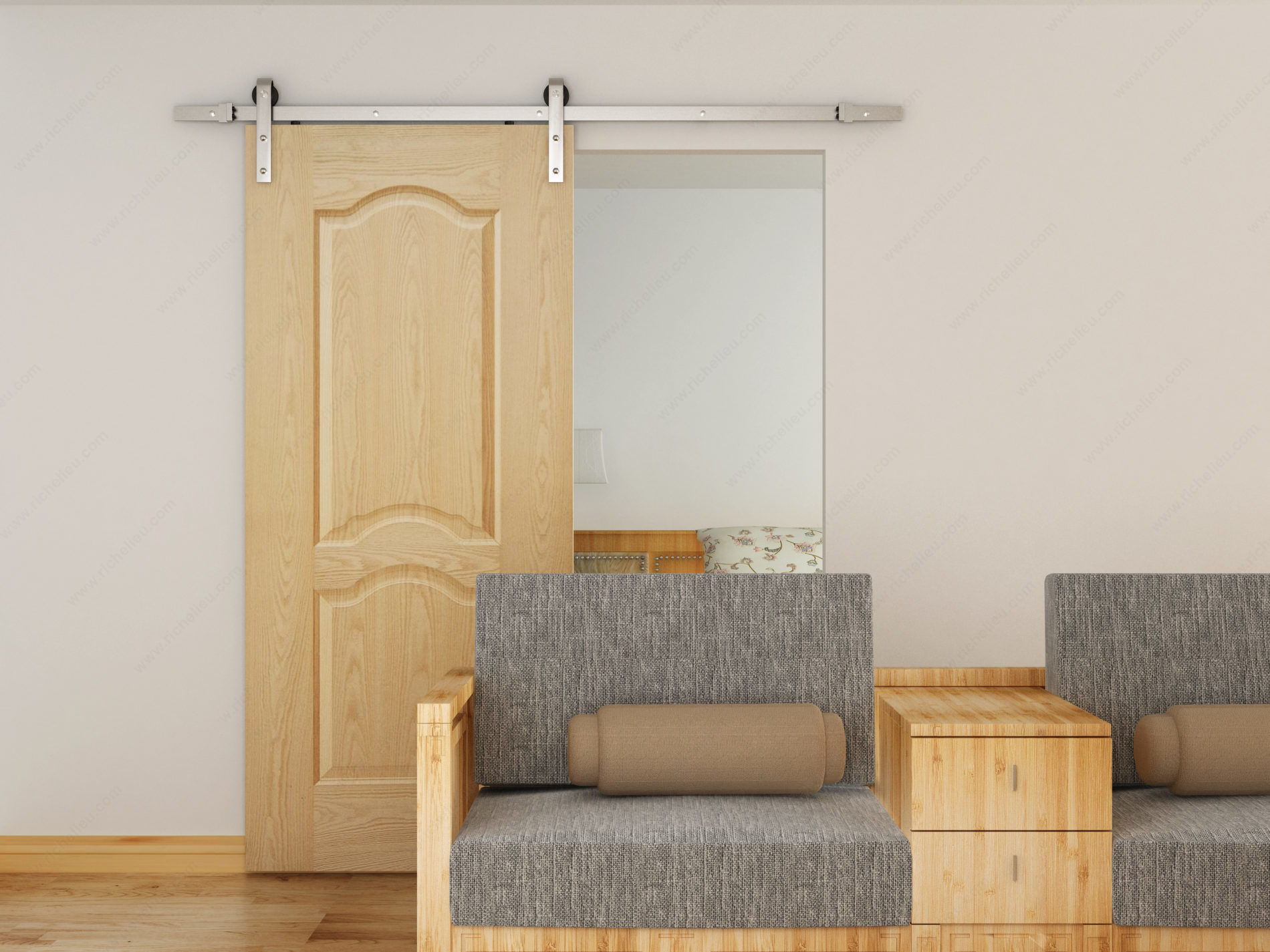

Richelieu 246005170 The Rustic Barn Door Set is a sophisticated wall-mount sliding system designed to enhance the aesthetic of any residential space. Accommodating a single wood door, this system is engineered for doors weighing up to 220 lb (100 kg), making it ideal for robust applications. Choose from three standard flat bar upper track sets, each thoughtfully pre-drilled for easy connection to additional tracks and optional soft-close mechanisms (sold separately). Suitable for doors ranging from 24 to 60 inches in width, the Rustic Barn Door Set requires a minimum door width of 36 inches when using a soft-close feature. The design features a stainless steel flat bar looped strap trolley, ensuring smooth and reliable door movement. Tailored for top-hung installations, the system provides a clean, modern look while allowing the door to project 3 3/16 inches in front of the wall. Notably, this set is crafted from durable stainless steel, ensuring longevity and a stylish finish. The system accommodates door thicknesses from 1 3/8 to 1 25/32 inches, making it versatile for various wood door styles. With easy installation and impressive load capacity, the Richelieu Rustic Barn Door Set is perfect for homeowners and professionals seeking a blend of functionality and rustic charm.

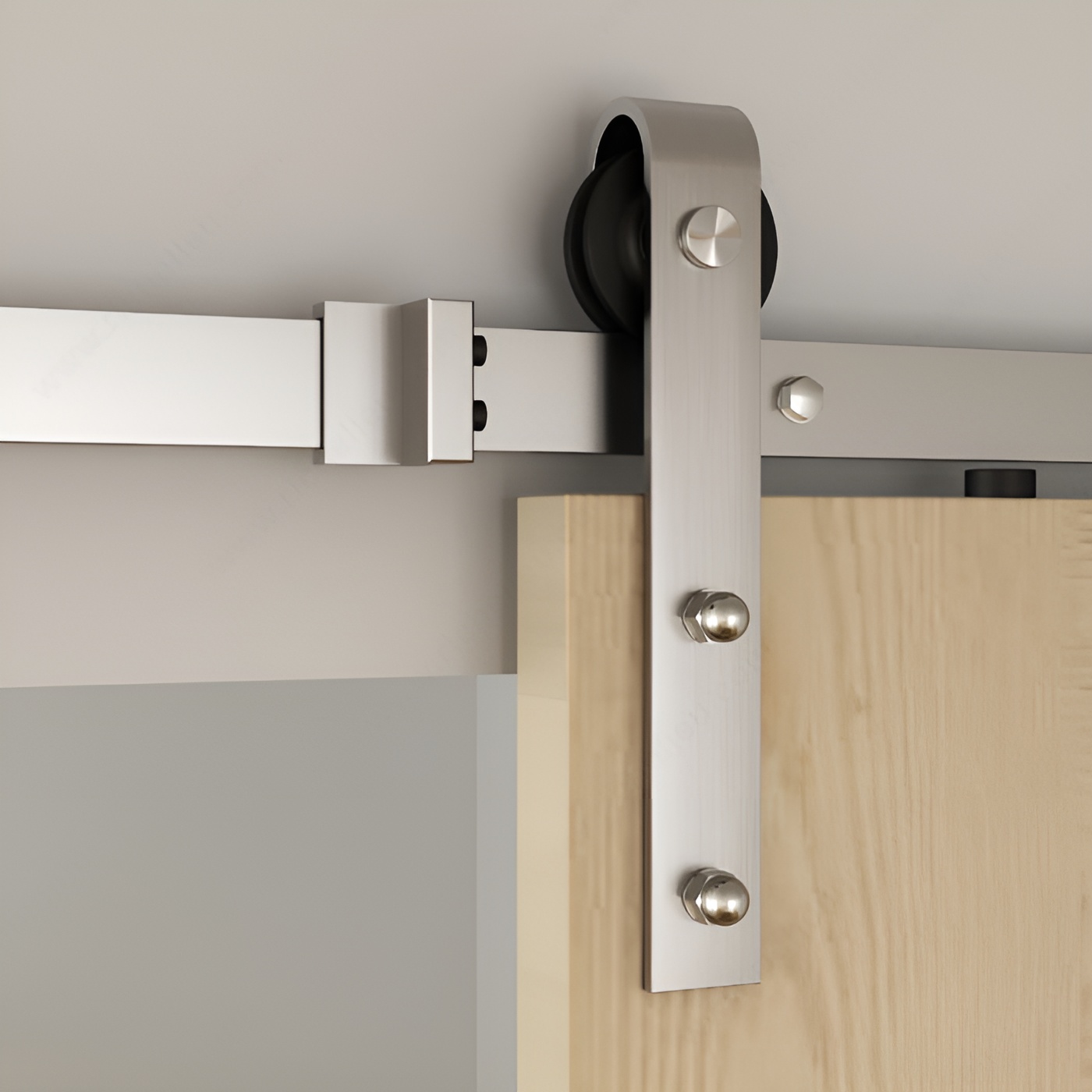

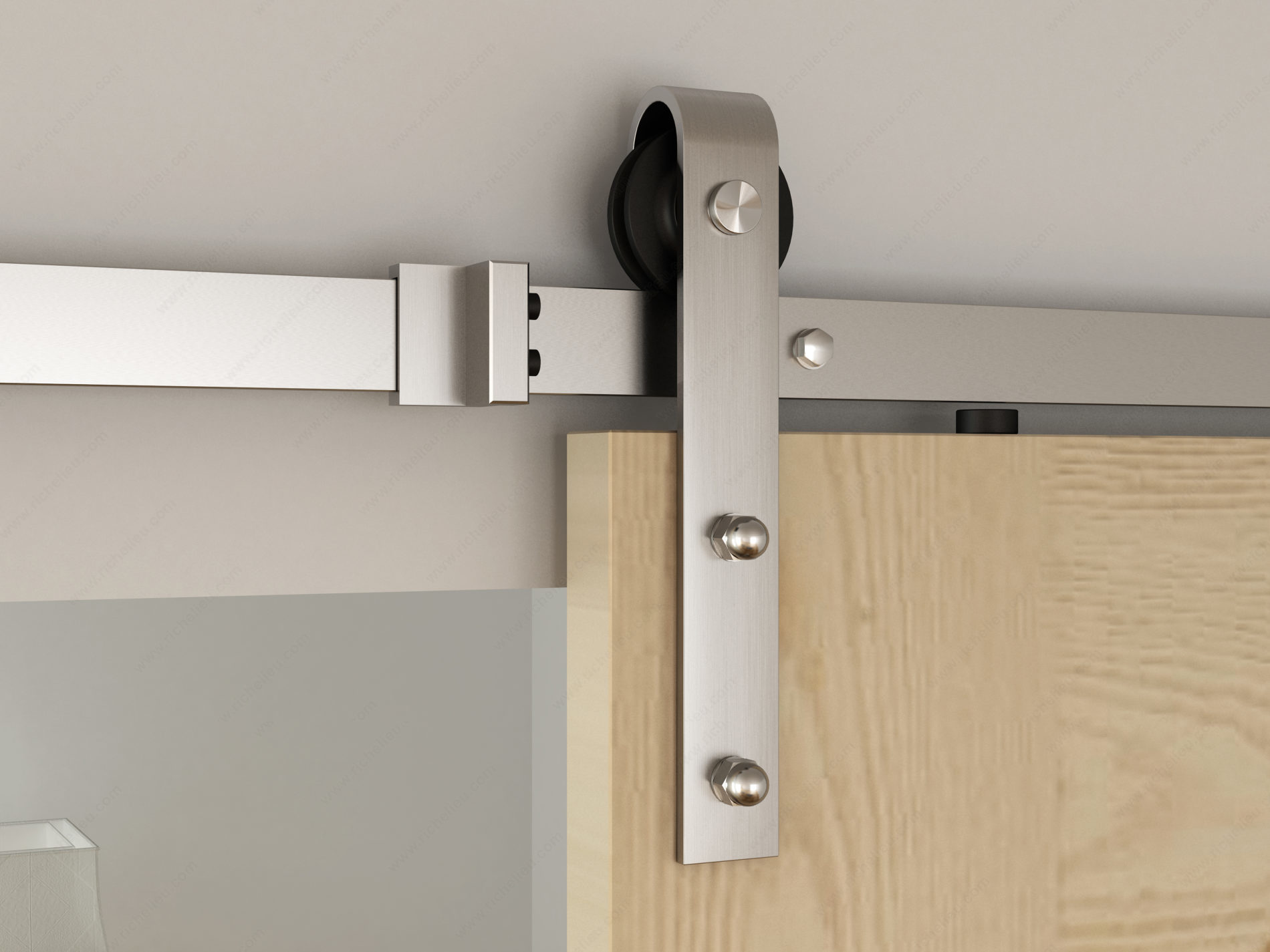

The Rustic Barn Door is a wall mount sliding door system for one wood door with visible stainless steel flat bar looped strap trolley for doors weighing up to 220 lb (100 kg). Select from three choices of standard flat bar upper track sets with wall mounts and fastener lag bolts for wood wall construction. Each track is pre-drilled for connectors to join tracks and soft-close mechanisms (sold separately). For residential applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Brand: Onward
Detailed Door Movement: Barn door
Door Height: 3 050 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall
Door Projection: 81 mm

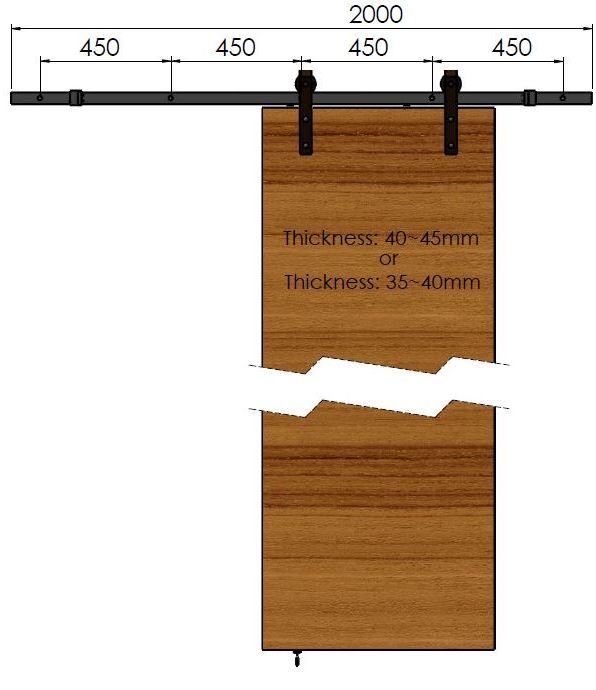

Door Thickness: 35 to 45 mm
Door Width: 24 to 60 in
Finish: Stainless Steel
Groove Depth: 20 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 5 to 7 mm
Height Clearance: 136 mm
Length - Overall Dimensions: 78 3/4 to 118 in*
Load Capacity: 33.1 to 220 lb*
Manufacturing Material: Stainless Steel
Material: Stainless Steel
Number of Doors: 1
Overall Length: 2 000 to 3 000 mm
Packaging Format: Box
Product #: 246005170
Product number: 246005170

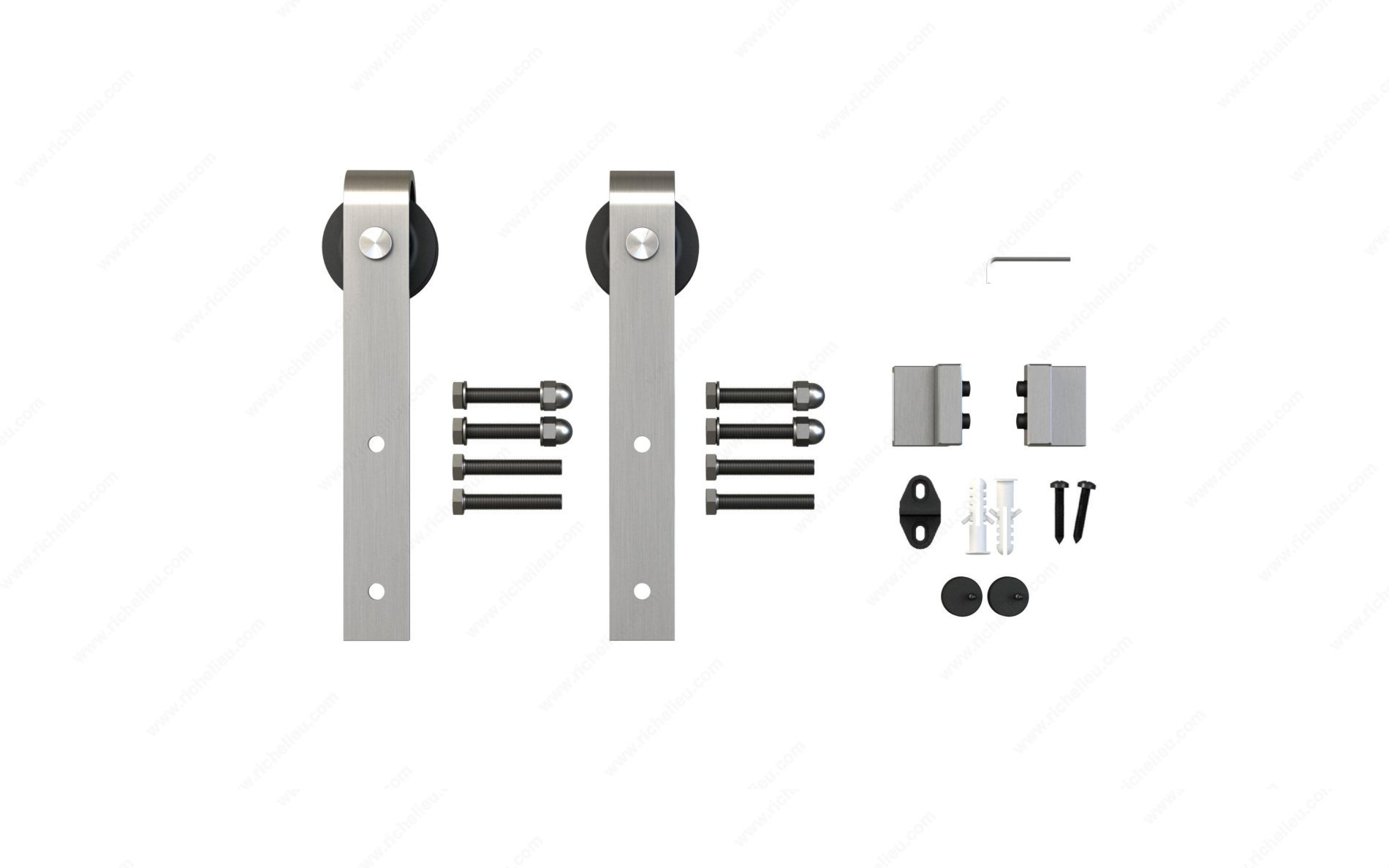

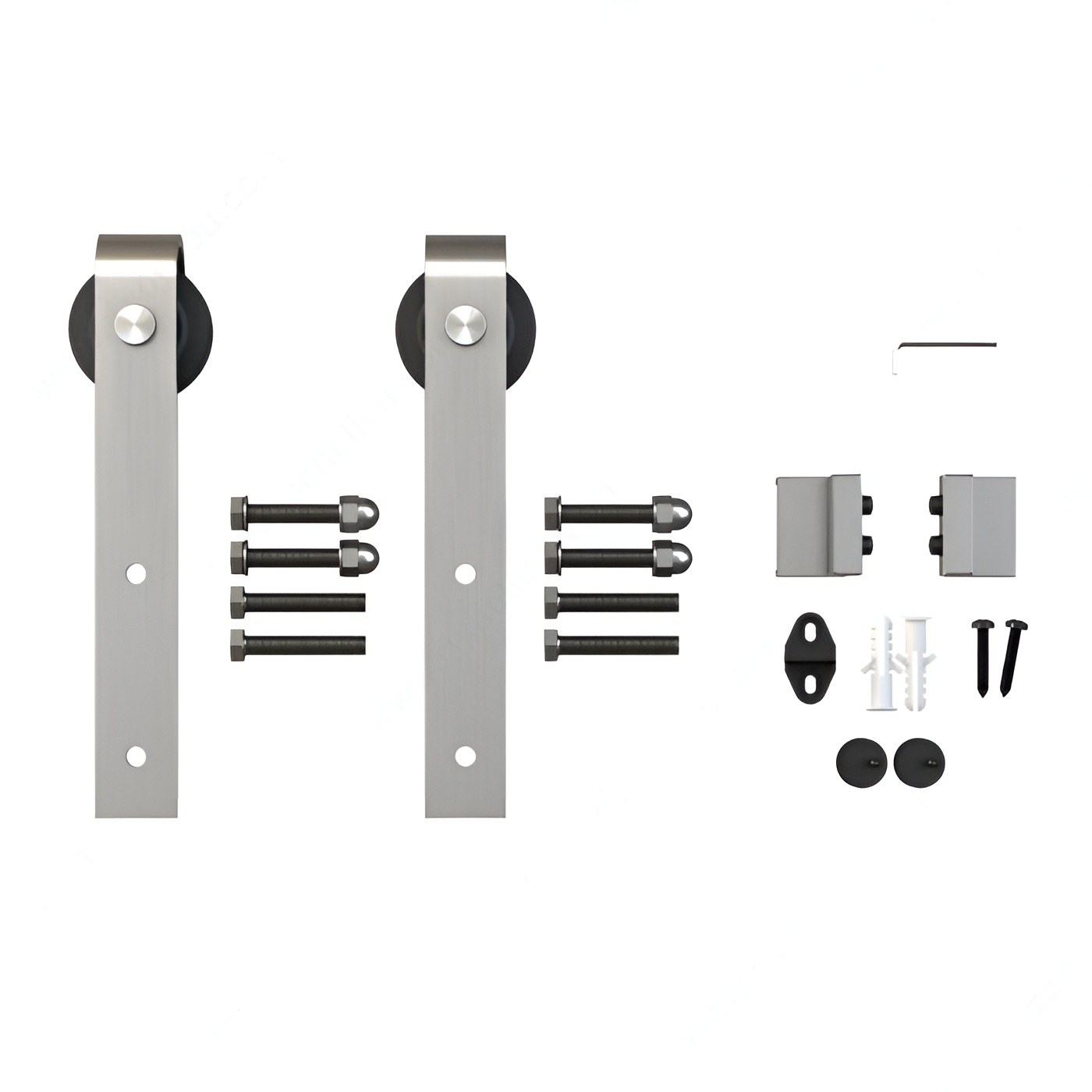

Product type: Hardware Set
Product №: 246005170
Roller Position: Upper
Roller Type: Ball Bearing
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Rustic
Track Finish: Stainless Steel
Track Material: Stainless Steel
Track Mounting: Wall Mount
Track Type: Flat Bar
Track type: Flat Bar
Unit: Box
Unit 1: carton - 5
Unit 2: carton - 5
Weight Capacity per Door: 15 to 100 kg
