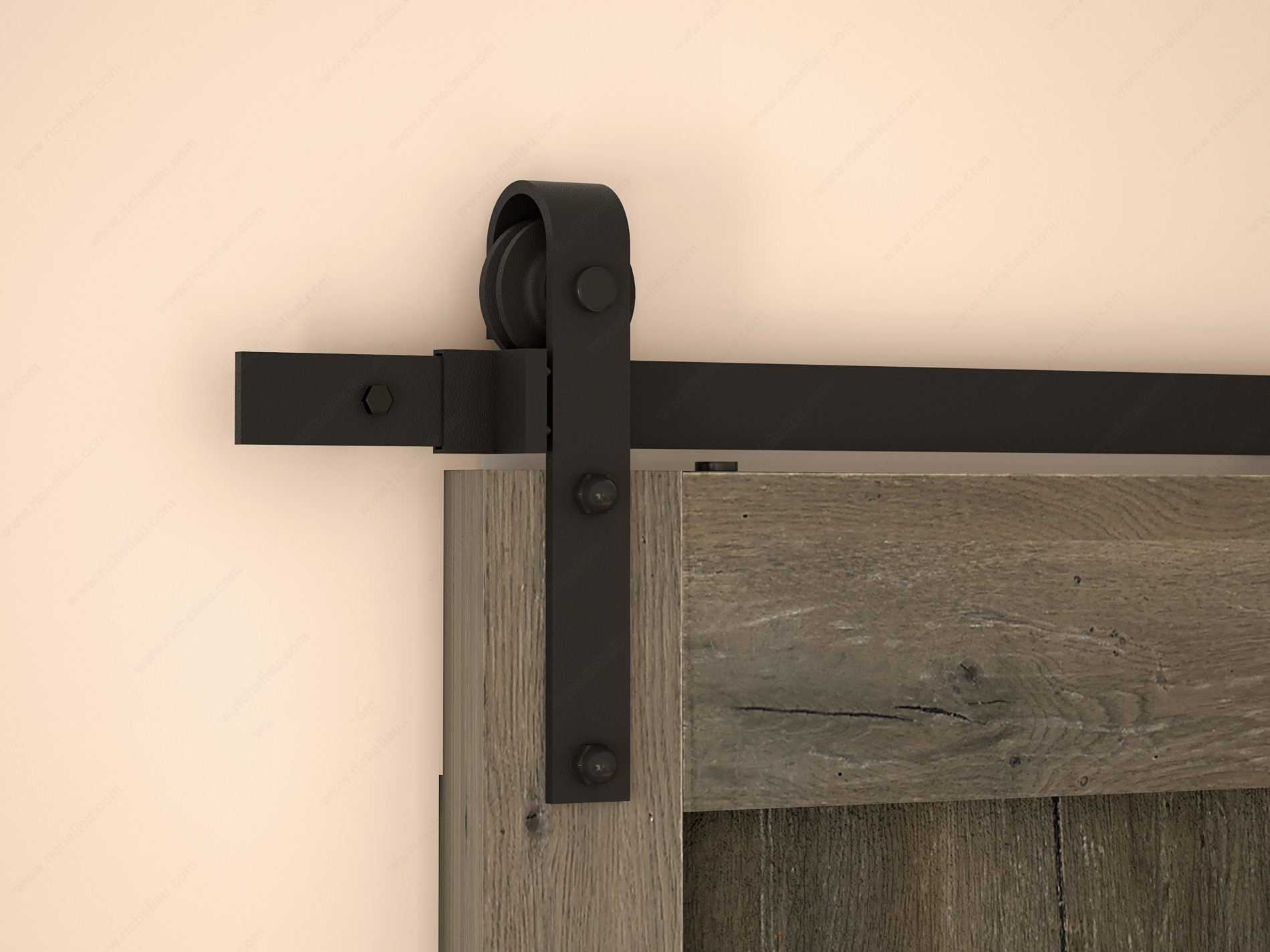

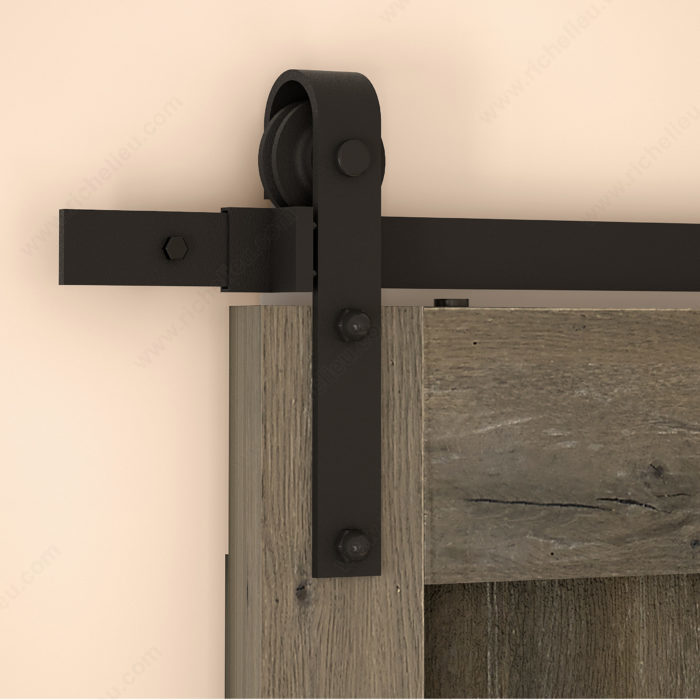

Richelieu 24600590 Rustic Barn Door Wall Mount Sliding Door System combines functionality and aesthetic appeal, making it an ideal choice for residential applications. Designed for a single wood door, this system features a visible black flat bar steel looped strap trolley that supports doors weighing up to 100 kg (220 lb). This system includes three options for standard flat bar upper track sets, complete with wall mounts and fastener lag bolts suitable for wood wall construction. Each track is pre-drilled, allowing for easy connection to additional tracks and soft-close mechanisms (sold separately). It is important to note that when using a soft-close mechanism, the minimum door width should be 36 inches (914 mm), and the maximum door weight is 176 lb (80 kg). The Rustic Barn Door System accommodates door thicknesses ranging from 1 3/8 to 1 3/4 inches and door widths between 24 and 60 inches, ensuring versatility for various spaces. The track mounting is wall-mounted, and the design includes a groove for the guiding system, making installation straightforward. With its robust steel construction and rustic style, this barn door system not only enhances the look of your space but also provides reliable performance.
Rustic Barn Door Wall Mount Sliding Door System
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door, Barn Door
Brand: Onward
Displayed in These Showrooms: Montreal, Mississauga
Door Material: Wood
Door Position: In Front of Wall
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 60 in
Finish: Black
Groove Depth: 20 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 5 to 7 mm
Length - Overall Dimensions: 78 3/4 to 118 in*
Load Capacity: 33.1 to 220 lb*
Manufacturing Material: Steel
Material: Steel
Number of Doors: 1
Overall Length: 2 to 3 m
Product #: 24600590
Product number: 24600590
Product №: 24600590
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Rustic
Track Length: 2 to 3 m
Track Mounting: Wall Mount
Track Type: Flat Bar
Track type: Flat Bar
Unit: Box
Unit 1: carton - 5
Unit 2: carton - 5
Weight Capacity per Door: 15 to 100 kg
