Richelieu 246008MATBC Black Arrow Decorative Sliding Hardware KitRichelieu 246008MATBC BLACK ARROW Decorative Sliding Hardware Kit offers a stylish solution for your barn door needs, accommodating wood doors weighing up to 220 lb (100 kg). This kit includes a comprehensive hardware set for one door, paired with a robust 78-inch track, ensuring smooth operation and a striking aesthetic in a matte black finish. Designed for ease of installation, the surface strap mount flat bar features through bolts that secure the setup efficiently. A two-part floor guide allows for seamless door movement without requiring a groove at the bottom. For added convenience, a soft-close mechanism is available separately, accommodating doors weighing up to 176 lb (80 kg). The BLACK ARROW kit is packaged in two options: a clear plastic box with foam cutouts for retail showrooms or a white cardboard box with a photo label, perfect for lumberyard displays and multi-residential projects. Ideal for applications in closets, walk-in closets, and standard access doors, it enhances both functionality and style. With a minimum door width of 36 inches when using the soft-close mechanism, the BLACK ARROW is an excellent choice for enhancing your residential space with a rustic touch. Elevate your interior design with this reliable and elegant sliding hardware kit.
BLACK ARROW Decorative Sliding Hardware Kit

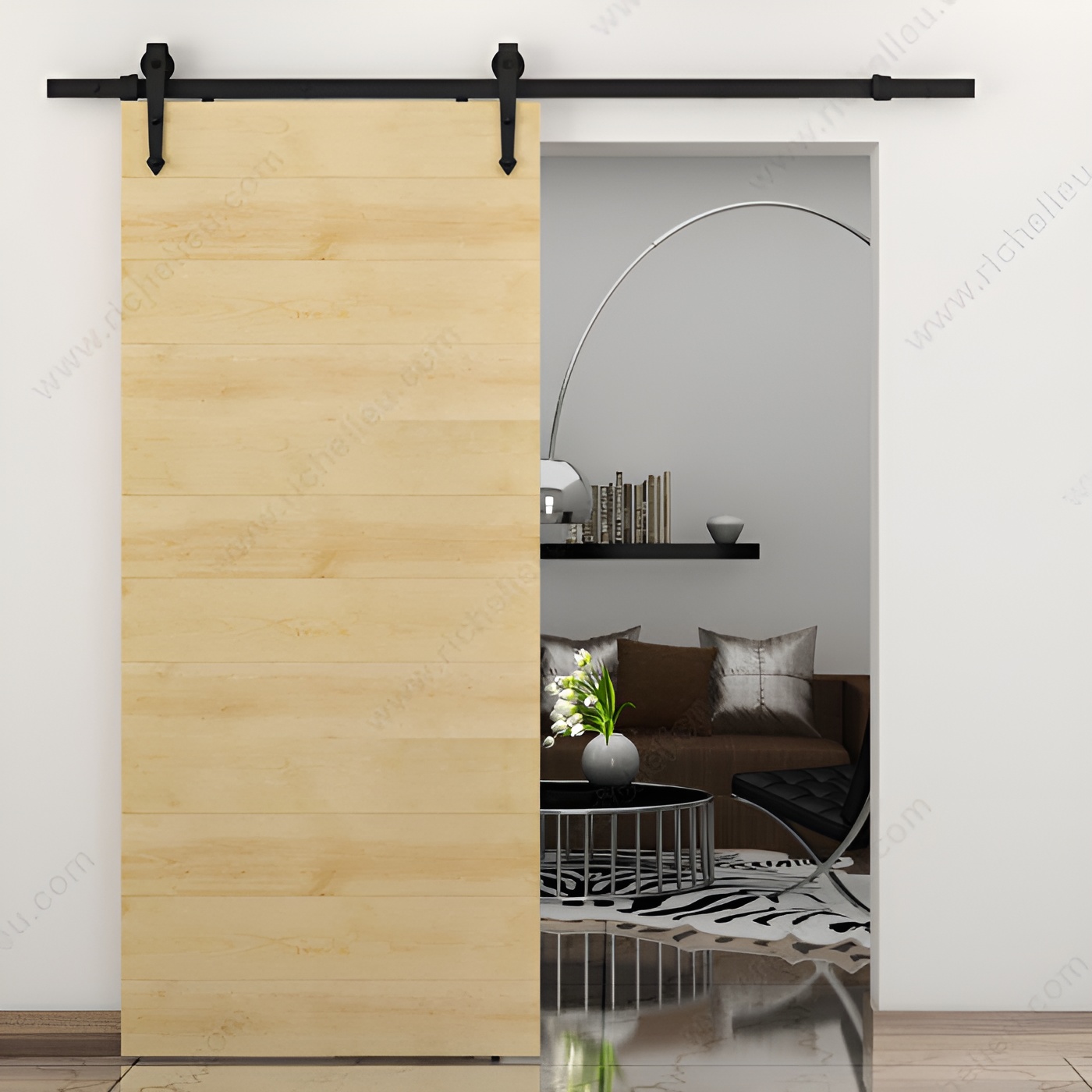

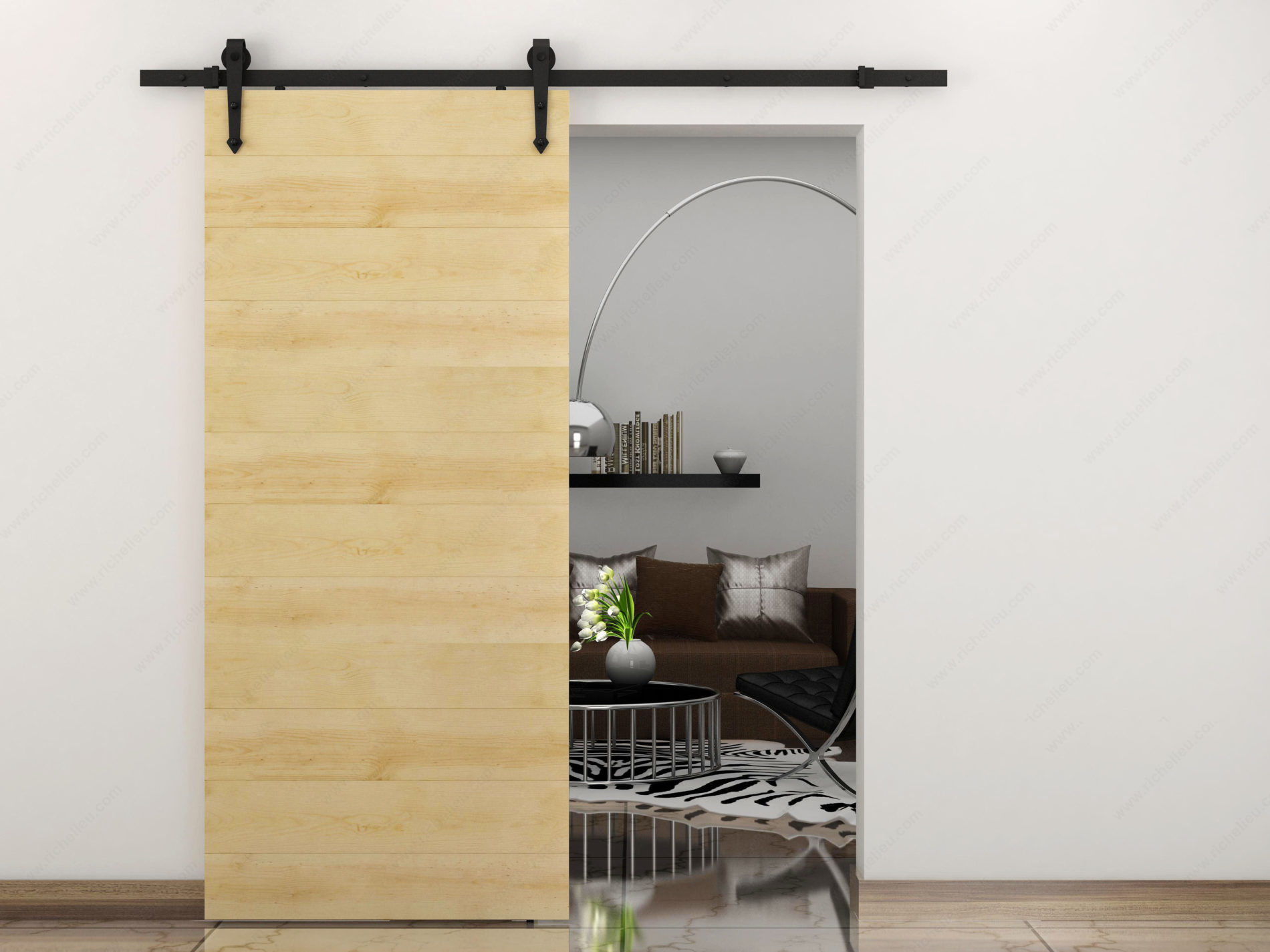

The BLACK ARROW Decorative Sliding Hardware Kit is a barn door arrow bar-style system for wall mount wood doors weighing up to 220 lb (100 kg).

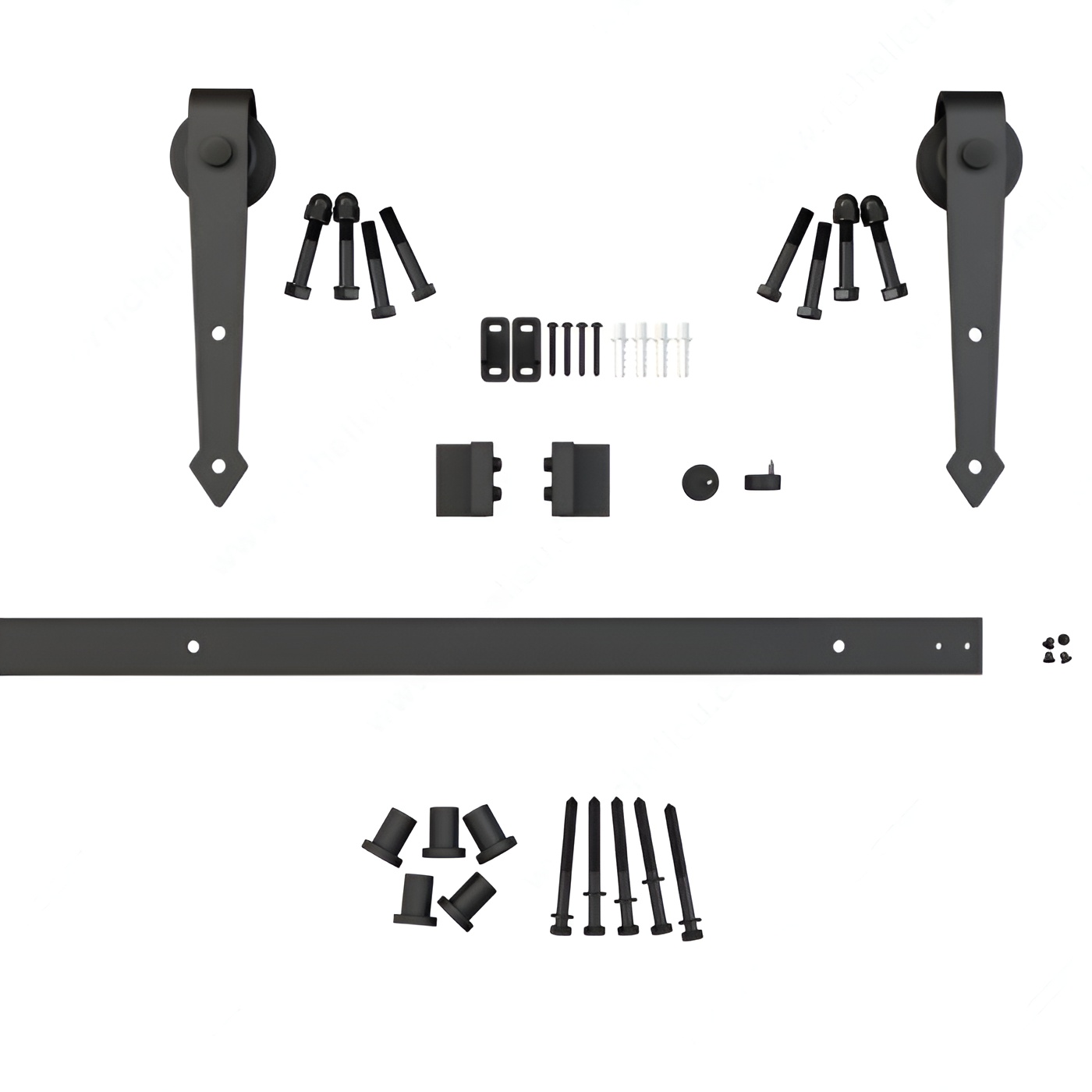

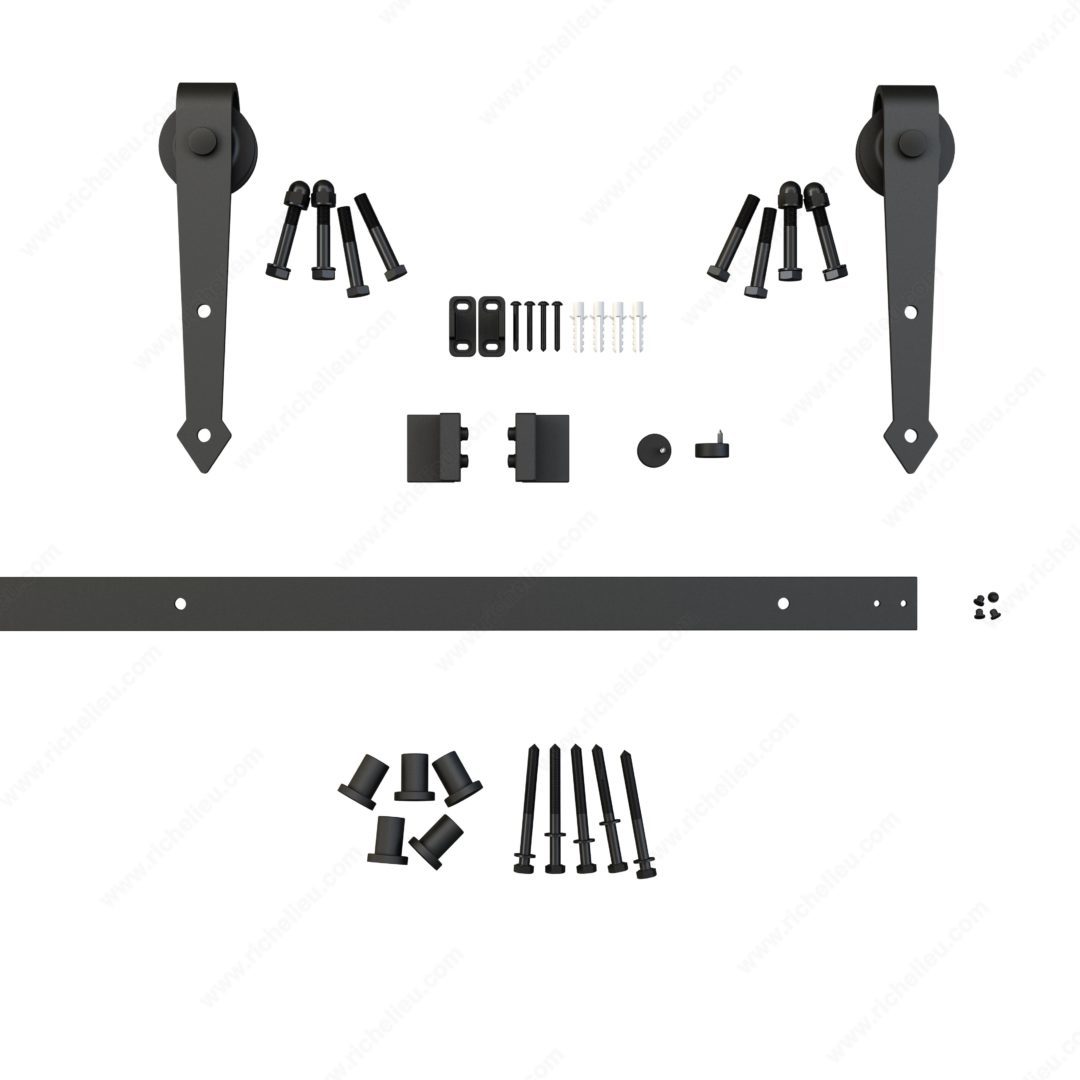

- Kit format includes hardware set for one door and track set 78 in (2 m) long
- Matte black

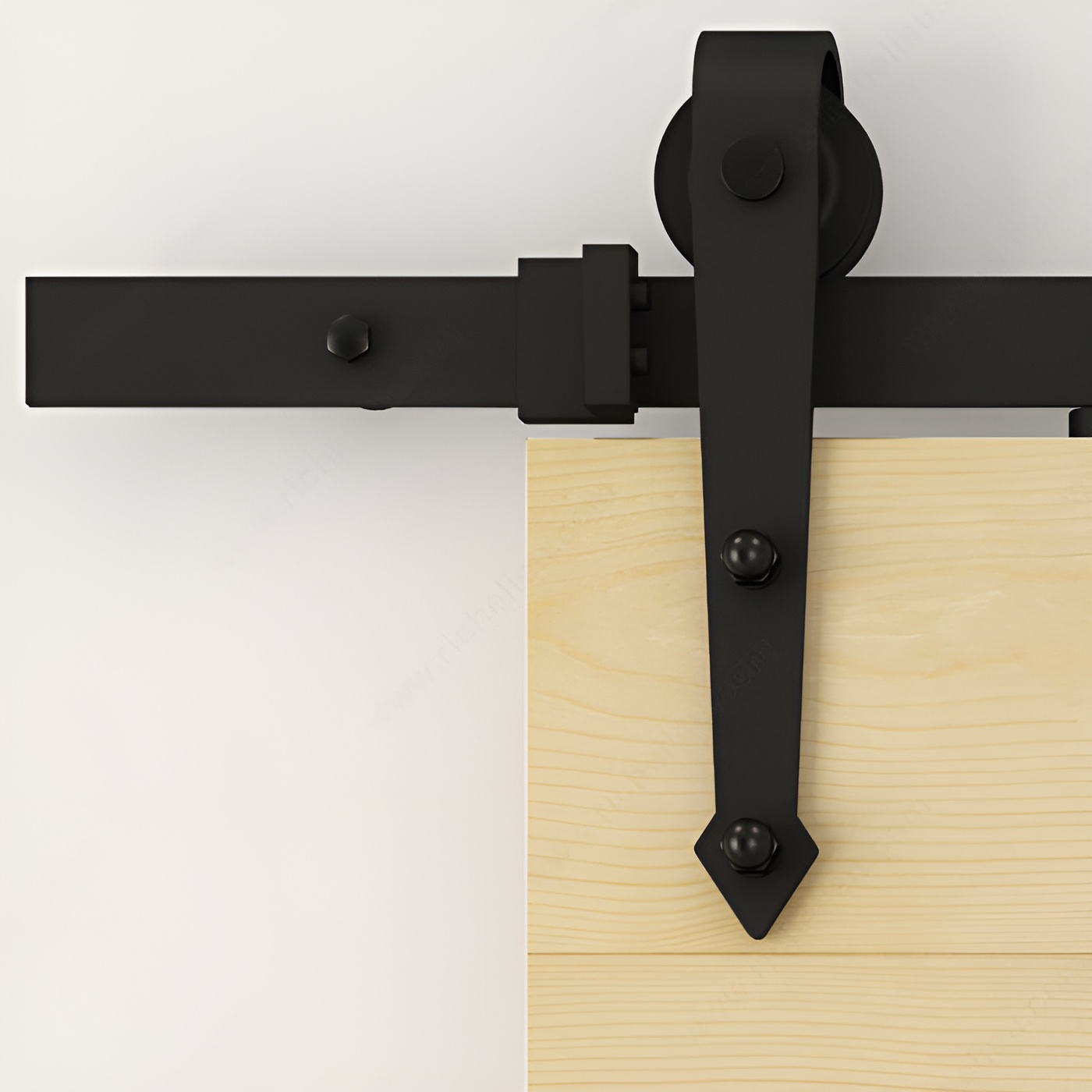

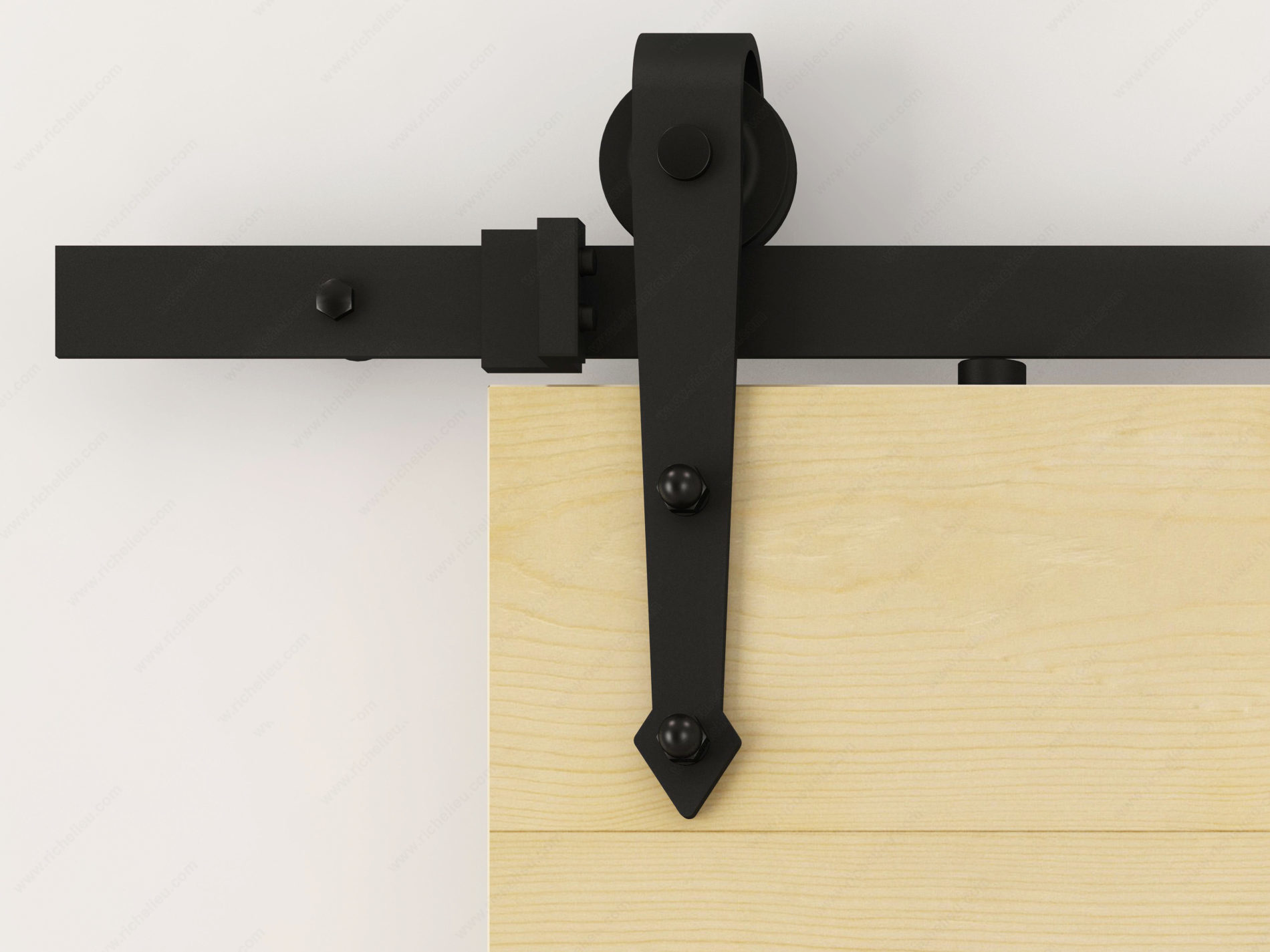

- Surface strap mount flat bar with through bolts for quick and secure installation
- Two-part floor guide that does not require a groove at the bottom of the door
- Available soft-close mechanism (sold separately) for doors weighing up to 176 lb (80 kg) each
- For biparting application, the position of the upper trolleys will need to be shifted
- Two packaging format options:
A) PVC - clear plastic box and foam base with cutouts to hold and display each major component, ideal for retail showrooms.
B) White cardboard box and a photo label with an image of a basic application and text describing the major features, ideal for retail/lumberyard store floors and multi-residential projects.
The BLACK ARROW is an ideal solution for residential applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door, Barn Door
Brand: Onward
Detailed Door Movement: Barn door
Door Height: 3 050 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall
Door Projection: 81 mm
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 40 in
Finish: Black
Function: Sliding Door
Groove Depth: 20 mm
Groove Needed for Guiding System: No
Groove Width at the Bottom of Door: 7 mm
Height Clearance: 136 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 33.1 to 220 lb*
Manufacturing Material: Steel
Material: Steel
Number of Doors: 1
Overall Length: 2 m
Packaging Format: White Cardboard with Photo Label
Product #: 246008MATBC
Product Type: Complete Set
Product number: 246008MATBC
Product type: Complete Set
Product №: 246008MATBC
Roller Position: Upper
Roller Type: Ball Bearing
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Style: Rustic
Track Finish: Black
Track Length: 2 m
Track Material: Steel
Track Mounting: Wall Mount
Track Type: Flat Bar
Track type: Flat Bar
Unit: Set
Unit 1: skid - 50
Unit 2: skid - 50
Weight Capacity per Door: 15 to 100 kg
