Richelieu 246008MATPVC Black Arrow Decorative Sliding Hardware KitRichelieu 246008MATPVC BLACK ARROW Decorative Sliding Hardware Kit offers a stylish and sturdy solution for wall-mounted wood doors, accommodating weights up to 220 lb (100 kg). This barn door-style system features a matte black finish that seamlessly complements rustic and contemporary aesthetics alike. The kit includes all necessary hardware for one door along with a robust 78-inch (2 m) track. Installation is straightforward thanks to the surface strap mount flat bar equipped with through bolts, ensuring a quick and secure setup. The innovative two-part floor guide eliminates the need for a groove at the bottom of the door, enhancing versatility. For those considering a soft-close mechanism (available separately), it supports doors weighing up to 176 lb (80 kg) each, requiring a minimum door width of 36 in (914 mm). With options for packaging, the BLACK ARROW is ideal for retail showrooms and multi-residential projects alike. Designed for top-hung installation, this kit is compatible with doors ranging from 24 to 40 inches wide and 1 3/8 to 1 3/4 inches thick. The kit also includes two stoppers for added functionality. Elevate your space with the BLACK ARROW Decorative Sliding Hardware Kit from Richelieu, where quality meets design.
BLACK ARROW Decorative Sliding Hardware Kit

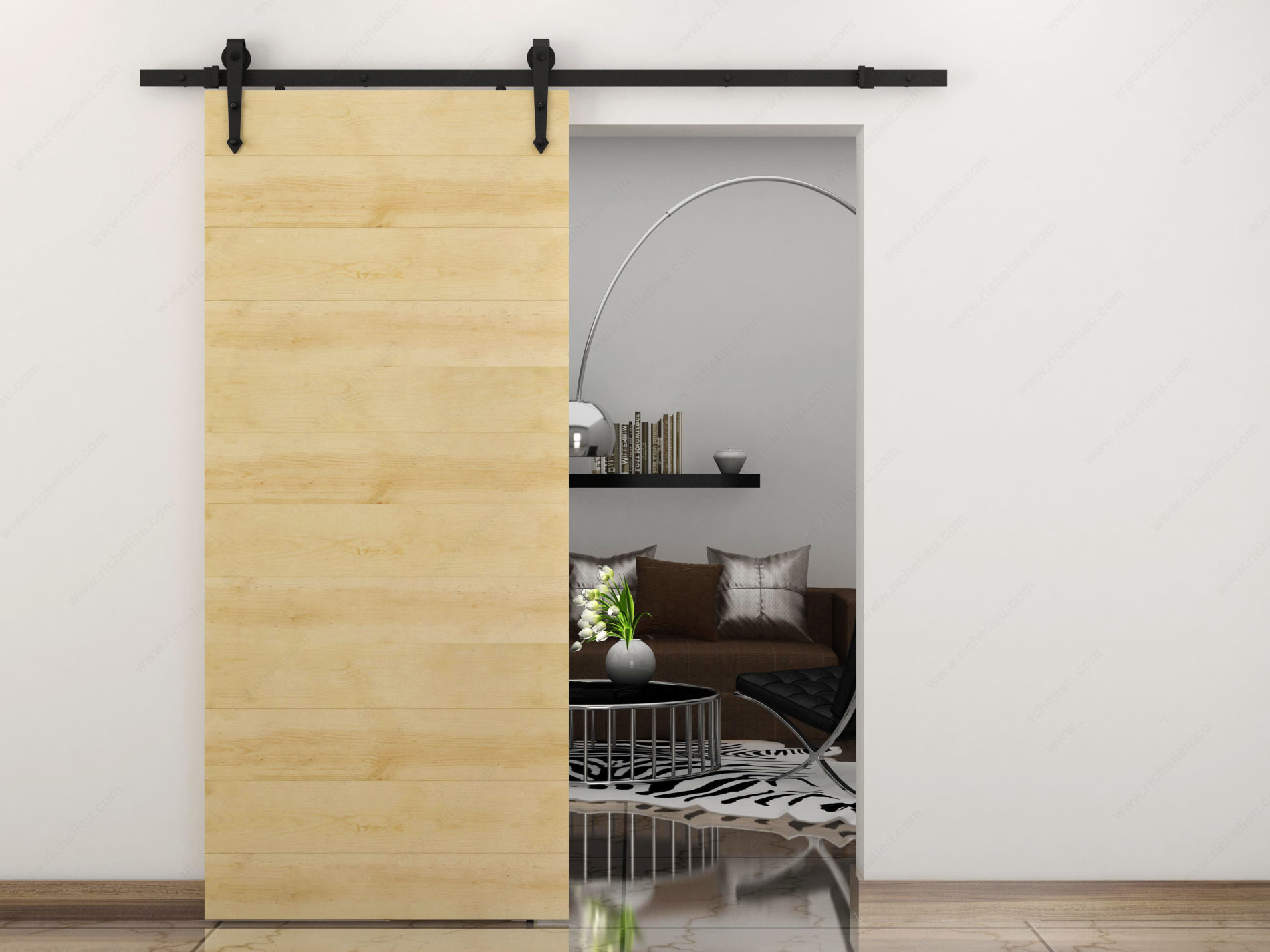

The BLACK ARROW Decorative Sliding Hardware Kit is a barn door arrow bar-style system for wall mount wood doors weighing up to 220 lb (100 kg).
- Kit format includes hardware set for one door and track set 78 in (2 m) long
- Matte black
- Surface strap mount flat bar with through bolts for quick and secure installation
- Two-part floor guide that does not require a groove at the bottom of the door
- Available soft-close mechanism (sold separately) for doors weighing up to 176 lb (80 kg) each
- For biparting application, the position of the upper trolleys will need to be shifted
- Two packaging format options:
A) PVC - clear plastic box and foam base with cutouts to hold and display each major component, ideal for retail showrooms.
B) White cardboard box and a photo label with an image of a basic application and text describing the major features, ideal for retail/lumberyard store floors and multi-residential projects.
The BLACK ARROW is an ideal solution for residential applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door, Barn Door
Brand: Onward
Door Height: 10 ft*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall
Door Projection: 3 3/16 in*
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 40 in
Finish: Black
Groove Depth: 25/32 in*
Groove Needed for Guiding System: No
Groove Width at the Bottom of Door: 9/32 in*
Height Clearance: 5 11/32 in*
Load Capacity: 33.1 to 220 lb*
Manufacturing Material: Steel
Number of Doors: 1
Overall Length: 78 3/4 in*
Packaging Format: PVC and Clear Foam
Product #: 246008MATPVC
Product type: Complete Set
Roller Position: Upper
Roller Type: Ball Bearing
Screw/ Nail Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Style: Rustic
Track Mounting: Wall Mount
Track type: Flat Bar
