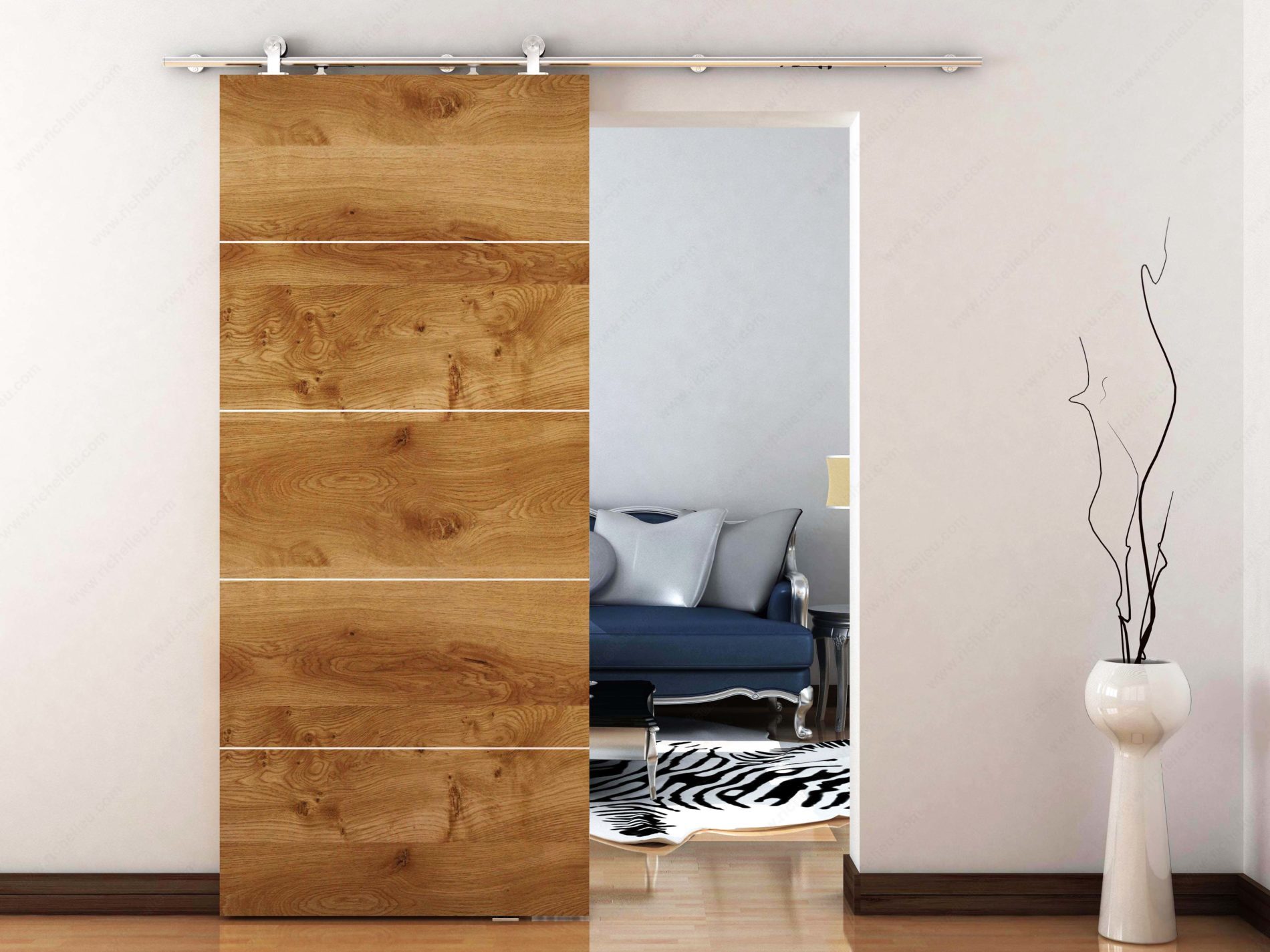

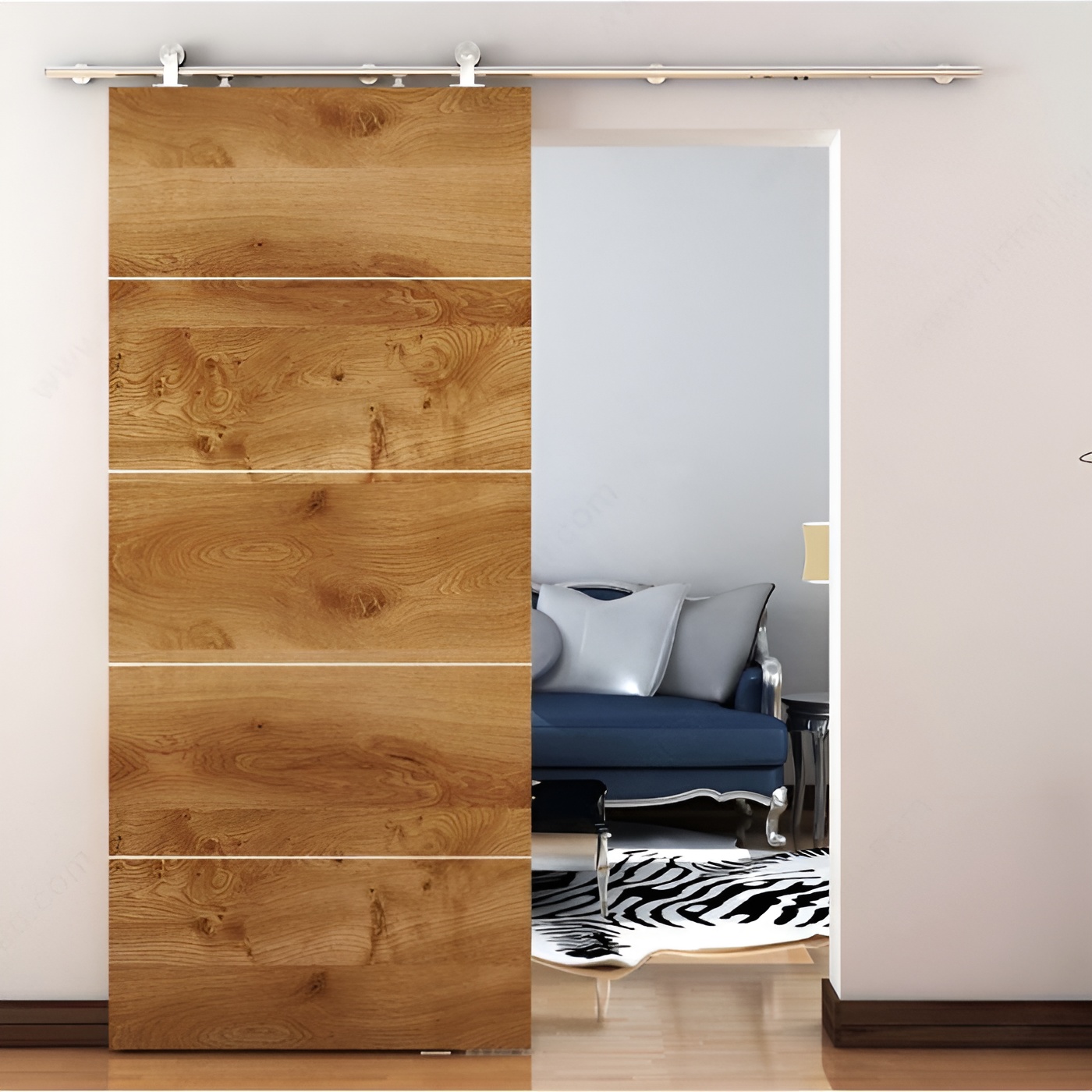

Richelieu 2460102SSPVC STUDIO - Decorative Visible Rail System offers a modern solution for sliding door applications with its elegant barn door style. Designed for residential use, this kit features a durable 2.0 m (78") stainless steel upper track, ensuring both style and strength. The integrated soft-close mechanisms enhance functionality, allowing for a smooth and controlled closure every time. This system accommodates door thicknesses ranging from 35 mm to 45 mm (1-3/8" to 1-3/4") and is suitable for doors with a height of up to 96 inches. Its top-hung design guarantees seamless operation, while the surface mount track simplifies installation with pre-drilled holes and included screws. The kit supports a load capacity of 33.1 to 176 lb, making it versatile for various wooden door styles, with widths from 24 to 36 inches. The STUDIO system features ball bearing rollers positioned at the upper track, allowing for a straight sliding movement and minimal maintenance. With a contemporary aesthetic, this sliding door kit not only optimizes space but also elevates the overall design of your interior. Choose the Richelieu STUDIO for a reliable, stylish, and efficient sliding door solution.

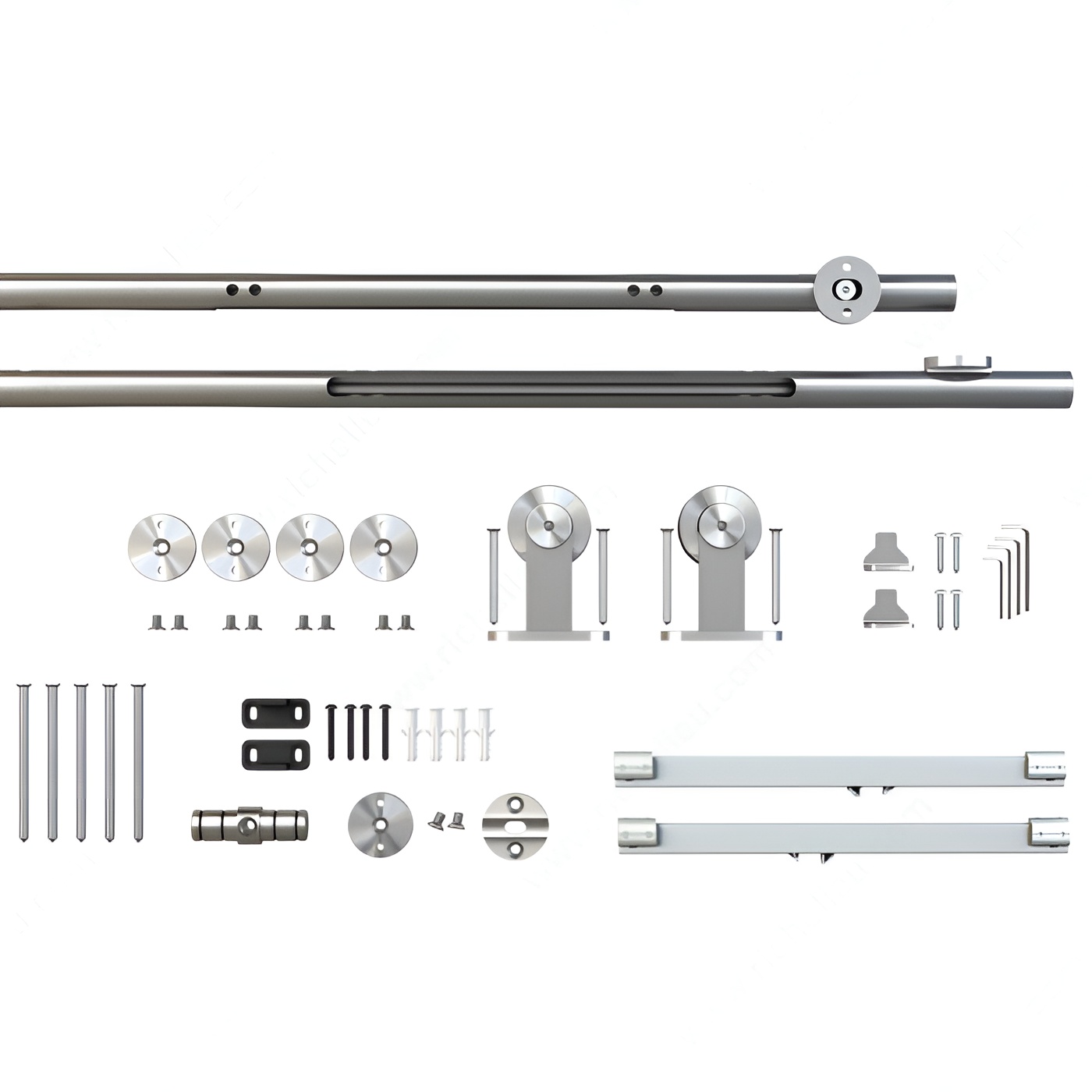

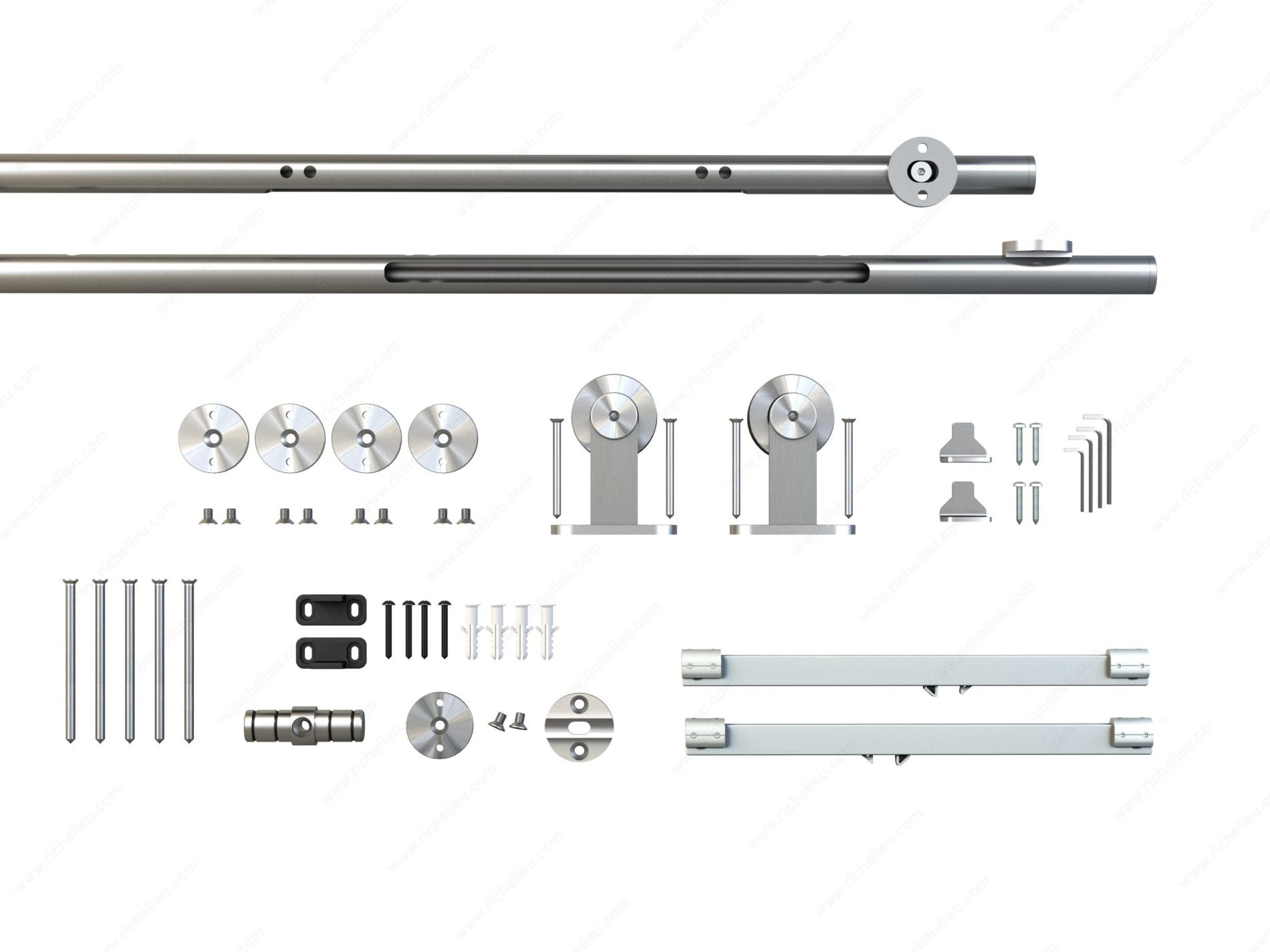

The STUDIO Barn Door Style sliding door kit with 2 integrated soft-close mechanisms and a 2.0 m (78") upper track in stainless steel. The kit is made for door thicknesses ranging from 35 mm to 45 mm (1-3/8" to 1-3/4"). The lag bolt and pre-drilled track makes for a simple installation. For residential applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door, Barn Door
Bottom Guide: Yes
Brand: Onward
Detailed Door Movement: Barn door
Door Height: 2 438 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall
Door Projection: 69 mm
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 36 in
Finish: Stainless Steel (170)
Function: Sliding Door
Groove Depth: 20 mm
Groove Needed for Guiding System: No
Groove Width at the Bottom of Door: 7 mm
Height Clearance: 110 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 33.1 to 176 lb*
Manufacturing Material: Stainless Steel
Material: Stainless Steel
Number of Doors: 1
Overall Length: 2 000 mm
Packaging Format: PVC and Clear Foam
Product #: 2460102SSPVC
Product number: 2460102SSPVC
Product type: 2 m Kit
Product №: 2460102SSPVC

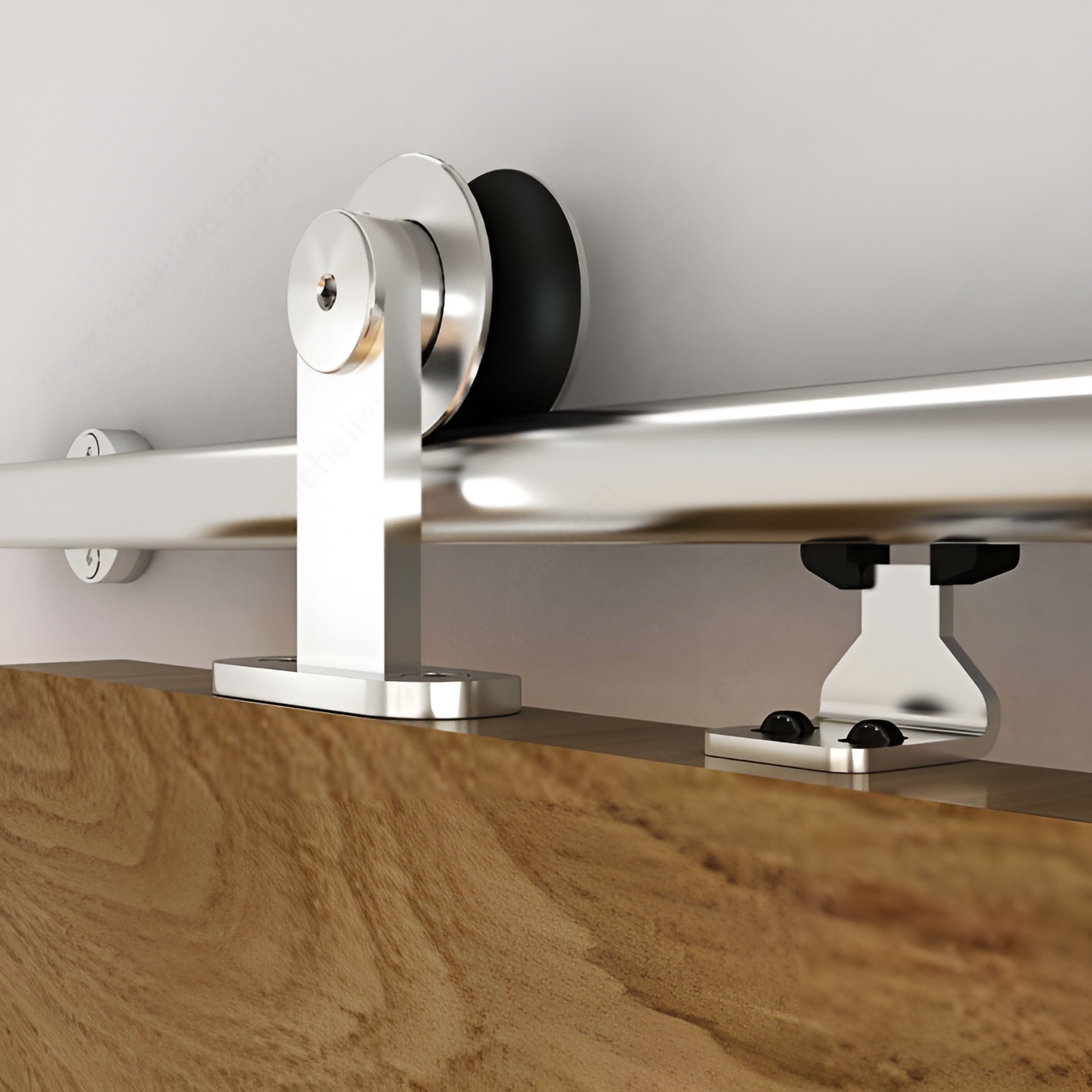

Roller Position: Upper
Roller Type: Ball Bearing
Running Track Fixing: Surface Mount
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Direction: Opening
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Style: Rustic
Track Finish: Stainless Steel
Track Length: 2 m
Track Material: Stainless Steel
Track Mounting: Wall Mount
Track Type: Tube
Track type: Tube
Unit: Set
Unit 1: skid - 50
Unit 2: skid - 50
Weight Capacity per Door: 15 to 80 kg
