Richelieu 246020MATBC FERRIS WHEEL Decorative Sliding Hardware KitRichelieu 246020MATBC FERRIS WHEEL Decorative Sliding Hardware Kit offers a stylish solution for wall-mount wood doors, accommodating weights up to 220 lb (100 kg). This barn door-style system is designed for ease of installation, featuring a matte black finish that complements various interior designs. The kit includes a robust hardware set tailored for one door and a generous 78 in (2 m) track, ensuring smooth and reliable operation. Installation is straightforward with the surface strap-mount flat bar and through bolts, providing a secure and quick setup. Notably, the two-part floor guide eliminates the need for a groove at the bottom of the door, enhancing versatility. For those seeking additional functionality, a soft-close mechanism is available separately for doors weighing up to 176 lb (80 kg). Designed for residential applications, this system is perfect for closets and walk-in spaces. The minimum door width required with the soft-close feature is 36 in (914 mm), while the maximum door weight is 176 lb (80 kg). The FERRIS WHEEL kit is packaged in two formats, catering to retail showrooms and multi-residential projects alike, and is built with durable steel for lasting performance. Embrace both form and function with this elegant sliding hardware solution.
FERRIS WHEEL Decorative Sliding Hardware Kit

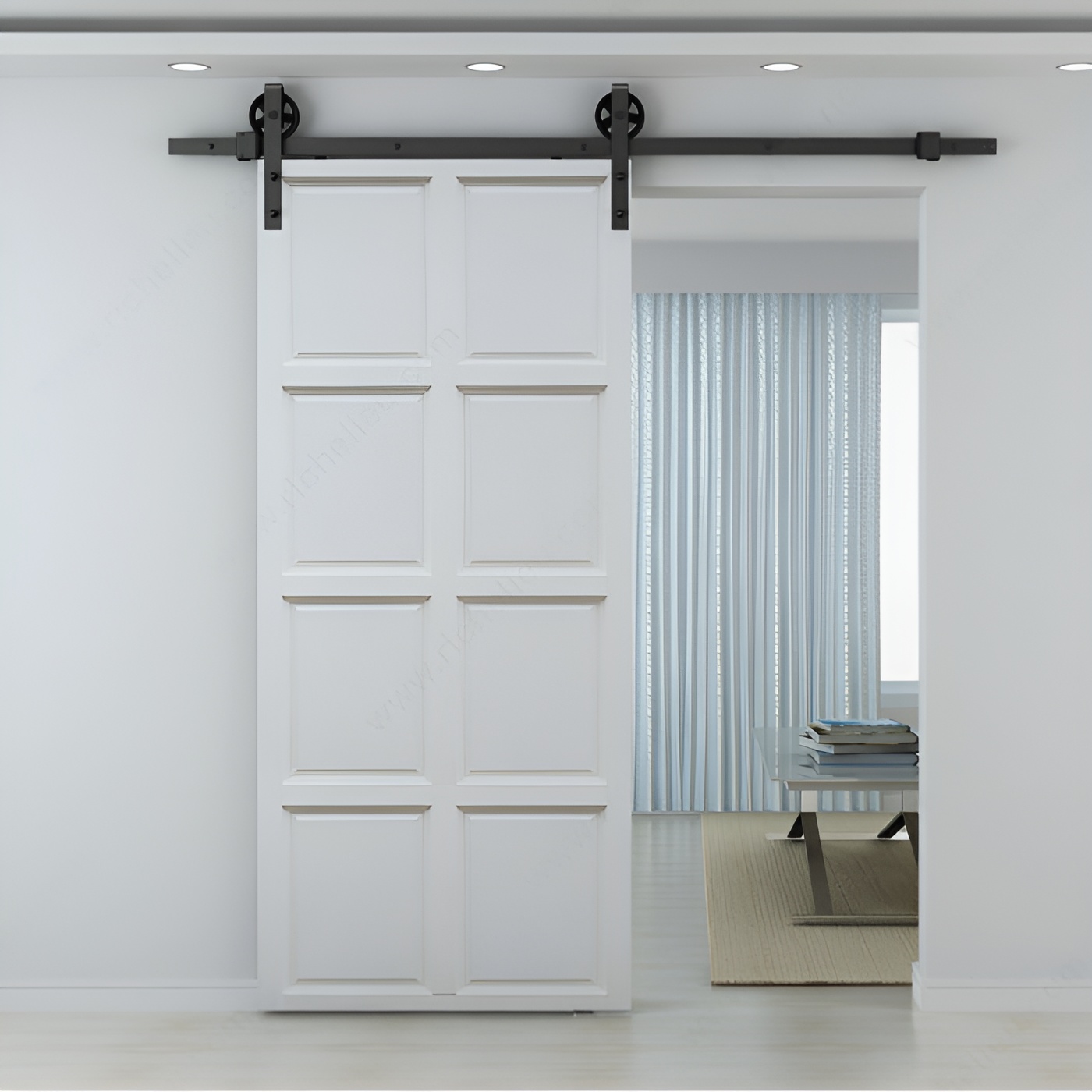

The FERRIS WHEEL Decorative Sliding Hardware Kit is a barn door style system for wall-mount wood doors weighing up to 220 lb (100 kg).
- Kit includes a hardware set for one door and a track set 78 in (2 m) long
- Matte black finish
- Surface strap-mount flat bar with through bolts for quick and secure installation
- Two-part floor guide that does not require a groove at the bottom of the door
- Soft-close mechanism available (sold separately) for doors weighing up to 176 lb (80 kg) each
- For a bipart application, the position of the upper trolleys will need to be shifted
- Two packaging format options:
A) PVC - clear plastic box and foam base with cutouts to hold and display each major component, ideal for retail showrooms
B) White cardboard box and a photo label with an image of a basic application and text describing the major features, ideal for retail/lumberyard store floors and multi-residential projects.
The FERRIS WHEEL is an ideal solution for residential applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door
Brand: Onward
Detailed Door Movement: Barn door
Door Height: 3 050 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall
Door Projection: 80 mm
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 40 in
Finish: Black
Function: Sliding Door
Groove Depth: 20 mm
Groove Needed for Guiding System: No
Groove Width at the Bottom of Door: 7 mm
Height Clearance: 193 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 33.1 to 220 lb*
Manufacturing Material: Steel
Material: Steel
Number of Doors: 1
Overall Length: 2 000 mm
Packaging Format: White Cardboard with Photo Label
Product #: 246020MATBC
Product Type: Complete Set
Product number: 246020MATBC
Product type: Complete Set, 2 m Kit
Product №: 246020MATBC
Roller Position: Upper
Roller Type: Ball Bearing
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Rustic
Track Finish: Black
Track Length: 2 m
Track Material: Steel
Track Mounting: Wall Mount
Track Type: Single
Track type: Single
Unit: Set
Unit 1: skid - 50
Unit 2: skid - 50
Weight Capacity per Door: 15 to 100 kg
