Richelieu 2460211MATBC Black Knight Decorative Sliding Hardware KitRichelieu 2460211MATBC BLACK KNIGHT Decorative Sliding Hardware Kit offers a stylish and practical solution for wall-mounted wood doors, supporting weights of up to 220 lb (100 kg). This barn door U-shape bar-style system is designed for easy installation, featuring a direct surface mount U-shape flat bar that simplifies the setup process. The kit includes everything needed for one door, with a sturdy 78-inch (2 m) track and a two-part floor guide that eliminates the need for grooves at the bottom of the door. The BLACK KNIGHT kit accommodates doors ranging from 24 to 40 inches in width and 1 3/8 to 1 3/4 inches in thickness. For added convenience, a soft-close mechanism is available separately for doors weighing up to 176 lb (80 kg). Packaging options include a clear PVC box for retail showrooms or a white cardboard box with a photo label, making it ideal for various sales environments. This decorative sliding hardware kit not only enhances the rustic charm of any space but also provides a functional and durable solution for closet doors, standard access doors, or barn doors. Upgrade your residential applications with the reliability and elegance of the BLACK KNIGHT system.
BLACK KNIGHT Decorative Sliding Hardware Kit

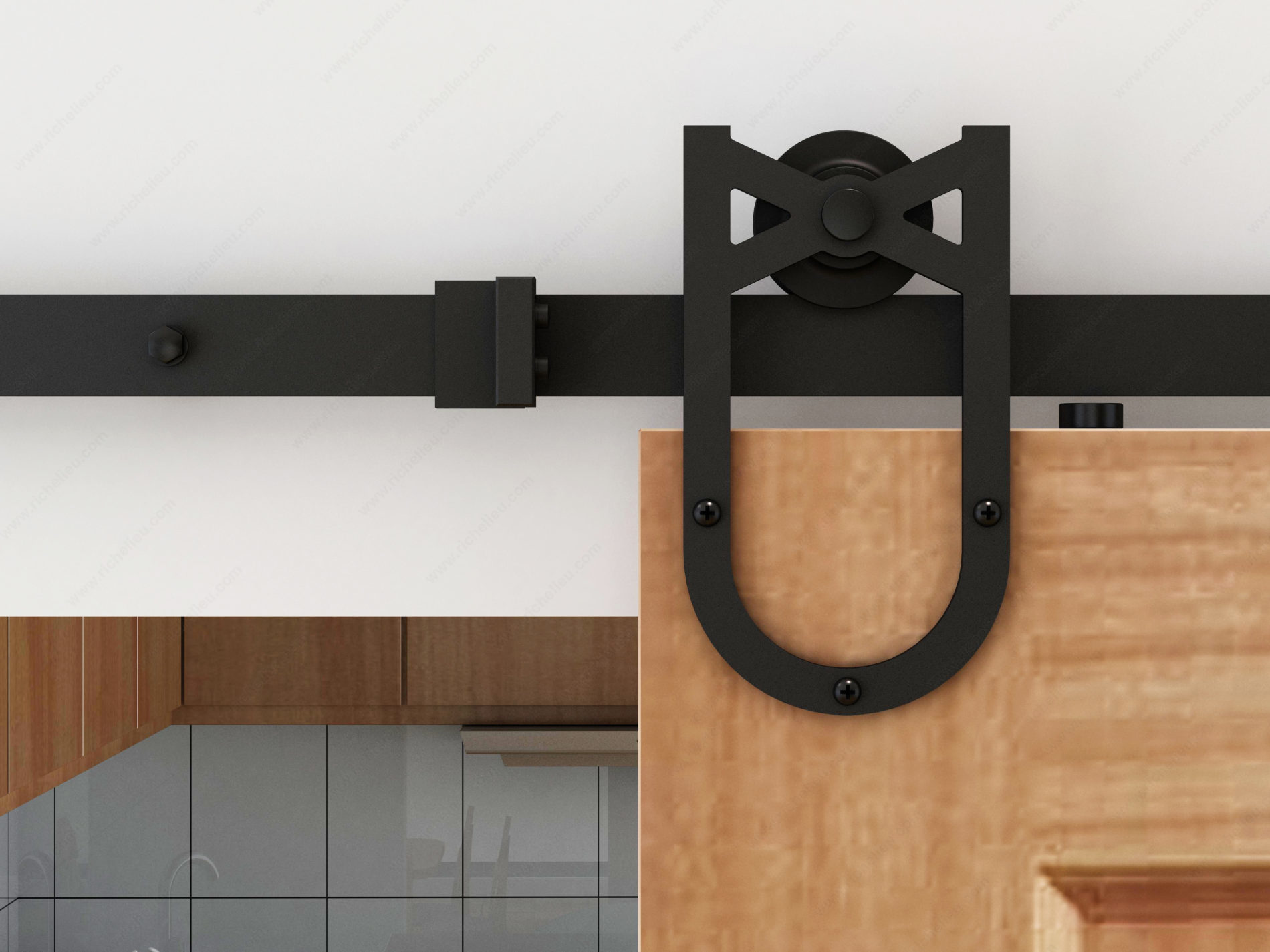

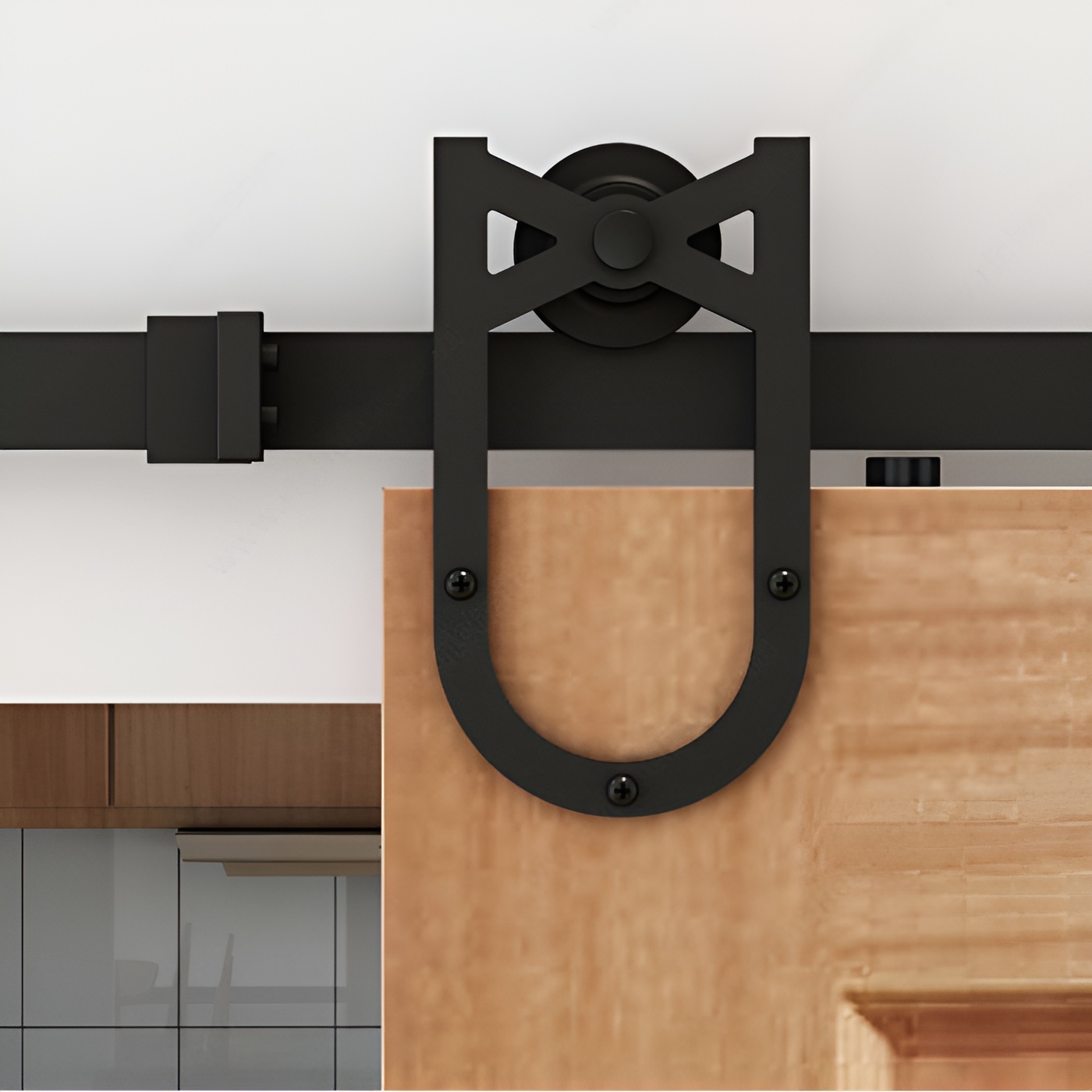

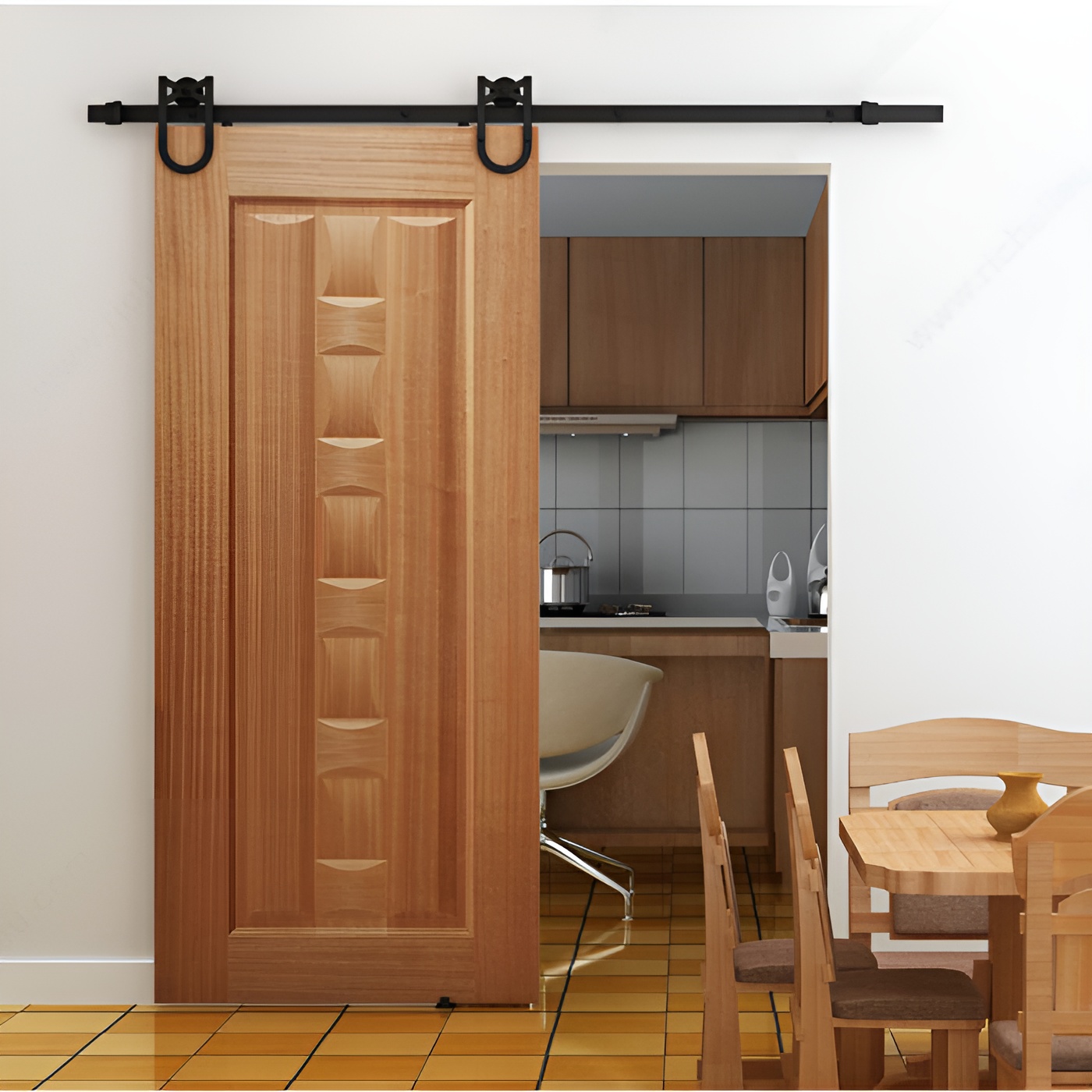

The BLACK KNIGHT Decorative Sliding Hardware Kit is a barn door U-shape bar-style system for wall mount wood doors weighing up to 220 lb (100 kg).

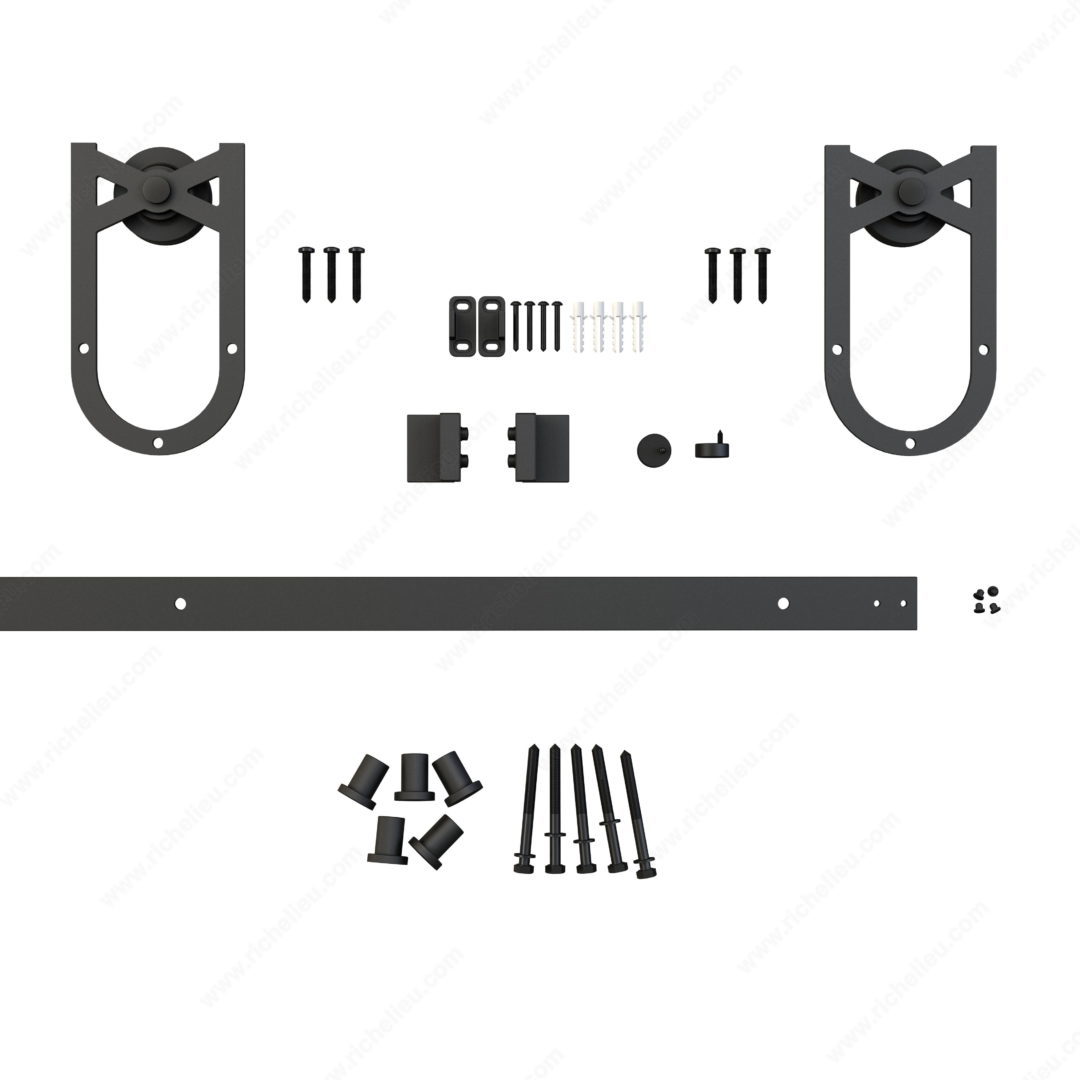

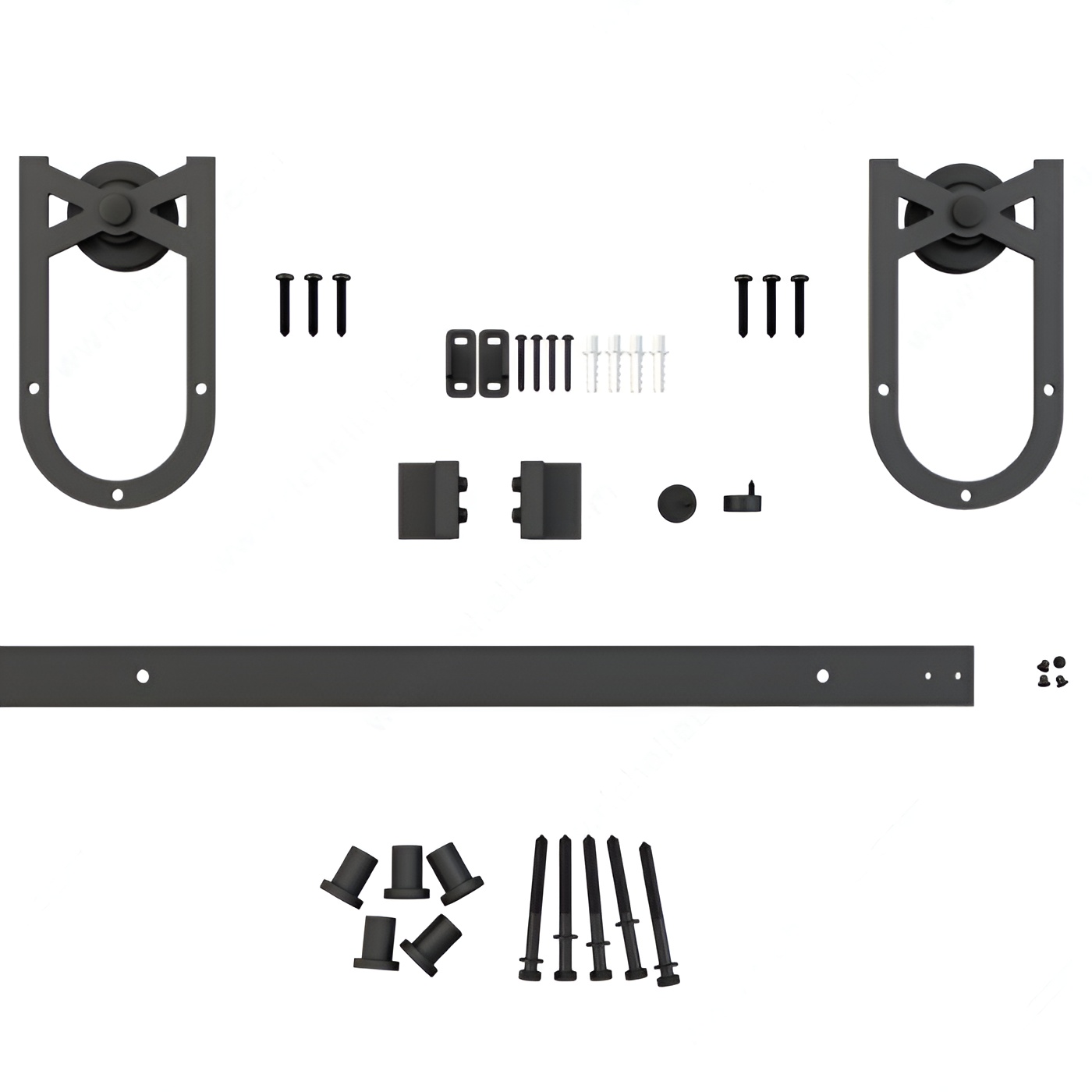

- Kit format includes hardware set for one door and track set 78 in (2 m) long
- Matte black
- Direct surface mount U-shape flat bar for quick and simple installation
- Two-part floor guide that does not require a groove at the bottom of the door
- Available soft-close mechanism (sold separately) for doors weighing up to 176 lb (80 kg) each
- For biparting application, the position of the upper trolleys will need to be shifted
- Two packaging format options:
A) PVC - clear plastic box and foam base with cutouts to hold and display each major component, ideal for retail showrooms.
B) White cardboard box and a photo label with an image of a basic application and text describing the major features, ideal for retail/lumberyard store floors and multi-residential projects.
The Black Knight is an ideal solution for residential applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Application: Closet and Walk-In Closet, Standard Access Door, Barn Door
Brand: Onward
Detailed Door Movement: Barn door
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall
Door Projection: 65 mm
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 40 in
Finish: Black
Function: Sliding Door
Groove Depth: 20 mm
Groove Width at the Bottom of Door: 7 mm
Height Clearance: 123 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 33.1 to 220 lb*
Manufacturing Material: Steel
Material: Steel
Number of Doors: 1
Overall Length: 2 m
Packaging Format: White Cardboard with Photo Label
Product #: 2460211MATBC
Product Type: Complete Set
Product number: 2460211MATBC
Product type: Complete Set
Product №: 2460211MATBC
Roller Position: Upper
Roller Type: Ball Bearing
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Style: Rustic
Track Finish: Black
Track Length: 2 m
Track Material: Steel
Track Mounting: Wall Mount
Track Type: Flat Bar
Track type: Flat Bar
Unit: Set
Unit 1: skid - 50
Unit 2: skid - 50
Weight Capacity per Door: 15 to 100 kg
