Richelieu 2460402ALPVC Contemporary Decorative Concealed Rail SystemRichelieu 2460402ALPVC Contemporary - Decorative Concealed Rail System offers a sleek and modern solution for sliding doors in residential spaces. Designed to accommodate a single wood door weighing up to 88 lb (40 kg), this concealed wall mount sliding door kit features an elegant clip-on aluminum fascia that enhances any decor while ensuring functionality. The kit includes all necessary hardware for one door, along with a sturdy 78-inch (2 m) box track and two soft-close mechanisms, providing a smooth and quiet operation. The two-part floor guide eliminates the need for a groove, simplifying installation and ensuring seamless movement. Suitable for door widths ranging from 30 to 36 inches and thicknesses between 1 3/8 to 1 3/4 inches, this system is ideal for closets and walk-in spaces. Constructed from durable steel, aluminum, and plastic, the system is finished in a stylish satin anodized aluminum, which not only adds an aesthetic appeal but also ensures longevity. The wall-mounted track type allows for easy installation, making it a practical choice for building professionals and discerning homeowners alike. With its contemporary style and reliable performance, the Richelieu Contemporary rail system is the perfect addition to any modern interior.
Contemporary - Decorative Concealed Rail System

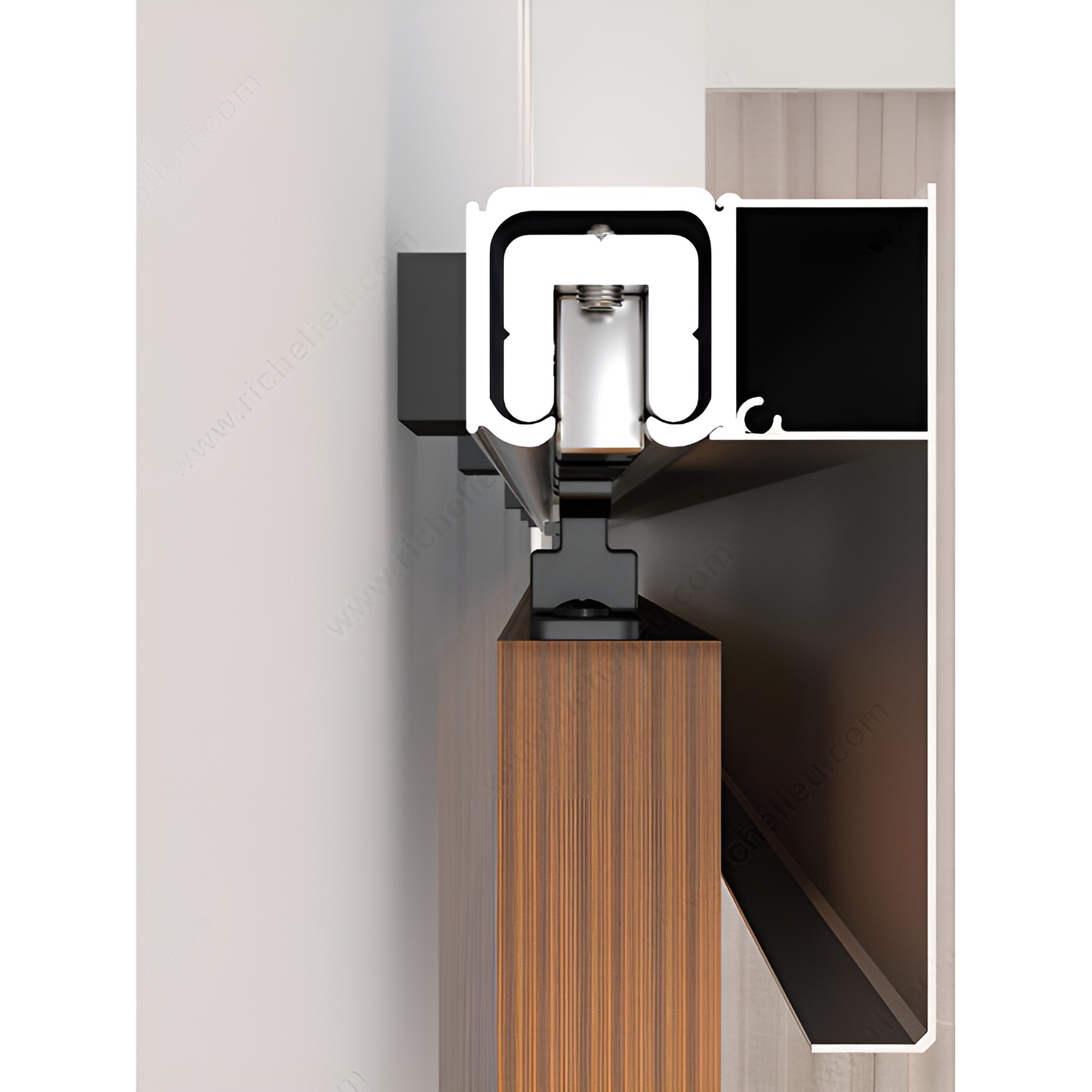

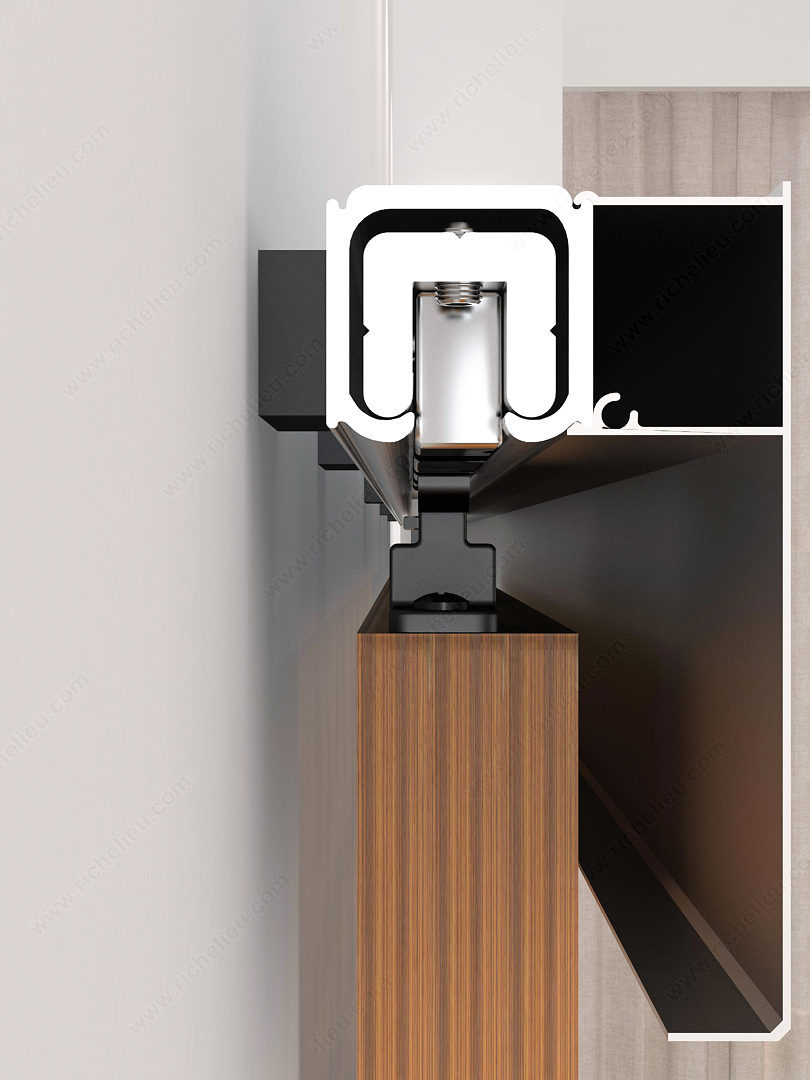

The Contemporary is a concealed wall mount sliding door kit for one wood door running on a box track with clip-on aluminum fascia for a single wood door weighing up to 88 lb (40 kg).
Features:

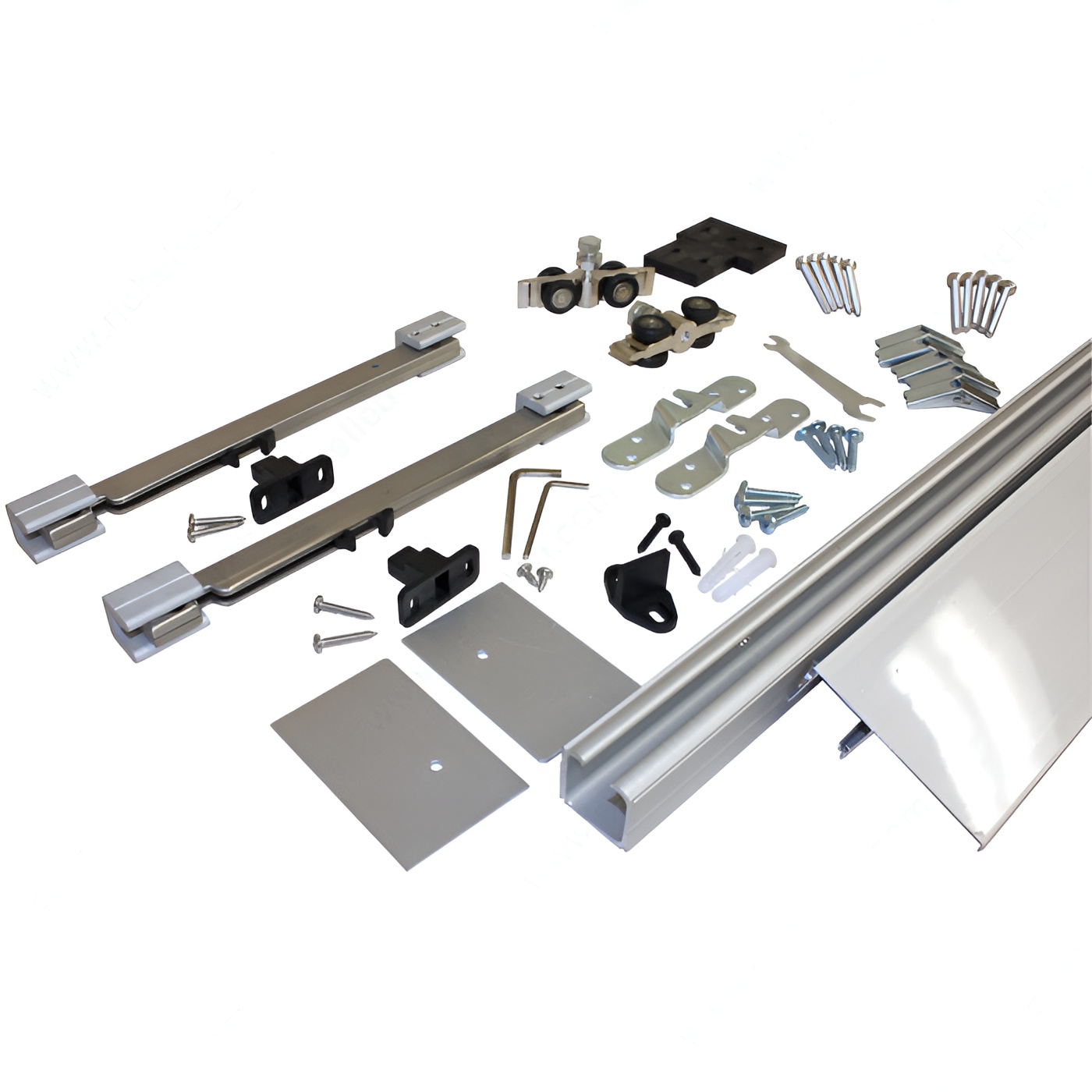

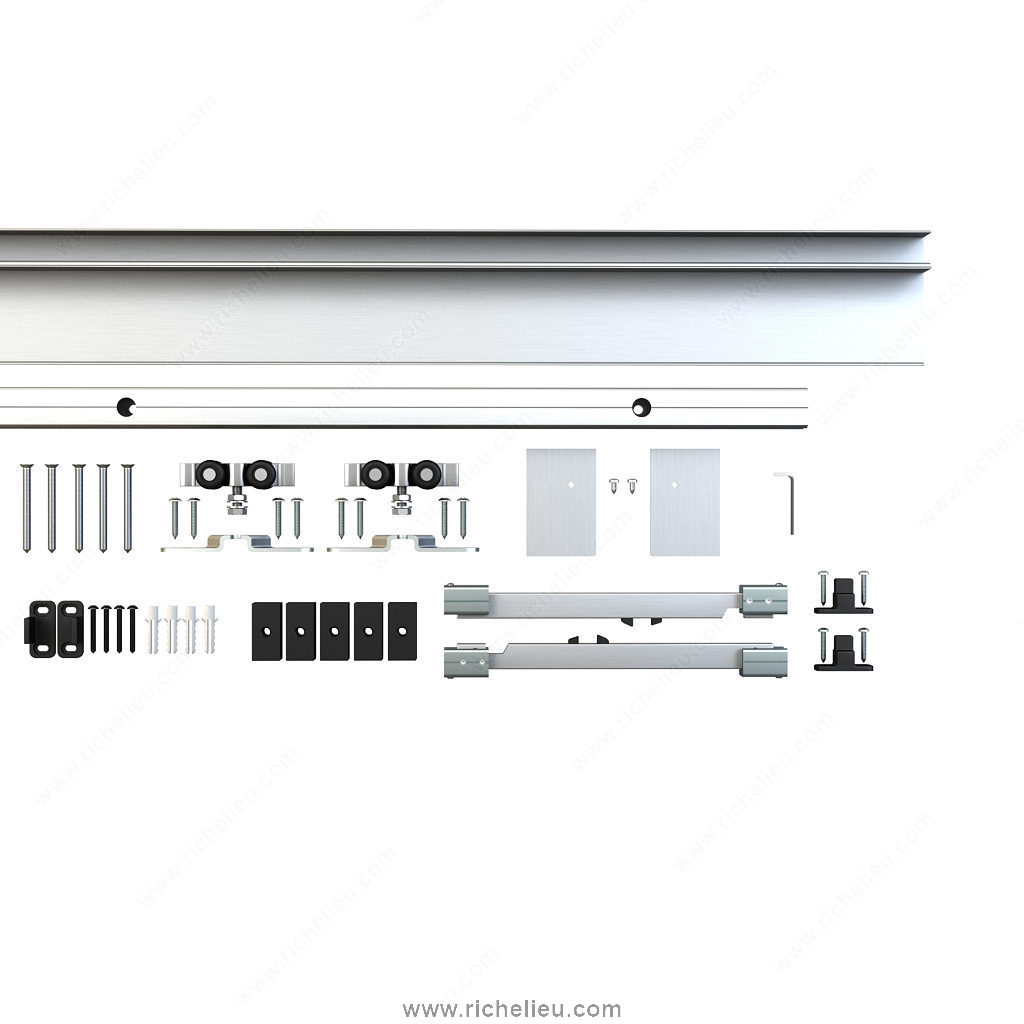

- Kit format includes hardware set for one door, track, and clip-on fascia 78 in (2 m) long
- Silver anodized
- Two-part floor guide that does not require a groove
- Includes two soft-close mechanisms
If the door is very light and for door widths less than 30 in (762 mm), use the track stopper 89TY206300100 (sold separately) instead of soft-close included in the kit.

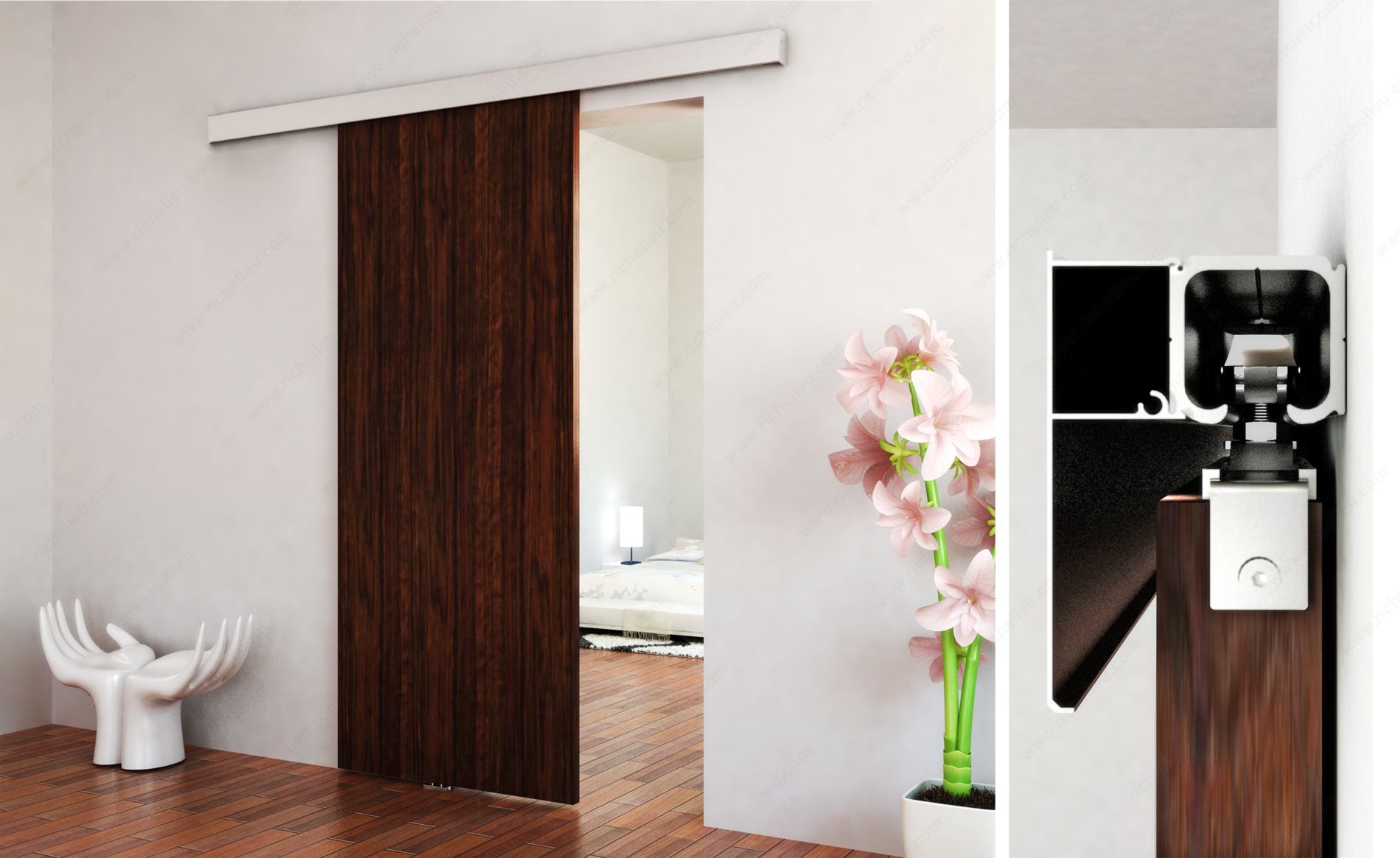

The Contemporary is an ideal solution for residential applications.
Attributes
Application: Closet and Walk-In Closet, Standard Access Door
Brand: Onward
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall

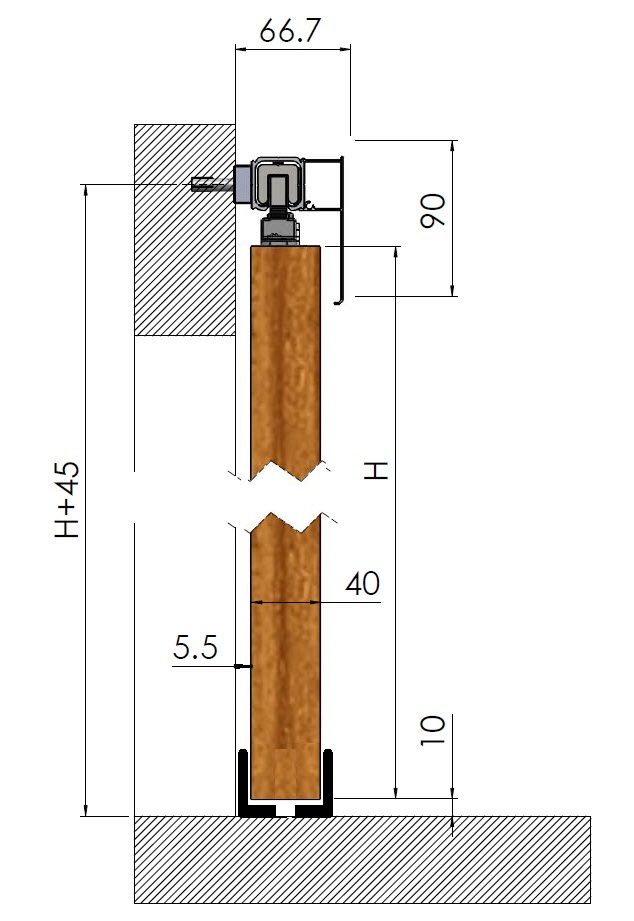

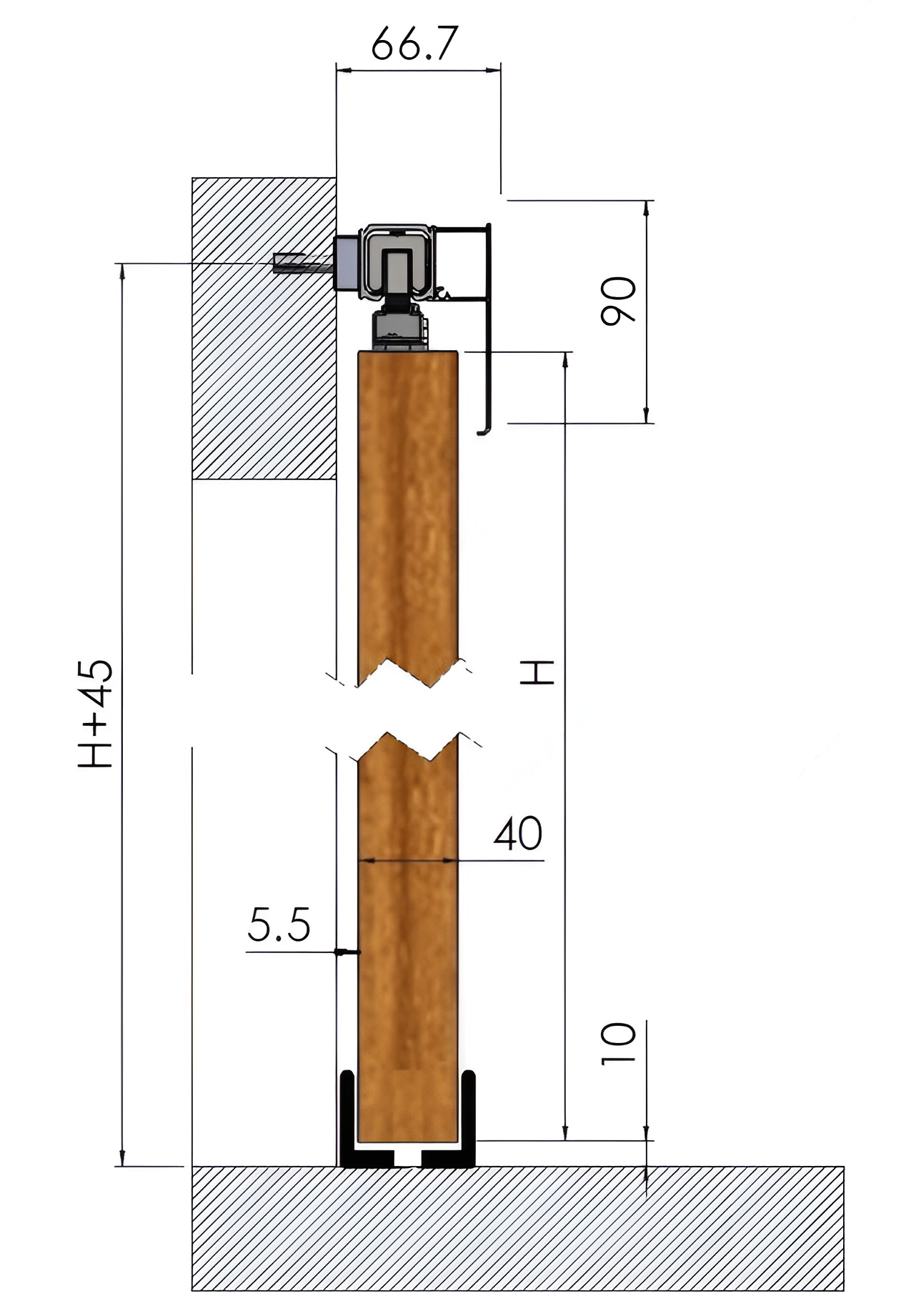

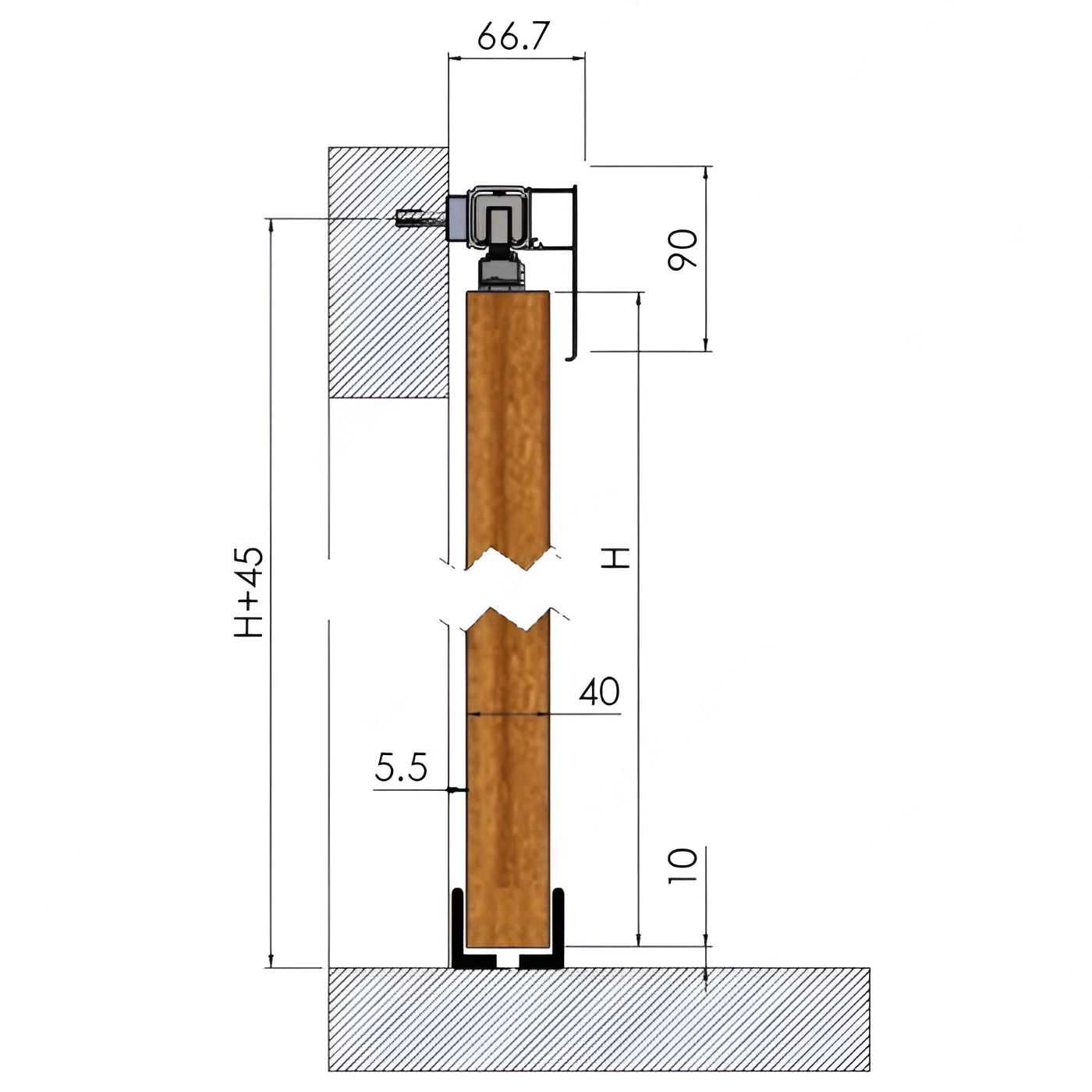

Door Projection: 66.7 mm
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 30 to 36 in
Finish: Satin Aluminum
Function: Sliding Door
Groove Depth: 20 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 7 mm
Height Clearance: 90 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 33.1 to 88.2 lb*
Manufacturing Material: Steel, Plastic
Material: Plastic, Steel
Number of Doors: 1
Overall Length: 2 m
Packaging Format: PVC and Clear Foam
Product #: 2460402ALPVC
Product number: 2460402ALPVC
Product type: 2 m Kit
Product №: 2460402ALPVC
Roller Position: Upper
Roller Type: Ball Bearing
Running Track Fixing: Surface Mount
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: Two-Way Operation
Soft- Closing: Yes
Style: Contemporary
Track Finish: Satin Aluminum
Track Length: 2 m
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Track type: Box Track
Unit: Set
Weight Capacity per Door: 15 to 40 kg
