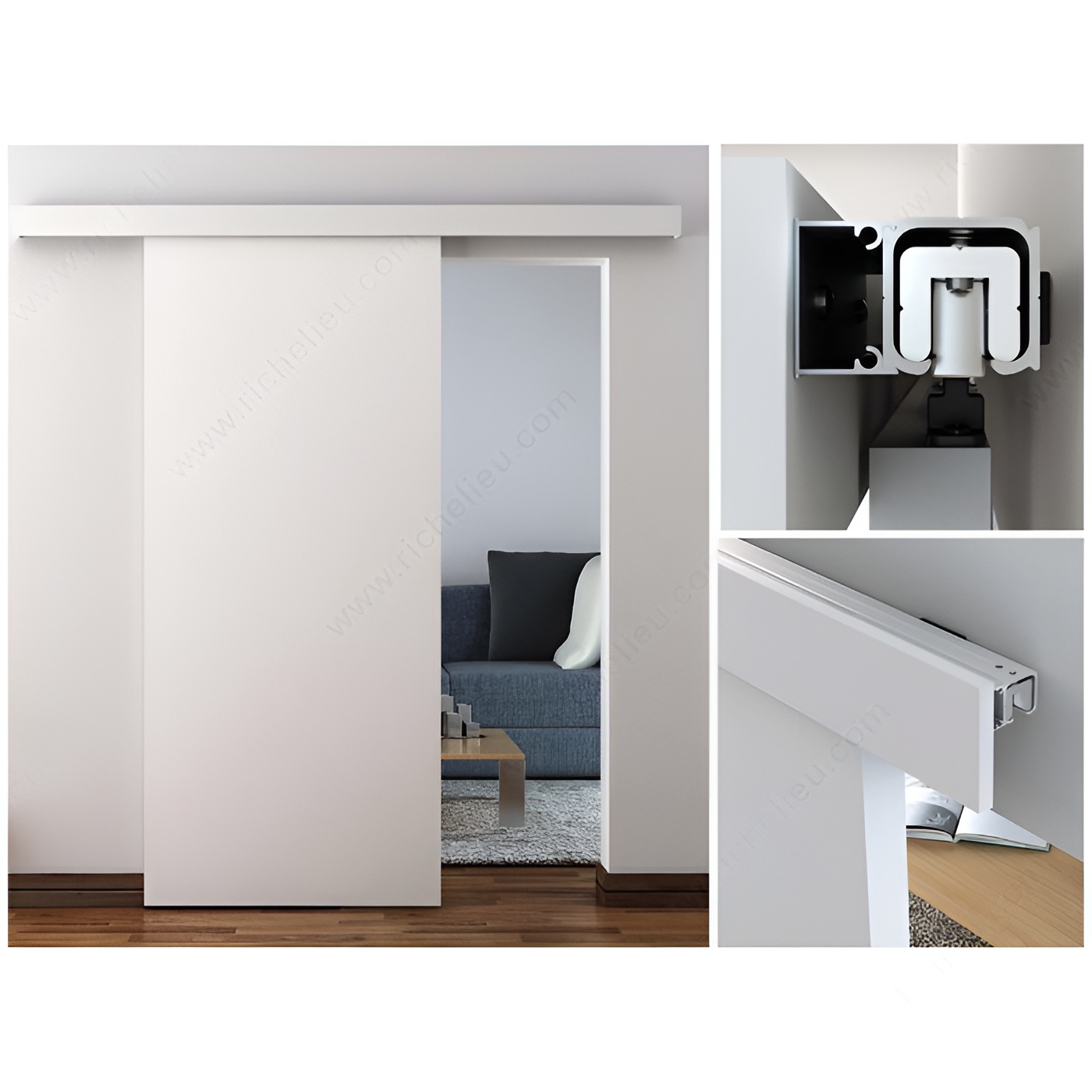

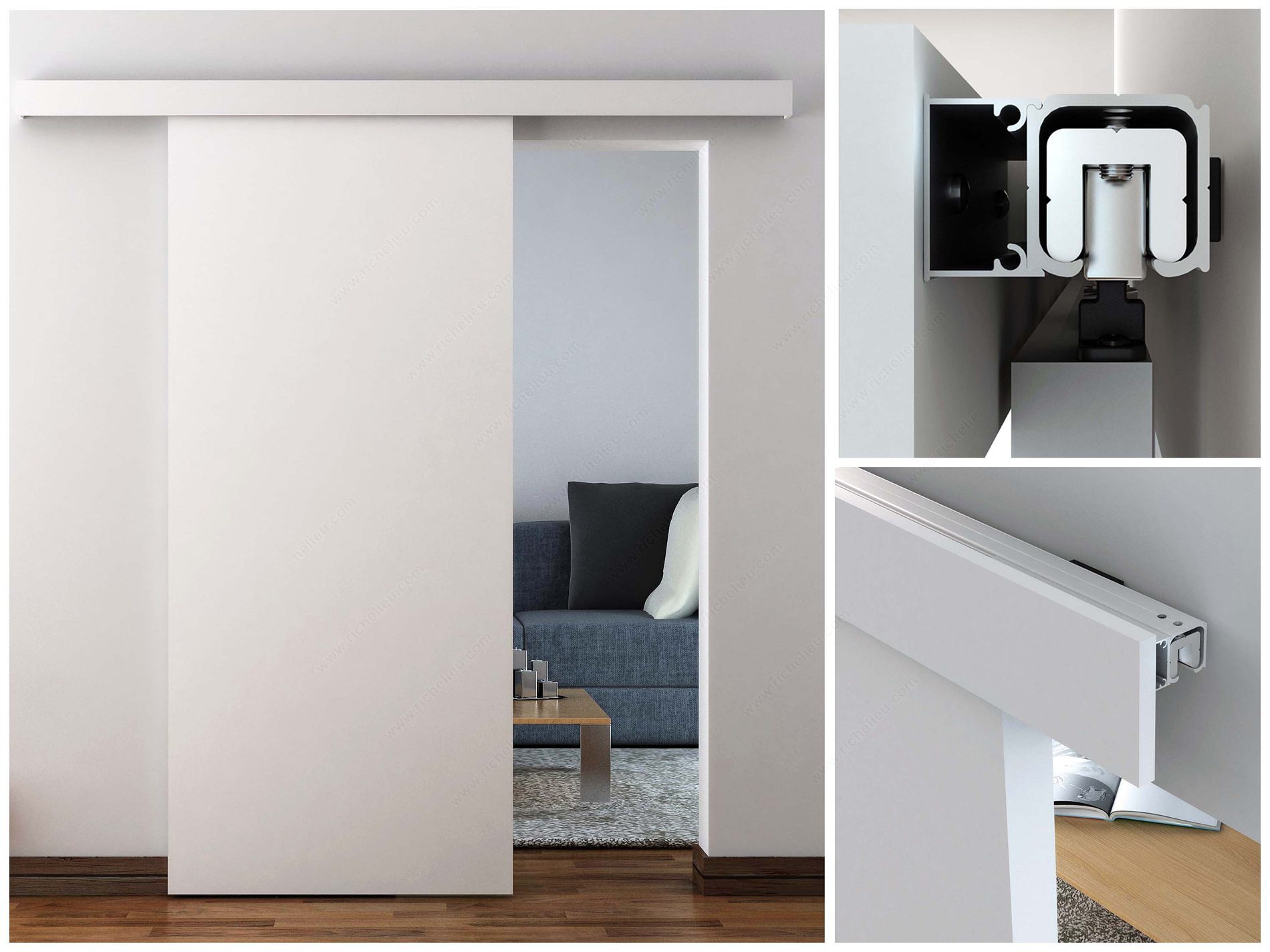

Richelieu 2460502MDFPVC Traditional Decorative Concealed Rail SystemRichelieu 2460502MDFPVC Traditional - Decorative Concealed Rail System offers a stylish and practical solution for sliding wood doors in residential applications. This concealed wall mount kit accommodates a single door weighing up to 88 lb (40 kg) and includes a robust hardware set, a 78 in (2 m) box track, and a clip-on wood (MDF) fascia, ensuring a cohesive look that enhances any interior. Designed for ease of installation, the Traditional system features a two-part floor guide that eliminates the need for a groove, making it ideal for various environments, including closets and walk-in closets. Its top-hung design allows for smooth, straight sliding movement, while the included two soft-close mechanisms provide a gentle and quiet operation, enhancing the user experience. With a door thickness range of 1 3/8 to 1 3/4 in and a width capability of 24 to 36 in, this system is versatile enough to fit different door styles and sizes. The satin aluminum finish adds a contemporary touch, making it suitable for modern designs. The hardware kit also comes with all necessary screws and nails, ensuring a hassle-free installation process. Transform your space with the Richelieu Traditional Concealed Rail System, combining form and function seamlessly.
Traditional - Decorative Concealed Rail System
The Traditional is a concealed wall mount sliding door kit for one wood door running on a box track with clip-on wood (MDF) fascia for a single wood door weighing up to 88 lb (40 kg).
Features:

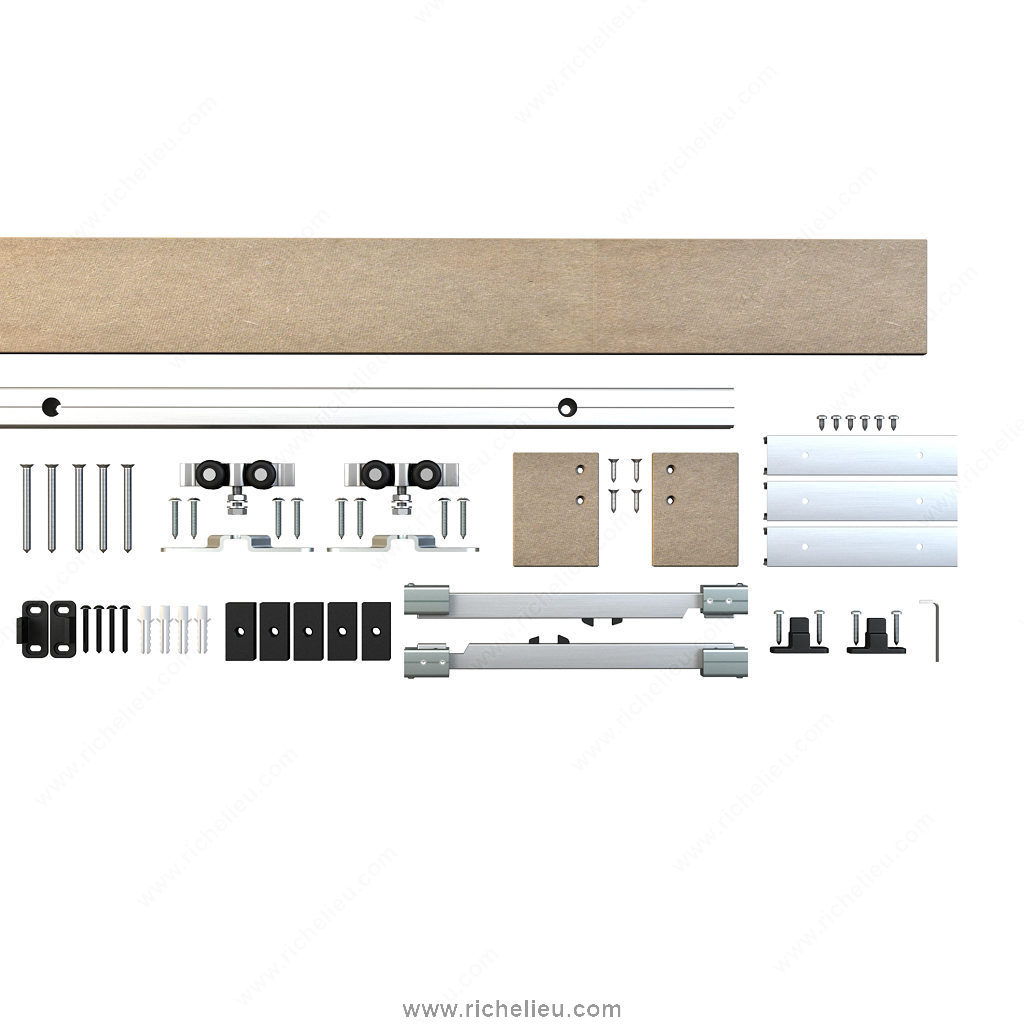

- Kit format includes hardware set for one door, track, and clip-on wood fascia 78 in (2 m) long
- Two-part floor guide that does not require a groove
- Includes two soft-close mechanisms
The Traditional is an ideal solution for residential applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door
Brand: Onward
Door Height: 2 438 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall
Door Projection: 86 mm
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 36 in
Finish: Mill Finish (M)
Function: Sliding Door
Groove Depth: 20 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 7 mm
Height Clearance: 110 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 33.1 to 88.2 lb*
Manufacturing Material: Anodized Aluminum
Material: Anodized Aluminum
Number of Doors: 1
Overall Length: 2 m
Packaging Format: PVC and Clear Foam
Product #: 2460502MDFPVC
Product number: 2460502MDFPVC
Product type: 2 m Kit
Product №: 2460502MDFPVC
Roller Position: Upper
Roller Type: Ball Bearing
Running Track Fixing: Surface Mount
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Direction: Opening
Soft- Close Type: Two-Way Operation
Soft- Closing: Yes
Style: Contemporary
Track Finish: Satin Aluminum
Track Length: 2 m
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Track type: Box Track
Unit: Set
Unit 1: skid - 50
Unit 2: skid - 50
Weight Capacity per Door: 15 to 40 kg
