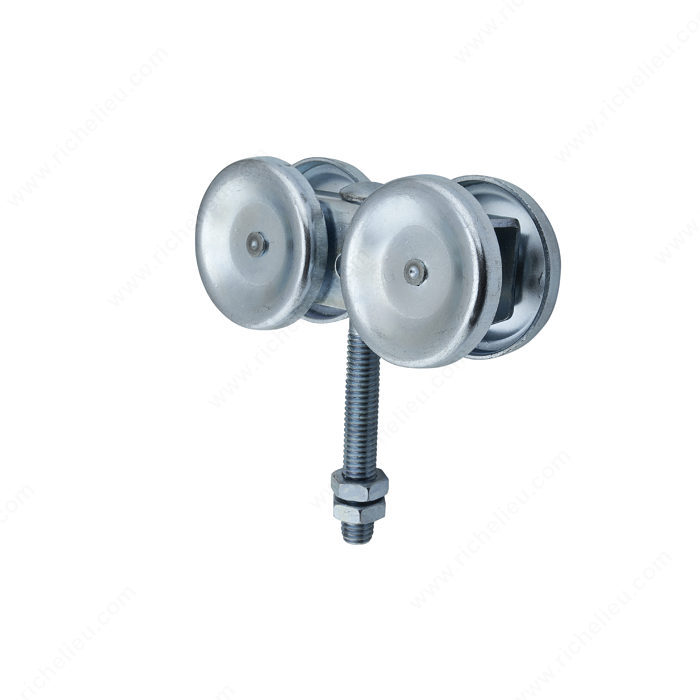

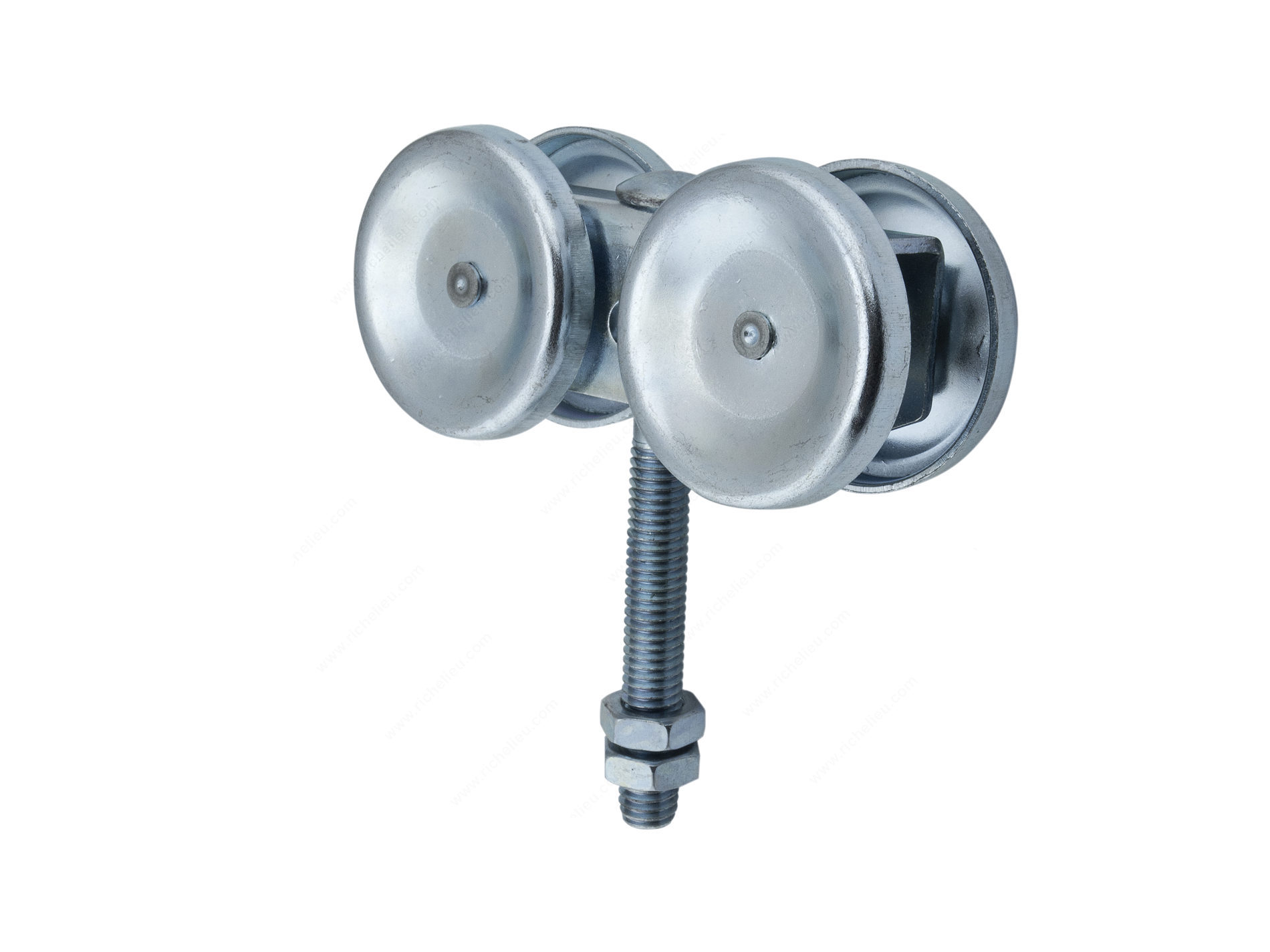

Richelieu 24651383XV Dual Axis Box Rail Hangers with Bushing Rollers and Fixed Short Threaded Mounting Pin are expertly designed for seamless functionality in box rail sliding door applications. With a robust wheel diameter of 54 mm, these hangers ensure smooth and reliable operation, effortlessly accommodating doors weighing up to 450 lb. Crafted from durable steel and finished with a zinc plating, these hangers are built to withstand regular use while maintaining their aesthetic appeal. They are suitable for a variety of door materials, including aluminum, metal frames, and wood, making them versatile for different design preferences. The hangers support door thicknesses ranging from 1 1/2 to 3 1/2 inches, ensuring compatibility with most barn door installations. The overall height of the hangers measures 1 9/16 inches, with a length of 4 39/64 inches and a width of 4 1/2 inches, allowing for a compact yet sturdy mounting solution. Designed for stacking door movement, these hangers facilitate a movable wall effect, perfect for creating open spaces in your environment. Installation is straightforward, making them an ideal choice for both professionals and knowledgeable homeowners seeking high-quality hardware solutions.
Dual Axis Box Rail Hangers with Bushing rollers and Fixed Short Threaded Mounting Pin
Application: Barn Door
Detailed Door Movement: Stacking
Door Material: Aluminum/Metal Frame, Wood
Door Movement: Movable Wall
Door Thickness: 1 1/2 to 3 1/2 in
Finish: Zinc Plated
Height: 1 9/16 in
Length - Overall Dimensions: 4 39/64 in
Load Capacity: Max. 450 lb
Manufacturing Material: Steel
Material: Steel
Number of Doors: 1
Overall Height: 1 9/16 in
Overall Length: 4 39/64 in
Product #: 24651383XV
Product Type: Trolley
Product number: 24651383XV
Product type: Trolley
Product №: 24651383XV
Roller Type: Axle (Bushing)
Unit: Bag
Unit 1: carton - 10
Unit 2: carton - 10
Unit 3: case - 40
Weight Capacity per Door: Max. 450 lb
Width: 4 1/2 in
