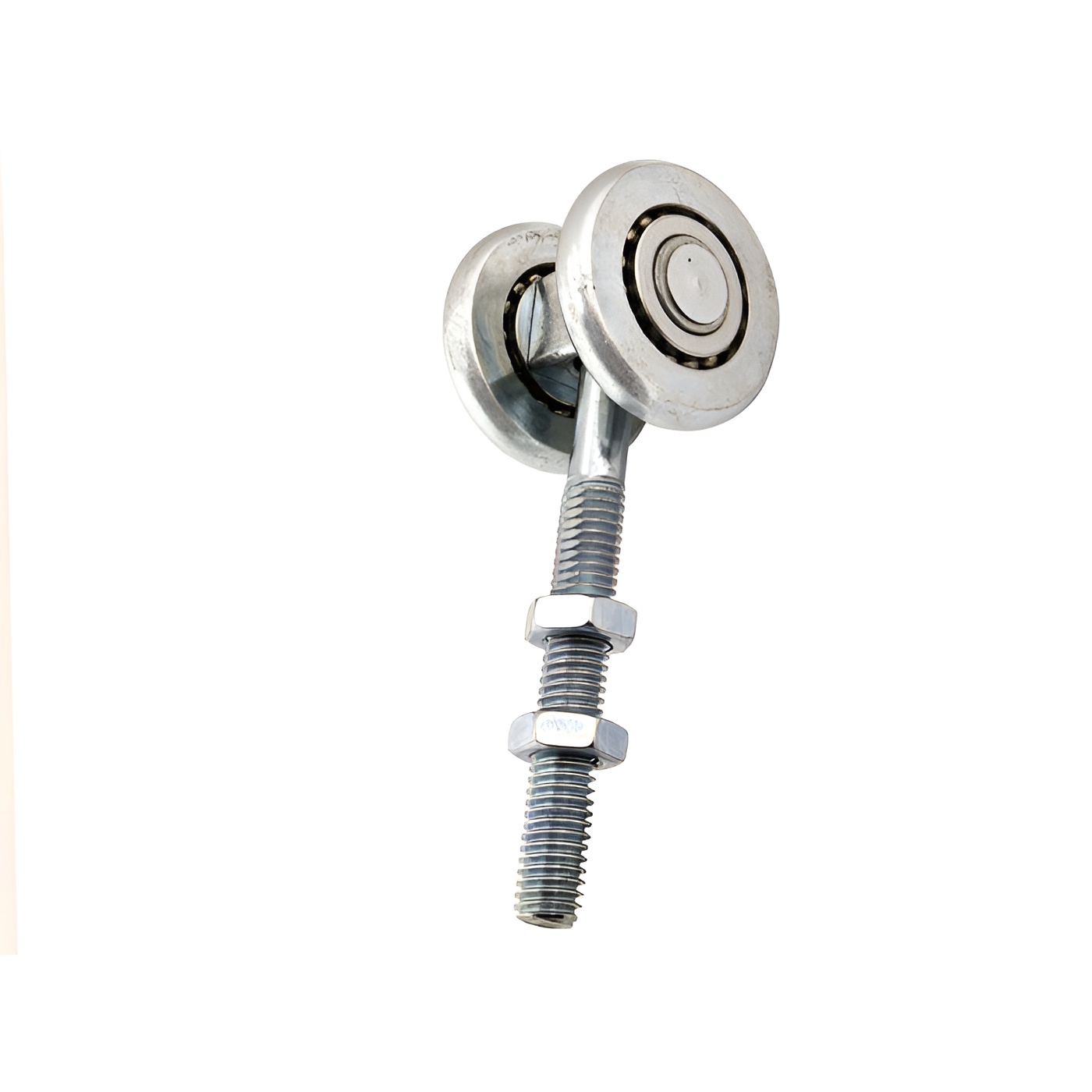

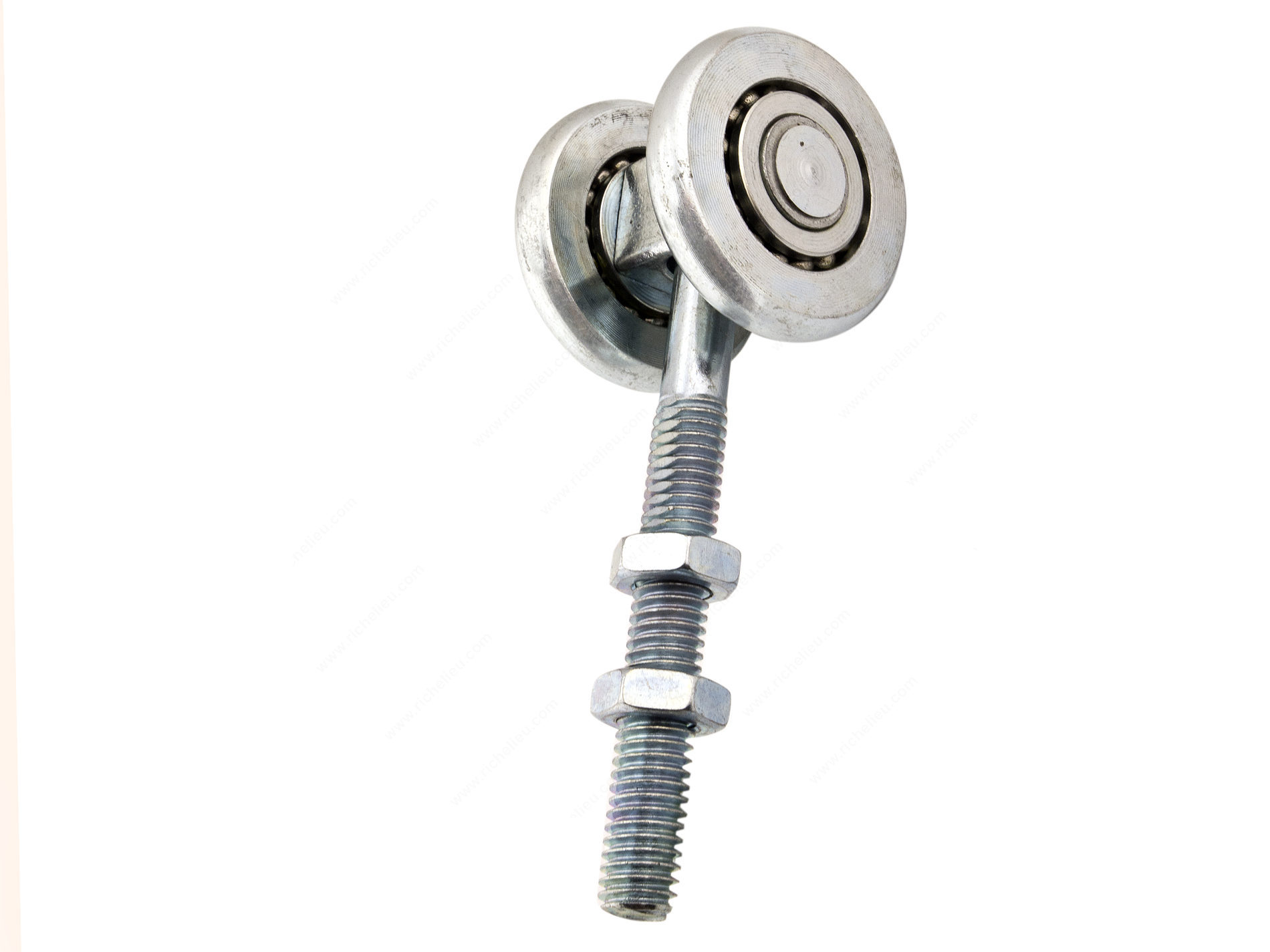

Richelieu 24651385XV Single Axis Box Rail Hanger with Ball Bearings and Short Threaded Mounting Pin is expertly designed for box rail sliding doors, offering a reliable solution for both residential and commercial applications. This robust hanger features a removable rod/pin with a thread size of 7/16" - 14, ensuring versatile installation options. The wheel diameter of 46.5 mm, equipped with smooth ball bearings, allows for effortless door movement, making it ideal for barn doors and movable wall systems. Constructed from durable steel and finished with a zinc plating, the hanger not only supports aesthetics but also withstands the demands of daily use. With a maximum load capacity of 450 lbs, it accommodates various door materials, including aluminum, metal frame, and wood, with thicknesses ranging from 1 1/2 to 3 1/2 inches. The overall height measures 23/32 in, while the length is 2 25/32 in, making it a compact solution that fits seamlessly into your design. The Richelieu 24651385XV is perfect for achieving a stacking door movement, providing both functionality and style to your space. Ship via UPS for convenient delivery, and elevate your project with this essential component.
Single Axis Box Rail Hanger with Ball Bearings and Short Threaded Mounting Pin
Application: Barn Door
Detailed Door Movement: Stacking
Door Material: Aluminum/Metal Frame, Wood
Door Movement: Movable Wall
Door Thickness: 1 1/2 to 3 1/2 in
Finish: Zinc Plated
Height: 23/32 in*
Height Clearance: 1 5/8 in*
Length - Overall Dimensions: 2 25/32 in*
Load Capacity: Max. 450 lb
Manufacturing Material: Steel
Material: Steel
Number of Doors: 1
Overall Height: 23/32 in*
Overall Length: 2 25/32 in*
Product #: 24651385XV
Product Type: Trolley
Product number: 24651385XV
Product type: Trolley
Product №: 24651385XV
Roller Type: Ball Bearing
Unit: Bag
Unit 1: carton - 20
Unit 2: carton - 20
Unit 3: case - 40
Weight Capacity per Door: Max. 450 lb
