Richelieu 246BP96SNBC Rustic Bypass Barn Door Kit with TrackRichelieu 246BP96SNBC RUSTIC Bypass Barndoor Kit with Track offers a stylish and functional solution for sliding wood doors, accommodating weights of up to 220 lb (100 kg) each. Designed for two doors, this kit features Strap-Mount hangers and rollers that are surface-mounted to the door face, allowing smooth movement along a single track. Choose between elegant finishes in Matte Black or Satin Nickel to seamlessly integrate with your décor. The kit supports door thicknesses ranging from 1-3/8 to 1-3/4 inches (35 to 45 mm) and includes flexible floor guides to accommodate various door dimensions without requiring grooves. Available in three track lengths-60 in (1524 mm), 72 in (1830 mm), and 96 in (2438 mm)-this bypass system is perfect for creating feature walls in closets, storage rooms, pantries, or as room dividers. Each kit comes complete with two rectangular recessed door pulls, and the pre-drilled ends of the tracks allow for easy extensions with connector plates. Ideal for straight sliding applications, the Richelieu Rustic Bypass Barndoor Kit is a versatile choice for both building professionals and discerning homeowners looking to enhance their space with practicality and style.
RUSTIC Bypass Barndoor Kit with Track

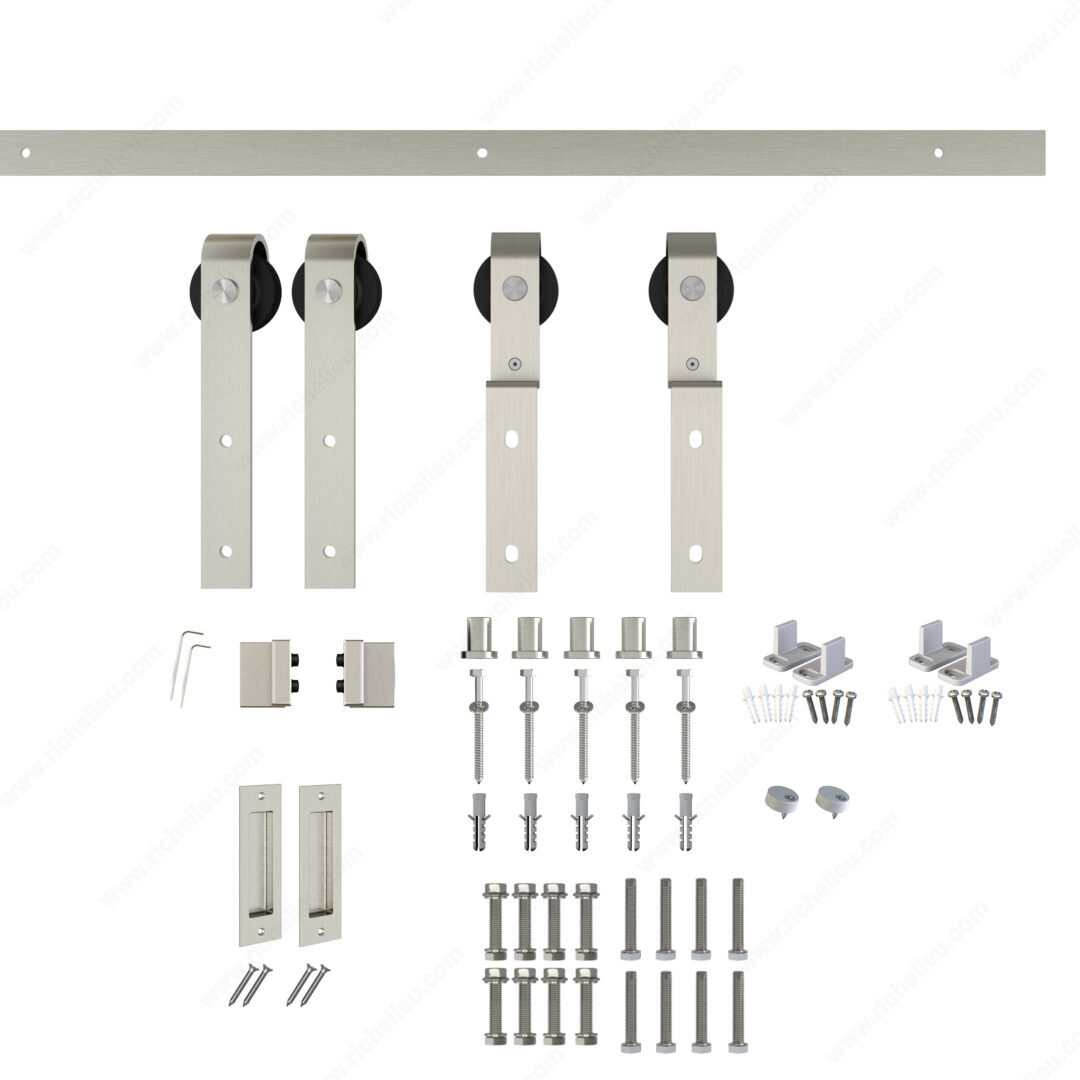

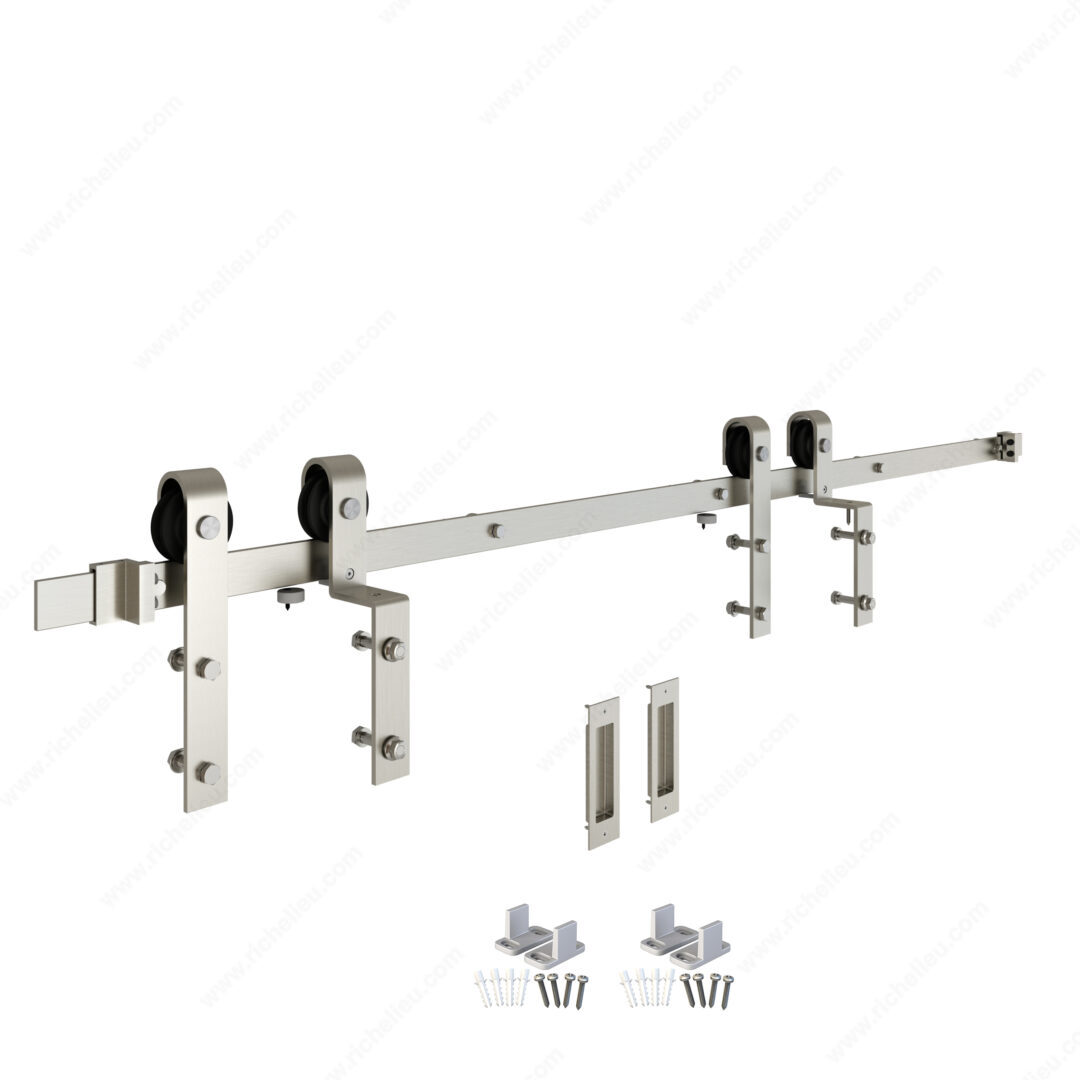

The RUSTIC Bypass Barndoor Kit with Track is for two sliding wood doors weighing up to 220 lbs (100 kg) each. The Strap-Mount hangers and rollers are surface-mounted to the face of the door and travel on the same single track.
Features:
- Select from two finishes: Matte Black or Satin Nickel
- For door thicknesses of 1-3/8 in to 1-3/4 in (35 mm to 45 mm)
- Flexible floor guides adapt to different door thicknesses and no grooves are required in the doors
- Select from three track lengths:
60 in (1524 mm)
72 in (1830 mm)
96 in (2438 mm)

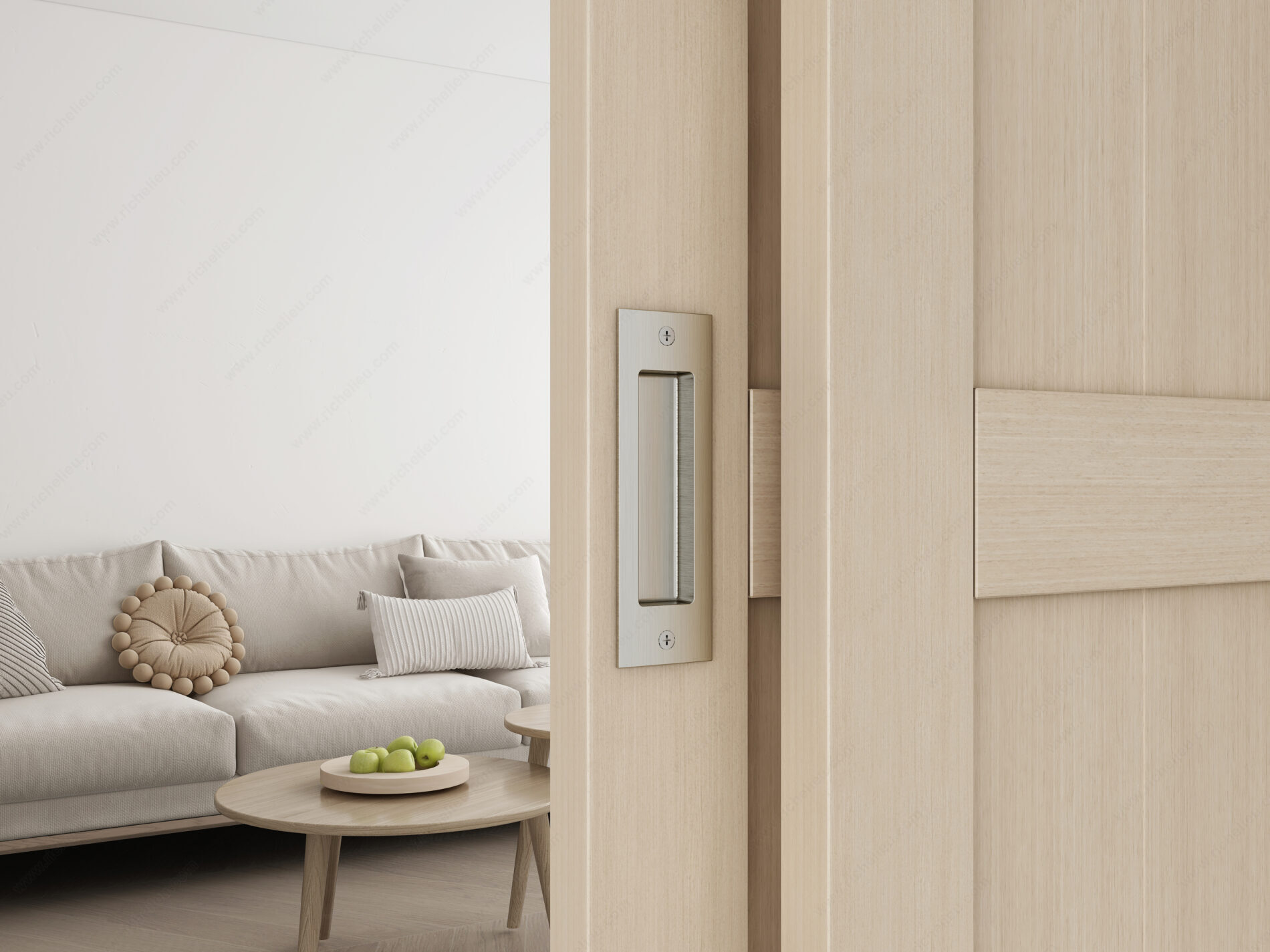

- Each kit includes two rectangular recessed door pulls
- The ends of the tracks are pre-drilled to accept connector plates to add and extend the black track
This kit is an ideal way to create a feature wall out of a large door opening, whether for closets, storage rooms, pantries, room dividers, or moveable partitions.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Does not require a bottom guide or groove at the bottom of the door.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Pantry, Barn Door
Brand: Onward
Detailed Door Movement: Bypassing
Door Height: 36 to 108 in
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 30 to 48 in
Finish: Satin Nickel
Load Capacity: 220 lb
Manufacturing Material: Steel
Number of Doors: 2
Overall Length: 96 in
Product #: 246BP96SNBC
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Style: Barn Door
Track Mounting: Wall Mount
