CLASSIC Bifold Barndoor Kit with Track
The CLASSIC Bifold Barndoor Kit with track is for two folding wood panels weighing from 40 to 80 kg (88 to 176 lbs) per pair of doors. The CLASSIC Bifold hardware is surface-mounted to the top of the door and matches the straight-sliding CLASSIC Barndoor series hardware.
Features:

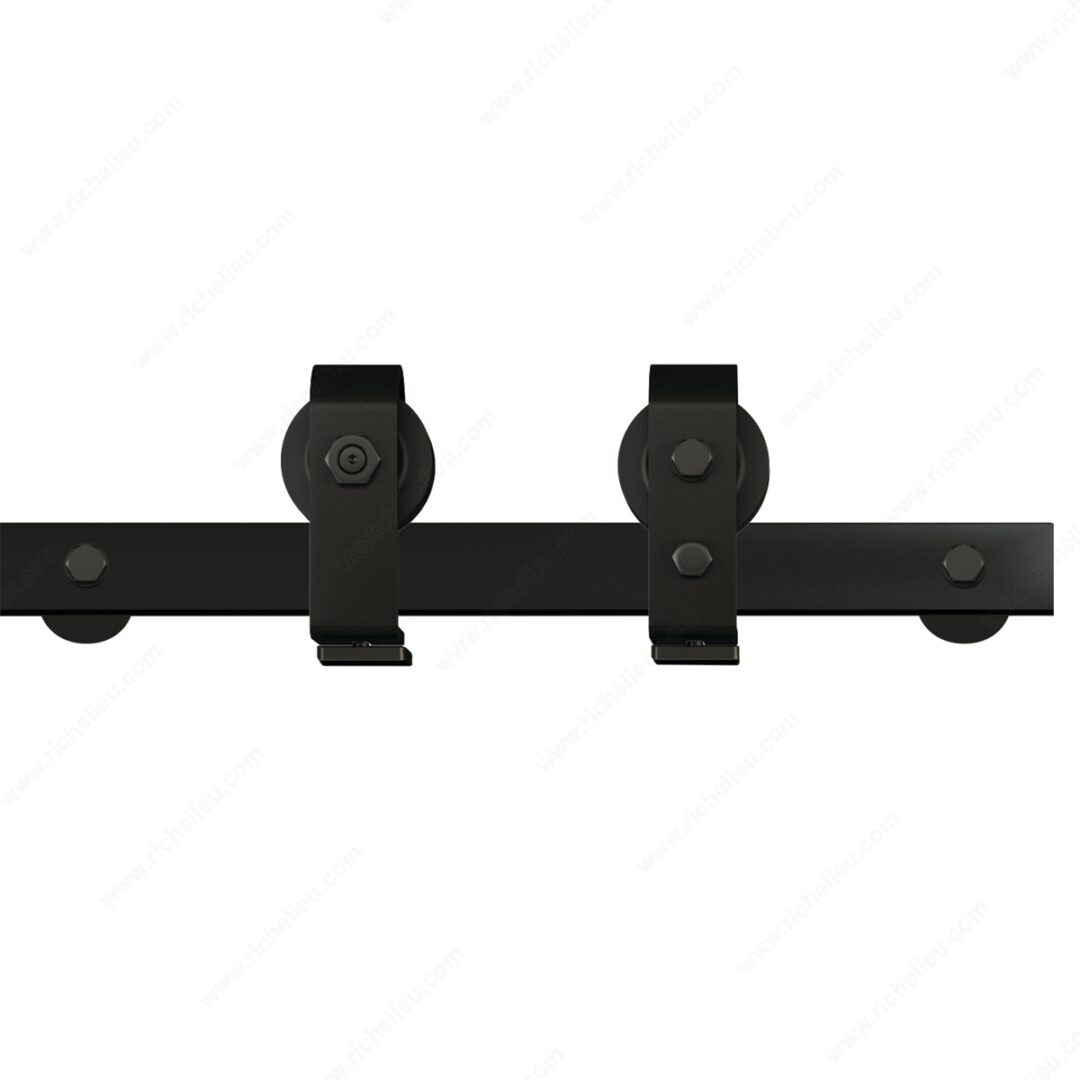

- Flexible installation with an upper pivot roller that can be fixed and locked as an anchor point at multiple positions
- No bottom guide tracks required for individual door panels up to 500 mm wide each
- Steel with a powder coat matte black finish
- Two surface-mount folding hinges

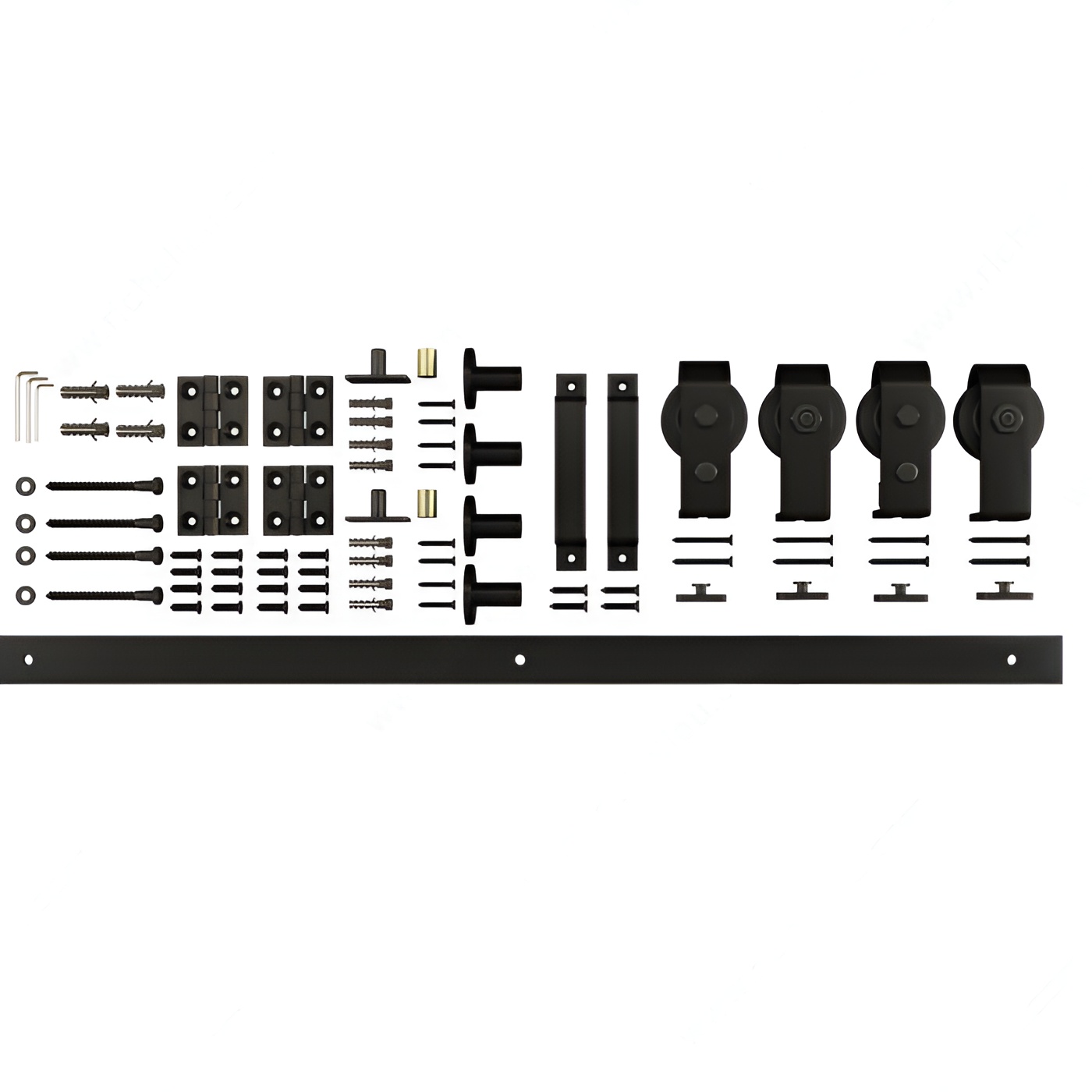

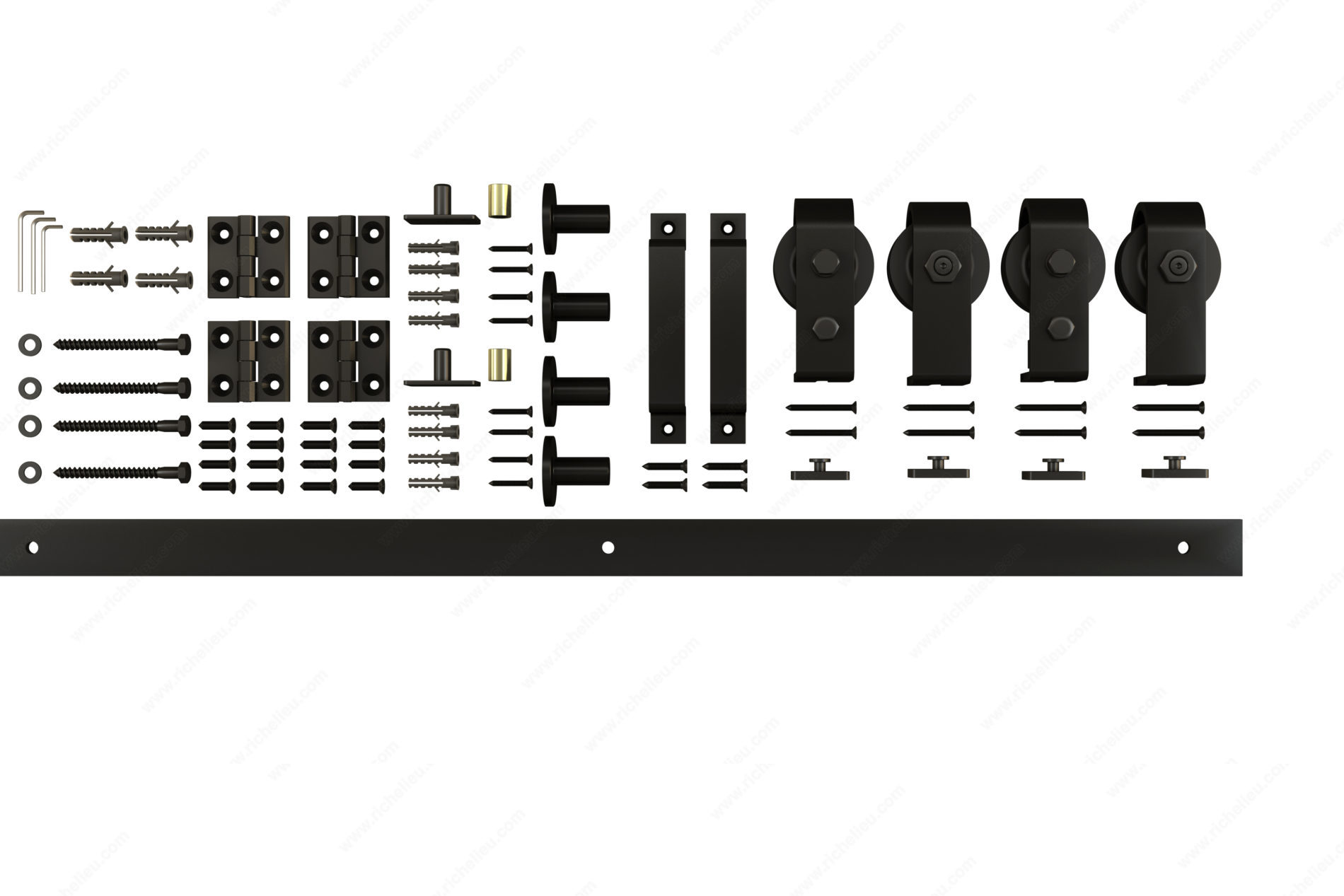

- Select from three types of kits (doors not included):

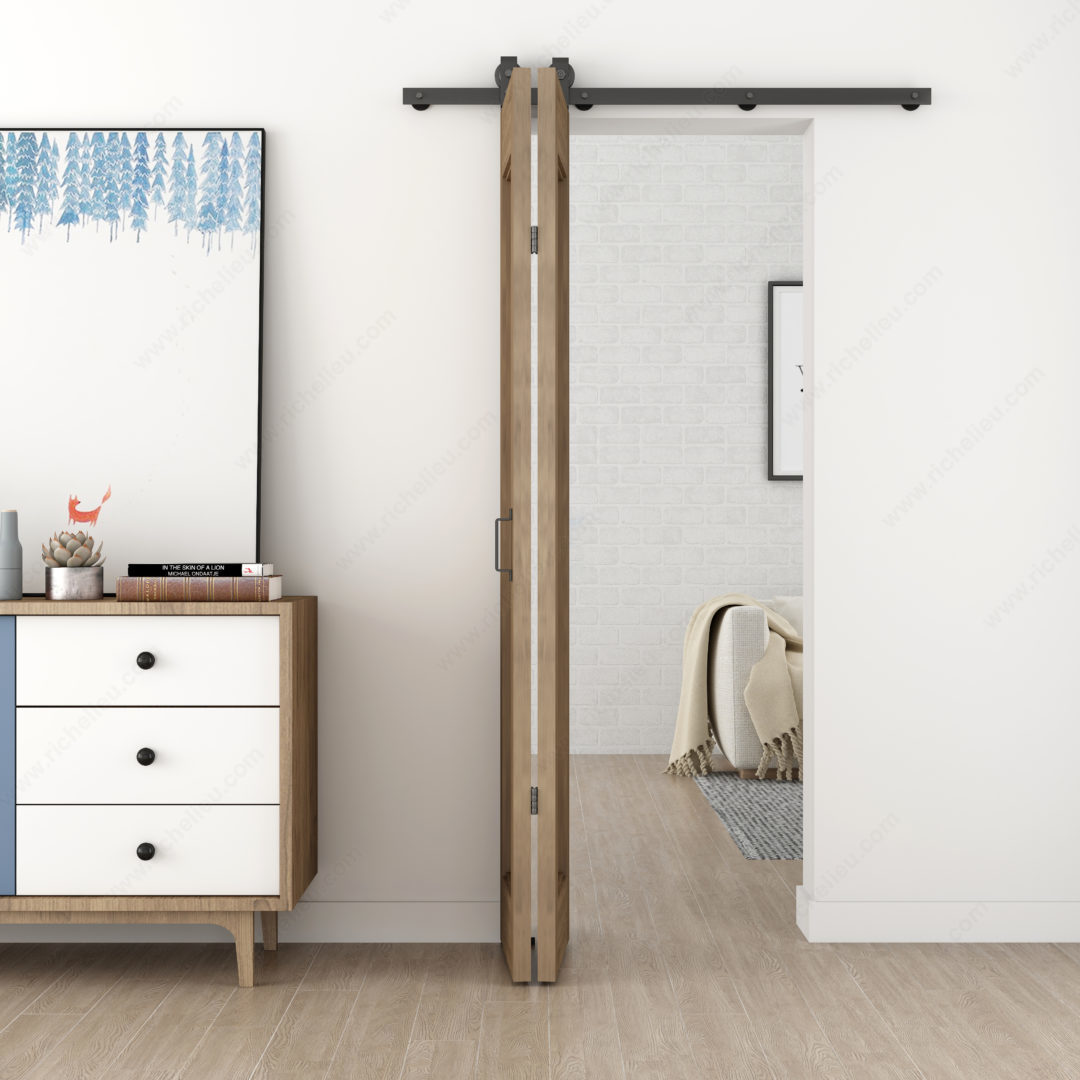

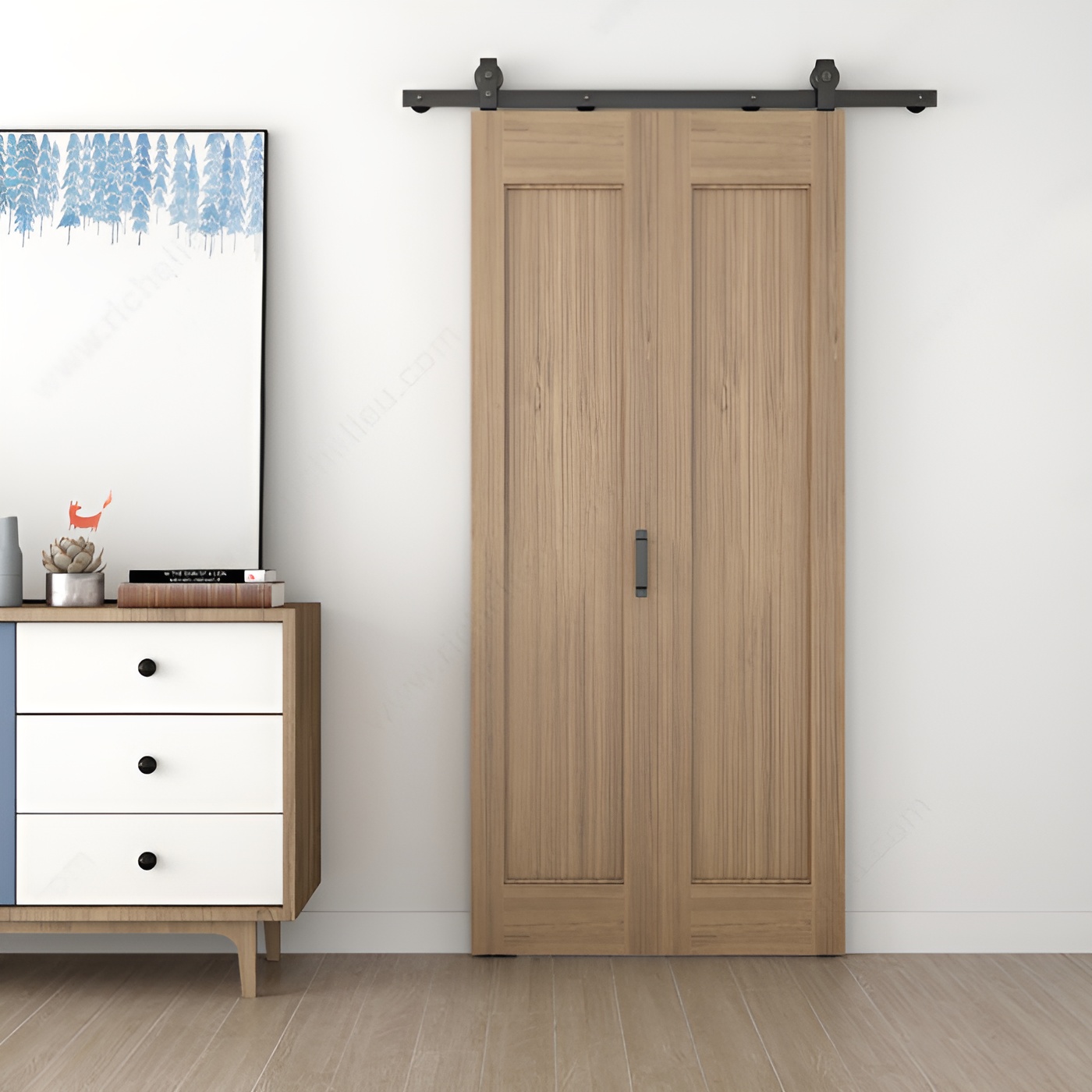

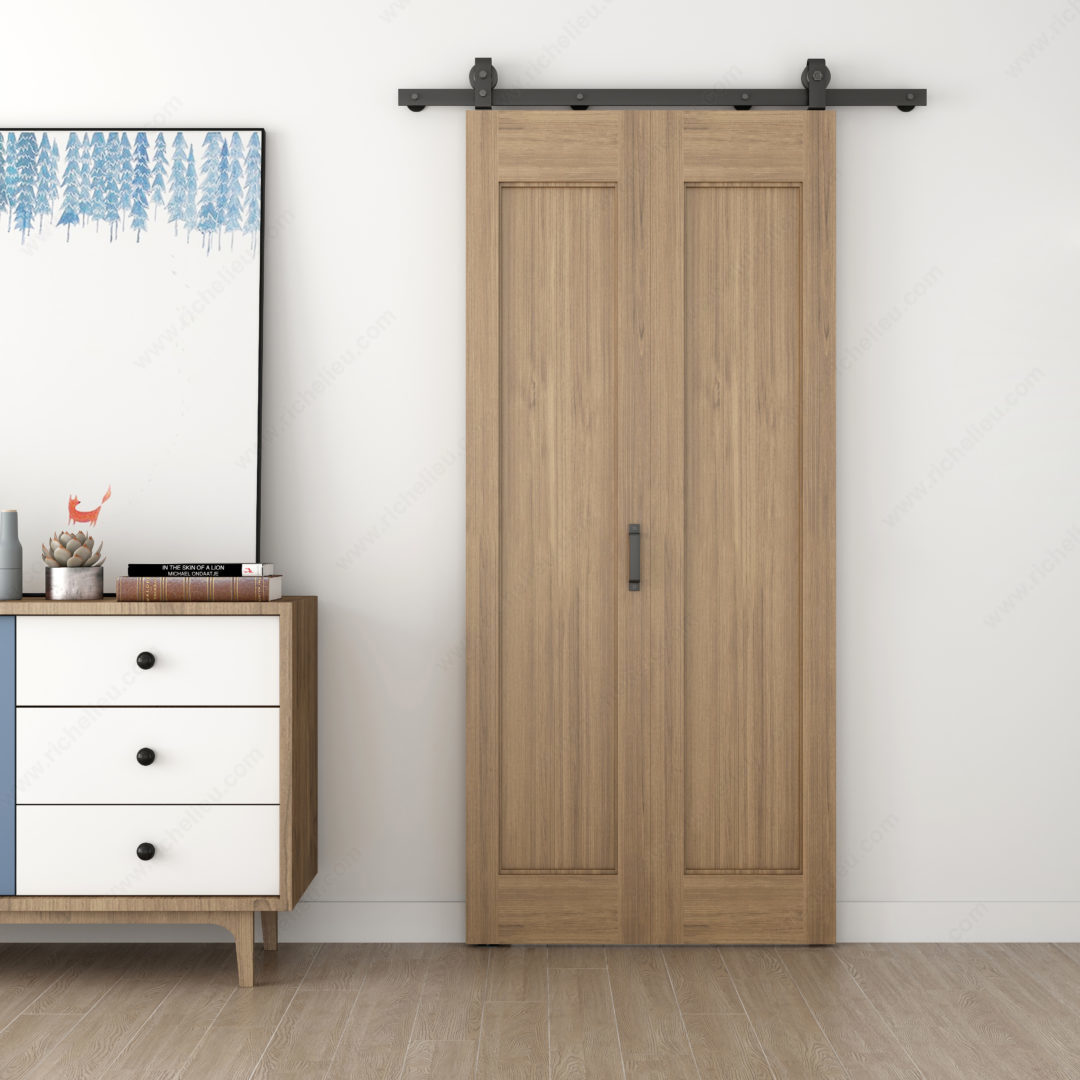

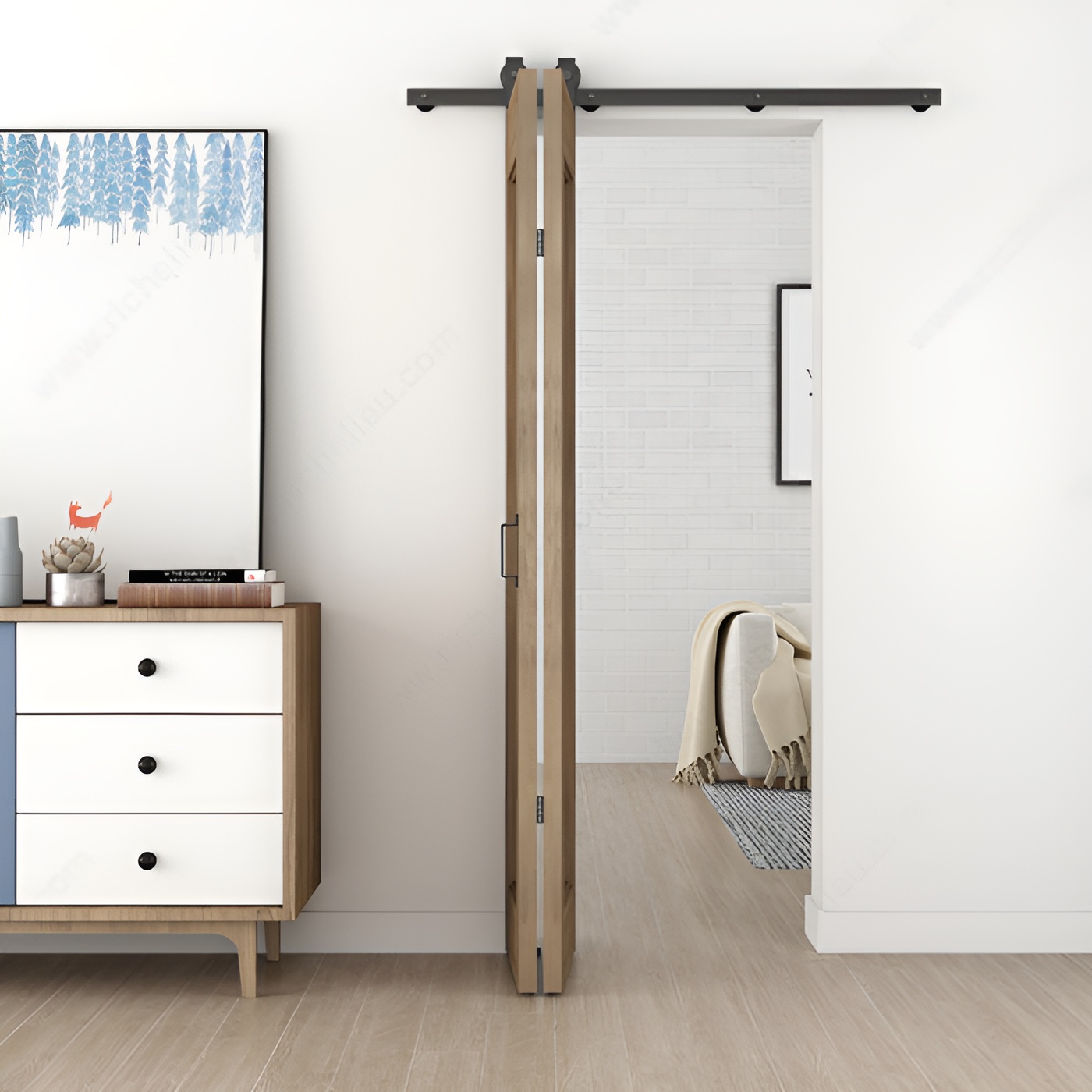

- 1 bifold (2 door panels) with 1300 mm track

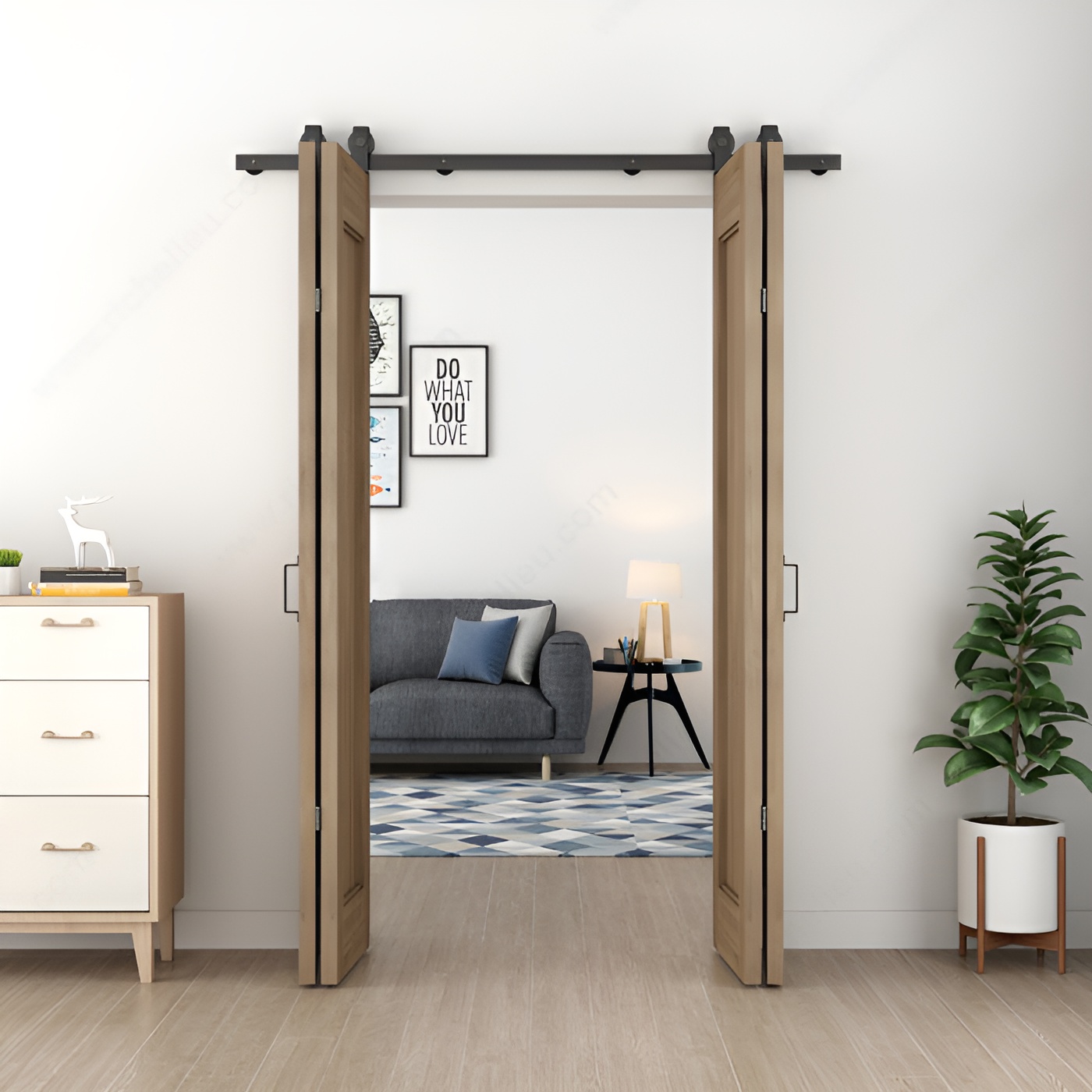

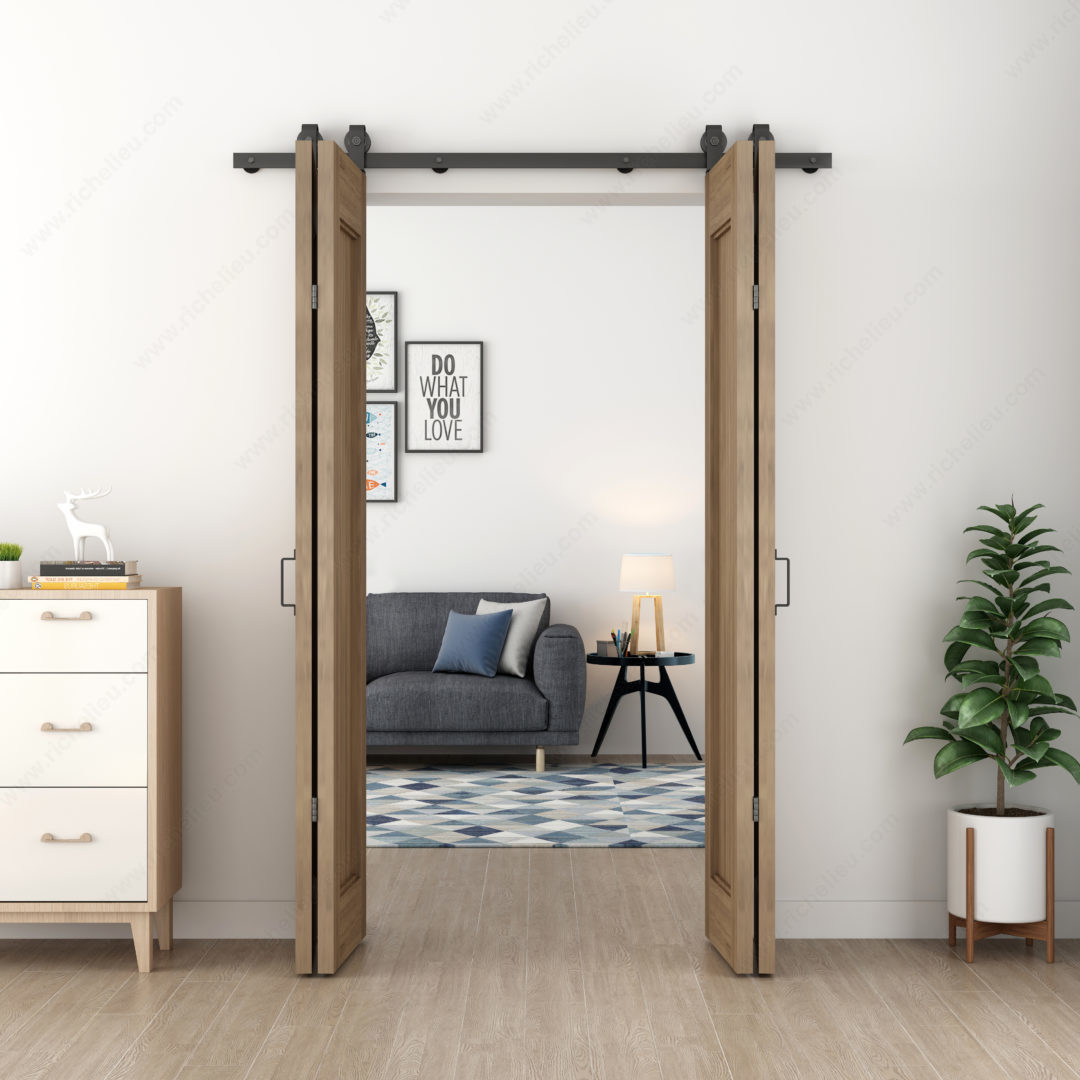

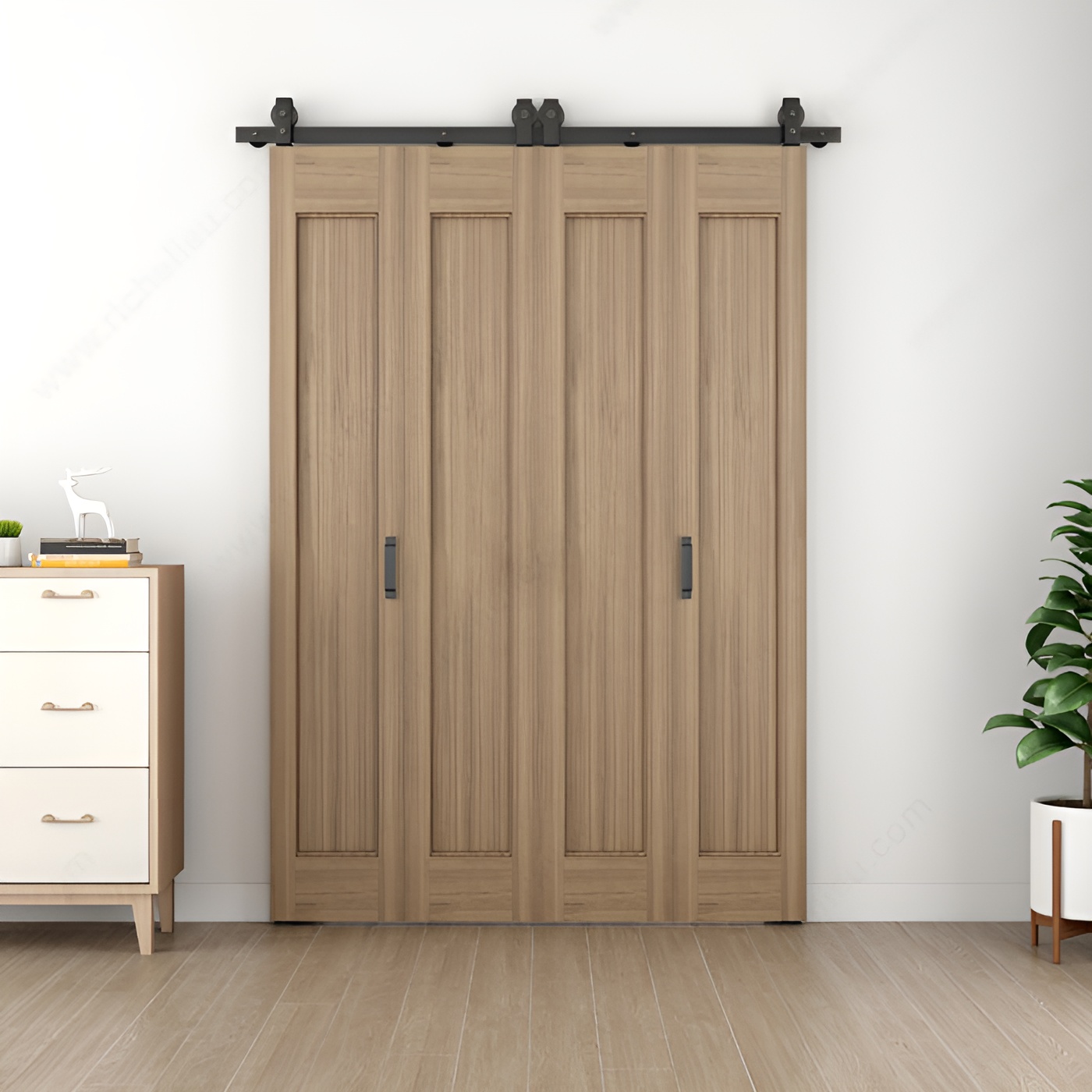

- 2 bifold (4 door panels) with 1602 mm or 1905 mm track
- Vertical rubber profile for door edge where two sets of bifold doors meet
- Matching pull handles for easy operation
A perfect way to create a feature wall out of closets, storage rooms, pantries, room dividers and large door openings that require a moveable partition.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Door panels not included.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Pantry, Standard Access Door, Barn Door
Brand: Onward
Compatible with: CLASSIC Barndoor
Detailed Door Movement: Bifolding
Door Height: 35 3/8 to 96 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Folding
Door Thickness: 1 3/8 to 1 25/32 in*
Door Width: 12 to 14 3/4 in*
Function: Bifold Barndoor
Length - Overall Dimensions: 63 1/8 in*
Load Capacity: 88.2 to 176 lb*
Number of Doors: 4
Overall Length: 63 1/8 in*
Packaging Format: Box
Product #: 246TY707L16090
Product №: 246TY707L16090
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Wall Mount
Weight Capacity per Panel: 44.1 to 88.2 lb*
