Richelieu 246TY707L19090 Classic Bifold Barn Door Kit with TrackRichelieu 246TY707L19090 CLASSIC Bifold Barndoor Kit with Track offers a stylish and functional solution for spaces needing flexible access. Designed to accommodate two folding wood panels weighing between 40 to 80 kg (88 to 176 lbs) per pair, this kit is perfect for closets, pantries, and room dividers. The hardware is surface-mounted to the top of the door, seamlessly aligning with the CLASSIC Barndoor series for a cohesive look. This bifold kit features an upper pivot roller that can be fixed at various positions, allowing for customizable installation without the need for bottom guide tracks for individual panels up to 500 mm wide. Crafted from durable steel with a powder coat matte black finish, it ensures longevity while adding a modern touch to your interior. Available in three configurations, this kit includes options for one bifold with a 1300 mm track or two bifolds with either a 1602 mm or 1905 mm track. The vertical rubber profile at the door edges enhances functionality where two sets of bifold doors meet. Complete with matching pull handles for easy operation, the Richelieu CLASSIC Bifold Barndoor Kit is a versatile choice for any space that requires a mobile partition.
CLASSIC Bifold Barndoor Kit with Track
The CLASSIC Bifold Barndoor Kit with track is for two folding wood panels weighing from 40 to 80 kg (88 to 176 lbs) per pair of doors. The CLASSIC Bifold hardware is surface-mounted to the top of the door and matches the straight-sliding CLASSIC Barndoor series hardware.

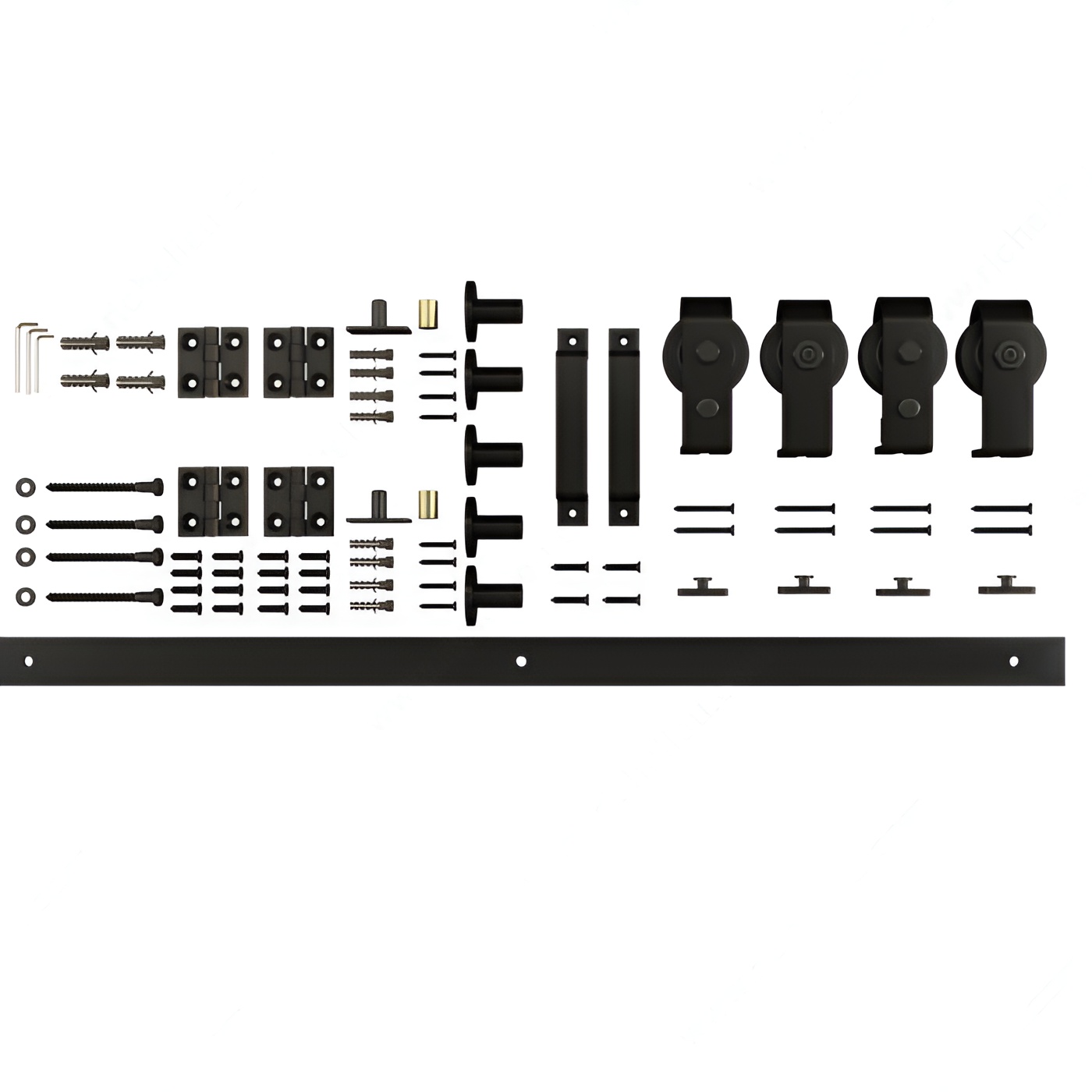

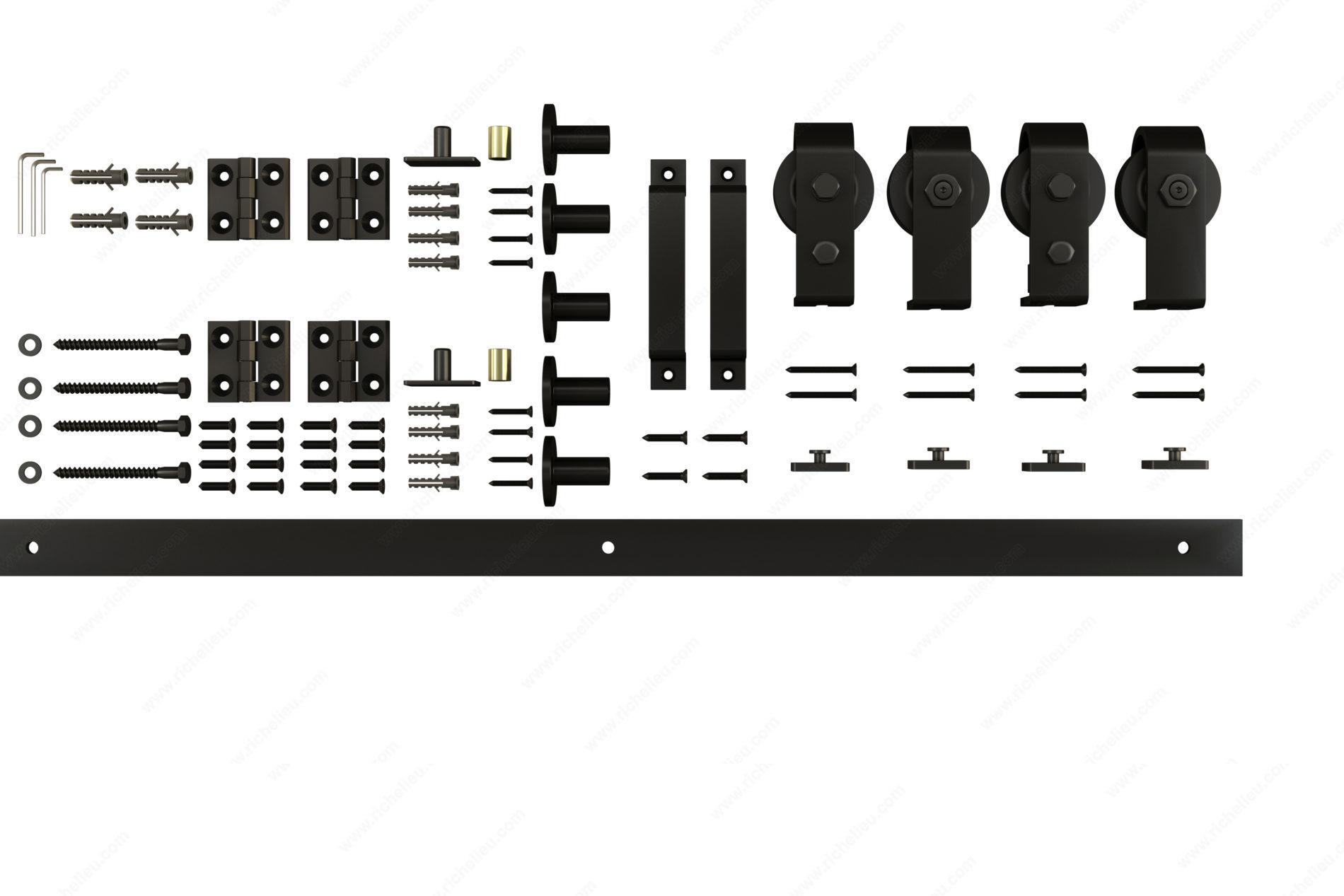

Features:
- Flexible installation with an upper pivot roller that can be fixed and locked as an anchor point at multiple positions
- No bottom guide tracks required for individual door panels up to 500 mm wide each
- Steel with a powder coat matte black finish
- Two surface-mount folding hinges
- Select from three types of kits (doors not included):
- 1 bifold (2 door panels) with 1300 mm track
- 2 bifold (4 door panels) with 1602 mm or 1905 mm track
- Vertical rubber profile for door edge where two sets of bifold doors meet
- Matching pull handles for easy operation
A perfect way to create a feature wall out of closets, storage rooms, pantries, room dividers and large door openings that require a moveable partition.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Door panels not included.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Pantry, Standard Access Door, Barn Door
Brand: Onward
Compatible with: CLASSIC Barndoor
Detailed Door Movement: Bifolding
Door Height: 35 3/8 to 96 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Folding
Door Thickness: 1 3/8 to 1 25/32 in*
Door Width: 12 to 17 3/4 in*
Function: Bifold Barndoor
Length - Overall Dimensions: 75 in*
Load Capacity: 88.2 to 176 lb*
Number of Doors: 4
Overall Length: 75 in*
Packaging Format: Box
Product #: 246TY707L19090
Product №: 246TY707L19090
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Wall Mount
Weight Capacity per Panel: 44.1 to 88.2 lb*
